Set Up Software (cont.)

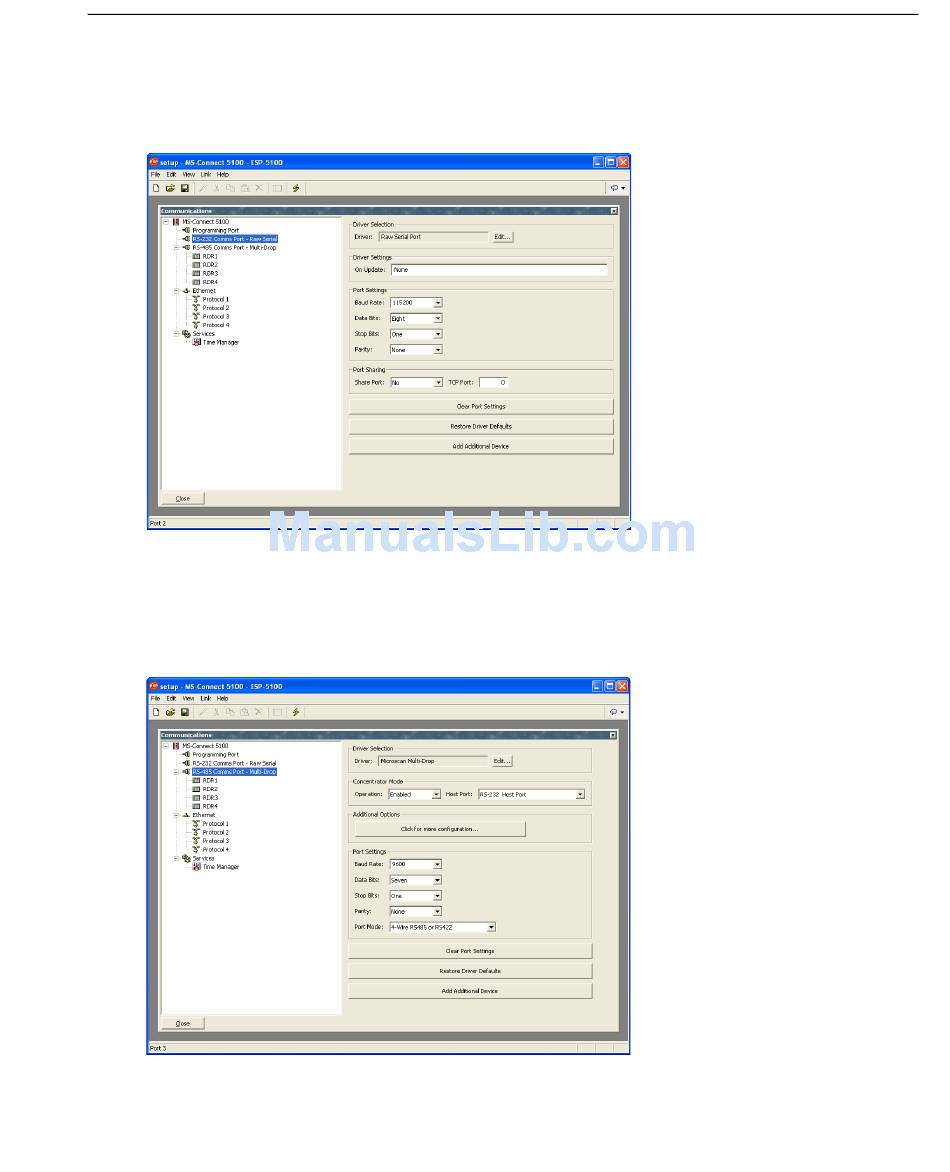

4. Set RS-232 Port Settings as required for communication between the host and the
MS-Connect 5100. Verify that Driver is set to Raw Serial Port.
5. Set RS-485 Port Settings to the required connection settings for communication
between the readers in the Multidrop network and the MS-Connect 5100.
Verify that Driver is set to Microscan Multidrop, Concentrator Mode is set to
Enabled, Host Port is set to RS-232 Host Port, and Port Mode is set correctly for the
current application.
MS-Connect 5100 User's Manual
Setup and Operation
1-11
