Set Up Software
Ethernet TCP/IP
Note: For an explanation of EtherNet/IP, see
You must adjust the Ethernet host port to send polled data in the proper format.
To adjust the Ethernet TCP/IP host port:
1
2
3
4
If you are using Active TCP/IP, enter the IP Address and TCP/IP Port of the host
before saving changes to the MS-Connect 5100.
If you are using Passive TCP/IP, enter the TCP port number where the host will
establish its connection.
1-16
EtherNet/IP Overview

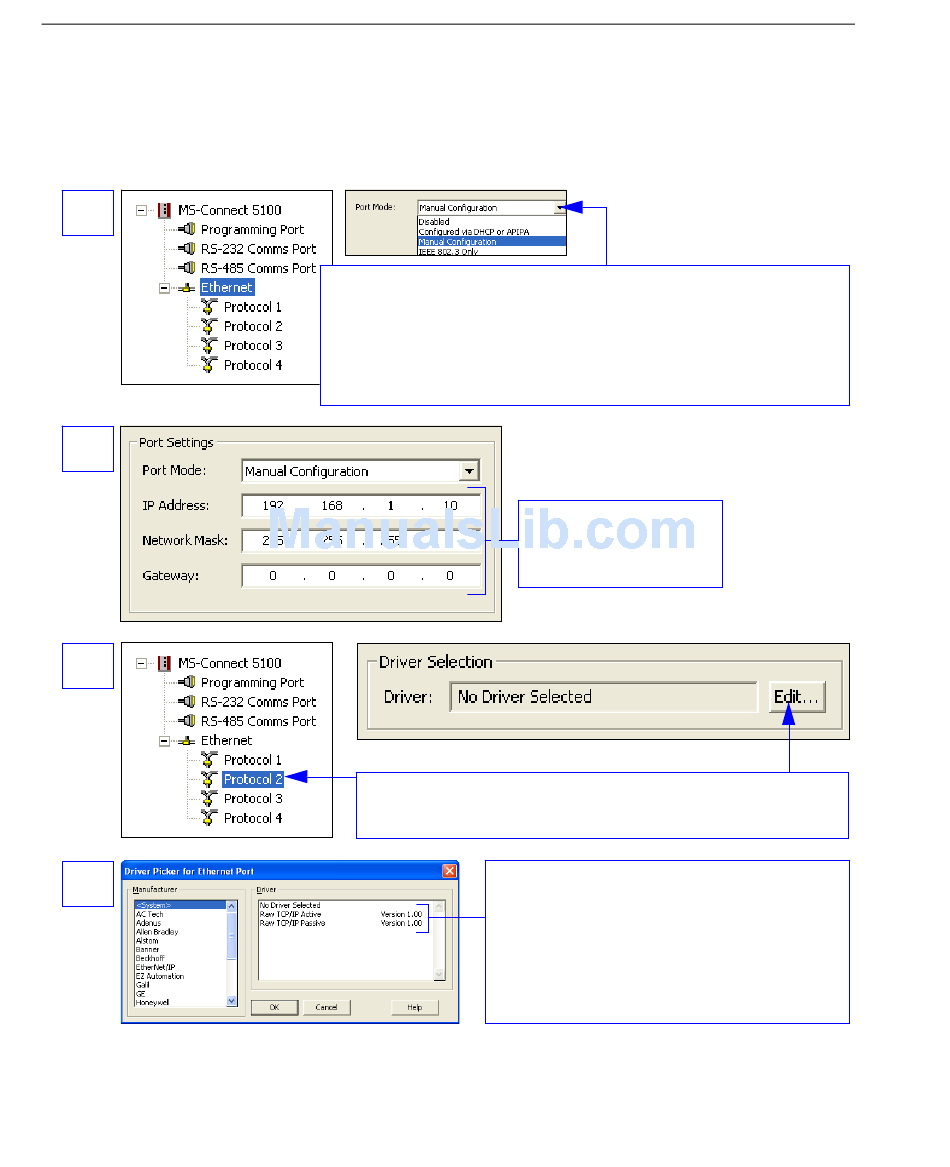

Select Ethernet in the tree control and then select Port Mode.
Manual Configuration: Port settings are manually configured
as shown below.
DHCP or APIPA: Port settings are configured automatically.
Identify the MS-Connect 5100 by the MAC address.
Then select one of the Protocol options and click the
Edit button when the Driver Selection dialog appears.
Select Raw TCP/IP Active or Raw TCP/IP
Passive to determine how the connection
is established.
Note: In Active, the MS-Connect 5100
establishes a connection with the host,
and in Passive, the host establishes the
connection.
in Chapter 2,
Enter the IP Address,
Network Mask, and
Gateway Address.
MS-Connect 5100 User's Manual
Using ESP.
