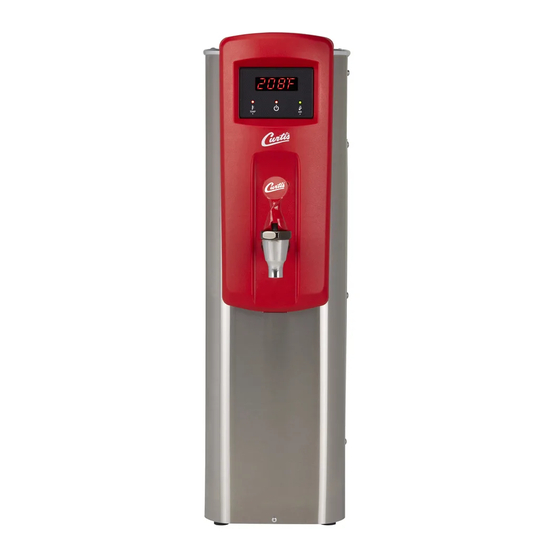

Curtis WB5N User Manual
Wb5n series 5 gallon water boiler
Hide thumbs
Also See for WB5N:
- Service manual (10 pages) ,
- Service manual (10 pages) ,
- User manual (27 pages)
Subscribe to Our Youtube Channel
Related Manuals for Curtis WB5N
Summary of Contents for Curtis WB5N
-

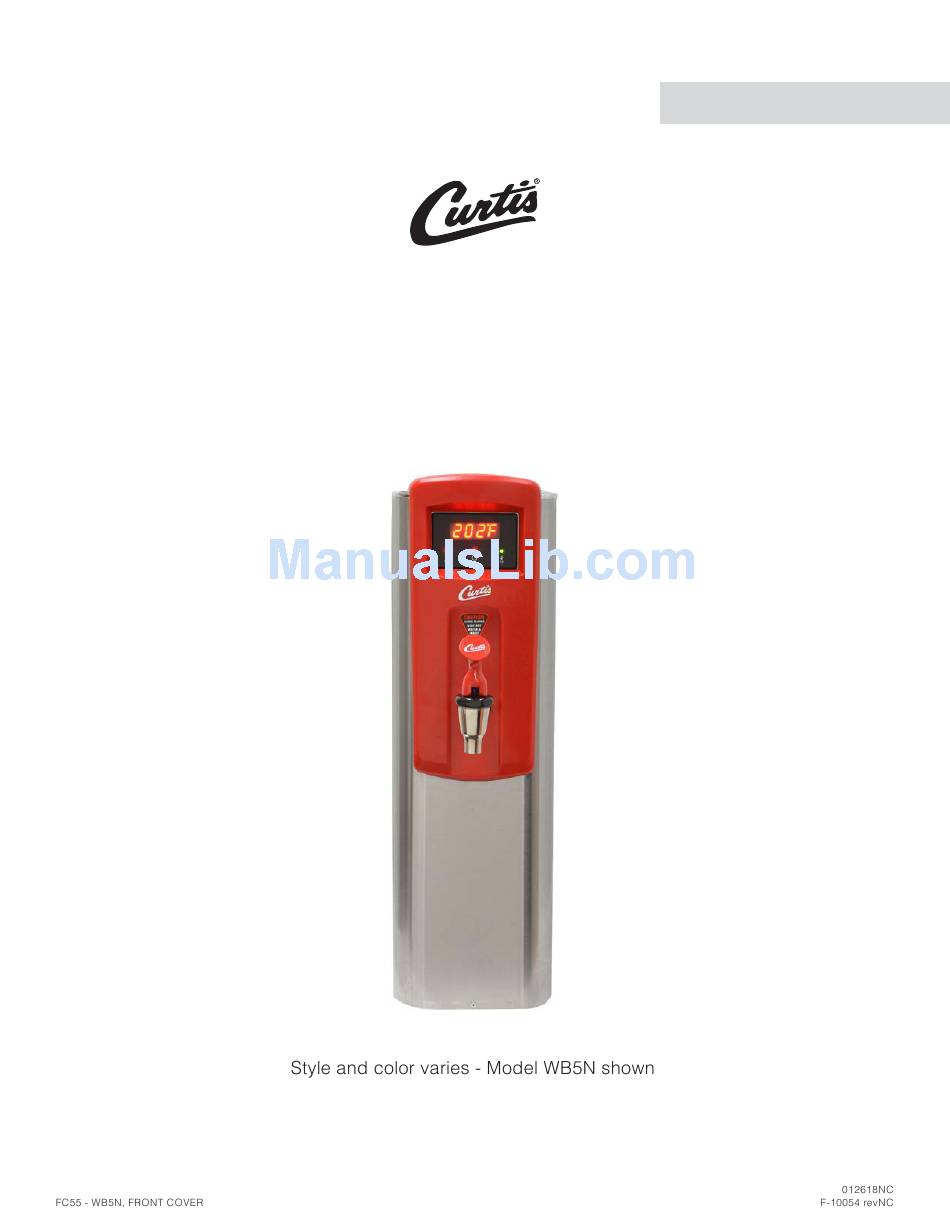

Page 1: User Guide
USER GUIDE WB5N Series 5 Gallon Water Boiler READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine. -
Page 2: Table Of Contents
..........................................................................................ES97 ..........................ES99 ............................................................EC9 ..............................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com... -
Page 3: Fs55
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS55 Key Features • G3 Digital Control Module – Provides precise control of temperature. • • Easy-To-Operate – Simple graphics for all operating functions and ready lights. • Energy Savings Mode – 4 hours after last dispense, tank will maintain temperature of 140°. •... -
Page 4: Is2
INSTRUCTIONS could result in personal injury or void the warranty. • This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • • • • This appliance must not be cleaned by water jet. • instruction concerning use of the appliance in a safe way and if they understand the hazards involved. •...
-
Page 6: Ii20
INSTALLATION INSTRUCTIONS II20 WARNING: WARNING: properly grounded. NOTICE: SPECIFICATIONS section. IMPORTANT: Installation Instructions Installation Requirements • A secure surface capable of supporting the weight of the appliance. • For units without an attached cord set: Appropriately sized, UL listed, grounding type power cable to meet enough •... -
Page 7: Ii27
INSTALLATION INSTRUCTIONS II27 Installation NOTICE: Before proceeding, make sure that the counter is capable of supporting at least 81 lbs. (37 kg) to allow for the water boiler at full capacity. Leveling WARNING: Use the leveling legs to level the unit only. - Page 8 INSTALLATION INSTRUCTIONS II27 Connecting the Power Plug (units with pre-installed power cord that with be plugged into a power receptacle) 10 Connect the appropriate type of grounded power plug to the end of the power cord coming from the back of the unit.
-
Page 9: Oi40
Press the AERATION (AIR) button to manually pump air through the water in the heating tank any Control Panel - WB5GT Series time you want. The aerator pump will run as long as you hold down the button. READY Control Panel - WB5N Series... - Page 10 TEMP ON/OFF AERATION Control Panel - WB5GT Series Control Panel - WB5N Series Programming Options Temperature (default is 204° F/96° C) Press the TEMP button for one second to check the control panel water temperature setting. To change the temperature setting, press the TEMP button for three seconds, then release, to enter temperature ) or the right ) to lower or raise the temperature.
- Page 11 CLEANING INSTRUCTIONS CI16 WARNING: HOT SURFACES - To avoid injury, allow the unit to cool 30 minutes before cleaning. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. USE OF THESE PRODUCTS WILL VOID THE WARRANTY.
- Page 12 13. 63 i n [ 34. 6 cm ] 3. 51 i n [ 8. 9 cm ] 19. 99 i n 0. 85 i n [ 50. 8 cm ] [ 2. 2 cm ] WB5N, ROUGH-IN DRAWING 122117NC...
- Page 13 3. 51 i n 9. 04 i n [ 8. 9 cm ] [ 23. 0 cm ] 19. 99 i n 0. 85 i n [ 50. 8 cm ] [ 2. 2 cm ] WB5N, ROUGH-IN DRAWING 011518NC...
- Page 14 ILLUSTRATED PARTS/RECOMMENDED PARTS IP102 WB5N[L] - Main Chassis - Exploded View WB5N[B] Series WB5NL[B] Series Water tanks assemblies: See section IP103 WB5N, ILLUSTRATED PARTS/RECOMMENDED PARTS 013118NC...
- Page 15 LABEL, MUCM OVRLAY CONTROL PAN EL WC-390034 WB5N WC-13046-101 1,2,3,4 HARNESS, ASSY 3PH WB5GT19 WC-13048 5 HARNESS, ASSY WB5GT30 1 WB5N, 2 WB5NL, 3 WB5NB, 4 WB5NLB, 5 WB5N30 Recommended Parts to Stock ITEM # PART # DESCRIPTION ITEM # PART #...
- Page 16 KIT, FITTING TANK OVERFLOW WC-43067 O-RING, 4-1/2” I.D. X Ø.285 SILICONE TANK LID KIT, STRAIGHT PLASTIC FITTING AND BUSHING WC-37357 WC-5527-101K KIT, PROBE, WATER LEVEL WB5N 12MM KIT, ELEMENT HEATING 2.5KW 220V W/JAM NUT & WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522) WC-934-04...
-
Page 17: Es97
ELECTRICAL SCHEMATICS ES97 WB5GT63000/WB5N Series - Dual Voltage UC M Pi n A ssi gnm ent s 16 Pi n C onnect or UC M G RO UN D W AT ER LEVEL PRO BE N O T USED N O T USED... -
Page 18: Es99
ELECTRICAL SCHEMATICS ES99 WB5GT/WB5N - Export UC M Pi n A ssi gnm ent s 16 Pi n C onnect or UC M G RO UN D W AT ER LEVEL PRO BE N O T USED N O T USED... - Page 19 TROUBLESHOOTING GUIDE TG32 WARNING: Electric Shock Hazard - Scald and Burn Hazard - IMPORTANT: always Valve Test Procedure Troubleshooting Guidelines If an error message appears on the display, consult the ERROR CODES • • • Use this troubleshooting guide along with the appropriate ELECTRICAL SCHEMATIC. •...
- Page 20 TROUBLESHOOTING GUIDE TG32 Sensor Error Message (ERR1) Water Level Error Message (ERR2) ERROR CODES Water Tank Water Does Not Heat At All Tank Does Not Fill • If the water heats, but is not hot enough, see Water Not Hot Enough •...
- Page 21 TROUBLESHOOTING GUIDE TG32 Water Too Hot (Boiling or Excessive Steaming) IMPORTANT: Aeration (Air) Does Not Work Water Tank Does Not Fill IMPORTANT: WB5, TROUBLESHOOTING GUIDE 010518NC...
-
Page 22: Ec9
ERROR CODES System Fault Messages An error message will appear on the screen in the event of a malfunction under the following conditions: ERROR MESSAGE WARNING DESCRIPTION CAUSE ERR1 ERR2 WB5, ERROR CODES 010518NC... - Page 23 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
