MODELS INCLUDED
• WB-14-12
CAUTION: Please use
this setup procedure
before attempting to use
this brewer. Failure to follow the
instructions can result in injury or the
voiding of the warranty.
CAUTION: DO NOT
connect this unit to hot
water. The inlet valve is
not rated for hot water.
WARNING: DO NOT
place this water boiler
closer than six [6] inches
from wall. Unit must have
adequate cross-ventilation.
WARNING HOT LIQUID,
Scalding may occur.
Avoid splashing.
C
ISO 9001 REGISTERED
WILBUR CURTIS COMPANY
Montebello, CA 90640
W
ILBUR

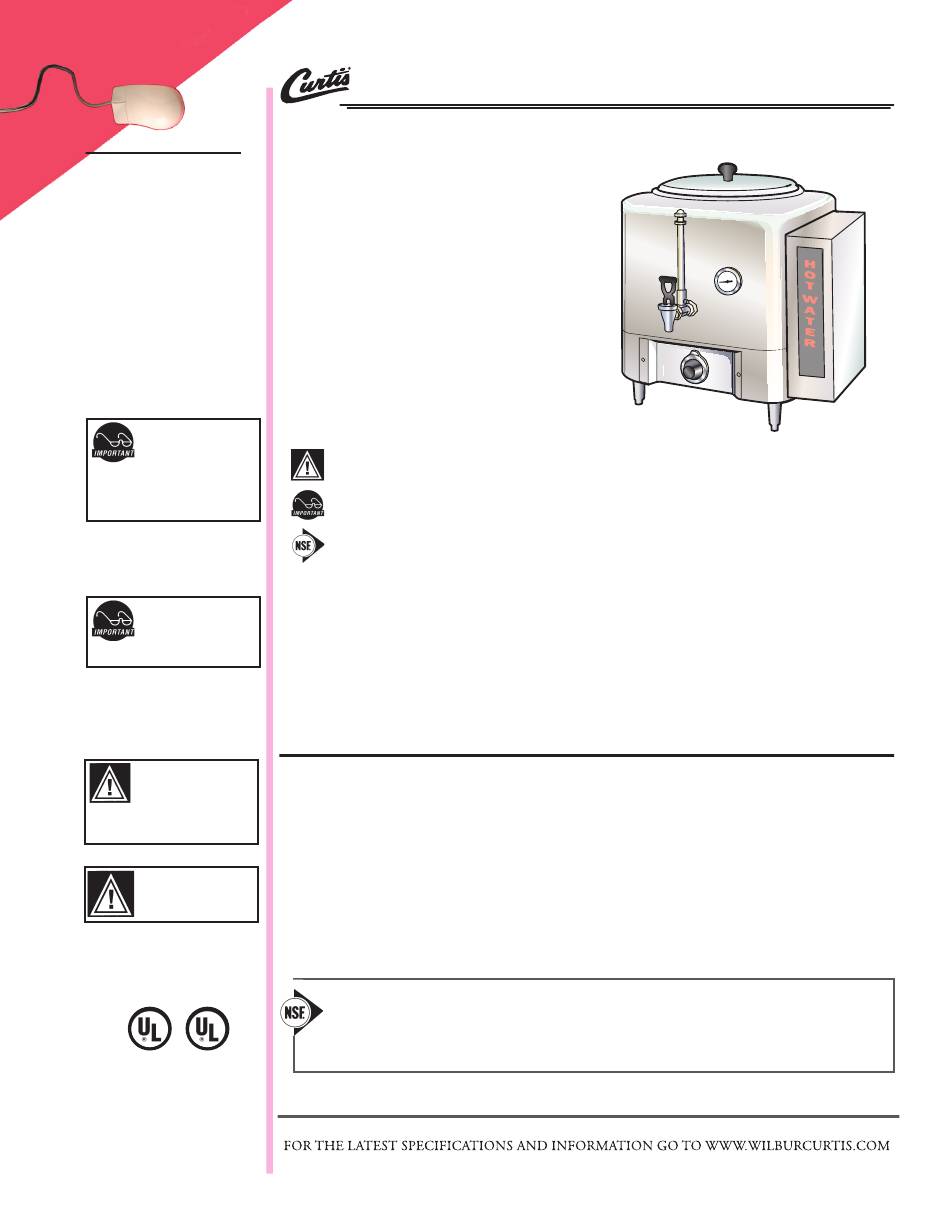

Water Boiler, 14 Gallon – Instructions
Important Safeguards/Conventions
This appliance is designed for commercial use. Any
servicing other than cleaning and maintenance should be
performed by an authorized Wilbur Curtis service center.
• To reduce the risk of fire or electric shock, do NOT
open side or bottom panel. No user serviceable parts
inside.
Repair should be performed only by authorized
service personnel.
• Keep hands and other items away from hot parts of
unit during operation.
• Never clean with scouring powders, bleach or harsh
implements.
Conventions
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
The Curtis Water Boiler is Factory Pre-Set and Ready to Go... Right from the Carton.
Factory Settings:
• Water Temperature = 200°F
System Requirements
• Water Source: 20 – 100PSI (Min Flow Rate of 1 GPM)
Equipment to be installed to comply with applicable federal, state, or local plumbing/electrical codes having jurisdiction.
SETUP STEPS
1. Place unit at counter height. on a firm, level base, in such a way that it can be connected to water and power supply.
2. Install the supplied water faucet on the faucet shank in front of the unit.
3. Connect water line to inlet fitting on valve. It is recommended that some type of water mineral reducing filter be used
in the water line before entering the unit. Water pressure entering boiler is must be stable and provide minimum of
1 gallon per minute. Use water regulator for constant pressure. Required water pressures, 20 to 100 psi. Turn on
water valve.
5. Hook-up power to the unit (refer to schematic for power requirements).
6. Turn on the circuit running power to unit. The water inlet valve will open, filling the unit. When the boiler has filled,
turn on boiler at the thermostat, twisting the knob clockwise.
7. Heating tank will require 50 to 60 minutes to attain operating temperature. Thermostat indicator will light at this time.
The National Sanitation Foundation requires the following water connection:
1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) so that the machine can be
moved for cleaning underneath.
2. In some areas an approved backflow prevention device may be required between the boiler and the water
supply.
C C
URTIS OMPANY
• Volume = 14 Gallons
• Electrical: See attached schematic for standard
model or visit www.wilburcurtis.com for your model.
