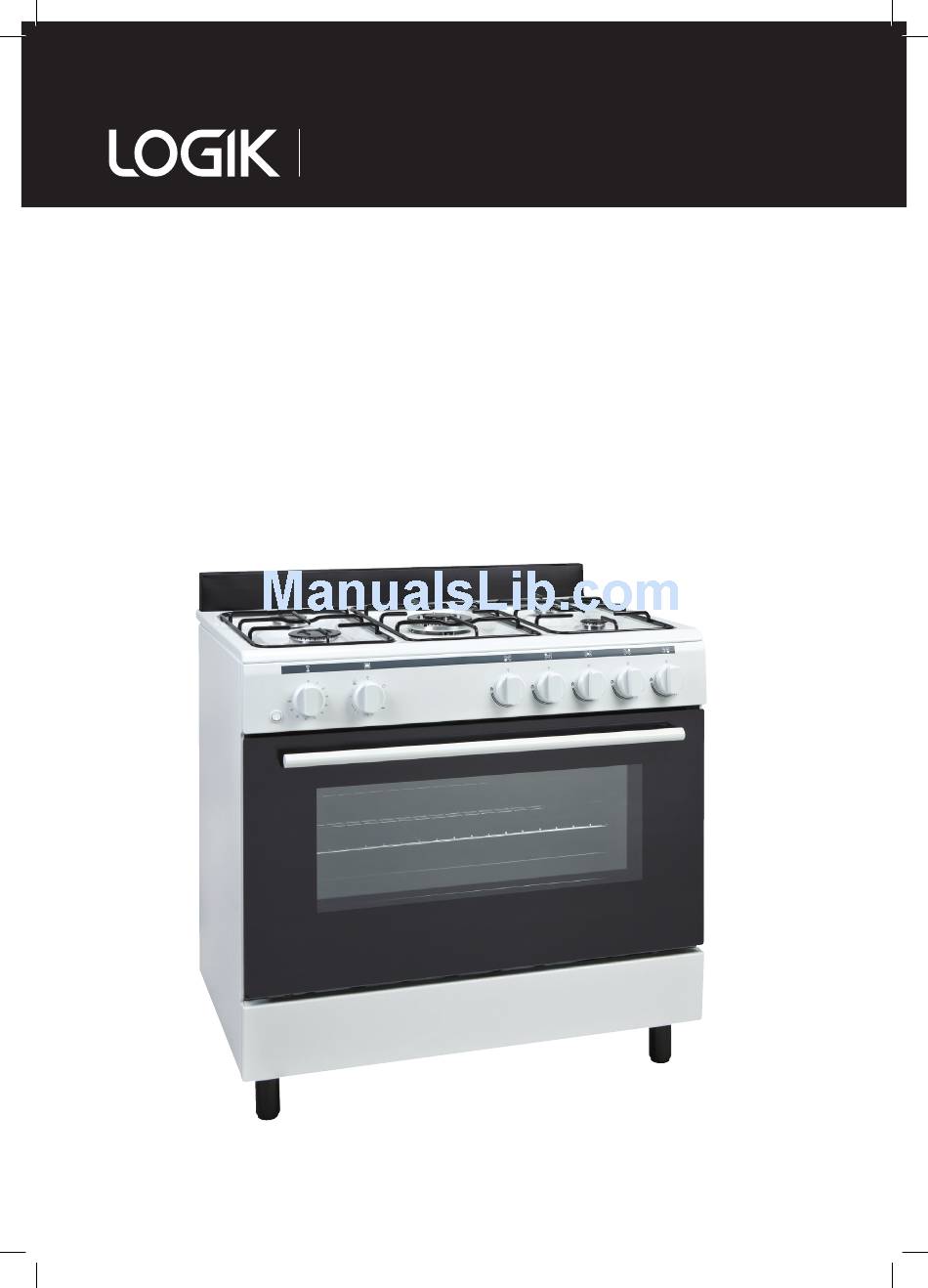

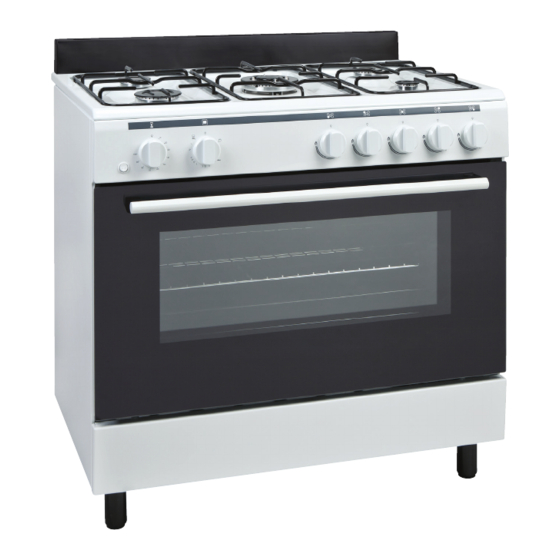

- Page 1 Instruction Manual 90cm Dual Fuel Range Cooker LFTG90W14 LFTG90W14_IB.indd 1 09/02/2015 17:51...
-
Page 2: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 7 Product Overview ......................... 8 The Hob ..................................8 Control Panel ................................8 Oven ....................................9 Before Using the Hob ......................... 10 Lighting the Hob ......................... 10 Flame Failure Safety Feature ..................... 11 If the Burner Does Not Light ...................... 11 If the Flame is Irregular ...................... - Page 3 Ventilation Requirements ......................28 Gas Installation ........................... 28 Installation and Service Regulations ..................28 Gas Connection ........................... 29 Installation Relevant to Natural Gas ....................... 29 Installation Relevant to Liquid Petroleum Gas (LPG) ................29 To Connect the Gas Supply ..........................29 Replacement of Burner Injectors ....................
-
Page 4: Safety Warnings
Safety Warnings IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE • This appliance must be installed by a qualified Gas Safe registered engineer. The manufacturer is not responsible for any damage caused by incorrect installation. • Check whether there is any damage to the appliance after you have unpacked it. - Page 5 • Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and...
- Page 6 • Take care when handling parts with glass, knocks, chips, heavy handling and dropping could cause the glass to shatter. • The glass doors use toughened glass and are designed to break into many ‘nugget’ size pieces if it breaks. These pieces will still have sharp edges, please handle broken glass with care.
-
Page 7: Unpacking
Thank you on the purchase of your new Logik Dual Fuel Range Cooker. You must read this manual in order to fully understand how to operate it correctly. This unit MUST be installed by a competent and registered engineer (Gas Safe in the UK). -
Page 8: Product Overview
Product Overview The Hob Standard Burner (75 mm) Large Burner (100 mm) Small Burner (55 mm) Multi Ring Burner (middle 60mm, outer 130mm) Control Panel Oven Timer Control Back Left Hob Control Oven Functions Control Multi Ring Hob Control Oven Temperature Control Back Right Hob Control Front Left Hob Control Front Right Hob Control... -
Page 9: Oven
Oven Splash Back Adjustable Feet Oven Door Handle Oven Light Oven Door Oven Shelves Storage Flap Deep Baking Pan Shelf The inside surface of storage compartment may be hot during use. Care should be taken to avoid touching inside surfaces. LFTG90W14_IB.indd 9 09/02/2015 17:51... -
Page 10: Before Using The Hob
Before Using the Hob Before using your new hob, please: • Read this manual fully taking special note of the ‘Safety Warnings’ section. • Make sure the cooker is connected to the mains supply so that the ignition circuit will work. This appliance is for cooking purposes only. -
Page 11: Flame Failure Safety Feature
Flame Failure Safety Feature The flame supervision device (FSD) probe cuts off the gas supply to the burner within one minute if the flame is extinguished. Gas will flow out of the burner until the FSD cools down and activates, so you may notice the smell of gas, this is normal. -
Page 12: Cookware Guidelines
Cookware Guidelines To get the best out of your hob, follow these simple suggestions: • Use saucepans with thick flat bottoms. Food in a saucepan with an uneven bottom will take longer to cook. • Do not use large saucepans or frying pans that overlap the edges of your hob as this can deflect heat onto your worktop and damage the surface, and may also cause a hazard. -
Page 13: Oven Control
Oven Control Either a cooking time has to be set or the timer has to be set to ‘M’ (manual) before your oven will operate. The oven will turn off when the timer reaches ‘O’ . The ovens thermostat light will switch on if the temperature is below the selected temperature on the dial, when you select any function other than the Oven Light function. - Page 14 Fan Function The oven’s light will turn on and the upper and lower elements and the fan will switch on. This function is very good for obtaining results in baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan providing air circulation, which will give a slight grill effect to the food.
-
Page 15: Using The Oven
Using the Oven First Time Use of the Oven Ensure that nothing has been left in the oven and that the room is well ventilated. Remove any insert cards or plastic bags. Before connecting the power, use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using. -
Page 16: Preheating
Preheating When you need to preheat the oven, we recommend you do so for 10 minutes. For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the oven first, unless the cooking instructions advise you otherwise. -
Page 17: Cooking With The Grill
Cooking with the Grill Before using the grill for the first time, switch the grill on for 15 ~ 20 minutes. Ensure that the room is well ventilated as there may be a little smoke and odour upon initial start up (for about 10 mins). This is normal. It is due to the protective substance on the heating elements which protects the cooker from the effects of corrosion during shipping from the factory. - Page 18 Using the handle, insert the grill pan and rack onto the shelf. Make sure you leave at least 30mm of space between the top of the food and the grill element. You can position the grill pan anywhere on the oven shelf. The food to be cooked must be placed on the grill rack in the grill pan.
-
Page 19: Using The Storage Compartment
Using the Storage Compartment Your oven has a convenient storage compartment for you to store your grill tray, shelves, small pots and pans. The compartment may become hot so do not store any food in this compartment. • The inside surface of storage compartment may be hot during use. Care should be taken to avoid touching inside surfaces. -
Page 20: Cleaning And Maintenance
Cleaning and Maintenance Steam Cleaners must not be used to clean this product. To avoid shock hazard, always disconnect the hob from the electrical supply. Cooking Part Cleaning Important Trivets/pan supports, • Hot soapy water and nylon scourer. • Always allow hob parts to cool burner caps and enamel completely before cleaning them. -
Page 21: Burner Parts And Pan Supports
Burner Parts and Pan Supports You can remove and clean these parts with hot soapy water or non-abrasive detergents. Clean spills regularly before they become burnt on. Do not wash these parts in a dishwasher. After cleaning, check that the burner rings and burner caps are dry before replacing correctly. It is very important to check that the burner rings and burner caps have been correctly positioned. -
Page 22: Cleaning Instructions
Cleaning Instructions Before you start cleaning your cooker, please: • Read the cleaning instructions and the ‘Safety Warnings’ sections. • Turn the cooker off at the mains socket. • Allow the cooker to completely cool down before cleaning. • Do not use a steam cleaner. •... -
Page 23: Cleaning The Inside Of Your Cooker
Cleaning the Inside of Your Cooker • Do not use abrasive cleaners, cloths or pads to clean the enamel. • Clean the enamel on the inside of the cooker when it has cooled down, using household detergents or an ammonia-based cleaner. You may use an ‘off the shelf’ oven cleaner, if you carefully follow the manufacturers’ instructions. -
Page 24: Hints And Tips
Hints and Tips Problem Possible Solutions My burner does not • Check the electricity is switched on. light • Check the gas supply valve is turned on and the gas supply to the house is working. You should hear the gas when you turn a burner on. •... -
Page 25: Replacing The Oven Lamp
Replacing the Oven Lamp Let the oven cavity cool down. Ensure that the cooker is switched off at the mains before replacing the lamp to avoid the possibility of an electric shock. • Remove the protective cover. Oven Lamp • Unscrew and replace the bulb with a new one suitable for high temperatures (300°C). -
Page 26: Installation
Installation • The cooker must be installed by a competent and Gas Safe Registered Engineer (in the UK) and in compliance with local safety and building regulation safety standards. • The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room in accordance with the latest editions of BS6172, BS5440-2 and BS6891, but not in a room containing a bath or shower. -
Page 27: Adjusting The Feet
Adjusting the Feet Using the fitted adjustable feet is MANDATORY. For safety reasons and to ensure adequate ventilation, the cooker chassis MUST NOT sit directly on the floor, a plinth, or other support surface. Your appliance must be level before use. The cooker has 4 levelling feet which can be adjusted by hand. Turn the feet anti-clockwise to lower the level or clockwise to raise the level as shown below. -
Page 28: Ventilation Requirements
Ventilation Requirements This appliance is not connected to a combustion products evacuation device. It should be installed and connected in accordance with current installation regulations. Particular attention should be given to the relevant requirements regarding ventilation. The appliance should be installed in a room or space with an air supply in accordance with the latest edition of BS5440-2. -
Page 29: Gas Connection
Gas Connection • Only a suitably qualified and Gas Safe Registered Engineer may convert the appliance to a different gas type. • When using Butane (G30) gas a supply pressure of 28 -30 mbar is required. • When using Propane (G31) gas a supply pressure of 37 mbar is required. •... -
Page 30: Replacement Of Burner Injectors
Replacement of Burner Injectors Only a suitably qualified and Gas Safe Registered Engineer may change the Hob Injectors. It is illegal to attempt to change the Hob Injectors yourself. Select the injectors to be replaced according to the “Injector Size Table”. To Replace the Hob Injectors •... -
Page 31: Injector Size Table
Injector Size Table Natural Gas Burner Injector Values According To The Gas Type. G 30/31 G 20 Destination: GB Gas Category II 2H3+ 28-30/37 mBar 20 mBar Injector 0.850 1.150 Gas Flow Large Burner (Fast) 210.90 gr/h 276.20 lt/h (15°C and 1013mbar) Power 2.90 2.90... -
Page 32: Electrical Connection
Electrical Connection The following installation procedure must be carried out by a competent person. If in doubt consult a qualified electrician. The electrical installation must comply with the IEE Regulations, Building & local By-Laws. The cooker must be connected to the mains supply via a full disconnection switch, with a contact separation of at least 3mm in all poles, correctly fused with a capacity appropriate to that shown on the cooker Rating Plate and incorporated in the fixed wiring in accordance with the latest wiring regulations. -
Page 33: Energy Saving Tips And Energy Label
Energy Saving Tips and Energy Label Main Oven • Cook the meals together, if possible. • Keep the pre-heating time short. • Do not elongate cooking time. • Do not forget to turn off the oven at the end of cooking. •... -
Page 34: Product Fiche And Specifications
Product Fiche and Specifications Brand Logik Model LFTG90W14 Type of Oven Electric Mass 62 Kg Energy Efficiency Index - Conventional 119.1 Energy Efficiency Index - Fan Forced 105,6 Energy Class Energy Consumption (electricity) - Conventional 1.15 kWh/cycle Energy Consumption (electricity) - Fan Forced 1.02 kWh/cycle... - Page 35 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. DSG Retail Limited (Registered in England No. 504877) Maylands Avenue, Hemel Hempstead, Hertfordshire HP2 7TG. UK IB-LFTG90W14-150209V1 LFTG90W14_IB.indd 35 09/02/2015 17:51...
