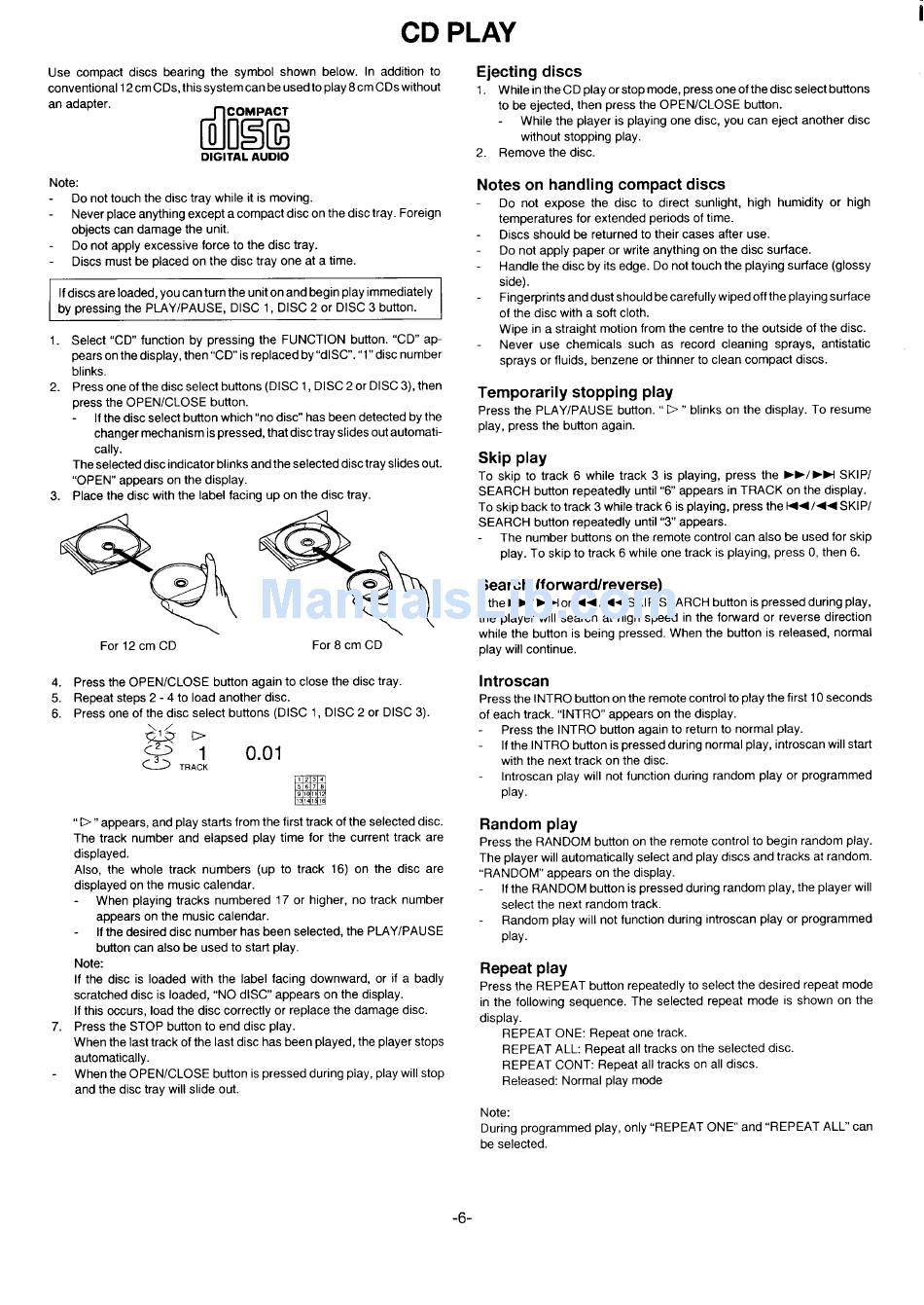

CD PLAY
Use compact
discs bearing the symbol
shown below.
In addition
to
conventional
12 cm CDs, this system can be used to play 8 cm CDs without
an adapter.
drEE
DIGITAL AUDIO
Note:
Do not touch the disc tray while it is moving.
Never place anything except a compact disc on the disc tray. Foreign
objects can damage the unit.
Do not apply excessive force to the disc tray.
Discs must be placed on the disc tray one at a time.
If discs are loaded, you can turn the unit on and begin play immediately
by pressing the PLAY/PAUSE,
DISC 1, DISC 2 or DISC 3 button.
1.
2.
3
Select "CD function by pressing the FUNCTION
button. "CD" ap-
pears on the display, then "CD is replaced by "dlSC."1"
disc number
blinks.
Press one of the disc select buttons (DISC 1, DISC 2 or DISC 3), then
press the OPEN/CLOSE
button.
If the disc select button which "no disc" has been detected by the
changer mechanism is pressed, that disc tray slides out automati-
cally.
The selected disc indicator blinks and the selected disc tray slides out.
"OPEN
appears on the display.
Place the disc with the label facing upon the disc tray.
For 12 cm CD
For 8 cm CD
4.
5.
6.
7.
Press the OPEN/CLOSE
button again to close the disc tray.
Repeat steps 2-4
to load another disc.
Press one of the disc select buttons (DISC 1, DISC 2 or DISC 3).
M
,234
5678
9$ ill
1,11
"D"
appears, and play starts from the first track of the selected disc.
The track number and elapsed play time for the current track are
displayed.
Also, the whole track numbers
(up to track 16) on the disc are
displayed on the music calendar.
-
When playing tracks numbered
17 or higher, no track number
appears on the music calendar.
If the desired disc number has been selected, the PLAY/PAUSE
button can also be used to start play.
Note:
If the disc is loaded with the label facing downward,
or if a badly
scratched disc is loaded, "NO dlSC
appears on the display.
If this occurs, load the disc correctly or replace the damage disc.
Press the STOP button to end disc play.
When the last track of the last disc has been played, the player stops
automatically.
When the OPEN/CLOSE
button is pressed during play, play will stop
and the disc tray will slide out.
Ejecting discs
1.
While in the CD play or stop mode, press one of the disc select buttons
to be ejected, then press the OPEN/CLOSE
button.
While the player is playing one disc, you can eject another disc
without stopping play.
2.
Remove the disc.
Notes on handling compact discs
Do not expose the disc to direct sunlight,
high humidity
or high
temperatures
for extended periods of time.
Discs should be returned to their cases after use.
Do not apply paper or write anything on the disc surface.
Handle the disc by its edge. Do not touch the playing surface (glossy
side).
Fingerprints and dust should be carefully wiped off the playing surface
of the disc with a soft cloth.
Wipe in a straight motion from the centre to the outside of the disc.
Never use chemicals
such as record cleaning
sprays, antistatic
sprays or fluids, benzene or thinner to clean compact discs.
Temporarily
stopping play
Press the PLAY/PAUSE
button. "D"
blinks on the display. To resume
play, press the button again.
Skip play
To skip to track 6 while track 3 is playing, press the F>/
M SKIP/
SEARCH button repeatedly
until"6
appears in TRACK on the display.
To skip back to track 3 while track 6 is playing, press the M+ /44
SKIP/
SEARCH button repeatedly
until"3
appears.
The number buttons on the remote control can also be used for skip
play. To skip to track 6 while one track is playing, press O, then 6.
Search (forward/reverse)
If the
F/
H or 14< /+<
SKIP/SEARCH
button is pressed during play,
the player will search at high speed in the forward or reverse direction
while the button is being pressed. When the button is released, normal
play will continue.
Introscan
Press the INTRO button on the remote control to play the first 10 seconds
of each track. "INTRO" appears on the display.
Press the INTRO button again to return to normal play.
If the INTRO button is pressed during normal play, introscan will start
with the next track on the disc.
Introscan play will not function during random play or programmed
play.
Random play
Press the RANDOM button on the remote control to begin random play.
The player will automatically
select and play discs and tracks at random.
"RANDOM"
appears on the display.
If the RANDOM button is pressed during random play, the player will
select the next random track.
Random play will not function during introscan play or programmed
play.
Repeat play
Press the REPEAT button repeatedly to select the desired repeat mode
in the following
sequence.
The selected repeat mode is shown on the
display.
REPEAT ONE: Repeat one track.
REPEAT ALL Repeat all tracks on the selected disc.
REPEAT CONT: Repeat all tracks on all discs.
Released: Normal play mode
Note:
During programmed
play, only "REPEAT ONE' and "REPEAT ALL" can
be selected.
-6-
