Gree GUHD18ND3FO Service Manual page 144

U-Match Series DC Inverter Service Manual

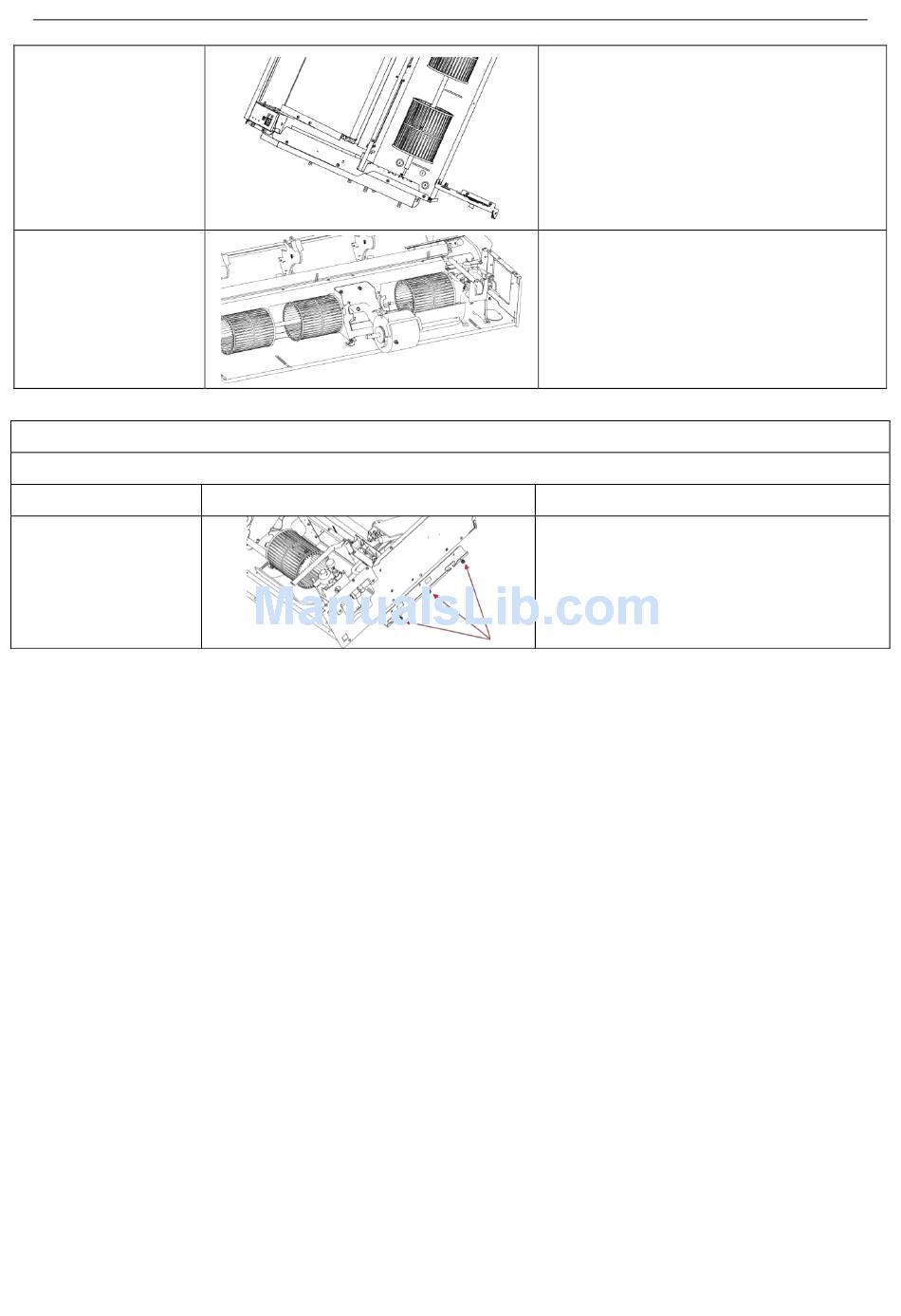

2. Disassembly of
bearing fixing plates
3. Disassembly of motor
Disassembly of right and left fixing plates
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during disassembly.
Step
Disassembly of right and
left fixing plates
Illustration
141
Unscrew the 3 screws and 2 nuts of support to
remove the mounting support
Loosen the 2 screws of the motor attaching
clamp, remove the motor attaching clamp and
motor attaching clamp subassembly to remove
the motor.
Handling Instruction
Disassemble the bolts on right and left fixing
plates with tools. (As is shown by the arrow in the
graph.)
