Basic Connections
Please refer to the instruction books of your TV,
VCR, Stereo System or other devices as
necessary to make the best connections.

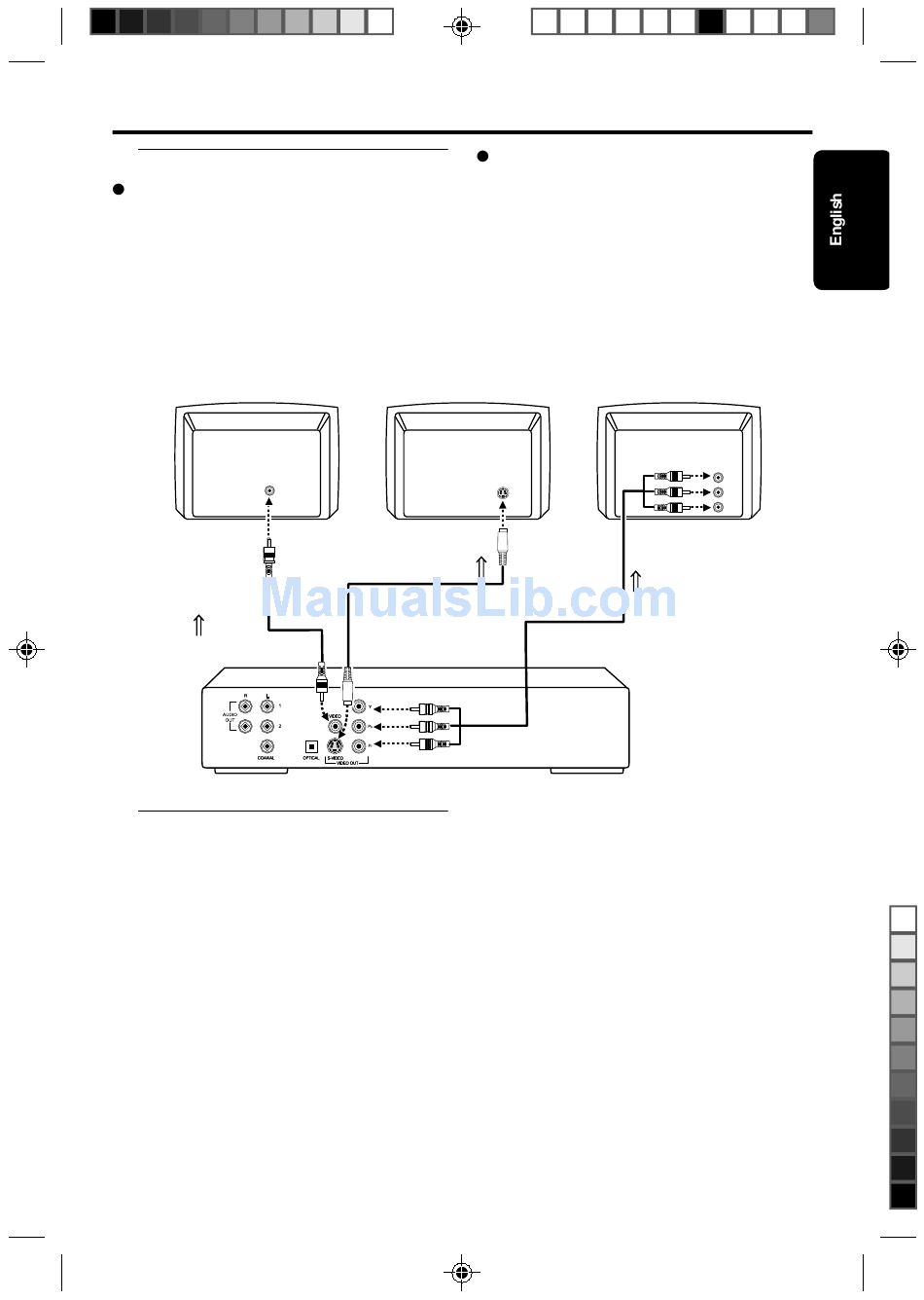

Video Connections
OPTION A
(NORMAL)
TV
VIDEO IN
TO VIDEO IN

Connecting to a TV

If your TV has a CVBS Video input
connector,
0
Connect the CVBS VIDEO OUT on the DVD
player to the CVBS VIDEO IN (cable supplied).
If your TV has a S-Video input connector,
0
Connect the S-Video OUT on the DVD player to
the S-Video IN (not supplied).
If your TV has a Component video
(Y/P
/P
)input connector,
B
R
0
Connect the Y/PB/PR VIDEO OUT on the DVD
player to the corresponding connector on the TV
using the component video cable (not supplied).
DVD 724K/781 English
"
OPTION B
(GOOD)
TV
OR
TO S-VIDEO IN
9
«

Preparation

Make one of the following connections,
depending on the capabilities of your existing
equipment.
The following guidelines are options for the best
picture and sound quality available on your DVD
player.
OPTION C
(BEST)
TV
S-VIDEO IN
OR
TO VIDEO IN
DVD
PLAYER
Caution: Component video and S-video
can not work at the same time, so you
have to set one of them to be active by the
such way as shown on the chapter [Video
output].
Warning!
– Never make or change connections with
the power switched on.
– Connect the DVD player directly to your
TV, instead of eg. a VCR, to avoid
distortion because DVD video discs are
copy protected.
– Do not connect the DVD player AUDIO
OUT to PHONO IN of your player.
