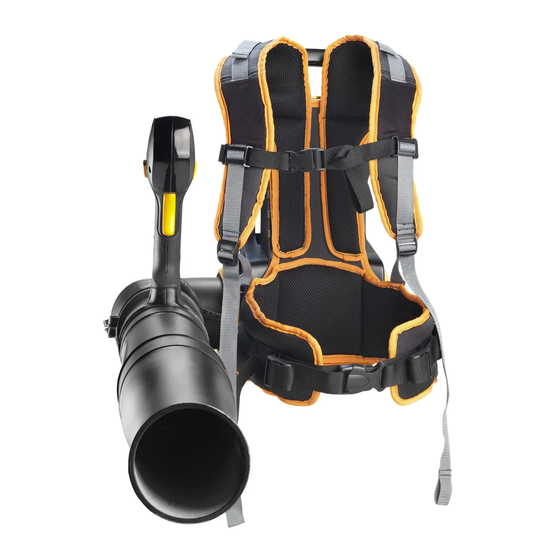

  • Page 1 Li 58GBP Operator's manual 2-14 BBP58VPR...

  • Page 2: Table Of Contents

    Contents INTRODUCTION............2 MAINTENANCE............11 SAFETY................3 TROUBLESHOOTING..........12 ASSEMBLY..............8 TECHNICAL DATA............13 OPERATION..............9 CONTENTS OF THE EC DECLARATION OF CONFORMITY..............14 INTRODUCTION Operator's manual Overview The initial language of this operator's manual is English. Operator's manuals in other languages are translations from English. 1.

  • Page 3: Safety

    Read this manual. Right hook Tube rotate Use approved hearing protection Electrical shock Use approved eye protection Guaranteed sound power level Use approved dust mask The product or packaging cannot be handled as domestic waste. The product and packaging must be submitted to an appropriate recycling station for the recovery Use approved protective boots and gloves of electrical and electronic equipment.

  • Page 4: General Power Tool Safety Warnings

    • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the CAUTION: Damage to the product. influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 5: General Safety Instructions

    • Keep cutting tools sharp and clean. Properly your dealer, service agent or approved service maintained cutting tools with sharp cutting edges are center for information. less likely to bind and are easier to control. • Remove the battery pack before you assemble the •...

  • Page 6: Personal Protective Equipment

    • Stop the motor before you assemble or disassemble • Always use approved eye protection while you the accessories or other components. operate the product. • Do not operate the product without the guard. • Do not operate the product with bare feet or with open shoes.
  • Page 7 3. Tighten the hip strap until you feel the weight of the • Do not disassemble, open or shred battery pack. product on your hip. • Do not keep battery packs in open sunlight or heat. Keep battery packs away from fire. •...

  • Page 8: Assembly

    ASSEMBLY 6. Attach the nozzle to the front tube until the tab goes into the hole. Make sure the tubes are locked WARNING: Read the safety chapter before together. you assemble the product. To assemble the blower tubes Note: Apply water-based lubricant on the end of the tubes to make assembly easier.

  • Page 9: Operation

    2. Remove the rear cover and lower cover to access 5. Replace the rear cover and lower cover. the fan housing assembly. 6. Replace the screws. 3. Remove the fan housing assembly. 4. Rotate the fan housing assembly 180° to put the blower tubes on the opposite side of the backpack.
  • Page 10 • Align the ribs of the battery pack with the slots in the 4. Use the product. battery compartment. Push the battery pack into the To stop the motor battery compartment until you hear a click. 1. Release the trigger. 2.

  • Page 11: Maintenance

    3. Disengage the digital cruise control to continue usual LED lights Battery status operation of the product. LED 1 and 2 The battery pack is 50% - 26% come on charged. Power meter LED 1 comes on The battery pack is 25% - 6% charged.

  • Page 12: Troubleshooting

    TROUBLESHOOTING Problem Possible cause Possible solution To start the motor on page 10 . The product The power is off. Start the power. See does not start To install the battery pack No electrical contact between Install the battery pack correctly. See on page 9 .

  • Page 13: Technical Data

    • If the battery pack is too hot, especially after operation, move the battery pack and battery charger away from the hot environment. TECHNICAL DATA unit Li 58GBP (BBP58VPR) Motor specifications Motor type Brushless Motor voltage V (DC)

  • Page 14: Contents Of The Ec Declaration Of Conformity

    Description Blower Brand McCulloch Platform / Type / Model Platform BBP58VPR, rep- resenting model Li 58GBP Batch Serial number dating 2017 and onwards complies fully with the following EU directives and regulations: Directive/Regulation Description 2006/42/EC “relating to machinery”...
  • Page 15 449 - 003 - 20.11.2017...
  • Page 16 Original instructions 115904526 Rev. C 2017-12-14...
