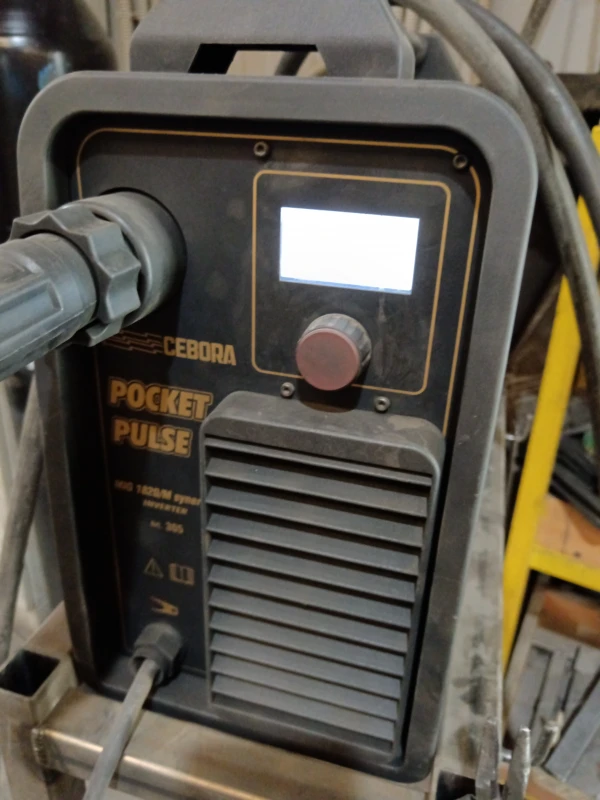

Cebora Pocket Pulse 1820/M Synergic Instruction Manual

Cebora Pocket Pulse 1820/M Synergic Instruction Manual

Wire welding machine

Advertisement

INSTRUCTION MANUAL FOR WIRE WELDING MACHINE

IMPORTANT: BEFORE STARTING THE EQUIPMENT, READ
THE CONTENTS OF THIS MANUAL, WHICH MUST BE
STORED IN A PLACE FAMILIAR TO ALL USERS FOR THE
ENTIRE OPERATIVE LIFE-SPAN OF THE MACHINE.
THIS EQUIPMENT MUST BE USED SOLELY FOR WELDING
OPERATIONS.
1 SAFETY PRECAUTIONS
WELDING AND ARC CUTTING CAN BE HARM-
FUL TO YOURSELF AND OTHERS. The user
must therefore be educated against the hazards, summarized
below, deriving from welding operations. For more detailed in-
formation, order the manual code 3.300.758
ELECTRIC AND MAGNETIC FIELDS - May be dangerous.
· Electric current following through any conduc-
tor causes localized Electric and Magnetic
Fields (EMF). Welding/cutting current creates
EMF fi elds around cables and power sources.
· The magnetic fi elds created by high currents
may affect the operation of pacemakers. Wearers of vital elec-
tronic equipment (pacemakers) shall consult their physician
before beginning any arc welding, cutting, gouging or spot
welding operations.
· Exposure to EMF fi elds in welding/cutting may have other
health effects which are now not known.
· All operators should use the followingprocedures in order to
minimize exposure to EMF fi elds from the welding/cutting cir-
cuit:
- Route the electrode and work cables together
- Secure them with tape when possible.
- Never coil the electrode/torch lead around your body.
- Do not place your body between the electrode/torch
lead and work cables. If the electrode/torch lead
cable is on your right side, the work cable should also
be on your right side.
- Connect the work cable to the workpiece as close as
possible to the area being welded/cut.
- Do not work next to welding/cutting power source.
EXPLOSIONS
· Do not weld in the vicinity of containers under pres-
sure, or in the presence of explosive dust, gases or
fumes. · All cylinders and pressure regulators used in
welding operations should be handled with care.
ELECTROMAGNETIC COMPATIBILITY.
This machine is manufactured in compliance with the instruc-
tions contained in the standard IEC 60974-10 (CL. A), and must
be used solely for professional purposes in an industrial envi-
ronment. There may be potential diffi culties in ensuring elec-
tromagnetic compatibility in non-industrial environments.
H.F FREQUENCY
• High frequency (H.F.) can interfere with radio
navigation, safety services, computers, and
communications equipment
• Have only qualifi ed persons familiar with
electronic equipment perform this installation.
• The user is responsible for having a qualifi ed electrician
10
promptly correct any interference problem resulting from
the installation.
• If notifi ed by the FCC about interference, stop using the
equipment at once.
• Have the installation regularly checked and maintained.
• Keep high-frequency source doors and panels tightly
shut, keep spark gaps at correct setting, and use ground-
ing and shielding to minimize the possibility of interference.
DISPOSAL OF ELECTRICAL AND ELECTRONIC
EQUIPMENT.
Do not dispose of electrical equipment together
with normal waste!In observance of European
Directive 2002/96/EC on Waste Electrical and Electron-
ic Equipment and its implementation in accordance with
national law, electrical equipment that has reached the
end of its life must be collected separately and returned
to an environmentally compatible recycling facility. As the
owner of the equipment, you should get information on
approved collection systems from our local representa-
tive. By applying this European Directive you will improve
the environment and human health!
IN CASE OF MALFUNCTIONS, REQUEST ASSISTANCE
FROM QUALIFIED PERSONNEL.
1.1 WARNING LABEL
The following numbered text corresponds to the label
numbered boxes.
B. Drive rolls can injure fi ngers.

Advertisement

Table of Contents
loading

Summary of Contents for Cebora Pocket Pulse 1820/M Synergic

  • Page 1: Instruction Manual For Wire Welding Machine

    INSTRUCTION MANUAL FOR WIRE WELDING MACHINE IMPORTANT: BEFORE STARTING THE EQUIPMENT, READ promptly correct any interference problem resulting from THE CONTENTS OF THIS MANUAL, WHICH MUST BE the installation. STORED IN A PLACE FAMILIAR TO ALL USERS FOR THE • If notifi ed by the FCC about interference, stop using the ENTIRE OPERATIVE LIFE-SPAN OF THE MACHINE.
  • Page 2: General Descriptions

    ity of the fuse (delayed type) to be used as a C. Welding wire and drive parts are at welding voltage dur- ing operation — keep hands and metal objects away. protection for the equipment. Protection rating for the housing. Grade 3 IP23S Electric shock from welding electrode or wiring can kill.
  • Page 3 B - KNOB lower down, nearest to the earth lead exit. Selects and adjusts both the welding functions and Connect the earth lead clamp D to the piece to be welded. parameters. Open the side door. Fit the wire reel according to the instructions provided below.
  • Page 4 remove the roller, align the flat part of the roller-bearing 7 DESCRIPTION OF FUNCTIONS SHOWN pin at the bottom, so the key can be fitted inside the ON THE DISPLAY SCREEN A. retention screw. Loosen the screw, remove the roller, fit the roller back on so the race corresponds to the wire When the machine is switched Information used, see figures 3 and 4.
  • Page 5 After pressing the knob B return is made to the previous again, the welding current will connect to the crater- display page (PROCESS PARAMS). filler current (Crater- Curr) and it will be maintained until the torch button is released. Wire selection Process Params Start Curr Process Params...
  • Page 6 0.1 to 10 seconds (default 0,5 sec.). The switching time Inductance Process Params (Slope Time) between the starting current (Start Curr) and the welding current may also be adjusted from 0.1 Inductance to 10 seconds (default 0.5 seconds.). Burn Back Auto Soft Start Auto...
  • Page 7: Generator Maintenance

    • Post Gas 8 MAINTENANCE PostGas maintenance jobs must performed professional personnel according to the CEI 26-29 25.0s (IEC 60974-4) standard. 3.0s 0.0s 8.1 GENERATOR MAINTENANCE The adjustment can vary from 0 to 25 seconds. In case of maintenance inside the appliance, make sure To access this function, simply highlight it using the the switch F is in “O”...
  • Page 8 QUESTA PARTE È DESTINATA ESCLUSIVAMENTE AL PERSONALE QUALIFICATO. THIS PART IS INTENDED SOLELY FOR QUALIFIED PERSONNEL. DIESER TEIL IST AUSSCHLIESSLICH FÜR DAS FACHPERSONAL BESTIMMT. CETTE PARTIE EST DESTINEE EXCLUSIVEMENT AU PERSONNEL QUALIFIE. ESTA PARTE ESTÁ DESTINADA EXCLUSIVAMENTE AL PERSONAL CUALIFICADO. ESTA PARTE È...
  • Page 9 CODIFICA COLORI WIRING DIAGRAM CODIFICA COLORI WIRING DIAGRAM CABLAGGIO ELETTRICO COLOUR CODE CABLAGGIO ELETTRICO COLOUR CODE NERO BLACK NROSA-NERO PINK-BLACK ROSSO GRIGIO-VIOLA GREY-PURPLE GRIGIO GREY BIANCO-VIOLA WHITE-PURPLE BIANCO WHITE BIANCO-NERO WHITE-BLACK VERDE GREEN GRIGIO-BLU GREY-BLUE VIOLA PURPLE BIANCO-ROSSO WHITE-RED GIALLO YELLOW GRIGIO-ROSSO GREY-RED...
  • Page 12 POS DESCRIZIONE DESCRIPTION POS DESCRIZIONE DESCRIPTION PANNELLO ALETTATO FINNED PANEL RACCORDO FITTING CORNICE FRAME PANNELLO POSTERIORE BACK PANEL SUPPORTO MANICO HANDLE SUPPORT COPERTURA COVER MANICO HANDLE INTERRUTTORE SWITCH COPERCHIO COVER CAVO RETE POWER CORD CERNIERA HINGE MOTORE CON VENTOLA MOTOR WITH FAN LATERALE MOBILE HINGED SIDE PANEL SUPPORTO...
  • Page 13 CEBORA S.p.A - Via Andrea Costa, 24 - 40057 Cadriano di Granarolo - BOLOGNA - Italy Tel. +39.051.765.000 - Fax. +39.051.765.222 www.cebora.it - e-mail: cebora@cebora.it...
