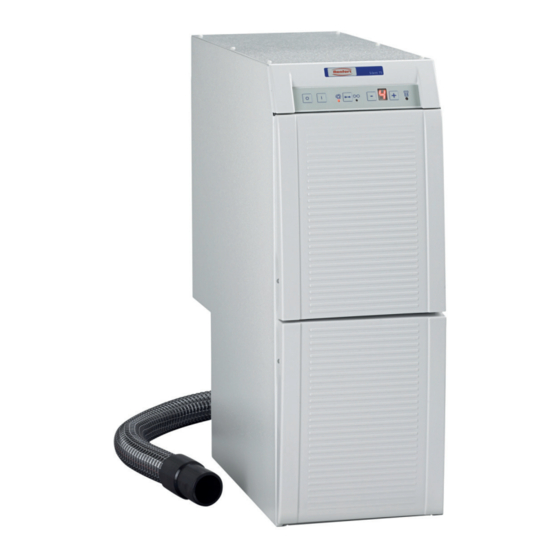

  • Page 1 Silent TS Nr. 2921-0050 / 2921-1050 Bedienungsanleitung Instruction manual • Mode d’emploi Istruzioni d’uso • Instrucciones de servicio Инструкция по эксплуатации 取扱説明書 • 사용 설명서 Ideas for dental technology Made in Germany...
  • Page 6: Table Of Contents

    Silent TS Nr. 2921-0050 / 2921-1050 ENGLISH Content Introduction ............1 F. Disposal Information ........12 F.1 Disposing of Consumables ......12 Symbology ............1 F.2 Disposing of the Unit ........12 Information for Operators ........2 F.3 Disposal instructions for countries in Operating Instructions the EU ............
  • Page 7: Information For Operators

    Information for Operators Please have these operating instructions readily available for the operators. Additional information can be found in the Section, Using these operating instructions as a “Information for Operators”, starting point, instruct all operators of the at the end of these instructions. unit with regard to the area of application, the possible hazards during operation, and the proper operation of the dust extractor.
  • Page 8: External Exhaust Air Route

    1.5 External Exhaust Air Route 2.2 Switching the Unit ON / OFF An external exhaust air route (see accessories) al- lows the extracted air to leave the laboratory. The Silent TS is switched on at the ON switch (B) The installation details are supplied with the external (fig. 2b), and off at the OFF switch (A) (fig. 2a). exhaust air route. Extraction starts and stops in conjunction with the When the extraction unit is used in conjunc- selected operating mode (continuous operation or tion with an external ventilation system, a...
  • Page 9: Automatic Mode

    2.5 Automatic Mode The Silent TS returns to the operating mode (contin- uous or automatic operation) which was set for the automatic start function prior to the adjustment. Automatic Mode, LED (C). 2.7 "Change Filter" - Indicator In automatic operation suction only starts when the electric device connected is switched on responsible LED (K) coming on indicates that either the dust bag is operated.
  • Page 10: Cleaning / Maintenance

    • Install a new fine filter and fully insert it over the holder bar (fig. 19). 3.2 Replacing the Dust Bag Use only original Renfert fine particle filters (refer to the spare parts list). The dust extractor may only be operated with a • Turn the fine particle filter clockwise and hand-tight- complete filtration system. The dust bag must be en it in place (fig. 17).
  • Page 11: Replacing The Electronics Filter

    The motor may be hot. Allow the motor to Use only original Renfert electronics filters cool off before proceeding. (refer to the spare parts list). The suction turbine may only be operated 3.4 Fuses...
  • Page 12: Replacing The Exhaust Air Labyrinth

    4. Spare Parts You can find components subject to wear and the spare parts on the spare part list in the internet at www.renfert.com/p918. The components excluded from the warranty (such as consumables or parts subject to wear and tear) are marked on the spare part list. Serial number and date of manufacturing are shown on the type plate of the unit.
  • Page 13: Error List

    8. Error List Error Possible cause Corrective action Dust extractor stops • Dust extractor continued to be • Check and replace the dust bag and fine particle suddenly, for no apparent used, despite “Change Filter” filter (Chapter 3.2 and 3.3). reason. indicator. • Unit fuse blown. • Check and reinstall the fuse. • Motor protection switch (M, fig. 4) • Check the motor protection switch, if necessary has been activated due to overload reset.
  • Page 14 Error Possible cause Corrective action “Change Filter” indicator • Fine particle filter blocked. • Replace the fine particle filter (Sec. 3.3.1). goes on shortly after filters were replaced. • Suction hose blocked. • Remove obstruction from the suction hose. • Cross-section of the dust- • Adjust the sensitivity of the „Replace filter“ generating device’s hose fitting is indicator(Chapter 2.7.1.). too small. • Dust is too fine.
  • Page 15: Information For Operators

    Information for Operators The following information is intended to assist you, • At a maximum relative humidity of 80 % at 31 ºC the operator, in safely working with the Silent TS in [87.8 ºF], dropping in a linear manner to 50 % your laboratory.
  • Page 16: Authorised Individuals

    0702. Repairs may only be performed by qualified electri- Only spare parts and accessories supplied cians or authorized dealers. or authorized by Renfert GmbH may be Depending on the material trapped by the filters, used with this product. If other spare parts protective gear may need to be worn during repairs. or accessories are used, this could have a...
  • Page 17: Disposal Information

    • The product is repaired by other than an autho- countries in the EU rized facility or if any but Renfert OEM parts are employed; To conserve and protect the environment, prevent • The product continues to be employed, despite environmental pollution and improve the recycling of obvious safety faults or damage;...
  • Page 18 Tel.: +49 7731 82 08-0 • Fax: +49 7731 82 08-70 www.renfert.com • info@renfert.com Renfert USA • 3718 Illinois Avenue • St. Charles IL 60174/USA Tel.: +1 6307 62 18 03 • Fax: +1 6307 62 97 87 www.renfert.com • info@renfertUSA.com...
