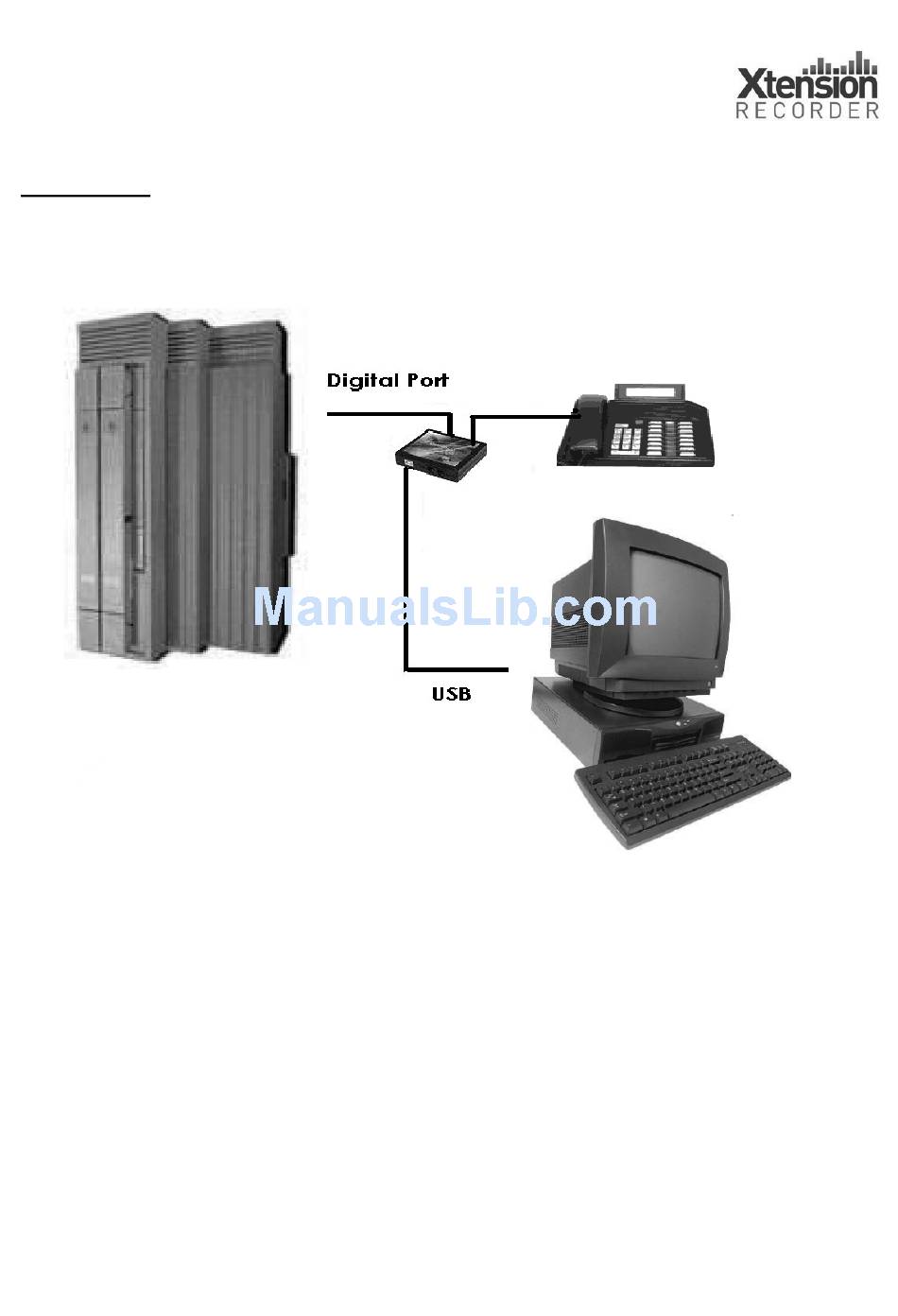

The diagram below shows the connection configuration of the Desktop Digital 01USB
device and the local desktop PC.
The Xtension Recorder hardware simply connects in-line at the telephone users desktop. No
power is required and because the in-line connection is simply a metallic wiring of the 'in'
and 'out' connections, Xtension Recorder does not affect in any way the telephone
operation with or without connection of the host PC via USB.
©Copyright Intelligent Recording LTD 2008
Page 3 of 25
