Levelflex M FMP41C 4 to 20 mA HART
Endress+Hauser
4

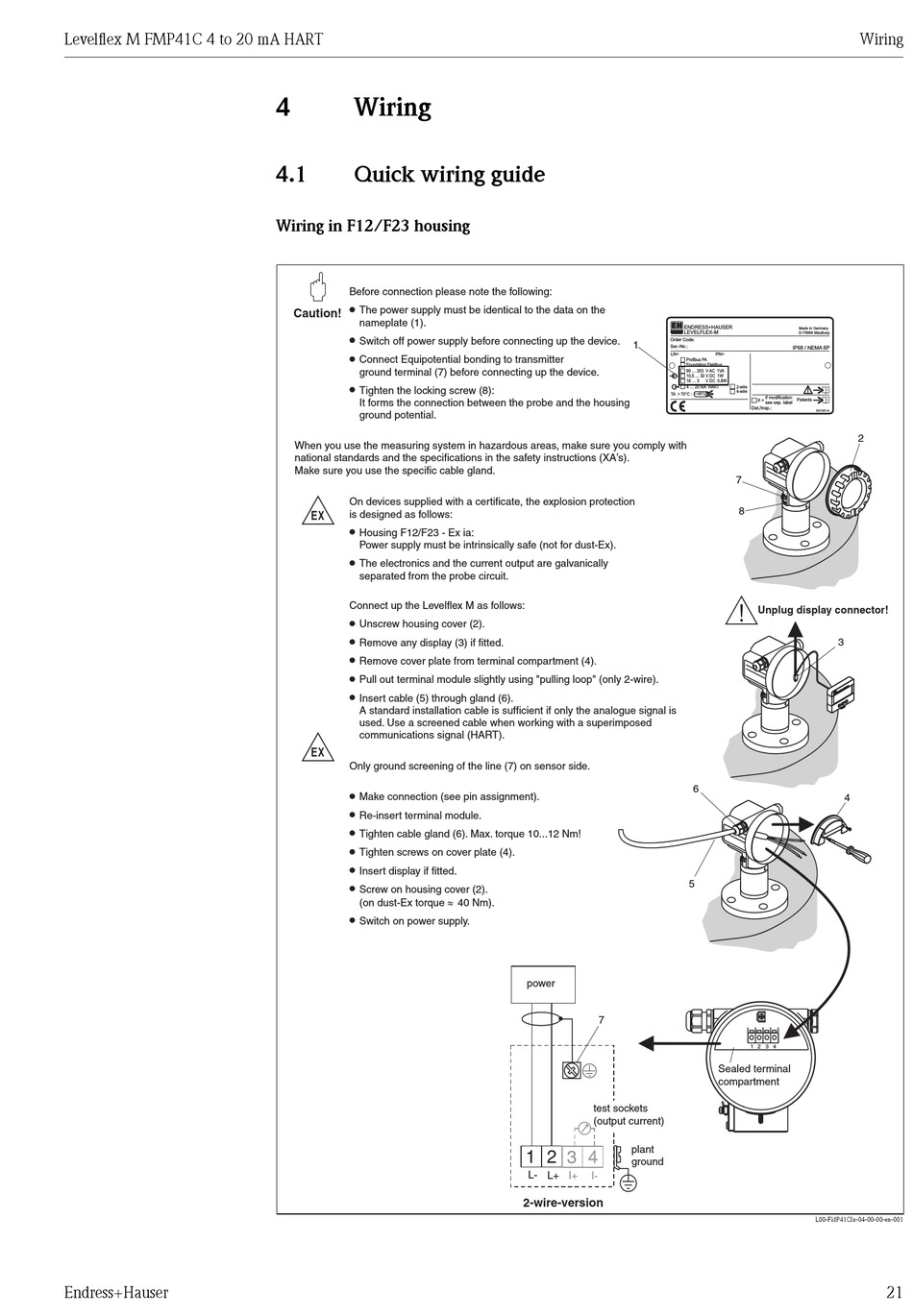

Wiring

4.1

Quick wiring guide

Wiring in F12/F23 housing
"
Before connection please note the following:
●
The power supply must be identical to the data on the
Caution!
nameplate (1).
●
Switch off power supply before connecting up the device.
●
Connect Equipotential bonding to transmitter
ground terminal (7) before connecting up the device.
●
Tighten the locking screw (8):
It forms the connection between the probe and the housing
ground potential.
When you use the measuring system in hazardous areas, make sure you comply with
national standards and the specifications in the safety instructions (XA's).
Make sure you use the specific cable gland.
-
On devices supplied with a certificate, the explosion protection
is designed as follows:
●
Housing F12/F23 - Ex ia:
Power supply must be intrinsically safe (not for dust-Ex).
●
The electronics and the current output are galvanically
separated from the probe circuit.
Connect up the Levelflex M as follows:
●
Unscrew housing cover (2).
●
Remove any display (3) if fitted.
●
Remove cover plate from terminal compartment (4).
●
Pull out terminal module slightly using "pulling loop" (only 2-wire).
●
Insert cable (5) through gland (6).
A standard installation cable is sufficient if only the analogue signal is
used. Use a screened cable when working with a superimposed
-
communications signal (HART).
Only ground screening of the line (7) on sensor side.
●
Make connection (see pin assignment).
●
Re-insert terminal module.
●
Tighten cable gland (6). Max. torque 10...12 Nm!
●
Tighten screws on cover plate (4).
●
Insert display if fitted.
●
Screw on housing cover (2).
»
(on dust-Ex torque
●
Switch on power supply.
40 Nm).
power
7
test sockets
(output current)
1 2 3 4
L- L+
I+ I-
2-wire-version
ENDRESS+HAUSER
Made in Germany
LEVELFLEX-M
D-79689 Maulburg
Order Code:
1
Ser.-No.:
IP68 / NEMA 6P
LN= PN=
Profibus PA
Foundation Fieldbus
90 ... 253 V AC 1VA
10,5 ... 32 V DC 1W
16 ... 3 V DC 0,8W
4 ... 20 mA HART 2-wire
4-wire
TA > 70°C : t >85°C
if modification
X = Patents
see sep. label
Dat./Insp.:
7
8
#
Unplug display connector!
6
5
1 2 3 4
Sealed terminal
compartment
plant
ground
Wiring
D01301-A
2
3
R R
SE SE
H AU H AU
S+ S+
ES ES
D R D R
EN EN
4
L00-FMP41CIx-04-00-00-en-001
21
