Festo CMSX-...-C-U-F1 series Operating Instructions Manual

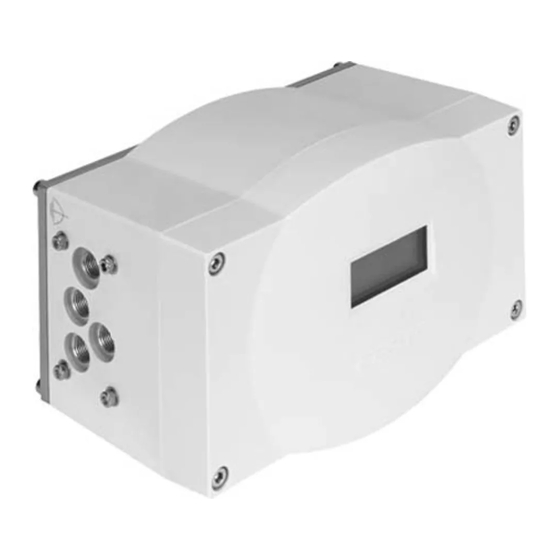

Positioner
CMSX-...-C-U-F1-...
Operating instructions
(Translation of the original instructions)
Positioner CMSX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For all available product documentation è www.festo.com/pk
1 Safety
1.1 Intended use
The positioner is intended for controlling the position of the following actuators in
process automation systems:
– pneumatic quarter turn actuators (single- or double-acting)
– pneumatic drives (double-acting) with connected external path/angle sensor
Quarter turn actuators with a mechanical interface in accordance with VDI/VDE
recommendation 3845 are suitable for operation of the positioner CMSX-P-S...
(rotary).
• Mounting and commissioning is to be carried out only by qualified personnel,
in accordance with the documentation.
• The product may only be used in its original status without unauthorized
modifications.
• Only use the product if it is in perfect technical condition.
• Observe the product labelling.
• Use only compressed air in accordance with the specifications è Technical data.
• The cable connector supplied only for cable throughfeed. To achieve the degree
of protection IP65, seal each cable entry tight (cable fitting, blanking plug).
• Observe the handling specifications for electrostatically sensitive devices.
1.2 Return to Festo
Hazardous substances can endanger the health and safety of personnel and cause
damage to the environment. To prevent hazards, the product should only be re­
turned upon explicit request by Festo.
• Consult your regional Festo contact.
• Complete the declaration of contamination and attach it to the outside of
the packaging.
• Comply with all legal requirements for handling hazardous substances and
transporting dangerous goods.
2 Product overview
2.1 Function
The CMSX digital electropneumatic positioner enables simple and efficient posi­
tion control based on the PID control algorithm. The position specification is
provided via an analogue setpoint signal. The current position of the actuator is
detected as follows:
– CMSX-P-S-... (rotary): through an integrated potentiometer
– CMSX-P-SE-... (linear): through an external path/angle sensor
The PID controller compares the measurement value with the analogue-specified
Festo AG & Co. KG setpoint value and actuates the solenoid valves.
Ruiter Straße 82

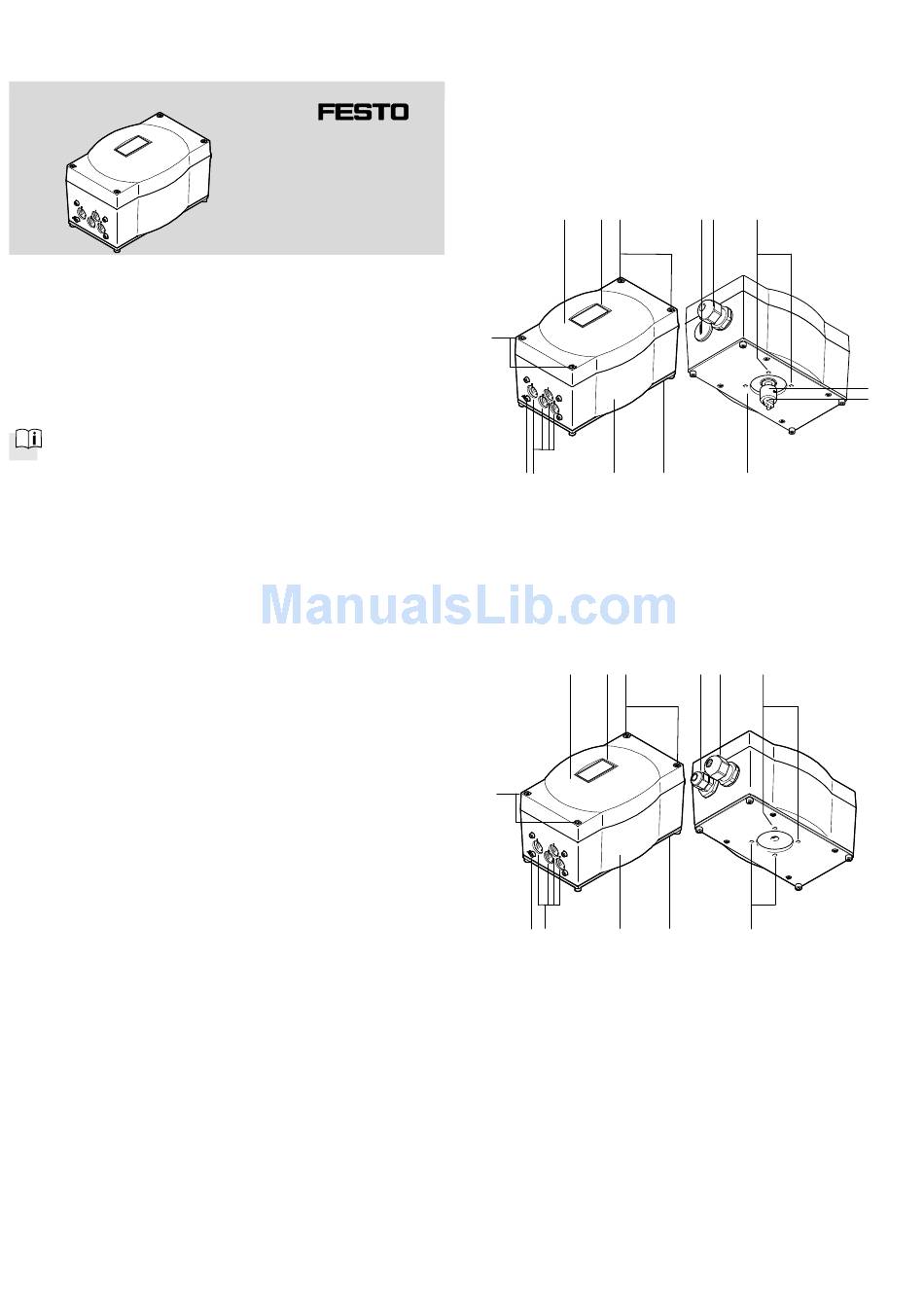

2.2 Configuration
73734 Esslingen
CMSX-P-S-... (rotary)
Germany
+49 711 347-0
www.festo.com
8080775
2017-12b
[8062134]
3
English
aB
1
Housing cover
2
Inspection window for LCD display
3
Housing screws
4
Blanking plug
5
Cable entry with cable fitting for
electrical connecting cable
Fig. 1
CMSX-P-SE-... (linear)
3
1
Housing cover
2
Inspection window for LCD display
3
Housing screws
4
Cable entry with cable fitting for
external path/angle sensor
Fig. 2
1 2 3 4
aA aJ 9
1 2 3 4
aJ 9 8 7
5 6
7
8
6
6
Mounting thread for mounting
bridge
7
Shaft
8
Mechanical coupling
9
Base plate
aJ
Housing
aA
Pneumatic connections (G1/8)
aB
Earth terminal
5 6
6
5
Cable entry with cable fitting
for electrical connecting cable
6
Mounting thread
7
Base plate
8
Housing
9
Pneumatic connections (G1/8)
aJ
Earth terminal
