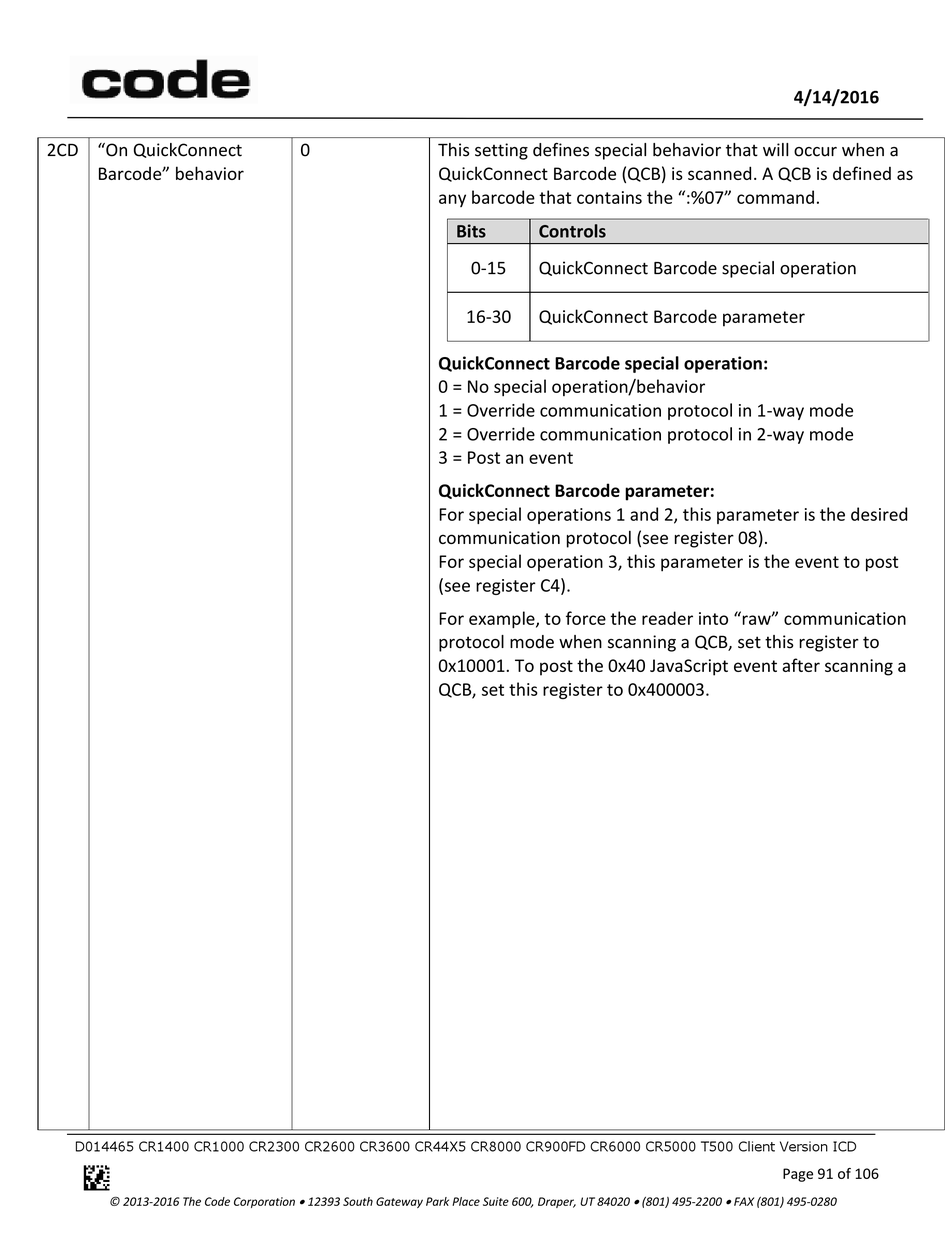

2CD "On QuickConnect
Barcode" behavior
D014465 CR1400 CR1000 CR2300 CR2600 CR3600 CR44X5 CR8000 CR900FD CR6000 CR5000 T500 Client Version ICD
© 2013-2016 The Code Corporation
0 This setting defines special behavior that will occur when a
QuickConnect Barcode (QCB) is scanned. A QCB is defined as
any barcode that contains the ":%07" command.
Bits
0-15
16-30
QuickConnect Barcode special operation:
0 = No special operation/behavior
1 = Override communication protocol in 1-way mode
2 = Override communication protocol in 2-way mode
3 = Post an event
QuickConnect Barcode parameter:
For special operations 1 and 2, this parameter is the desired
communication protocol (see register 08).
For special operation 3, this parameter is the event to post
(see register C4).
For example, to force the reader into "raw" communication
protocol mode when scanning a QCB, set this register to
0x10001. To post the 0x40 JavaScript event after scanning a
QCB, set this register to 0x400003.

12393 South Gateway Park Place Suite 600, Draper, UT 84020
Controls
QuickConnect Barcode special operation
QuickConnect Barcode parameter

