MiniLift125
SystemRoMedic
TM
2
3
4
14
13
10
7
6

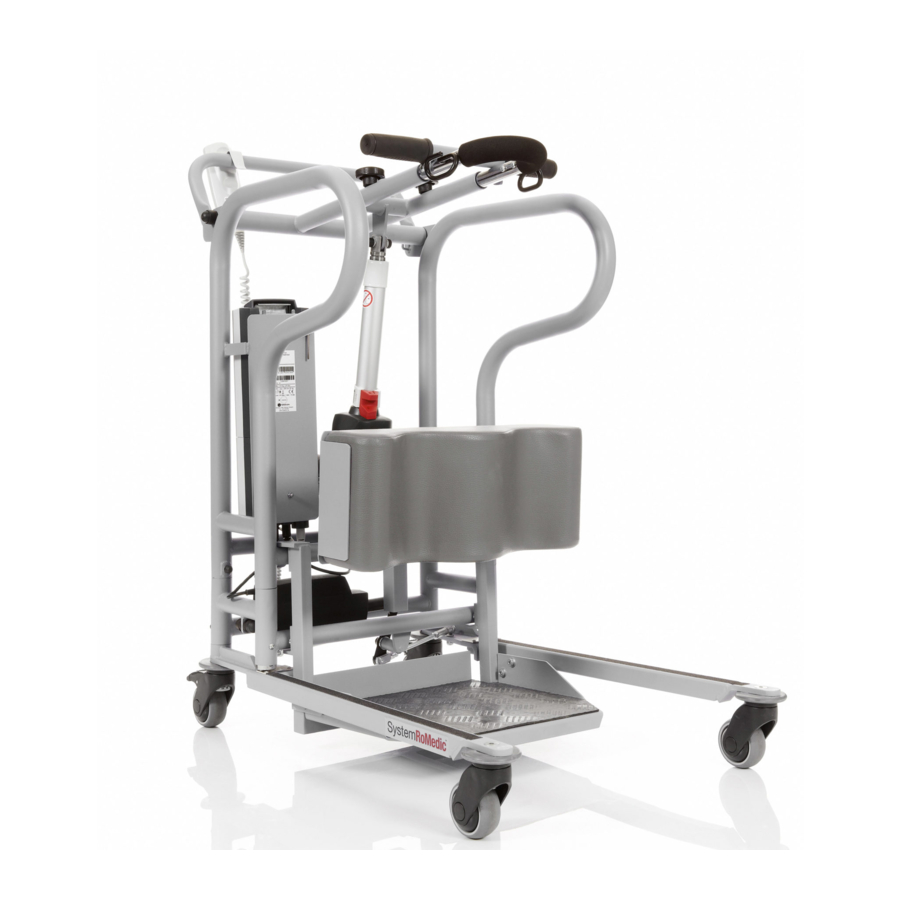

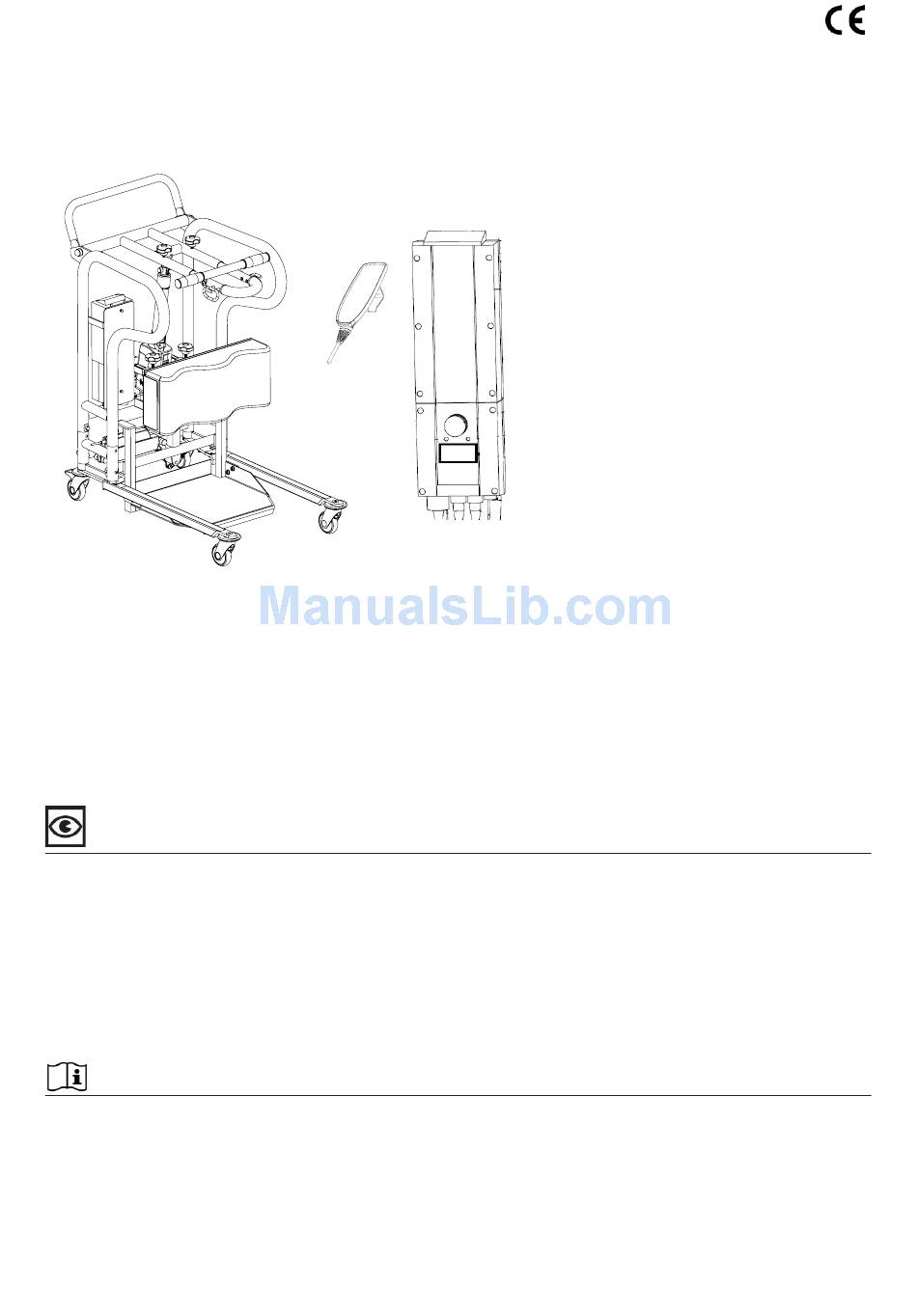

MiniLift125 is a mobile sit-to-stand lift for people with impaired mobility. In combination with the right accessories, it is
designed to assist a patient comfortably and conveniently to a standing position. It provides support under the feet,
2
3
4
against the shins and behind the back. MiniLift125 is appropriate for patients who have a degree of stability while
standing. MiniLift125 helps to train the patient's leg muscles and sense of balance.
SystemRoMedic
adopts a holistic approach to patient transfers and is organized in four categories: transfer, positioning, support and
lifting.
Functional inspection
Visual inspection
Inspect lift functions regularly. Check to ensure that material is free from damage.
Before use:
Ensure that the product is correctly assembled.
Check slingbar connection and safety latch function.
Check lift and base-width movement.
Check to ensure that the actuator is correctly installed.
Always read the manual
Always read the manuals for all assistive devices used during a transfer.
Keep the manual where it is accessible to users of the product.
The lift may only be used by persons who have received instruction in the operation of the lift.
Manual nr: 884 En Ver. 5 120907
5
6
7
1
2
9
3
4
5
15
5
6
7
8
10
9
8
12
11
SWL: 125 kg/275 lbs
NAME
DATE
hc-jope
2010-07-27
DRAWN
APPROVED BY
STATUS:
TITLE
COMMENTS:
Unless otherwise stated, general
tolerances according to ISO 2768-m
SIZE
DWG. NO.
A2
MATERIAL:
SCALE:1:4
8
9
10
11
12
A
1.
Lift arm
2.
Hooks for lift vest/sling
3.
Handset
B
4.
Leg support
5.
Footplate
6.
Rear castor wheels with
C
brakes
7.
Battery
D
8.
Emergency stop
9.
Adjustment of leg support
10.
Manual emergency lowering
E
11.
Electrical emergency
lowering
12.
Charging lamp
F
13.
Locking mechanism for
adjustment of lift arm
14.
Handles
G
15.
Front castors
REV.
g
SHEET 1 OF 1
WEIGHT:
11
12
Manual - English

Advertisement

Table of Contents
loading

Related Manuals for SystemRoMedic MiniLift125

Summary of Contents for SystemRoMedic MiniLift125

  • Page 1 Unless otherwise stated, general tolerances according to ISO 2768-m SIZE DWG. NO. REV. MiniLift125 is a mobile sit-to-stand lift for people with impaired mobility. In combination with the right accessories, it is MATERIAL: SCALE:1:4 SHEET 1 OF 1 WEIGHT: designed to assist a patient comfortably and conveniently to a standing position. It provides support under the feet, against the shins and behind the back.

  • Page 2: Table Of Contents

    Table of contents Assembly of MiniLift125 ............- Final inspection ..................Using the product ..............5-10 - Important information ................. - Safe working load ................. - The control box and battery have the following features ......- Charging batteries ................. - Handset ....................

  • Page 3: Assembly Of Minilift125

    Assembly of MiniLift125 Check to ensure that all components are included: Lift motor, control box, battery pack, base with motor, footplate, handset and cord, manual and charging cable. Screws and screw covers should also be included (see below). Assembly: Place the upper section on the lower section and lower it carefully into place (picture 1). Press it fully into place and tighten all four screws.

  • Page 4: Final Inspection

    Before the lift is used for the first time, it must be charged for at least 4 hours. See section on charging batteries. Keep the manual where it is accessible to users of the product. SystemRoMedic M A N U A L...

  • Page 5: Using The Product

    The lowest allowable safe working load always determines the safe working load of the assembled system. Always check the safe working loads for the lift and accessories before use. Contact your dealer if you have any questions. SystemRoMedic M A N U A L...

  • Page 6: The Control Box And Battery Have The Following Features

    Before the lift is used for the first time, it must be charged for at least 4 hours. For maximum battery life, charge batteries regularly. We recommend daily charging when the lift is used daily. The emergency stop button must be pulled out during charging. SystemRoMedic M A N U A L...

  • Page 7: Handset

    Turn the button in the direction of the arrows until the button pops out. Emergency lowering Mechanical emer- Manual emergency lowering: gency lowering Lift the red regulator upward. Electrical emergency lowering: For electrical emergency, use the down button on the control box. Electrical emergency lowering SystemRoMedic M A N U A L...

  • Page 8: Instructions For Use

    Transferring and lifting the patient: The width of the base must be correctly adjusted to ensure optimal safety. NOTE: MiniLift125 is not intended for transporting patients. It may only be used for short transfers. Caution: Never move the lift by pulling on the actuator.

  • Page 9: Using Minilift125

    Using MiniLift125 Place an appropriately sized ThoraxSling behind and below the patient’s hips, (see manual for ThoraxSling). When the patient has placed /his/her feet on the footplate, move the lift forward towards the patient. Place the lift as close as possible to the patient.

  • Page 10: Trouble-Shooting

    - Try to determine the source of the sound. Take the lift out of operation and contact your dealer. Accessories ThoraxSling XS-XXL ThoraxSling with seat support S-XL ThoraxSling with wipeable S-XXL ThoraxSling with seat support disposable S-XL CalfStrap SystemRoMedic M A N U A L...

  • Page 11: Maintenance

    Handicare or a Handicare dealer for recycling. Disposal The MiniLift125 can be seperated into metal, plastic and electronic parts for recycling and disposal. Cleaning/disinfection Clean the lift with warm water or rubbing alcohol and ensure that the castor wheels are free of dirt and hair. Do not use cleaning agents containing phenol or chlorine, as this may damage the material.

  • Page 12: Technical Information

    Ø 80 mm Safety class: IPX4 55.8 dB(A) Sound level: Estimated service life: 10 years The device is intended for indoor use. Type B, according to the degree of protection against electric shock. SystemRoMedic M A N U A L...

  • Page 13: Dimensions

    450 mm Total length 870 mm Safe working load 125 kg Total weight 39 kg Weight loose parts (Foot plate) 5 kg Number of lifts per charge 20-25 Footplate, measurement 390 x 345 mm SystemRoMedic M A N U A L...
  • Page 14 The philosophy behind SystemRoMedic is to prevent occupational injuries while improving the patient’s sense of inde- pendence and dignity. Through a combination of training and a complete range of transfer-assistive devices, SystemRoMedic offers the means to improving both the work environment and the quality of care while enabling significant cost savings.
