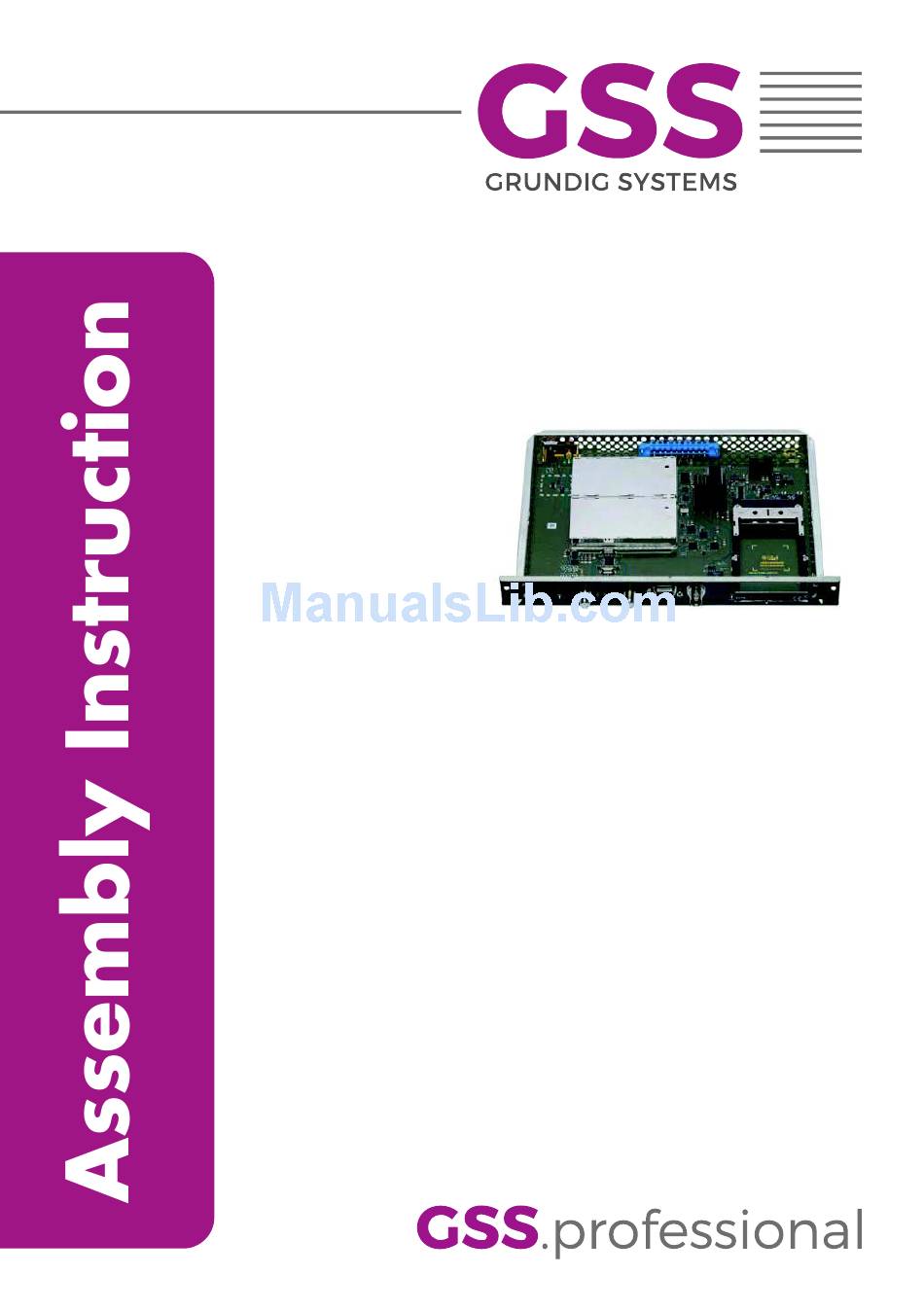

  • Page 1 PADT 6400...

  • Page 2: Table Of Contents

    o n t e n t s 1 Safety regulations and notes ................ 4 2 General information ..................5 Packing contents ................5 Meaning of the symbols used ............5 Technical data ................5 Description ...................6 Block diagram ................7 General ..................7 Software query................8 How the TPS module works .............9 Station filter ..................9 Changing the Transport stream and ORGNET-ID........9 Changing the NIT ................9...
  • Page 3 Substitute signal in the case of an incorrect input signal ....29 ASI input ..................29 Input settings ................30 LNB oscillator frequency, Input ..........31 Input symbol rate, DVB mode ...........31 Input frequency ..............32 Operation with a CA module ...........33 Station filter – Selection ............33 Station filter on/off ..............35 PID monitoring ...............36 CA module ................37...

  • Page 4: Safety Regulations And Notes

    a f e t y r e g u l a t i o n s a n d n o t e s • Assembly, installation and servicing should be carried out by authorised electricians. • Switch off the operating voltage of the system before beginning with assem- bly or service work or pull out the mains plug.

  • Page 5: General Information

    2.1 P aC k i n g C o n t e n t s 1 Cassette PADT 6400 2 RF cables 1 Brief assembly instructions 1 Measuring log 2.2 m...

  • Page 6: Description

    Maximum data rate: .............. 108 Mbit/s Level (input / output): ............ 800 mVPP ± 10% Return loss (input):..........> 17 dB (5 … 270 MHz) COFDM modulator Signal processing: ............DIN EN 300744 Transmission modes: ................2k Types of modulation: ........QPSK, 16 QAM, 64 QAM Code rates: ............

  • Page 7: Block Diagram

    lo C k d i ag r a m Bx 4A Bx 4 10600 MHz In A 0 x ASI CA-Modul SAT IN "A" CA module Modulator Tuner "A" "A" SAT IN "B" Tuner "B" Modulator "B" Combiner RF OUT CA-Modul CA module Modulator...

  • Page 8: Software Query

    The COFDM modulated RF output signals are sent through the RF output of the cassette to the output collector. The common output level of the channel strips can be set at the output collector. By default the station filter is switched off. This results in data overflows at the output if you take the cassette in operation without corresponding settings.
  • Page 9 2.6 h tPs t h e m o d u l e wo r ks After decoding the input signals, the demodulated data streams can be ac- cessed via the integrated TPS module. These data streams, also called trans- port streams, contain several stations with all their components (video, audio, data and service information), which can be changed using the TPS module.
  • Page 10 s s e m b l y When using quadruple cassettes in stations with more than eight slots, a maxi- mum of 8 cassettes may be operated, to prevent overloading the power supply and overheating the head-end station. All other slots must remain free! 3.1 i n s ta l l i n g t h e C a s s e t t e – Ensure the head-end station is mounted so it will not be able to vibrate. Avoid, for example, mounting the head-end station onto a lift shaft or any other wall or floor construction that vibrates in a similar way.
  • Page 11 3.2 emC r e g u l at i o n s To comply with the current EMC regulations, it is necessary to connect the lines leading in and out of the head-end station using cable terminals. When mounting the cassette in a head-end station which is installed in a 19" cabinet, make sure the connections leading in and out for the 19" cabinet are made using cable terminals. The attenuation of shielding of the connection lines for ASI and antenna must meet the requirements for "Class A". CLASS • Insert the required number of cable terminals in the openings provided in the head-end station or in the 19" cabinet. Tighten the nuts on the cable terminals until the teeth on the lock washer have penetrated the exterior coating and a good connection is made between the hous- ing and cable terminals.
  • Page 12 3.3 C a s s e t t e ov e rv i e w Slot for CA module of "tuner A" Slot for CA module of "tuner C" ASI input D-SUB socket "RS 232" SAT input "A" Status LED of channel strip "A" Status LED of channel strip "B"...
  • Page 13 3.5 r Ca e t r o f i t t i n g m o d u l e The cassette is equipped with two common interfaces. This allows you to con- nect two CA modules for various scrambling systems and service providers. Scrambled channels can only be descrambled with a CA module suitable for the scrambling system and the corresponding smart card.

  • Page 14: Station Filter

    C o n t r o l P a n e l g l a n C e 4.1 m e n u i t e m s Programme the cassette using the buttons on the control unit of the head-end station.
  • Page 15 r o g r a m m i n g 5.1 P r e Pa r at i o n • Test the software versions of the head-end station and the cassette and up- date them if necessary. current software versions found website...
  • Page 16 5.3 P ro g r a m m i n g Pro C e d u r e Bedienhinweise Operating Hints BE–Remote V 45 Ein / On "blättert" Menüs vorwärts. scrolls forward through the menu. please wait … "blättert" Menüs rückwärts. scrolls backward through the menu.
  • Page 17 Mod A…D Mod D…A Line A Line B Line C Line D Bx 4 0xASI OFF Tuner A Tuner B Tuner C Tuner D 1xASI Tuner A Tuner B Tuner C 0xASI 2xASI Tuner A Tuner C 2xASI Tuner A Tuner B 3xASI B/C/D...
  • Page 18 sdt–other ◀ ▶ sdt–other / SDT–OTHER A…D D…A Bx 4A DROP 0x0000 ◀ ▶ off / on A…D D…A Bx 4A REMAP 0x0000–>0000 ◀ ▶ off / on A…D D…A Bx 4A DATARATE aktuell/max. current/max. ! ! ! 28/32 Mb !!! Overflow A / B / C / D Bx 4A...

  • Page 19: Be-Remote V

    5.4 P r o g r a m m i n g t h e C a s s e t t e —> Pressing the button for longer than 2 seconds cancels the programming procedure. This takes you back to the programme item "Selecting the cassette"...

  • Page 20: Mod A C66

    • Press the button. —> The "Output settings" – "OUTPUT" main menu is activated. u t Pu t s e t t i n gs In this menu you select the modulator for which you would like to do the output settings in the related submenus.

  • Page 21: Channel / Frequency

    • By pressing adjust the higher output levels to the output level of the modulator with the lowest output level incrementally. • Use the button to place the cursor under "on" resp. "off". • Use the buttons to switch each modulator on or off. •...

  • Page 22: Bx 4A Freq

    —> The modulators "B" and "D" by default are fixed to a spacing of + 8 MHz to the modulators "A" and "C". Only this spacing to the modulators "A" and "C" can be set via the frequency setting. Frequency setting (modulators "A" … "D"): A <...

  • Page 23: Cofdm Parameters

    Cofdm Pa r a m e t e rs The tables below show the dependence of the transmittable net data rate on the settings of the COFDM parameters. The conversion of the net data rate into the gross data rate displayed in the "Output data rate"...

  • Page 24: Qpsk

    If the bandwidth is decreased by 1 MHz the transmittable data rate is de- creased by approx. Net data rate [kbit/s] at a bandwidth of 7 MHz Guard interval Modulation Code rate 4354 4838 5123 5278 5806 6451 6830 7037 QPSK 6532 7257 7684 7917 7257 8064 8538 8797 7620 8467 8965 9237...
  • Page 25 Transmission parameters for DVB-T at a bandwidth of 8 MHz Transmission mode Symbol duration T [µs] Carrier space ∆ f [kHz] 4.4643 2048 carrier theoretical 1705 carrier real Used bandwidth [MHz] 7.61 Total symbol duration [µs] Guard interval T [µs] Transmission parameters for DVB-T at a bandwidth of 7 MHz Transmission mode Symbol duration T [µs] Carrier space ∆ f [kHz] 4.4643 2048 carrier...

  • Page 26: Cofdm-Mode

    u t P u t s i g n a l In this menu, you can set the bandwidth, the carrier modulation and the spectral position of the output signal. Bx 4A COFDM–MODE 8MHZ QAM64 Bandwidth of the output signal To transmit the output signal in the channel range of C21 to C69 a bandwidth of 8 MHz can be used.

  • Page 27: Transmission Parameters

    —> The "Transmission parameters" – "COFDM-MODE" submenu is acti- vated. r a n s m i s s i o n Pa r a m e t e rs In this menu you can set the code rate and the guard interval. Bx 4A COFDM–MODE C7/8...

  • Page 28: Cofdm Tps

    —> The "Transmitter identification" – "COFDM TPS" menu is activated. r a n s m i t t e r i d e n t i f i C at i o n At terrestrial transmission an identification is referred to each COFDM modu- lated transmitter.

  • Page 29: Bx 4A Failure

    u b s t i t u t e s i g n a l t h e C a s e i n C o r r e C t i n P u t s i g n a l You use this menu to set whether a COFDM signal filled with null packets and self-made tables "Tables"...
  • Page 30 • Use the buttons to set the required numbers of lines using the ASI input signal. —> On the left side you select the number of "ASI lines", on the right side you see, which lines are used. • Press the button.

  • Page 31: Bx 4A

    lnb os C i l l ato r f r e q u e n C y n P u t —> This menu is only displayed if "Tuner" is selected as input signal source (page 29). In this menu select the SAT input and set the oscillator frequency of the LNB used.
  • Page 32 • Use to position the cursor under the digit to be set for the symbol rate displayed. • Press to enter the respective digit of the symbol rate needed. • Repeat the procedure by the quantity of the digits to be set. DVB mode: The cassette recognizes the transmitted DVB mode and switches over between the normal QPSK mode (DVB-S) and the DVB-S2 mode.

  • Page 33: Datarate Overflow

    Signal to noise ratio: "CN …" indicates the current signal to noise ratio, in order to estimate the quality of the input signal. —> In addition to the indicator in the display, there is also a status LED which indicates the quality of the received transport stream: Status LED channel strip A Status LED channel strip B Status LED channel strip C...

  • Page 34: Bx 4A

    —> All stations from the channel strip will be read, and then displayed with name and station type. —> If no station is found, the following message will appear in the dis- play: "FILTER no Service". In this case, check the configuration of the antenna system and head-end station, as well as the previously adjusted settings for the cassette.
  • Page 35 • Press button twice to descramble a station (indication "X"). Bx 4A TV * X 01/06 • Press the button. —> The "Station filter on/off" – "FILTER" submenu is activated. tat i o n f i lt e r o f f Herein you can switch on resp.

  • Page 36: Bx 4B

    Pid m o n i to r i n g —> This menu is only displayed if "Tuner" is selected as input signal source (page 29). In this menu you can switch off the PID monitoring and call up a menu for the settings of the CA module (dependent on the CA module).
  • Page 37 m o d u l e —> This menu is only displayed if "Tuner A/C" is selected as input sig- nal source (page 29) and a CA module is installed. The menu varies according to which CA module you are using. For this rea- son, please refer to the operating manual of your particular CA module.
  • Page 38 C o n o m i z e d e s C r a m b l i n g C a PaC i t y —> This menu is only displayed if "Tuner" is selected as input signal source (page 29). In this menu up to 9 not needed PIDs (e.g.
  • Page 39 P t i o n s e t t i n gs In this menu you select the channel strip for which you would like to do the option settings in the related submenus. Bx 4 OPTIONS => —> In order to skip the "Option settings", press button •...
  • Page 40 —> The "BAT/SDT-OTHER tables" – "BAT/SDT" submenu is activated. bat/sdt-other ta b l es In this menu you can switch on resp. off the BAT- and SDT-OTHER tables. —> BAT = Bouquet Association Table: Information in the data stream about the affiliation of station packets to a specific bouquet.
  • Page 41 Pid e l e t i n g In this menu a PID of the transport stream can be deleted. Bx 4A DROP 0x0000 • Use the buttons to place the cursor under the respective digit of the hexadecimal number of the PID to be deleted ("0x0000") and set the hexa- decimal number using •...
  • Page 42 u t P u t data r at e This menu shows the output data rate defined using the COFDM settings and the current output data rate. Bx 4 DATARATE ! ! ! 28/32 Mb 28: The current measured gross output data rate. 32: Maximum gross output data rate.
  • Page 43 —> The cassette fetches all the information (output frequencies, output data rates, etc.) it needs from all the "NIT cassettes" in order to generate the NIT. This process may take a few seconds. Then the NIT is generated, added and sent to all "NIT cassettes". The other "NIT cassettes"...

  • Page 44: Padt

    aC to ry r es e t In this menu you can reset all settings to the factory defaults. Bx 4 FACTORY Bx 4 FACTORY ▶ Defaults => STORE => M • Press the button. —> The factory defaults are invoked ("FACTORY STORE"). —>...

  • Page 45: Output Level

    i n a l Pro C e d u res After installing the head-end station, upgrading accessories or installing cas- settes it is necessary to tighten all cable connections, cable terminals and cover screws in order to maintain compliance with current EMC regulations securely. • Securely tighten the cable connections using an appropriate open-ended spanner. • Measure the output levels of the other cassettes and tune them to a uniform output level using the appropriate level controls or software dependent on the head-end station used.
  • Page 46 h a n n e l a n d f r e q u e n C y t a b l e s Advice for a frequency grid (8 MHz) in the band I/III 42.00 82.00 146.00 186.00 226.00 266.00 50.00 114.00...
  • Page 47 Phone: +49 (0) 911 / 703 8877 • Fax: +49 (0) 911 / 703 9210 www.gss.de/en • info@gss.de CLASS CLASS Service: Phone: +49 (0) 911/703 2221; Fax: +49 (0) 911/703 2326; service@gss.de Alterations reserved. Technical data E. & O.E. © by GSS Grundig Systems GmbH V13/001/2017...
