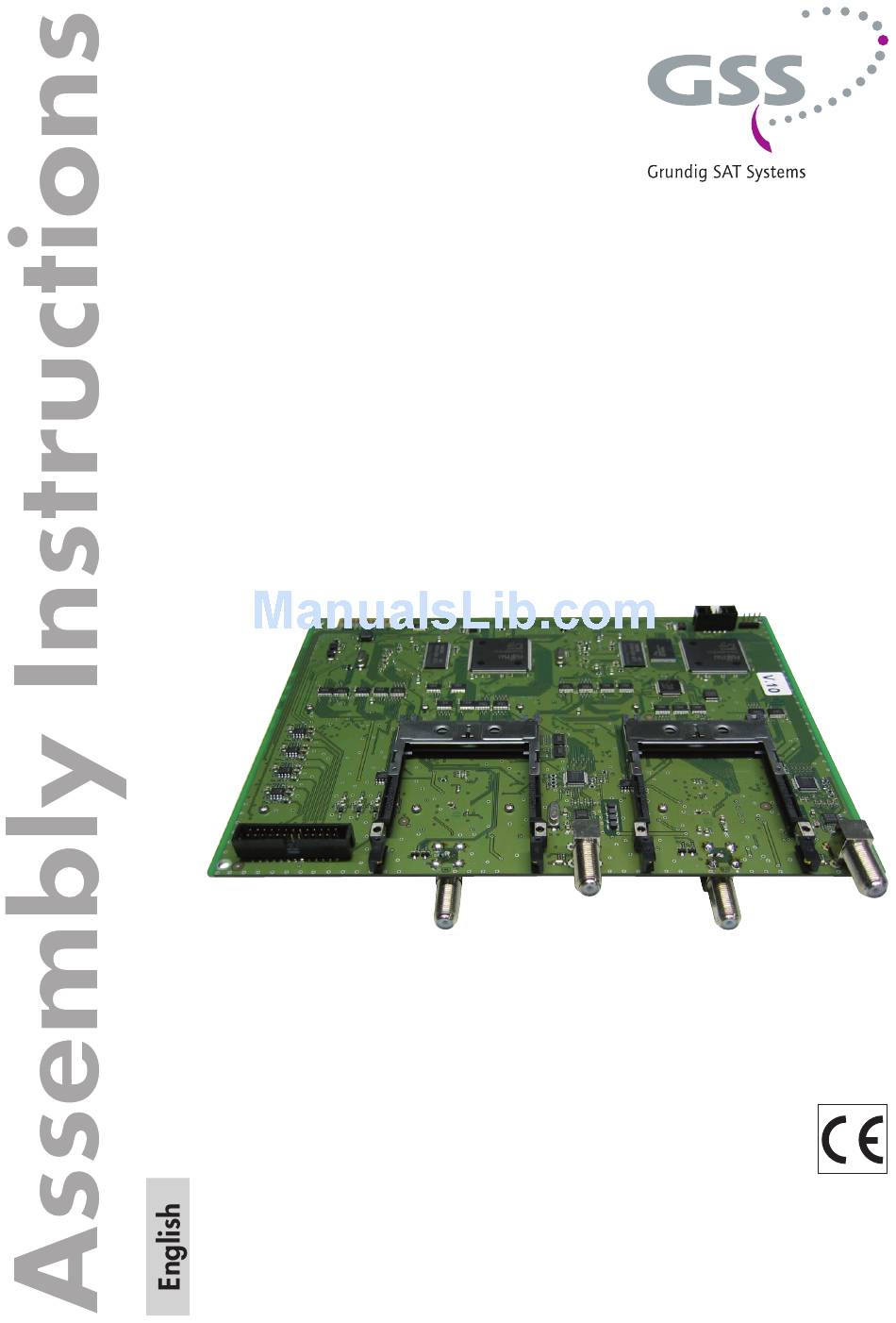

- Page 1 STC 160 Head-End Station QPSK AV module HDC 480 CI AV Notes on the Assembly Instructions. As well as this supplementary Assembly Instructions, the Assembly Instructions for the STC 160 apply. Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH...
- Page 2 Identification of the stereo / dual tone ..........18 Picture format signal, teletext mode ..........18 Test lines ..................19 Subtitle functions................19 Teletext subtitle page and standard ...........19 DVB subtitle page ..............20 Black bar ................21 Storing data ................21 6 Final procedures ..................22 - 2 - HDC 480 CI AV...
-
Page 3: Safety Regulations
C o p e o f d e l i v e ry 1 HDC 480 CI AV module 1 AV cable 1 Brief Assembly Instructions... -
Page 4: Meaning Of The Symbols Used
Signal-to-noise ratio:.............54 dB (rated) Level (75 Ω): .................. 1 V Impedance: ..................75 Ω Connections: SAT inputs: ................4 F-sockets Connection strip (20-pin): ....For supply voltages and control circuits AV output: ................26-pin socket - 4 - HDC 480 CI AV... -
Page 5: Description
C r i p t i o n The module HDC 480 CI AV, in the following called digital module, has a QPSK AV converter which simultaneously converts four QPSK modulated channels into AV signals. It is equipped with four common interfaces, which enable the de- scrambling of four scrambled channels when used in conjunction with four CA modules and four appropriate smart cards. One channel can be descrambled... -
Page 6: Installation
The smart card contains all the information for authorisation, descrambling and subscription. – The hardware and software of the module HDC 480 CI AV have been thor- oughly prepared and tested. – Any changes made by program providers to the structures in the program data might impair or even prevent this function. -
Page 7: Installing The Digital Module
• Insert the digital module in grooves of an open slot left to the as- sociated modulator module and gently slide it into the head-end station until it makes contact with the board on the rear wall. - 7 - HDC 480 CI AV... -
Page 8: Connecting The Digital Module
HF cables made on-site or if applicable to one of the outputs of a retrofitted SAT-IF input distributor. • Using the ribbon cable to connect the AV output of the digital module to the AV input of the modulator module. - 8 - HDC 480 CI AV... -
Page 9: The Control Panel At A Glance
C t i o n s o f t h e C o n t r o l pa n e l b u t to n s – To move the cursor – To adjust values and functions – To store the programmed data – To switch to the next menu - 9 - HDC 480 CI AV... -
Page 10: Programming
The information displayed is dependent on the CA module used Bx 1A SYMBOL 27500 Bx 1A FREQ 11836 MHz +0.2 Bx 1A 01/07 + TV Das Erste Programmauswahl / Channel selection - 10 - HDC 480 CI AV Das Menü wird nur bei Auswahlmöglichkeit Bx 1A AUDIO... - Page 11 / txt / dvb / black west / east nur wenn Untertitel 0…63 verfügbar sind: Sprache auswählen only if subtitles are available: select language Bx 1A MEMORY Page 10 S => STORE CANCEL - 11 - HDC 480 CI AV...
-
Page 12: Programming The Digital Module
—> The display shows, e.g., the "Bx 1A QUAD" menu. "Bx" indicates the slot "1" indicates slot no. 1 "A" indicates channel strip "A" "Das Erste" name of the selected channel "V 12" software version of the module - 12 - HDC 480 CI AV... - Page 13 The menu varies according to which CA module is used. For this rea- son, please refer to the operating manual of your particular CA module. The relevant information is shown on the display of the head-end station. Bx 1A MENU Information *) - 13 - HDC 480 CI AV...
-
Page 14: Input Symbol Rate
• Use the buttons to set the desired symbol rate. • Press the button. —> The "Input frequency" – "FREQ" menu is activated. - 14 - HDC 480 CI AV... -
Page 15: Input Frequency
1 MHz. —> A status LED indicates the quality of the received input signal: LED indicator Signal quality Green Good Orange Poor no signal • Press the button. —> The "Station filter" menu is activated. - 15 - HDC 480 CI AV... -
Page 16: Station Filter
—> If a service number (e.g. "SERVICE 131") appears instead of "TV" or "RA", this indicates that an unnamed station or an undefined data stream is being received. • Select the desired TV or radio channel with the buttons. • Press the button. - 16 - HDC 480 CI AV... -
Page 17: Audio Stream For A Tv Channel
Bx 1A AUDIO Level 0 dB • Set the volume level to the same level as the levels of the other output chan- nels using the buttons (+6 dB … -26 dB), if necessary. • Press the button. —> The "Identification of the stereo / dual tone" – "AUDIO" menu is activated. - 17 - HDC 480 CI AV... - Page 18 • To activate/deactivate teletext mode, use the buttons to select the teletext mode "TXT on" and use the buttons to switch the teletext "off" or "on". • Press the button. —> The "Test lines" – "TESTLINES" menu is activated. - 18 - HDC 480 CI AV...
-
Page 19: Test Lines
This menu allows subtitles transmitted in teletext to be displayed directly in the channel. To display the characters for Western ("west") or Eastern ("east") European languages, the corresponding character set can be selected. • Using the buttons select the submenu "SUBTITLE - txt". - 19 - HDC 480 CI AV... -
Page 20: Dvb Subtitle
—> This selection is only possible if subtitles are available. • Press the button to activate these settings and to leave the "Subtitle func- tions" menu. —> The "Storing data" – "MEMORY" menu is activated (see page 21). - 20 - HDC 480 CI AV... -
Page 21: Black Bar
"A". —> By pressing the button, you will be returned to the menu item "Selecting the module / channel strip" without saving the pro- grammed data. - 21 - HDC 480 CI AV... -
Page 22: Final Procedures
EMC regulations. • Securely tighten the cable connections (F connectors) using an open-ended spanner (spanner gap 11 mm). • Test the output level of the output collector according to the STC 160 assem- bly instructions and set the output level required for the cable system. • Mount the base plate and the front cover (see STC 160 assembly instruc- tions). - 22 - HDC 480 CI AV... - Page 23 CE - Declaration of Conformity Alterations reserved. Technical data E. & O.E. © by GSS GmbH V12/15062011...
