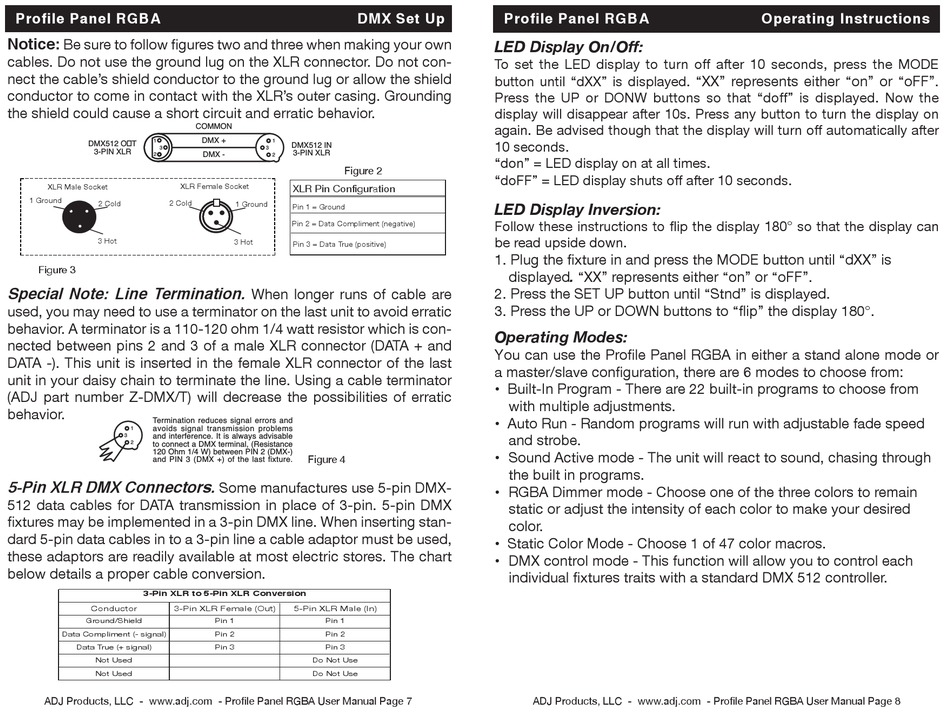

Profile Panel RGBA
DMX512
Notice:
DMX+,DMX-,COMMON
Be sure to follow figures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable's shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR's outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
1
DMX512 O T
3
3-PIN XLR
2
REMOTE
INPUT OUTPUT
CONTROL
XLR Male Socket
INPUT
1 Ground
2 Cold
3 Hot
Figure 3
POWER
Special Note: Line Termination.
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
Termination reduces signal errors and
avoids signal transmission problems
1 1
DMX512 IN
and interference. It is always advisable
3
3-PIN XLR
to connect a DMX terminal, (Resistance
2 2
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
5-Pin XLR DMX Connectors.
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
fixtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
ADJ Products, LLC - www.adj.com - Profile Panel RGBA User Manual Page 7
POWER
COMMON
DMX +
1
DMX512 IN
3
3-PIN XLR
DMX -
2
Figure 2
REMOTE
INPUT OUTPUT
SOUND
CONTROL
XLR Female Socket
XLR Pin Configuration
INPUT
2 Cold
1 Ground
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
3 Hot
Pin 3 = Data True (positive)
When longer runs of cable are
Figure 4
Some manufactures use 5-pin DMX-
3-Pin XLR Female (Out) 5-Pin XLR Male (In)
Pin 1 Pin 1
Pin 2 Pin 2
Pin 3 Pin 3
Do Not Use
Do Not Use
POWER
DMX Set Up Profile Panel RGBA
LED Display On/Off:
To set the LED display to turn off after 10 seconds, press the MODE
button until "dXX" is displayed. "XX" represents either "on" or "oFF".
Press the UP or DONW buttons so that "doff" is displayed. Now the
display will disappear after 10s. Press any button to turn the display on
again. Be advised though that the display will turn off automatically after
Termination reduces signal errors and
avoids signal transmission problems
1
10 seconds.
and interference. It is always advisable
3
to connect a DMX terminal, (Resistance
2
"don" = LED display on at all times.
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
"doFF" = LED display shuts off after 10 seconds.
LED Display Inversion:
Follow these instructions to flip the display 180° so that the display can
be read upside down.
1. Plug the fixture in and press the MODE button until "dXX" is
displayed. "XX" represents either "on" or "oFF".
POWER
2. Press the SET UP button until "Stnd" is displayed.
3. Press the UP or DOWN buttons to "flip" the display 180°.
Operating Modes:
You can use the Profile Panel RGBA in either a stand alone mode or
a master/slave configuration, there are 6 modes to choose from:
• Built-In Program - There are 22 built-in programs to choose from
with multiple adjustments.
• Auto Run - Random programs will run with adjustable fade speed
and strobe.
• Sound Active mode - The unit will react to sound, chasing through
the built in programs.
• RGBA Dimmer mode - Choose one of the three colors to remain
static or adjust the intensity of each color to make your desired
color.
• Static Color Mode - Choose 1 of 47 color macros.
• DMX control mode - This function will allow you to control each
individual fixtures traits with a standard DMX 512 controller.
ADJ Products, LLC - www.adj.com - Profile Panel RGBA User Manual Page 8
POWER
Operating Instructions
