SETUP INSTRUCTIONS (continued)

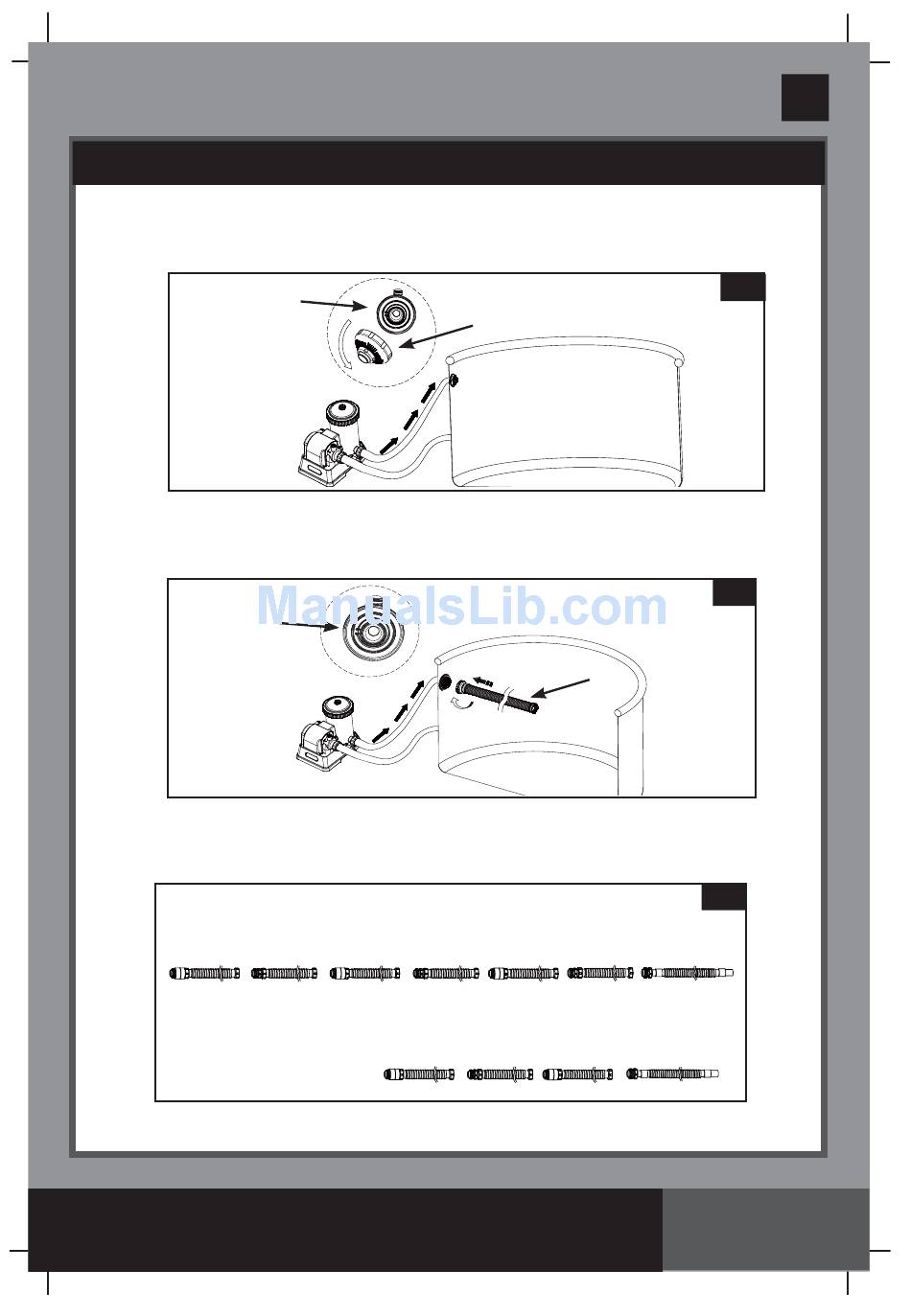

1. Turn off the filter pump. From inside of the pool, unscrew the nozzle
from the water return connector. See Fig. 1.
Threaded
Strainer
Connector
2. Screw the end of hose A (8) with adaptor to the threaded strainer
connector, from inside of the pool. See Fig. 2.
Threaded
Strainer
Connector
3. Connect the rest of the hoses together outside the pool, in the
order of hose description (See Fig. 3), B-C-B-C-B-C-D or B-C-B-D.
For Round pool size above 18' or Rectangular pool size 12' and above
(B) (C)
For Round pool size 18' and below or Rectangular pool size below 12'
S AVE THESE INSTRUCTIONS
(198IO) AUTO CLEANER ENGLISH SIZE: 4.875" X 7.25" PANTONE 295U 06/29/2016
nozzle
(C)
(B)
(B)
(B)
(C)
English
1
2
8
3
(D)
(C)
(B) (D)
