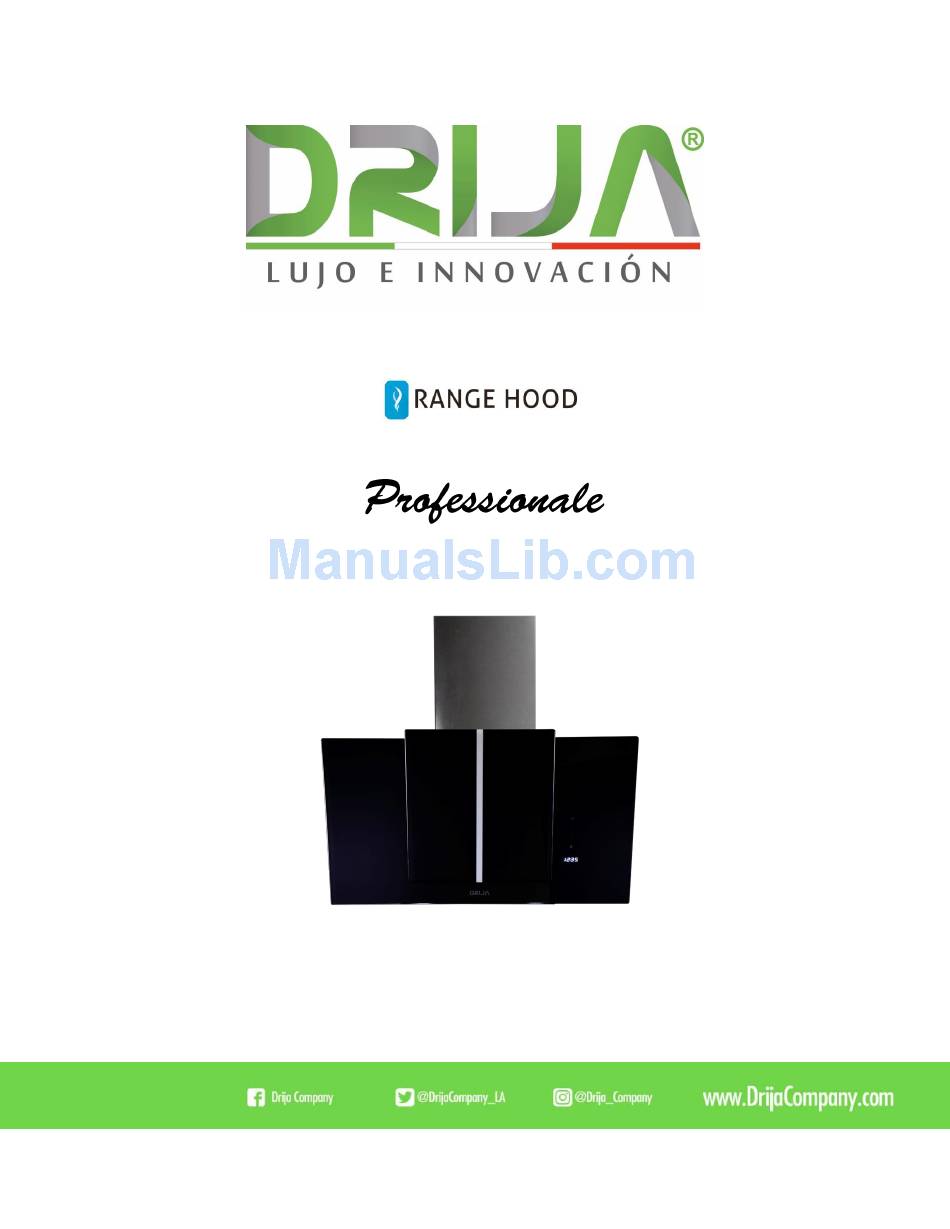

- Page 1 User Manual VETRO 75 Voltage 110V-120V...
-
Page 2: Table Of Contents
User Manual Professionale RANGE HOOD | VETRO 75 1. ADVICE AND SUGGESTIONS ..............3 2. SCHEMATIC DESIGN OF THE PRODUCT ..........5 3. INSTALLATION ..................... 5 4. CIRCUIT CONTROLS AND SCHEMES ............8 5. CIRCUIT DIAGRAM ..................9 6. MAINTENANCE .................... 9 7. -
Page 3: Advice And Suggestions
User Manual Professionale RANGE HOOD | VETRO 75 ADVICE AND SUGGESTIONS Instructions for use apply to various models of this appliance. Therefore you can find descriptions of individual characteristics that do not belong to your particular device. The manufacturer is not liable for damage caused by installation or improper use. - Page 4 User Manual Professionale RANGE HOOD | VETRO 75 The fat extractor is designed exclusively for domestic use, to eliminate odors from the kitchen. • Never use the extractor for purposes other than those for which it was designed. • Never leave high flame under the extractor when it is in operation.
-
Page 5: Schematic Design Of The Product
User Manual Professionale RANGE HOOD | VETRO 75 SCHEMATIC DESIGN OF THE PRODUCT INSTALLATION • Installation position The grease extractor should be installed by centering it on the cooking surface. The reference distance between the extractor and the cooking surface is 420-... - Page 6 User Manual Professionale RANGE HOOD | VETRO 75 • Fastening the suspension hook and flange. Fixing the suspension hook. Drill into the wall 3 holes of 8mm and depth 50mm and insert into the holes three expansion plugs. Use 3 ST5x50 screws to attach the suspension hook to the wall (see fig.2.3 below).
- Page 7 User Manual Professionale RANGE HOOD | VETRO 75 • Installation of the chimney Installation of the lower chimney Use 2 M4x10 screws to secure the lower chimney to flange B, and then use 2 M4x10 screws to secure the lower chimney to the wall mounted extractor.
-
Page 8: Circuit Controls And Schemes
User Manual Professionale RANGE HOOD | VETRO 75 CIRCUIT CONTROLS AND SCHEMES Using the electronic controls (see fig.4) -
Page 9: Circuit Diagram
User Manual Professionale RANGE HOOD | VETRO 75 CIRCUIT DIAGRAM MAINTENANCE To ensure the best performance and durability of the fat extractor, regular maintenance is required. Note: Disconnect the power cord before any maintenance operation and press the "on / off"... -
Page 10: Troubleshooting
User Manual Professionale RANGE HOOD | VETRO 75 TROUBLESHOOTING Issue Cause Solution The indicator light is on but The rotor is clogged. Remove the cause of the not, but the engine does not obstruction. work. The capacitor is damaged. Replace condenser. -
Page 11: Warnings
User Manual Professionale RANGE HOOD | VETRO 75 WARNINGS • If the power cord is damaged, it must be replaced by the manufacturer, its authorized service agent or similarly qualified personnel to avoid any risk. • Adequate ventilation should be provided in the room where the grease extractor and other gas and other combustible devices are located (do not use with appliances having a single air outlet in the room).
