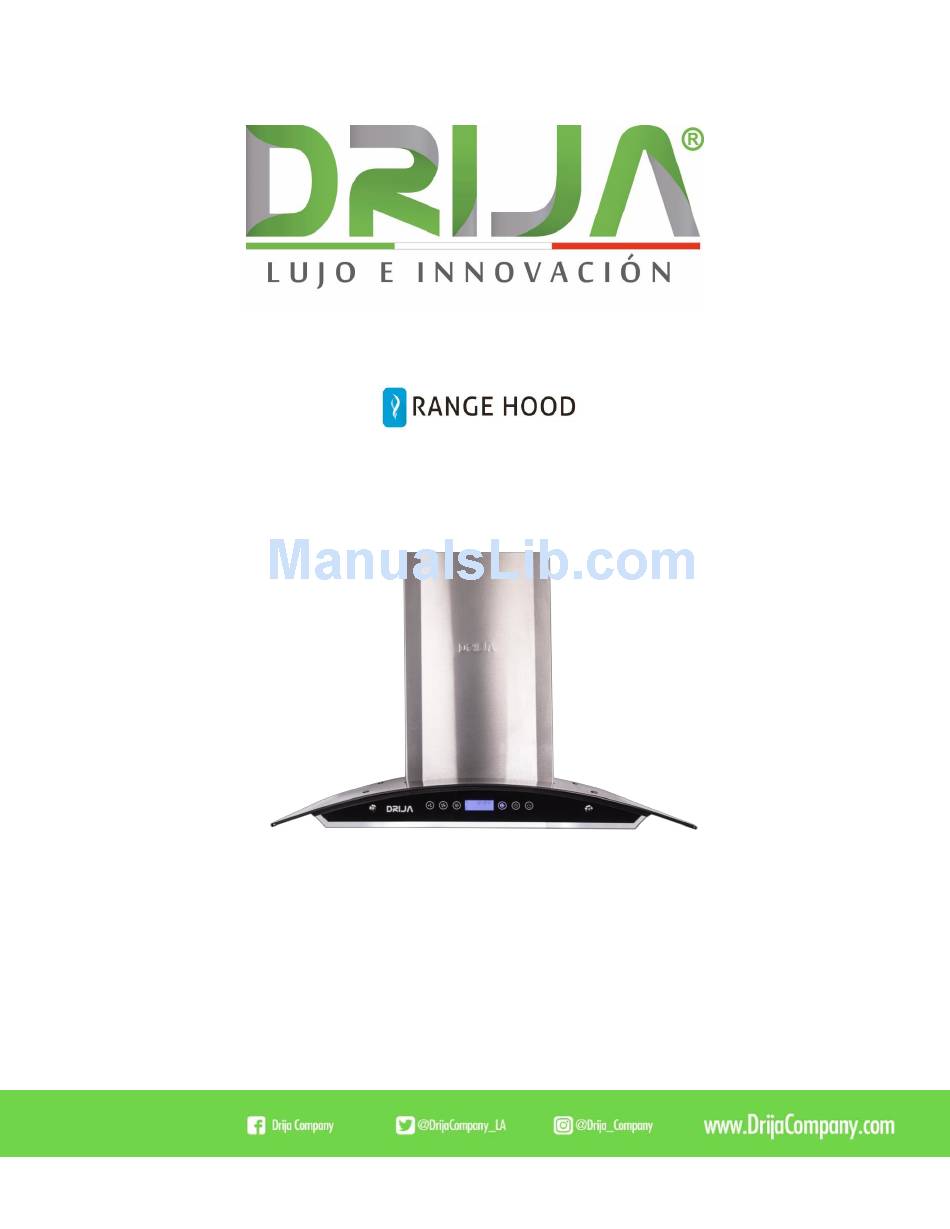

- Page 1 User Manual PRISMA TOUCH 76 Voltage 110V-120V...
-
Page 2: Table Of Contents
User Manual RANGE HOOD | PRISMA TOUCH 76 1. FOR YOUR SECURITY ................3 2. EXTRACTOR DESIGN .................. 3 3. WHEN CLEANING THE EXTRACTOR ............6 4. CHANGING THE BULBS ................7 5. INSTALATION ....................8 6. CIRCUIT DIAGRAM ..................10... -
Page 3: For Your Security
User Manual RANGE HOOD | PRISMA TOUCH 76 FOR YOUR SECURITY • Never ignite the gas or flame burners under the extractor without first placing a pan on them (the flame tends to rise and will damage the appliance). •... - Page 4 User Manual RANGE HOOD | PRISMA TOUCH 76 IMPORTANT: If multiple speeds are selected at the same time, the unit will opt for the highest speed. The extractor will stop if no button is pressed. Soft touch control (See figure).
- Page 5 User Manual RANGE HOOD | PRISMA TOUCH 76 • When the engine is running in the intensive mode, press the clock button and will appear on the clock log screen for a countdown back from 03:00 minutes. 5. Use the "24h" clock.
-
Page 6: When Cleaning The Extractor
User Manual RANGE HOOD | PRISMA TOUCH 76 Change the air in the room and ventilate as much as possible. Keep in mind that: The volume of air in a kitchen changes per minute at high speed. IMPORTANT: Do not use the extractor without the aluminum filter. -
Page 7: Changing The Bulbs
User Manual RANGE HOOD | PRISMA TOUCH 76 3. ANNUAL CLEANING: • Activation of the carbon filter. Only installed extractors are applied as a re-circulation unit (not ventilated outside). This filter catches the odors and must be changed at least once a year depending on the use given. -
Page 8: Instalation
User Manual RANGE HOOD | PRISMA TOUCH 76 MODEL WITH LED LIGHTING • Remove the chrome rims "A" by turning Contrary to the clock hand. • Change type GU10-2W-12VScrewing it. • Reassemble them by performing the operation in the reverse order. - Page 9 User Manual RANGE HOOD | PRISMA TOUCH 76 EXTRACTOR MOUNTING: MODEL WITH GLASS: • To install on the wall every 100 mm, drill 3 holes whose diameter is 8 mm in a suitable place according to the hook of the extractor.
-
Page 10: Circuit Diagram
User Manual RANGE HOOD | PRISMA TOUCH 76 the internal chimney at a suitable height and tighten the two screws (see pic.4B). Fix the entire chimney to the extractor (see pic.4C). Finally, drill 2 8 mm holes in a suitable place according to the second plate. Repeat 3.3. Put the inner chimney on the second plate and tighten the two screws (see pic.4A). -
Page 11: Technical Data
User Manual RANGE HOOD | PRISMA TOUCH 76 TECHNICAL DATA Power Input: 140W 180W 220W Voltage Range: 110~127V 220~240V 110~127V 220~240V 110~1 Range 50HZ 60 HZ 50HZ 60 HZ 50HZ Frequency: Current Rating: 0.8-1.5A 0.8-1.5A 0.8- 1.5A PROTECTION THE ENVIRONMENT...
