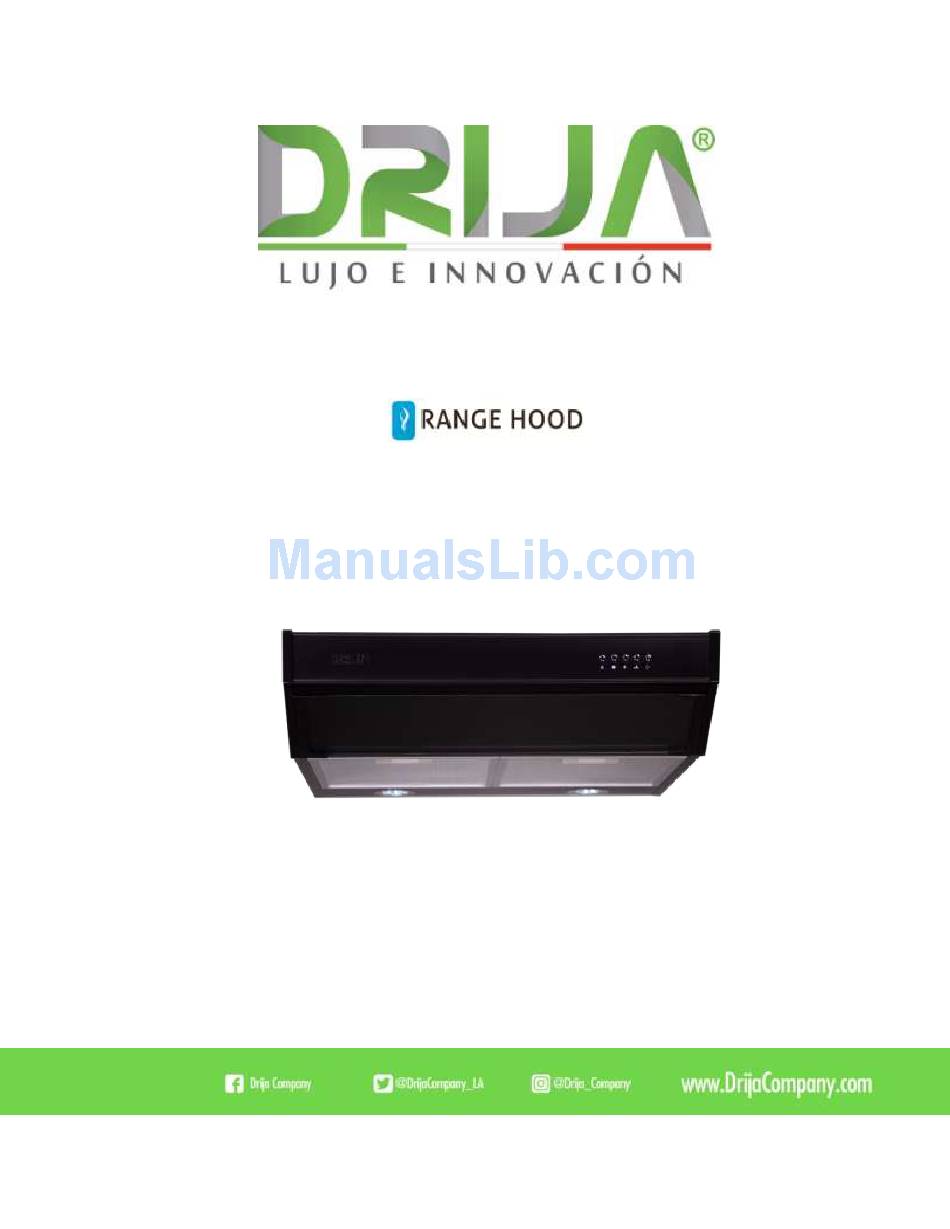

- Page 1 User Manual COMPACTA 76 Voltage 110V-120V...
-
Page 2: Table Of Contents
User Manual RANGE HOOD | COMPACTA 76 1. RECOMMENDATIONS AND SUGGESTIONS ............3 2. CHARACTERISTICS ....................5 3. INSTALLATION AND USE ..................6 4. INSTALLATION FOR FIXING ON THE WALL ............7 5. MOUNTING INSTALLATION IN THE CABINET ............8 6. -
Page 3: Recommendations And Suggestions
User Manual RANGE HOOD | COMPACTA 76 RECOMMENDATIONS AND SUGGESTIONS INSTALLATION • The manufacturer is not liable for damage caused by improper or improper installation. • Please read this instruction manual before installing and using the extractor. It is important to keep this manual in a safe place for future reference. - Page 4 User Manual RANGE HOOD | COMPACTA 76 • The extractor should not be used by children or persons who do not know its correct use. MAINTENANCE • Proper maintenance of the extractor assures its correct operation. • Disconnect the appliance from the mains before carrying out any maintenance work.
-
Page 5: Characteristics
User Manual RANGE HOOD | COMPACTA 76 CHARACTERISTICS COMPONENTS REFERENCE QUANTITIES PRODUCT COMPONENTS 1 PIECE EXTRACTOR BODY PROVIDED WITH: CONTROLS, LIGHTS, BLOWERS, AND FILTERS. 4 PIECES MOUNTING SCREWS (SUPERIOR ST 3.5x16) 2 PIECES MOUNTING SCREWS (LOWER ST 5x40) 1 BASTIDOR... -
Page 6: Installation And Use
User Manual RANGE HOOD | COMPACTA 76 INSTALLATION AND USE Note 1: Carefully remove the protective plastic film from all exterior surfaces of the extractor and chimney prior to final installation. Note 2: At least two people are required to assemble and pull. -
Page 7: Installation For Fixing On The Wall
User Manual RANGE HOOD | COMPACTA 76 INSTALLATION FOR FIXING ON THE WALL 1. As shown (Figure 2). Drill a hole of 133 mm diameter in the wall, in any case, check the position of the socket and observe if the cable of the appliance arrives. -
Page 8: Mounting Installation In The Cabinet
User Manual RANGE HOOD | COMPACTA 76 MOUNTING INSTALLATION IN THE CABINET 1. As shown (fig.5), drill a hole 133 mm in diameter into the cabinet to check the position of the power outlet and consider whether the power cord of the appliance reaches the wall outlet. -
Page 9: Installation In Recirculation Version Fixed To The Wall
User Manual RANGE HOOD | COMPACTA 76 INSTALLATION IN RECIRCULATION VERSION FIXED TO THE WALL IMPORTANT: The carbon filter must be installed in the extractor in the filter version. The two outlet points of the extractor must be blocked with the air outlet covers (9). -
Page 10: Installation Of Assembly With Recirculation In The Cabinet
User Manual RANGE HOOD | COMPACTA 76 INSTALLATION OF ASSEMBLY WITH RECIRCULATION IN THE CABINET IMPORTANT: The charcoal filter must be installed in the filter version extractors. The two outlet points of the extractor must be blocked with the air outlet covers (9). - Page 11 User Manual RANGE HOOD | COMPACTA 76 5. Air should not be discharged into a pipe that is used to expel fumes from gas appliances or other fuels. The regulations regarding the discharge of air must be met. 6. Install a wall cover / cover. Move the metal tube back to the position of the extractor.
- Page 12 User Manual RANGE HOOD | COMPACTA 76 OPERATION OF THE CONTROLS The extractor is controlled by the buttons on the front panel. The light switch to turn them on and off. The fan switch turns on the three-speed fan.
-
Page 13: Maintenance
User Manual RANGE HOOD | COMPACTA 76 MAINTENANCE FAT FILTER There are two types of grills chosen by the customer, one is the aluminum grid and the other is the metal grid. Grease filters should be cleaned frequently (every two months of operation, or more frequently when the use is extreme). - Page 14 User Manual RANGE HOOD | COMPACTA 76 NORMAL BULBS This type of extractor may require two bulbs or normal bulbs (2W) WARNING: Always turn off the power before performing any installation on the unit. To change the lamps 1. Remove the metal or aluminum grille.
