Summary of Contents for Drija Prisma Touch 90
-
Page 2: Table Of Contents

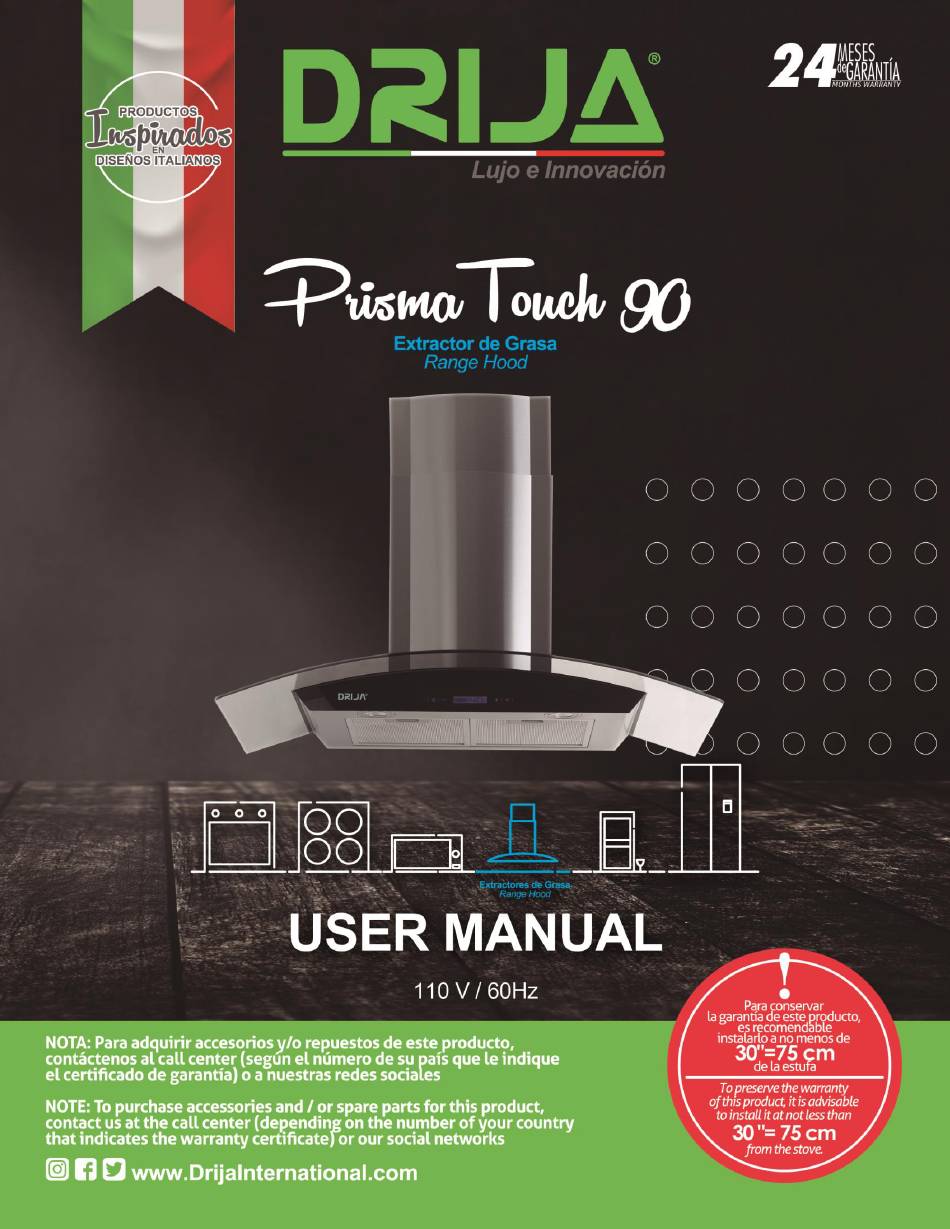

User Manual RANGE HOOD | PRISMA TOUCH 90 1. FOR YOUR SECURITY ................. 3 2. EXTRACTOR DESIGN .................. 3 3. CLEANING AND MAINTENANCE ..............5 4. CHANGING THE BULBS................6 5. INSTALATION ....................7... -
Page 3: For Your Security
User Manual RANGE HOOD | PRISMA TOUCH 90 FOR YOUR SECURITY • Never ignite the gas or flame burners under the extractor without first placing a pan on them (the flame tends to rise and will damage the appliance). •... - Page 4 User Manual RANGE HOOD | PRISMA TOUCH 90 Soft touch control. After connecting the power cable, the LCD shows the time. 1. When the chimney bell is in standby state, touch the key and the bell rings, the indicator light will turn off after two seconds, the LCD shows the first gear and the engine will run at low speed.
-
Page 5: Cleaning And Maintenance
User Manual RANGE HOOD | PRISMA TOUCH 90 time, touch to add a minute, touch to reduce a minute, setting the range from 1 to 60 minutes, after flashing for 5 seconds, enter the countdown status closed, and the indicator changes from flashing to on. After the countdown, the buzzer will activate for 3 seconds and then close all functions 4. -
Page 6: Changing The Bulbs
User Manual RANGE HOOD | PRISMA TOUCH 90 3. ANNUAL CLEANING: • Activation of the carbon filter. Only installed extractors are applied as a re-circulation unit (not ventilated outside). This filter catches the odors and must be changed at least once a year depending on the use given. -
Page 7: Instalation
User Manual RANGE HOOD | PRISMA TOUCH 90 MODEL WITH LED LIGHTING Remove the chrome rims "A" by turning Contrary to the clock hand. Change type GU10-2W-12VScrewing it. Reassemble them by performing the operation in the reverse order. - Page 8 User Manual RANGE HOOD | PRISMA TOUCH 90 • To install on the wall every 100 mm, drill 3 holes whose diameter is 8 mm in a suitable place according to the hook of the extractor. • Insert screw plugs into the holes.
- Page 9 User Manual RANGE HOOD | PRISMA TOUCH 90 complying with CEI83 standard, which must be easily accessible Once it is mounted or a bipolar double isolator switch with contact opening of at least 3 mm. This double bipolar isolator will also be required if the outlet is not accessible. We will not be responsible for accidents resulting from incorrect or non-existent ground events.
- Page 10 User Manual RANGE HOOD | PRISMA TOUCH 90...
