Summary of Contents for RCF LI 7903

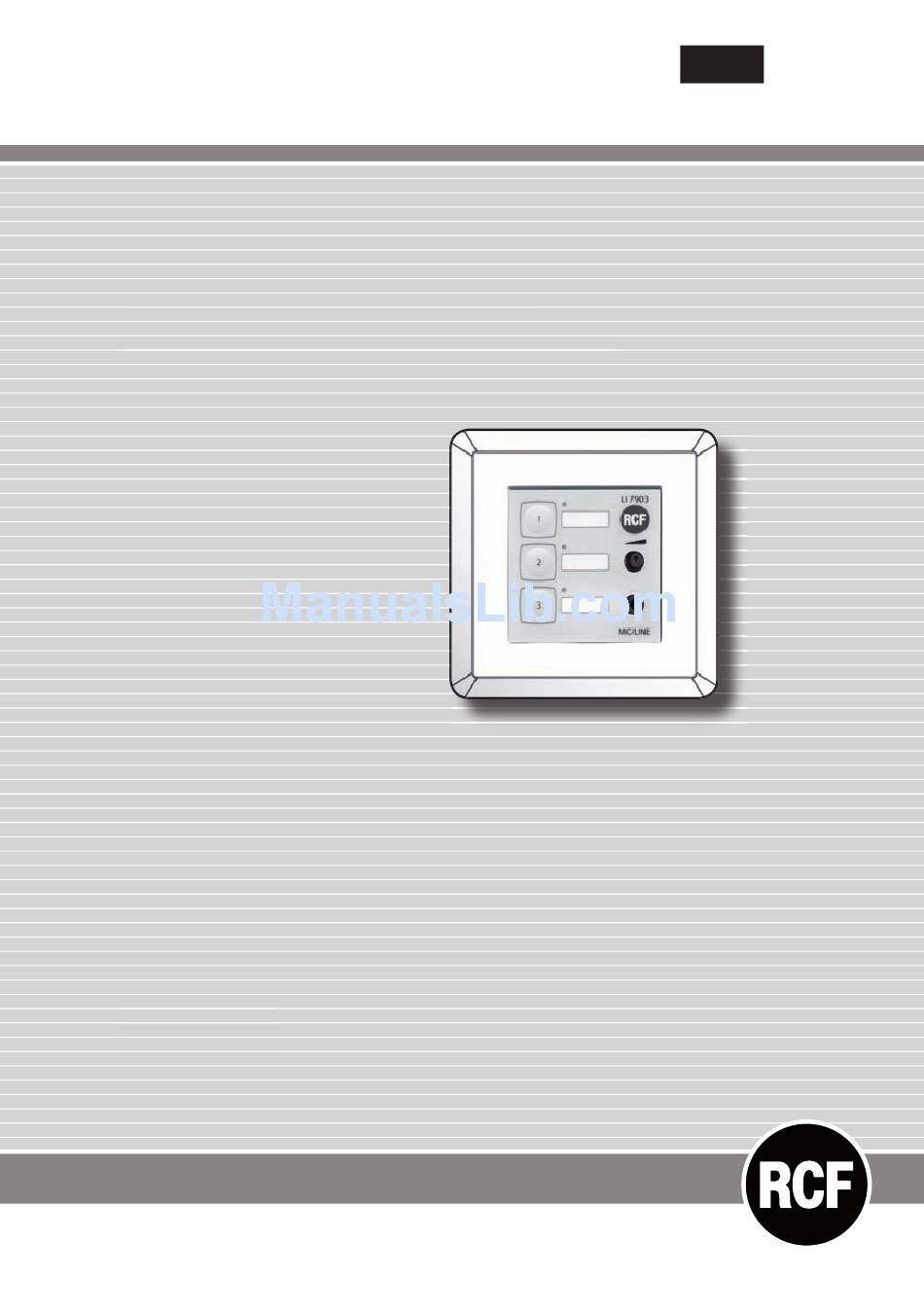

  • Page 1 DXT7000 LI7903 REMOTE CONTROL WITH LOCAL INPUT REMOTE CONTROL WITH LOCAL INPUT REMOTE CONTROL WITH LOCAL INPUT CONTROLLO REMOTO CON INGRESSO LOCALE CONTROLLO REMOTO CON INGRESSO LOCALE CONTROLLO REMOTO CON INGRESSO LOCALE User manual User manual User manual Manuale d’uso Manuale d’uso Manuale d’uso Manuale d’uso...
  • Page 2: Avvertenze Per La Sicurezza

    Tutte le avvertenze, in particolare quelle relative alla sicurezza, devono essere lette con particolare attenzione, in quanto contengono importanti informazioni. 2. Il controllo remoto LI 7903 è un componente del sistema DXT 7000; assicurarsi che il sistema sia spento prima di installarlo. Assicurarsi che tutte le connessioni siano corrette.
  • Page 3 La RCF S.p.A. raccomanda vivamente che l’installazione di questo prodotto sia eseguita solamente da installatori professionali qualificati (oppure da ditte specializzate) in grado di farla correttamente e certificarla in accordo con le normative vigenti. Tutto il sistema audio dovrà essere in conformità...
  • Page 4: Impostazione Dell'indirizzo

    RCF S.p.A. Vi ringrazia per l’acquisto di questo prodotto, realizzato in modo da garantirne l’affidabilità e prestazioni elevate. 1. DESCRIZIONE Il controllo remoto LI 7903 ha 3 tasti funzione programmabili (ciascuno con un LED di segnalazione) e può essere usato per collegare una sorgente audio locale (ingresso: jack 3.5 mm).
  • Page 5 TABELLA DEGLI INDIRIZZI DIP-SWITCH INDIRIZZO...
  • Page 6 Nota: per collegare una sorgente stereo (es. lettore CD), è necessario interporre un adattatore jack 3,5 mm (non incluso) con ingresso stereo ed uscita mono. È inoltre possibile collegare un connettore esterno tramite i contatti J2 del controllo LI 7903. audio + audio – massa...
  • Page 7 6. COLLEGAMENTO AL BUS Il controllo remoto LI 7903 è collegabile al BUS via cavo CAT5/CAT6. Elenco dei poli del connettore RJ45: audio: + audio: – audio: massa massa + 12 V c.c. + 24 V c.c. Dati (A) Dati (B) Assicurarsi che il sistema DXT 7000 sia spento quando si collegano dei controlli remoti.
  • Page 8: Installazione

    LED lampeggino in sequenza con un tempo di un secondo, il controllo remoto non è stato impostato correttamente nella configurazio- ne software (controllare l’indirizzo). 9. FUNZIONI Il controllo remoto LI 7903 può essere usato per una delle seguenti funzioni: • annunci selettivi; •...
  • Page 9 MESSAGGI REGISTRATI Un messaggio può essere inviato (una sola volta o continuamente) ad una zona assegnata. Se il tono di preavviso è previsto, il LED del tasto lampeggia velocemente durante la sua diffusione. Durante la riproduzione del messaggio, il LED lampeggia lentamente. I messaggi inviati una sola volta comportano l’autodisattivazione al termine;...
  • Page 10: Important Notes

    RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.
  • Page 11 RCF S.p.A. strongly recommends this product is only installed by professional qualified installers (or specialised firms), who can ensure a correct installation and certify it according to the regulations in force. The entire audio system must comply with the current standards and regulations regarding electrical systems.
  • Page 12: Contents Of Delivery

    RCF S.p.A. thanks you for purchasing this product, which has been designed to guarantee reliability and high performances. 1. DESCRIPTION This remote control has 3 programmable function buttons (each with a LED) and can be used to connect and route a local program source (input: 3.5 mm jack).
  • Page 13 DIGITAL ADDRESS TABLE DIP-SWITCH ADDRESS...
  • Page 14: Mic/Line Input

    Note: when using a stereo audio source (e.g. CD player), it is necessary to insert a stereo IN / mono OUT adapter jack (not included). It is also possible to link an external audio input connector to the J2 terminal (on LI 7903). Audio + Audio –...
  • Page 15: Bus Connection

    6. BUS CONNECTION LI 7903 is connected to the system via CAT5/CAT6 cable. RJ45 connector pins: Audio + Audio – Audio ground ground + 12 V dc + 24 V dc Data (A) Data (B) Assure the DXT 7000 system is off when connecting remote controls.
  • Page 16 • If LEDs blink with a sequence of 1 second, the device has not been set in the configuration software (check the device address). 9. FUNCTIONS LI 7903 can execute several kinds of functions: • Local paging • Message paging •...
  • Page 17 (ON / OFF) or 1 ÷ 20 s pulse. The relevant function button LED gets lit when a control output is activated. MU 7100 PRESET MU 7100 presets can be changed through LI 7903 remote controls. The relevant function button LED blinks once when the operation has been executed.
  • Page 18 Except possible errors and omissions. RCF S.p.A. reserves the right to make modifications without prior notice. the rules of sound RCF SpA: Via Raffaello, 13 - 42100 Reggio Emilia > Italy tel. +39 0522 274411 - fax +39 0522 274484 - e-mail: rcfservice@rcf.it...
