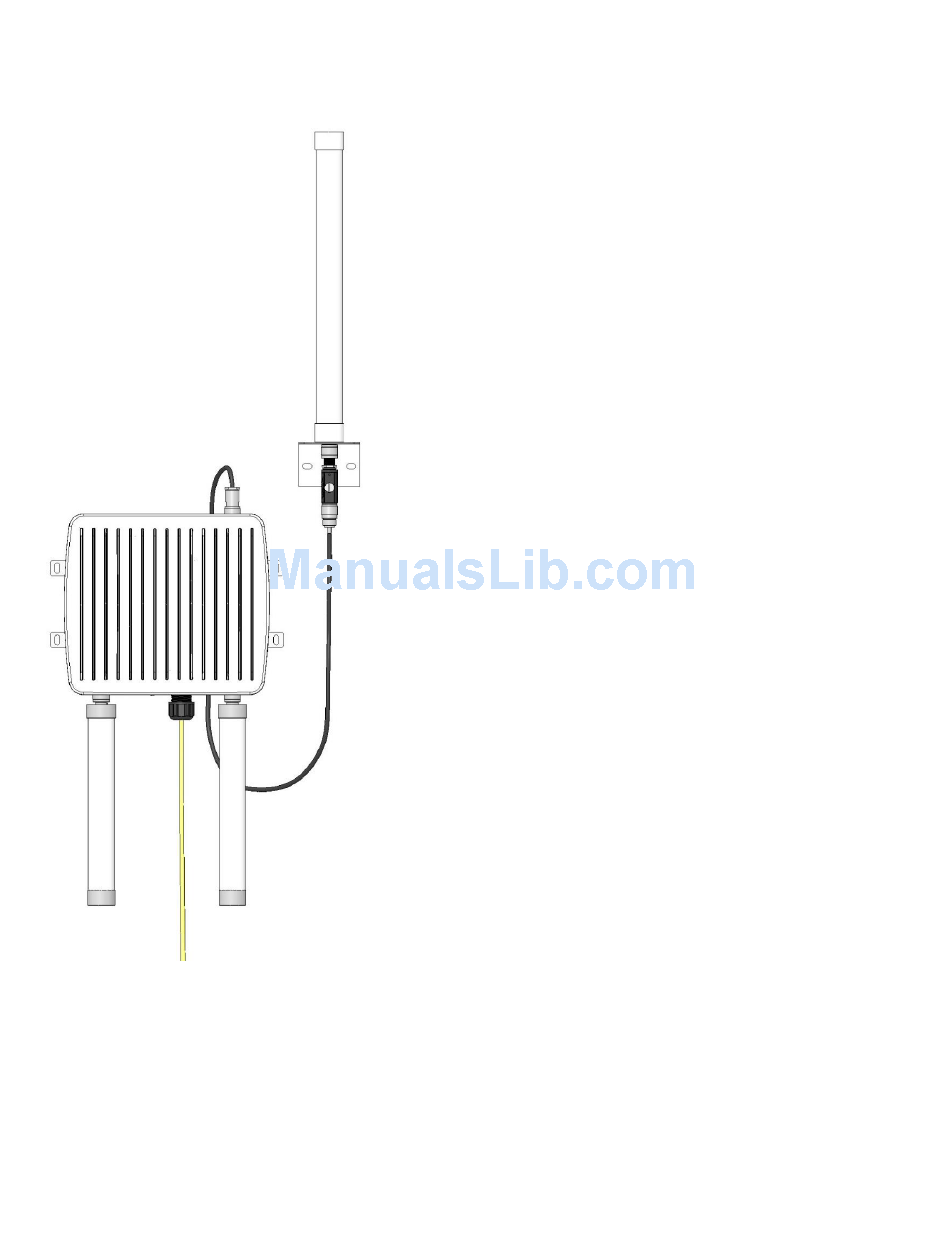

Attaching Accessories for a Wall Mounted Base Station
Part: 82101850L
After mounting the Base Station on the wall:
1.
Attach the antenna mounting bracket to the LoRa antenna.
2.
Mount the antenna bracket to the wall.
3.
Attach the lightning arrestor to LoRa antenna.
4.
Attach the antenna cable to the lightning arrestor.
5.
Attach the cable to the LoRa connector at the top of the Base
Station.
6.
Attach the 4G antennas to the Cell and Aux connectors on the
Base Station.
7.
Attach the Ethernet cable (not provided) to the device to supply
power and Ethernet.
