MultiConnect
This document illustrates how to connect the lightning arrestor, cable, and antennas to the Base Station. Instructions
for attaching the mounting bracket and mounting the Base Station are included with the Base Station and are also
available at http://www.multitech.net/developer/basestation.
CAUTION: Read all instructions and safety notices before starting installation. Safety notices are included in the
MultiConnect Base Station Installation Guide. Do not connect power to the Base Station until directed to do so.
Package Contents
Item Description
1 Lightning Arrestor
2 LoRa Antenna
3 4G Antenna
The lightning arrestor comes with a bracket, which is not needed.
NOTE:

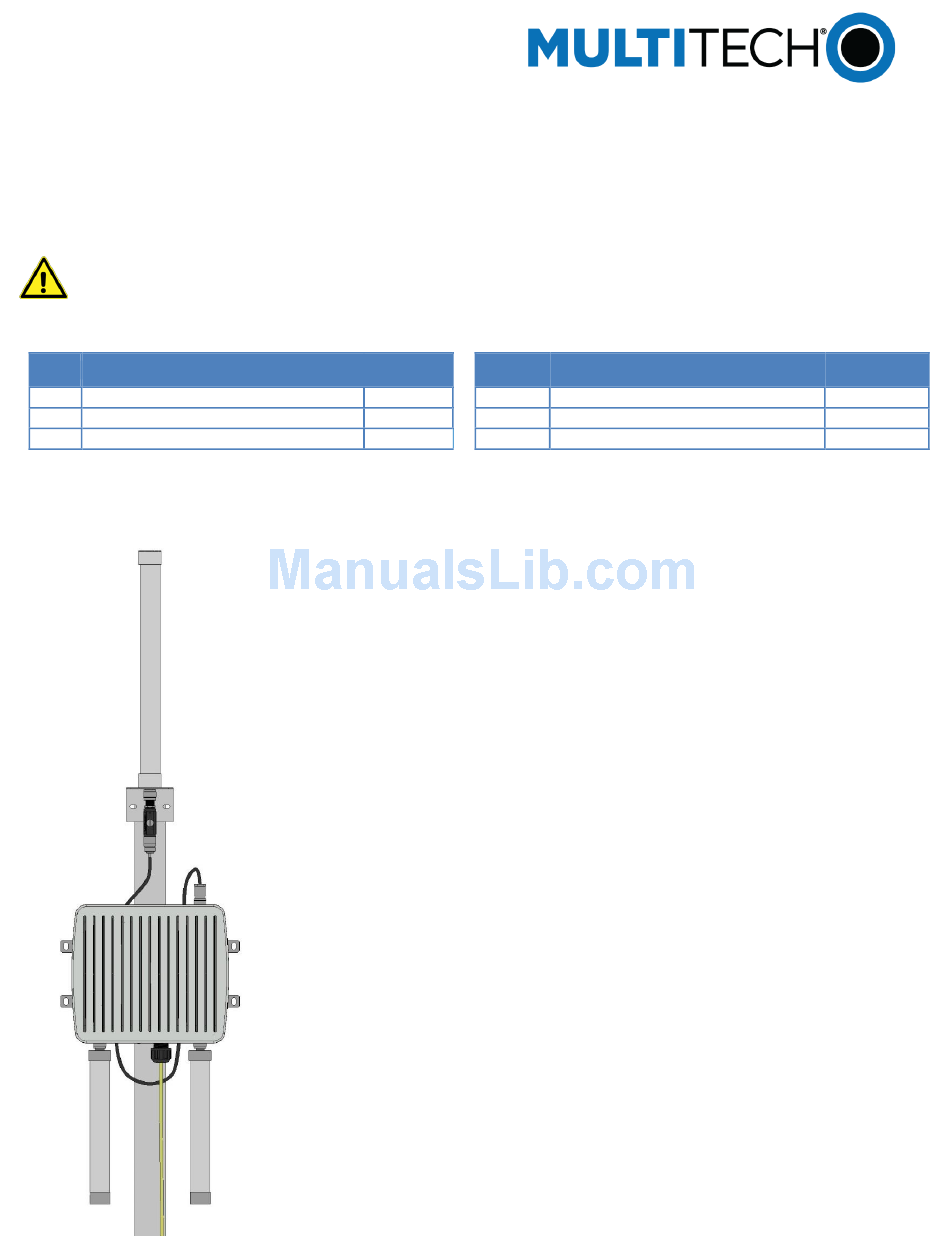

Attaching Accessories for a Pole Mounted Base Station
®
Conduit TM
Quantity
1
1
2
After mounting the Base Station on the pole:
1.
Attach the antenna mounting bracket to the LoRa antenna.
2.
Mount the antenna bracket to the pole so the top of the antenna bracket is at the
top of the pole and antenna extends above the pole.
3.
Attach the lightning arrestor to LoRa antenna.
4.
Attach the cable to the lightning arrestor.
5.
Attach the cable to the LoRa connector at the top of the Base Station.
6.
Attach the 4G antennas to the Cell and Aux connectors on the Base Station.
7.
Attach the Ethernet cable (not provided) to the device to supply power and
Ethernet.
IP67 Base Station Accessory Kit
Item Description
4 5 ft Antenna Cable
5 Antenna Bracket
6 Installation Guide
Quantity
1
1
1
