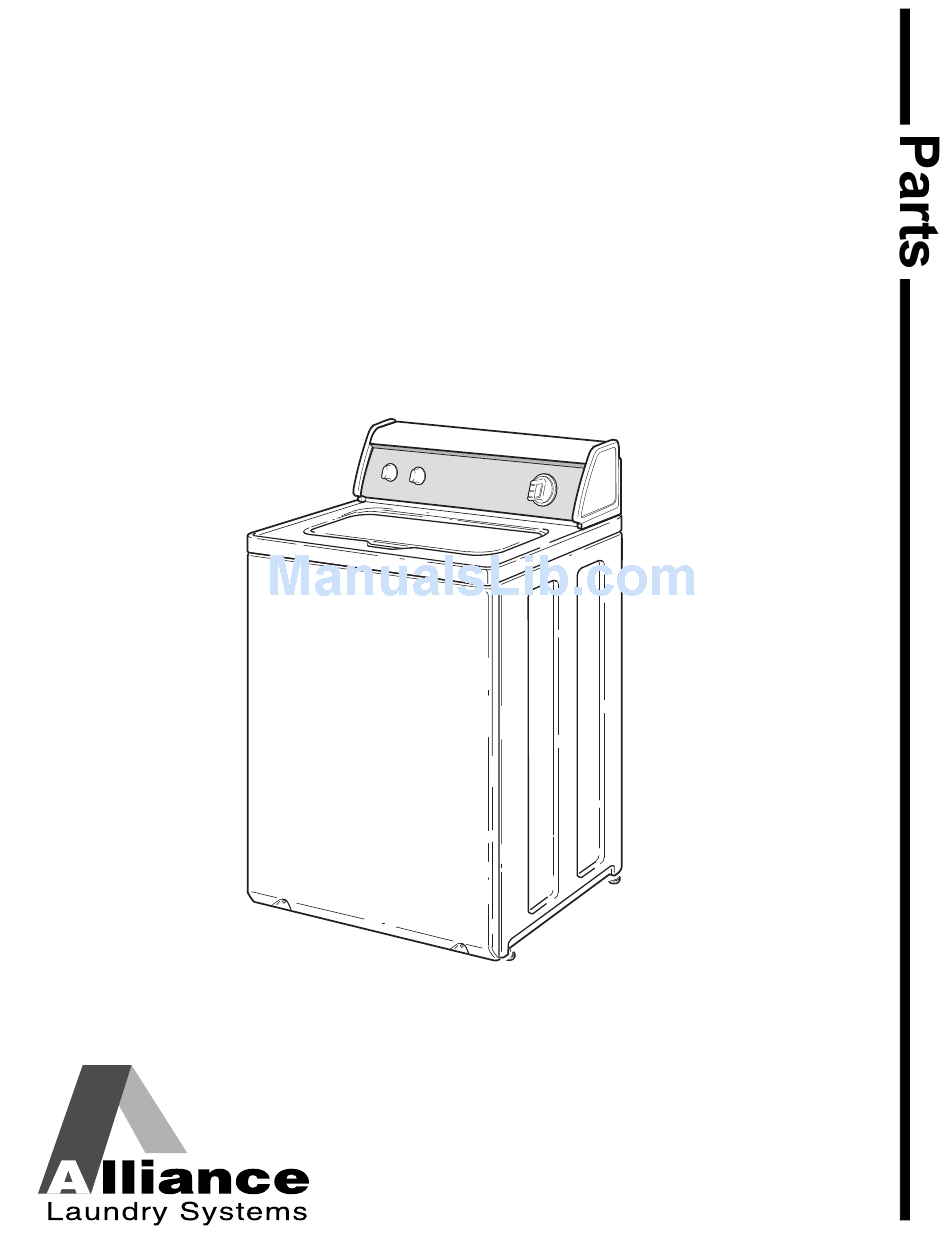

- Page 1 Homestyle Automatic Washers Refer to Page 3 for Model Numbers W001C_203430 Part No. 203430R3 www.alliancelaundry.com March 2017...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 4: Parts Ordering Information
When calling or writing about your product, be sure to mention model and serial numbers. Model and serial numbers are located on serial plate(s) as shown. Serial Plate W429S_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 5: Model Identification
Model Identification Information in this manual is applicable to these washer models: LWN432SP113TW01 PWNE32PP113TG01 YWNE52PP113TW01 LWN432SP113TW04 LWNA52SP113TW01 LWNE52PP113TW01 LWNE52SP113TW01 LWNE52WP113TW01 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 6: Graphic Panel, Control Support Panel And Controls (Drawing 1 Of 2)
Graphic Panel, Control Support Panel and Controls (Drawing 1 of 2) Models LWN432SP113TW01 and LWN432SP113TW04 W320P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 7 Graphic Panel White 38565 Control Support Panel 00161 Grounding Clip 36700W Timer Skirt Assembly White 201501W Timer Knob White 203323 Knob Assembly White 36701W Knob Assembly White 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 8: Graphic Panel, Control Support Panel And Controls (Drawing 2 Of 2)
Graphic Panel, Control Support Panel and Controls (Drawing 2 of 2) Models LWNA52SP113TW01, LWNE52PP113TW01, LWNE52SP113TW01, LWNE52WP113TW01, PWNE32PP113TG01 and YWNE52PP113TW01 TLW1784P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 9 Model PWNE32PP113TG01 202750 Control Overlay All other models 203523 Graphic Panel Model PWNE32PP113TG01 203165 Graphic Panel Model YWNE52PP113TW01 203151 Graphic Panel All other models 35358 Hold-Down Clip 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 10: Lid Switch Assembly
Lid Switch Assembly TLW1832B_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 11 Lid Switch Assembly PART NO. DESCRIPTION COMMENTS 37631 Lid Switch Assembly M402574 Screw M400981 23962 Screw 33445 Switch 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 12: Top, Lid And Hood Back Panel
Top, Lid and Hood Back Panel TLW1823P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 13 Model LWNA52SP113TW01 38382 Bleach Dispenser All other models 36437 Lid Hinge Right 36438 Lid Hinge Left; Model LWNA52SP113TW01 36513 Lid Hinge Left; All other models 21685 Bumper 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 14: Fill Hose, Mixing Valve-To-Tub Cover Hose, Mixing Valve And Bracket
Fill Hose, Mixing Valve-to-Tub Cover Hose, Mixing Valve and Bracket TLW1799P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 15 120 psi F200116 Water Hose 20290 Washer 24122 Mixing Valve Screen 203144P Mixing Valve Model LWNA52SP113TW01 202395P Mixing Valve All other models 39397 Screw 36801 Hose Clamp 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 16: Motor, Mounting Bracket, Belt, Pump And Idler Assembly
Motor, Mounting Bracket, Belt, Pump and Idler Assembly TLW1773P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 17 35369 Screw 35423 38325 Isolator Post 38396 Motor Mount 37377 Capacitor 31645 Screw 52909 Screw 203053 Motor Drip Shield 37535 Capacitor Clamp 37772 Washer 38395 Motor Mount 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 18: Agitator, Fabric Softener Dispenser, Drive Bell, Hub And Lip Seal Kit And Washtub
Agitator, Fabric Softener Dispenser, Drive Bell, Hub and Lip Seal Kit and Washtub TLW1805P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 19 Bell and Transmission Tube Seal 39508P Drive Bell and Seal Kit Includes items 9, 11 and 12 39432 Screw 36511 Bell Plug 36507 Flex Vane Agitator 36542 Fabric Softener Dispenser Assembly 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 20: Outer Tub, Cover, Pressure Hose And Counterweight
Outer Tub, Cover, Pressure Hose and Counterweight Model LWNA52SP113TW01 TLW1806P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 21 Leg Spring 39566 Screw 38769 Counterweight Assembly 39249 Washer 500049 Warning Label 29175 Grommet 30907 Pressure Bulb 39282 Hose Clamp 36985 Hose Clip 21036 Cable Clip 202700 Tubing 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 22: Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And Counterweight
Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose and Counterweight Models LWN432SP113TW01, LWN432SP113TW04, LWNE52PP113TW01, LWNE52SP113TW01, LWNE52WP113TW01, PWNE32PP113TG01 and YWNE52PP113TW01 TLW1464P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 23 Use with hub and lip seal kit 500049 Warning Label 29175 Grommet 30907 Pressure Bulb 39282 Hose Clamp 36985 Hose Clip 21036 Cable Clip 203478 Tubing Model LWN432SP113TW04 202700 Tubing All other models 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 24: Drain Hose And Siphon Break Kit
Drain Hose and Siphon Break Kit Standpipe W329P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 25 Standpipe Strap 33615 Drain Hose Sleeve 36878 Standpipe Adapter 32219 Strain Relief 39893 Drain Hose 38732 Hose Stand F200204 Hose Clamp 38351 Tub-to-Pump Hose 36014 Retainer Clip 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 26: Weldment And Bearing Assembly, Brake And Pulley
Weldment and Bearing Assembly, Brake and Pulley TLW1841P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 27 35535 Washer For machines experiencing squeaking during agitation 26594P Silicone Grease Apply small amount to washer 202795 Pulley 26509 Washer 27220 Screw 38008 Helix 28944RP Lower Bearing 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 28: Transmission Assembly
Transmission Assembly TLW1720P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 29 Use with 38826P Transmission Assembly 37404P Reduction Gear 29260 Washer 29273 Screw 26493 Slide 201664 Rack 27197 Retaining Ring 27003 Agitator Pinion 35092 Washer 38864 Gear Sleeve 201180 Transmission Case Assembly 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 30: Front Panel, Base Assembly And Cabinet Kit
Front Panel, Base Assembly and Cabinet Kit Ground Wire TLW1778P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 31 Panel Locator 36204 Front Panel Pad 38272 Screw 38335DG Front Panel Model PWNE32PP113TG01 38335WP Front Panel White; All other models 35865 Hold-Down Clip 35097 Front Panel Brace 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 32: Mixing Valve And Motor Connection Blocks, Terminals And Extractor Tool
Mixing Valve and Motor Connection Blocks, Terminals and Extractor Tool W134PZ3A_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 33 Female Terminal For 1 or 2 wire application 00121 Female Spade Terminal 1/4 inch 34675 Mixing Valve Plug Natural 34676 Mixing Valve Plug 283P4 Terminal Extractor Tool 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 34: Lead-In Cord And Terminals
Lead-In Cord and Terminals GROUND WIRE TLW1518P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 35 Lead-In Cord 00116 Male Pin Terminal 23033 9 Circuit Plug 21036 Cable Clip 26163 9 Circuit Receptacle 00574SG Female Pin Terminal 55881 Harness Strap 70296701 Wire Tie 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 36: Terminals
Terminals TLW1780P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 37 51291 Wire Clip 504034 Wire Clip 00223 Female Spade Terminal Large spade 00577 Terminal Tab 00110 Ring Terminal Small shank 00319 Ring Terminal 00257 Pressure Switch Terminal 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 38: Shipping Materials And Special Tools
Shipping Materials and Special Tools TLW1678P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 39 For removal and installation of drive bell to transmission shaft 294P4B Bolt Use to update item 3 294P4A Drive Bell Puller Arm Use to update item 3 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 40: Special Tools
Special Tools TLW1794P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 41 For removal of locknut from washtub hub 254P4P Agitator Hook Set of 2; Use to remove agitator from drive bell 282P4 Torx Bit T25; For removal and installation of pump attaching screws 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 42: Output Board, Wire Harnesses And Wires
Output Board, Wire Harnesses and Wires TLW1793P_203430 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 43 NOTE: Individual wires are not available separately. Order complete wire harness, or order wire by the foot. When applying terminals to wires, it is recommended that the terminals be soldered to the wires. 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 44 Notes 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 45: Parts Index
Cable Clip Flex Vane Agitator 21036 ............19, 21, 33 36507 ..............17 Capacitor Friction Ring 37377 ..............15 37937 ..............29 N/A items do not appear in index. 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 46 Lower Bearing 32746 ..............33 28944RP ..............25 Hub and Lip Seal Kit 766P3A ............. 17, 21 Hub Spacer 201212 ..............27 N/A items do not appear in index. 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 47 31645 ..............15 32814 ..............27 33562 ..............11, 13 34337 ..............11 35148 ..............29 Panel Locator 35369 ............15, 19, 21 28102 ..............29 N/A items do not appear in index. 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 48 Timer 20290 ..............13 202705P..............5 26509 ..............25, 27 203387P..............5 27015 ..............25 Timer Knob 28094 ..............17 201501W..............5 29260 ..............27 N/A items do not appear in index. 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 49 Wire Harness Assembly 38661P..............41 Wire Tie 70296701 ..............33 Wire, 12 Gauge 45380 ..............41 Wire, 18 Gauge 45001 ..............41 N/A items do not appear in index. 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 50 Notes 203430 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
