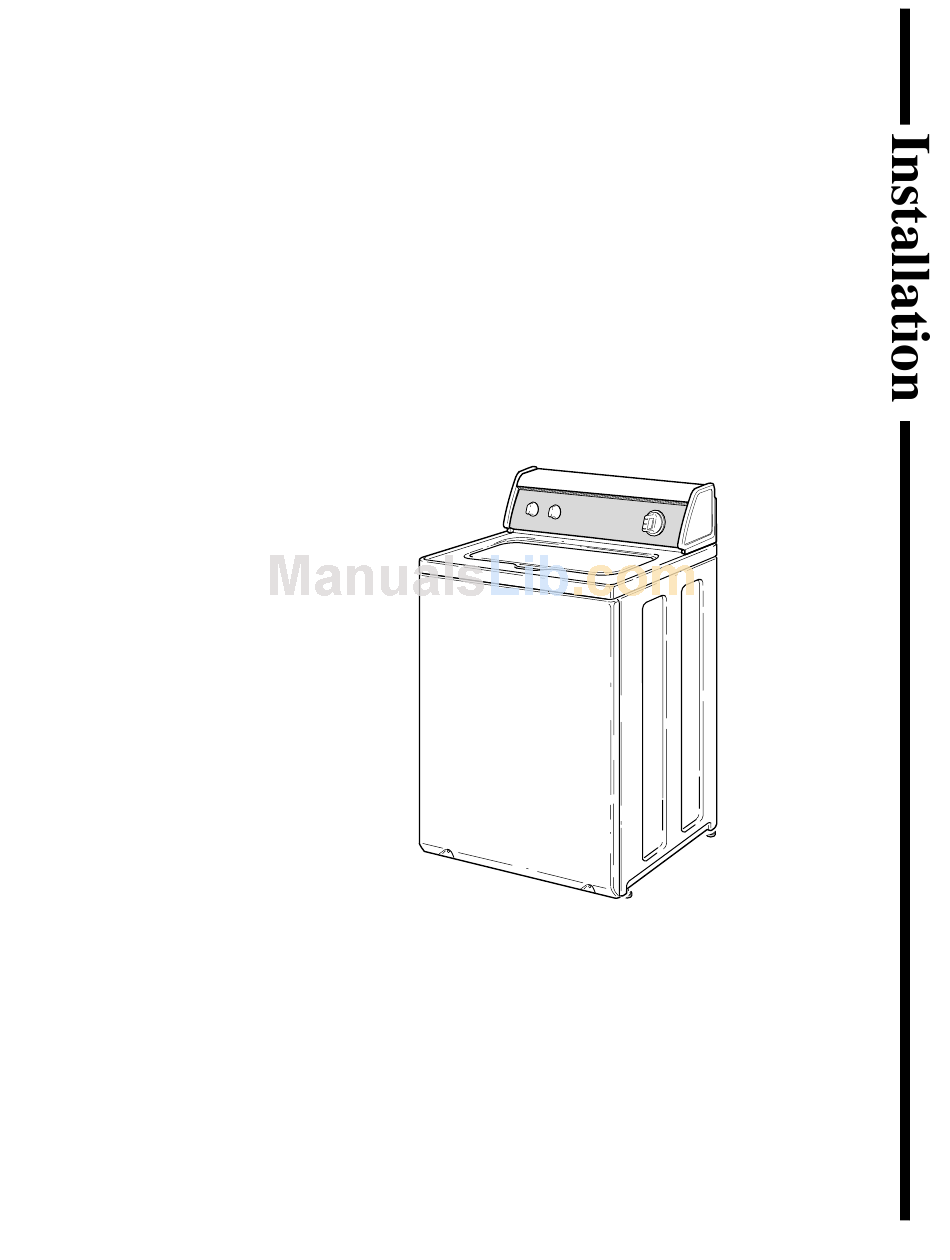

- Page 1 Automatic Washers W001C W001C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 38910R8 February 2007...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 38910 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Replacement Parts ... Installation... - Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910...
-
Page 5: Replacement Parts
Replacement Parts If replacement parts are required, contact the source from which you purchased your washer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910... - Page 6 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910...
-
Page 7: Installation
71,1 cm (28 in.) 56,2 cm (22,13 in.) 10,2 mm 66 cm 65 cm (0,4 in.) (26 in.) (25,6 in.) TLW2075N * With leveling legs turned into base. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910... -
Page 8: Before You Start
Wrench Screwdriver Pliers Level Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Electrical Refer to serial plate for specific electrical requirements. For more detailed information, refer to section on Electrical Requirements. Water Washer needs two standard 19,05 mm (3/4 inch) water supply faucets with a pressure between 138 and 827 kPa (20 to 120 pounds per square inch). -
Page 9: Installing The Washer
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910 NOTE: Do not tilt washer to front or sides when moving. -
Page 10: Step 3: Connect Fill Hoses
Any hose showing the signs of deterioration listed above should be replaced immediately. All hoses should be replaced every five years. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Filter Washer (Screen must be facing outward) Fill Hose... -
Page 11: Step 4: Connect Drain Hose To Drain Receptacle
32 cm (1-1/4 inch) outside diameter drain hose. Retainer Clamp Standpipe Adapter Figure 5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910 Standpipe Installation Place the adapter into the standpipe. Remove the beaded tie-down strap from accessories... - Page 12 Standpipe (Standpipes higher than 122 cm [4 ft.] are not recommended) Figure 7 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Low Standpipe Installation No. 562P3 Siphon Break Kit is required for this type of installation. This kit is available (as optional equipment at extra cost) through an authorized dealer or parts distributor.
-
Page 13: Sink Installation
Drain Hose Cabinet Top Hinge Tie-Down Strap or Wire Tie Figure 9 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910 In the Wall Installation For installations of this type, the drain hose MUST be secured to one of the inlet hoses using the beaded tie- down strap from accessories bag. -
Page 14: Step 5: Position And Level The Washer
Tie-Down Strap (Tape if necessary) Figure 11 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 5: Position and Level the Washer Position washer so it has sufficient clearance for installation and servicing. -
Page 15: Step 6: Plug In The Washer
NOTE: The agitator should not be removed except for service. The washtub is designed to be self- cleaning. Figure 14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910 Step 8: Check Lid Switch Washer should stop spinning when lid is opened. -
Page 16: Electrical Requirements
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Improper connection of the equipment- earthing conductor can result in a risk of electric shock. -
Page 17: Water Supply Requirements
Water Supply Faucets Cold Water Connection Hot Water Connection Fill Hoses Figure 18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910 Water Temperature Cold: Recommended cold water temperature is 10° to 24° Celsius (50° to 75° Fahrenheit). -
Page 18: Water Pressure
(refer to Figure 19). Risers (Air cushions) Water Supply Faucets Figure 19 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT W005I W005I 38910... -
Page 19: Information For Handy Reference
NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on the nameplate. Customer Care Centre and Information: 1300 652 100 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910... - Page 20 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38910...
-
Page 22: Installer Checklist
Fast Track for Installing the Washer (Refer to the manual for more detailed information) • Remove the Shipping Brace and Shipping Plug. CHECK • Wipe Out Inside of Washtub. CHECK • Connect Fill Hoses. CHECK • Connect Drain Hose to Drain Receptable.
