Summary of Contents for Wisenet SNH-P6416BN

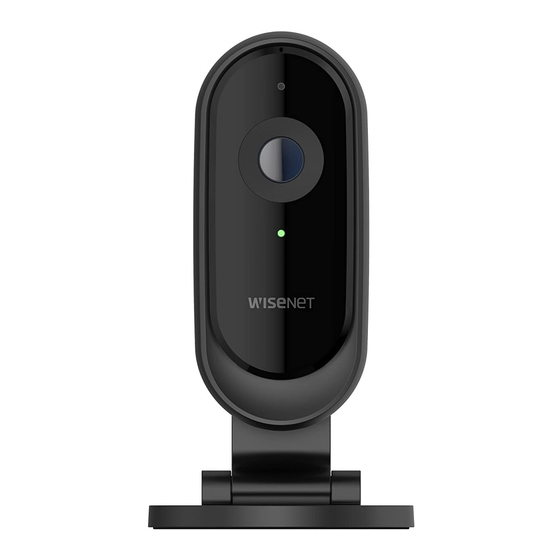

- Page 1 WISENET SMARTCAM User Manual SNH-P6415BN/SNH-P6416BN...
-
Page 2: User Manual
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from WISENET SMARTCAM which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. - Page 3 Instructions & Warranty • Accessories and small parts of the product should be stored keeping out of children’s reach. The manufacturer is not responsible for any loss or radio/TV interference caused by • The product is not designed to replace responsibility of human supervision on children. unauthorized modification of the product.
-
Page 4: Table Of Contents
Contents GEttInG StaRtEd appEndIx Features ……………………………………………………… 5 Specifications ………………………………………………… 15 What’s Included ……………………………………………… 6 Troubleshooting ……………………………………………… 18 Part Names and Functions …………………………………… 7 InStallatIon & nEtwoRk ConnECtIon Installation …………………………………………………… 9 Network Connection and Settings …………………………… 14... -
Page 5: Features
Features • Easy to install - The camera is registered through the Bluetooth connection. • Remote monitoring - You can monitor your SmartCam remotely, at any time and from any location, using your smartphone. • Real-time alarm - When a motion and sound are detected, your smartphone will generate real time alarms. -
Page 6: What's Included
What’s Included Check for components when opening the product package. Camera Quick Start Guide (Option by region) Warranty Card GPL Lisence Power Adapter and Cable Security Screws / Plastic Anchors Adapter may vary based on region or country. 6 · English... -
Page 7: Part Names And Functions
Part Names and Functions Front Rear Microphone luminance Sensor Detects light levels where the camera is placed. Night vision mode changes according to detection result. lEd Status Indicator SNH-P6415BN Bracket knob Speaker Connect the camera and bracket. Generates audio output from your smart phone. -
Page 8: Side
Side Components Reset Button Resets the product settings to the factory default. The system restarts if you press the button for 10 seconds using a pointed object such as a needle. power Input If you press too strongly, the button It connects with a power adapter. -
Page 9: Installation
Installation precautions It is recommended to place the SmartCam at a proper height where it can & easily catch people's faces. (Installation height : 3ft(1m)~7ft(2m)) nStallation As this product works on a Wi-Fi network, video receiving may be unstable if there is an obstacle (metal, wall, door) in the use environment, or if the product is receiving interference from another Wi-Fi device nearby. - Page 10 on flat surface wall installation Place the camera stand on a flat horizontal surface. Change direction of bracket Turn the bracket knob on the back of the camera counterclockwise (left) to loosen and separate the bracket. SNH-P6415BN Insert the cable into the bracket as shown in the figure to connect the camera, then adjust the cable to pass through the cable opening.
- Page 11 assembly Insert an anchor in each of the 2 holes for the screws, then hit the back of the anchor with a hammer or a rubber mallet until it is Remove the rubber packing attached to the completely inserted. camera mount. Slide the power adapter into the base opening Take out the screws (M3xL20) and anchors as shown in the picture.
- Page 12 Install power Supply With the Wisenet SmartCam+ app, users can monitor the SmartCam from a Plug-in the camera power adapter to the wall outlet and connect the camera as mobile device. shown. Go to Google Play/App Store and search for “wisenet SmartCam+”.
-
Page 13: Network Connection
network connection In a location with a strong bluetooth signal and no interference, use BLE communication. The distance between the smartphone and the product should be within 5 ft (1.5 m). ❖ lEd status LED indicator shows operational status with colors. Refer to table below for detailed meaning of the LED indicator. -
Page 14: Network Connection And Settings
Connection using the BlE function Network Connection and Settings Connect the power adapter to the product. precautions When the power is connected, the power status LED lights up in red and starts blinking when boot-up is complete. This is the BLE Enable state. When using BLE, keep the camera and mobile • The wireless network access may fail, depending on the communications within 5ft (1.5m). -
Page 15: Specifications
Specifications Specifications Item Description Video ppendix Imaging Device 1/2.9" CMOS Min. Illumination B/W : 0 Lux with IR Lens Angular Field of View(H / V / D) H : 112˚ / V : 62˚ / D : 130˚ Lens Distortion Correction Support (Camera Level) Specifications Operational... - Page 16 Item Description Item Description Environmental Digital Zoom 4x(Mobile) Flip / Mirror Support Operating Temperature / Humidity 0°C ~ 40°C (+32°F ~ +104°F) / Less than 90% RH Intelligent Video Analytics Face Recognition, Human Detection, Motion Zone Selection Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Audio detection Support...
- Page 17 product appearance unit: mm (inch)
-
Page 18: Troubleshooting
Problem Action Troubleshooting I want to change my - Change the account information after logging into Wisenet SmartCam+. password and/or For more details, refer to the mobile guide. email address. If you encounter a problem with your system, see the table below to solve the problem as quickly and easily as possible. - Page 19 Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive. Correct Disposal of This Product (Waste Electrical &...
- Page 20 Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 www.wisenetlife.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Tel +1.877.349.3149 www.wisenetlife.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom Tel#1 00800.801.08022 Tel#2 +31.77.326.1580 www.wisenetlife.com...
- Page 21 FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 22 FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 23 Industry Canada Caution (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250- 5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
