Summary of Contents for Wisenet SNH-P6416BN
-

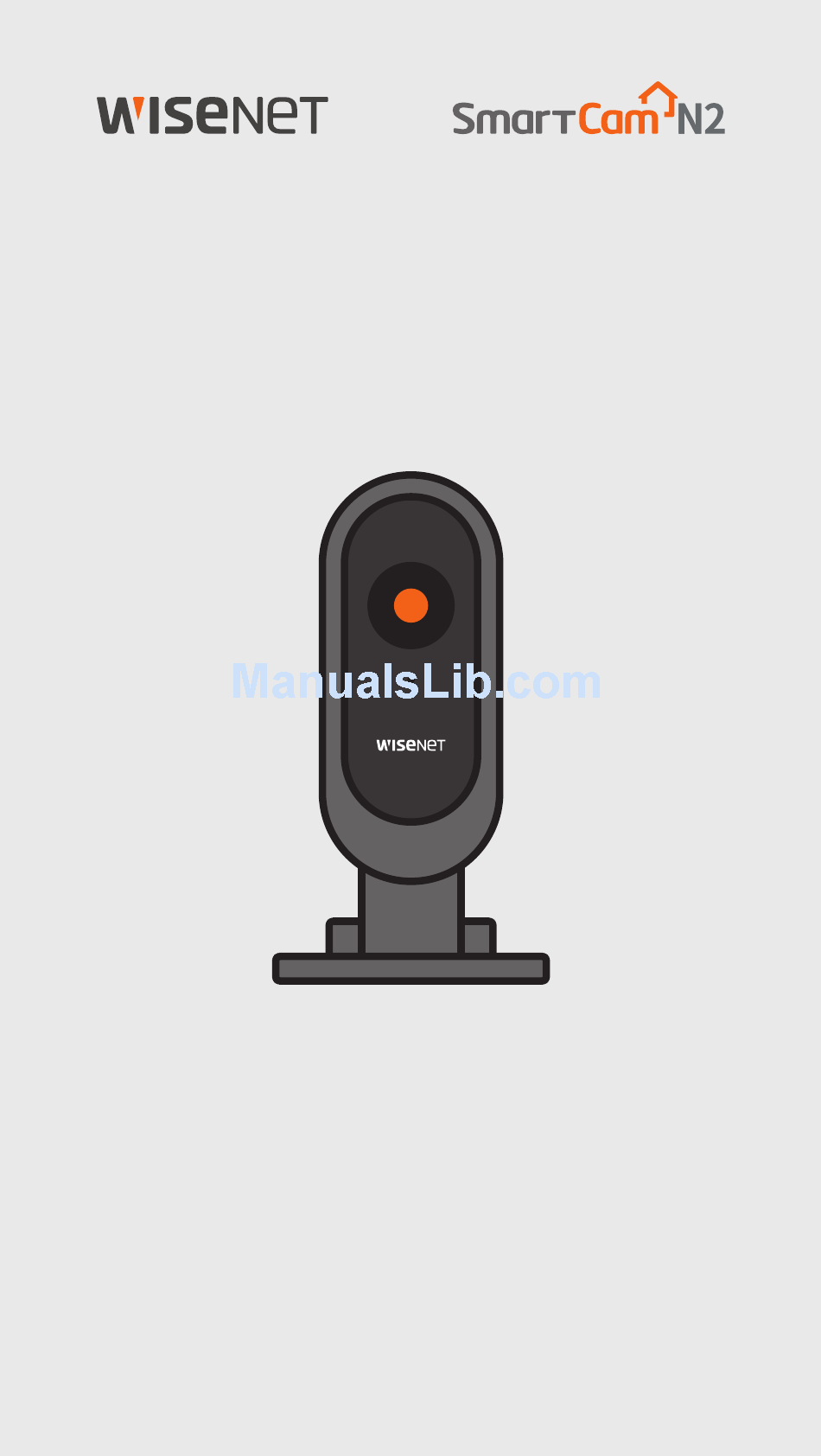

Page 1: Quick Start Guide
Quick Start Guide SNH-P6416BN... - Page 2 If`the`camera`is`not`within`range`of`your`Wi-Fi`network,` consider`using`a`Wi-Fi`extender`to`extend`the`coverage` of`your`Wi-Fi`network. Connect the power adapter to the camera. Cable`may`pose`a`choking`hazard`to`children.`Keep`the`cables`out` of`reach`of`children. For`better`image`quality,`do`not`touch`the`camera`lense. Be`sure`to`use`the`power`cable`included`in`the`box,`or`the`camera` may`not`work`properly. Download the Wisenet SmartCam+ app for app setup. Once app setup is complete, follow the instructions on page 15 to utilize the main features.
- Page 3 Pre-Setup Check List In-App Features (No SmartCloud Subscription) Be in control of your home with a full breath of in-app features included with the SmartCam N2: ~ Push Notifications ~ Human Detection ~ Abnormal Sound Detection ~ Face Recognition ~ Live Feed On-Demand ~ Two-Way Talk SmartCloud Features: Our cloud service include the in-app features and the following below.
-
Page 4: System Requirements
What’s in the box / System Requirements Warranty Card / Quick Start Guide/ GPL Lisence Smartcam Power Adapter and Cable Screws / Plastic Anchors ※ A dapter may vary based on region or country. Wi-Fi 802.11 a/b/g/n/ac (2.4GHz / 5GHz) Recommended : 3.5Mbps or higher iOS 9 or higher Android OS 5.0 or higher... -
Page 5: Camera Overview
Camera Overview Microphone LED Status Indicator Speaker Bracket Knob SNH-P6415BN SNH-P6416BN Reset Button Power Input Micro SD Card In/Out... -
Page 6: Mounting The Camera
Place the camera stand on a flat horizontal surface. Insert the cable into the bracket as shown in the figure to connect the camera, then adjust the cable to pass through the cable opening. SNH-P6416BN Adjust the camera angle as desired. -
Page 7: Wall Installation
Turn the bracket knob on the back of the camera counterclockwise (left) to loosen and separate the bracket. SNH-P6416BN Turn the camera backward as shown in the picture, then insert the bracket knob and turn it clockwise (right) to tighten it to the mount. - Page 8 Mounting the Camera Insert the anchors completely into the holes. Slide the power adapter into the base opening as shown in the picture. Connect the power adapter to the camera. SNH-P6415BN Drill the screws into the anchor holes until the bracket is firmly secured in place.
- Page 9 Download & Install App/ Create User Account Go to the App Store or Play Store Search for “Wisenet on your iOS or Android device. SmartCam+” install and then open the app. Create account Create account User ID Hanwha135 8-14 alphanumeric characters...
- Page 10 SmartCam App Setup Tap “Home Camera”, and then select “N1 / N2”. Selecting a product Which product would you like to register? A1 + Doorbell Doorbell Home Camera Register a product in use Connect the power adapter to the camera. The LED light will start blinking red after boot up is complete.
- Page 11 SmartCam App Setup If you have one camera, the app will locate the nearby camera and connect automatically. If you have more than one camera, select the name containing the last 4 digits of the product’s serial #. Select a product Please select the camera you want to register.
- Page 12 SmartCam App Setup Tap the toggle switch to turn ON/OFF Face Recognition. Face`recognition`is`not`available`in`Illinois,`US. Front Door 12:38 pm Looks like "Colin" from your Interest Group is at the "front door" Face Recognition Captures and identifies a person’s facial features to alert you whenever the person is at the front door. Tap toggle switch to enable/disable feature.
-
Page 13: User Interface
User Interface Overview My home Menu Access account and cloud information. Security Mode Set security mode (Arm, Disarm, Schedule) Settings (Individual for individual camera. camera) Camera List Editor Edit (Delete) Cameras. Security Mode Settings Set security mode (Arm, Disarm, Schedule) (All camera) for all cameras. -
Page 14: Live Video
User Interface Live Video Events Home Page Tap to exit out of the current live feed and return to the main page. Manual Recording (SD card / Cloud) Records video for 30 sec. when enabled. Capture Saves images captured from a live video. Events Tap to access events and recordings. -
Page 15: Time Setting
Basic Features Guide General Refer to the steps below for quick access to the main features of the app. General Apply Go to Setup ; General Camera Name Living room Change password Time Setting Time 2017-02-22 04:13:13 Tap "Time zone" and select your time zone. (GMT-05:00) Eastern Time (US &... - Page 16 Basic Features Guide Human Detection Human Detection minimizes false push notifications of events. Go to Setup ; Event Tap the toggle switch to turn ON/OFF Human Detection. Adjust sensitivity level. Human detection Sensitivity Low Sensitivity High Sensitivity Adjust`to`higher`sensitivity`levels`to`trigger`more`alerts. Adjust`to`lower`sensitivity`to`reduce`false`alerts. Motion Zone Select Go to Setup ;...
-
Page 17: Face Recognition
Basic Features Guide Face Recognition SmartCam N2 recognize human faces and automatically saves the images in the app. Face recognition (up to 100 faces) Merging / Deleting faces “Merge” allows for more accurate face recognition. All faces (13/100) Tap [ ] icon. -
Page 18: Event Schedule
Basic Features Guide Event Schedule Go to Setup ; Event Schedule Tap to select the day of the week and then Event Schedule Armed Apply drag the orange bar up and down to desired time. Tap "Apply" when done. SD Card Go to Setup ;... - Page 19 LED Status Guide Booting up Booting completed / Enabling BLE direct Blink Searching for available Wi-Fi network Blink Connected to Wi-Fi network Connected to Server / Setup Completed Download firmware Updating firmware Blink...
