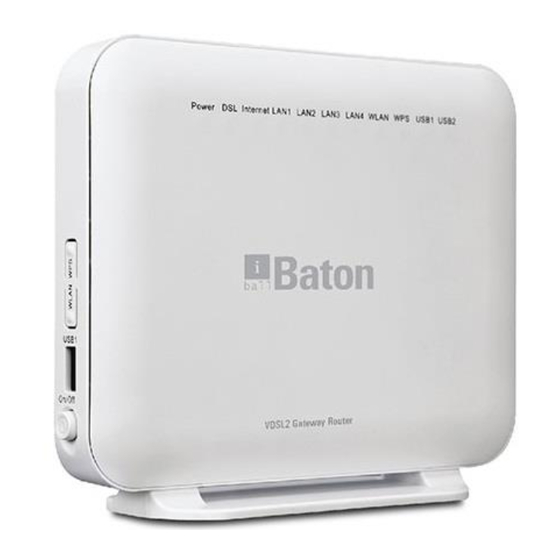

iBall Baton iB-WVG300N User Manual

Vdsl2 gateway router
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Guide

VDSL2 Gateway Router
Model No. iB-WVG300N
Ver. 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iB-WVG300N and is the answer not in the manual?

Questions and answers

Related Manuals for iBall Baton iB-WVG300N

Summary of Contents for iBall Baton iB-WVG300N

  • Page 1: User Guide

    User Guide VDSL2 Gateway Router Model No. iB-WVG300N Ver. 1.0.0...

  • Page 2: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Ce Mark Warning

    CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures...

  • Page 4: Table Of Contents

    VDSL2 Gateway Router Contents CHAPTER 1. PACKAGE LIST ..............1 CHAPTER 2. PRODUCT OVERVIEW ............1 INTRODUCTION ..................1 CHAPTER 3. FEATURES ................ 2 CHAPTER 4. HARDWARE DESCRIPTION AND INSTALLATION ....3 HARDWARE DESCRIPTION ............3 4.1.1 FRONT PANEL ................3 4.1.2 REAR PANEL AND SIDE PANEL ..........
  • Page 5 VDSL2 Gateway Router 6.1.4 LAN ..................13 6.1.5 WAN SERVICE ................ 14 6.1.6 XTM ..................14 6.1.7 XDSL ..................14 6.1.8 ROUTE ................... 17 6.1.9 ARP ..................18 6.1.10 DHCP ..................18 NETWORK SETTING ..............19 6.2.1 WAN INTERFACE ..............20 6.2.2 WAN SETUP ................
  • Page 6 VDSL2 Gateway Router 6.2.16 PACKET ACCELERATION ............76 6.2.17 NAS ..................76 6.2.18 PORT MAPPING ..............77 6.2.19 IP TUNNEL ................79 6.2.20 IPSEC..................80 6.2.21 CERTIFICATE ................82 6.2.22 POWER MANAGEMENT ............86 6.2.23 MULTICAST ................88 WIRELESS ................... 89 6.3.1 BASIC SETTINGS ..............
  • Page 7 VDSL2 Gateway Router 6.5.4 TR-69 CLIENT ............... 109 6.5.5 TIME SETTING ..............110 6.5.6 AUTHENTICATION ..............112 6.5.7 FIRMWARE UPDATE ............. 114 6.5.8 RESTART................114 CHAPTER 7. Q&A................115 CHAPTER 8. CONTACT INFORMATION ………………………………………………115...

  • Page 8: Chapter 1. Package List

    VDSL2 Gateway Router Chapter 1. Package List The following contents should be found in the product packaging: VDSL2 Gateway Router  2 x 5dBi Antenna (Fixed)  Power Adapter  2 x RJ11 Patch Cord  RJ45 Patch Cord  ADSL Splitter ...

  • Page 9: Chapter 2. Product Overview

    VDSL2 Gateway Router Chapter 2. Product Overview Quick Installation Guide will help you to configure iBall Baton iB-WVG300N (VDSL2 Gateway Router) quickly & easily. Introduction VDSL2 Gateway Router – Very high speed digital subscriber line (VDSL Technology) supporting ITU G.993.2 standard that uses existing twisted copper cable to provide high speed downstream up to 100Mbps - VDSL2 Profile support : 8a, 8b,8c,12a,12b &...

  • Page 10: Chapter 3. Features

    VDSL2 Gateway Router Chapter 3. Features  Complies with IEE802.3 & IEEE802.3u standards  Complies with IEEE 802.11b/g/n standards  Enhanced 300Mbps Wireless data transmission speed  VDSL2 Internet - Configure Internet with (RJ11) WAN port  ADSL2 Internet – Backward compatible as configure with (RJ11) WAN port Broadband Internet (Cable / DSL) –...

  • Page 11: Chapter 4. Hardware Description And Installation

    VDSL2 Gateway Router Chapter 4. Hardware Description and Installation Hardware Description 4.1.1 Front Panel Figure 1 Front panel 4.1.2 Rear Panel and Side Panel...
  • Page 12 VDSL2 Gateway Router The following table describes the interfaces or the buttons. Interface Description RJ-11 port: Connect the router to DSL connector or splitter through telephone cable. RJ-45 port, for connecting the router to a PC or another network LAN 4~1 device.

  • Page 13: Led Indicator

    VDSL2 Gateway Router 4.1.3 LED Indicator The following table describes the indicators on the front panel. Indicator Color Status Description The device is powered on and the device operates normally. Green Blink The software is upgrading. Power The device is powered off. The device is initiating.

  • Page 14: Hardware Installation

    VDSL2 Gateway Router  Note: After a device is successfully added to the network by WPS function, the WPS LED will keep on for about 2 minutes and then turn off. Hardware Installation 4.2.1 Choosing the Best Location for Wireless Operation Many environmental factors may affect the effective wireless function of the DSL Router.
  • Page 15 VDSL2 Gateway Router Note: If you use 3G WAN service, connect the 3G USB data card to the USB port of the router. The followig figure displays the connection of the DSL router, PC, and telephones. Figure 2 Connecting the DSL router...

  • Page 16: Chapter 5. Connecting The Router

     Operating Humidity: 10%~90%RH, Non-condensing TCP/IP Configuration The default IP address of the iB-WVG300N VDSL2 Gateway Router is 192.168.1.1 and the default Subnet Mask is 255.255.255.0. These values can be changed as per the requirement. In this guide, we use all the default values for description.
  • Page 17 VDSL2 Gateway Router Figure 3 Configure the network parameters. The IP address is 192.168.1.xxx ("xxx" is any number from 2 to 254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.1.1 (The Router's default IP address).  Obtain an IP address automatically Set up the TCP/IP Protocol in "Obtain an IP address automatically"...
  • Page 18 VDSL2 Gateway Router  If the result displayed is similar to the Figure 5-1, it means the connection between your PC and the Router has been established well. Figure 5-1 Success result of Ping command  If the result displayed is similar to the Figure 5-2, it means the connection between your PC and the Router is failed.

  • Page 19: Logging In To The Vdsl2 Gateway Router

    VDSL2 Gateway Router Is the connection between your PC and the Router correct?  Note: The 1/2/3/4 LEDs of LAN ports which you link on the Router and LEDs on your PC's adapter should be lit. Is the TCP/IP configuration for your PC correct? ...

  • Page 20: Chapter 6. Web-Based Management

    VDSL2 Gateway Router Chapter 6. Web-Based Management This chapter describes how to use Web-based management of the DSL router, which allows you to configure and control all of DSL router features and system parameters in a user-friendly GUI. Status Info Choose Status Info, and the submenus of Status Info are shown as below: 6.1.1 Status...

  • Page 21: Wan

    VDSL2 Gateway Router This page displays the device information such as the board ID, software version, and the information of your WAN connection such as the upstream rate and the LAN address. 6.1.2 Choose Status Info > WAN and the following page appears. This page displays the information of the WAN interface, such as the connection status, and the IP address.

  • Page 22: Wan Service

    VDSL2 Gateway Router 6.1.5 WAN Service Choose Status Info > Statistics > WAN Service and the following page appears. In this page, you can view the statistical information about the recevied and transmitted data packets of the WAN interface. Click Reset Statistics to restore the values to zero and recount them. 6.1.6 Choose Status Info >...
  • Page 23 VDSL2 Gateway Router...
  • Page 24 VDSL2 Gateway Router In this page, you can view the statistical information about the recevied and transmitted data packets of the xDSL interfaces. Click xDSL BER Test to test the xDSL Bit Error Rate. Click Reset Statistics to restore the values to zero and recount them. xDSL BER Test Click xDSL BER Test to perform a bit error rate (BER) test on the DSL line.

  • Page 25: Route

    VDSL2 Gateway Router Note: If the BER reaches e-5, you cannot access the Internet. 6.1.8 Route Choose Status Info > Route and the following page appears. In this page, you can view the route table information.

  • Page 26: Arp

    VDSL2 Gateway Router 6.1.9 Choose Status Info > ARP and the following page appears. In this page, you can view the MAC address and IP address information of the device connected to the router. 6.1.10 DHCP Choose Status Info > DHCP and the following page appears. In this page, you can view the host name, the IP address assigned by the DHCP server, the MAC address this is corresponding to the IP address, and the DHCP lease time.

  • Page 27: Network Setting

    VDSL2 Gateway Router Network Setting Choose Network Setting and the submenus of Network Setting are shown as below:...

  • Page 28: Wan Interface

    VDSL2 Gateway Router 6.2.1 WAN Interface 6.2.1.1 ADSL Connection Choose Network Setting > WAN Interface > ADSL . In this page, you can add or remove to configure ADSL Interfaces. Click Add to add ATM Interface and the following page appears.
  • Page 29 VDSL2 Gateway Router In this page, you can enter this PVC (VPI and VCI) value, and select DSL link type (EoA is for PPPoE, IPoE, and Bridge.), encapsulation mode, service category.  VPI (Virtual Path Identifier): The virtual path between two points in an ATM network, and its valid value is from 0 to 255.
  • Page 30 VDSL2 Gateway Router 6.2.1.2 VDSL Connection Choose Network Setting > WAN Interface > VDSL, and the following page appears. In this page, you can add or remove to configure VDSL WAN Interfaces. Click Add and the following page appears. In this page, you can select scheduler for queues of equal precedence and enter the queue value.
  • Page 31 VDSL2 Gateway Router 6.2.1.3 Broadband Interface Choose Network Setting > WAN Interface > Broadband, and the following page appears. In this page, you can add or remove to configure Broadband WAN Interfaces. Click Add and the following page appears. In this page, you can select a ETH port. Click Apply/Save to save configuration. Note: If Broadband Interface is selected, there are two WAN service types (PPPoE and IPoE).

  • Page 32: Wan Setup

    VDSL2 Gateway Router 6.2.2 WAN Setup Choose Network Setting > WAN Setup, and the following page appears. In this page, you are allowed to add, remove, or edit a WAN service. Note: If VDSL Interface is selected, there are three WAN service types: PPP over Ethernet (PPPoE), IP over Ethernet, Bridging.
  • Page 33 VDSL2 Gateway Router Step2 In this page, you can select a ATM Interface for the WAN service. After selecting the ATM interface, click Next to display the following page. Step3 In this page, select the WAN service type to be PPP over Ethernet (PPPoE).
  • Page 34 VDSL2 Gateway Router Step4 In this page, you can modify the PPP username, PPP password, PPPoE service name and authentication method.  PPP Username: The correct user name provided by your ISP.  PPP Password: The correct password provided by your ISP. ...
  • Page 35 VDSL2 Gateway Router Step5 After setting the parameters, click Next to display the following page. Step6 In this page, select a preferred WAN interface as the system default gateway and then click Next to display the following page.
  • Page 36 VDSL2 Gateway Router Step7 In this page, you can obtain the DNS server addresses from the selected WAN interface. Click Next, and the following page appears. Step8 In this page, it displays the information about the PPPoE settngs. Click Apply/Save to save and apply the settings. 6.2.2.2 Adding a MER (IPoE) WAN service This section describes the steps for adding the MER WAN service.
  • Page 37 VDSL2 Gateway Router Step2 Select an ATM Interface, and then click Next to display the following page. Step3 In this page, select the WAN service type to be IP over Ethernet, enter the service description for this service. After finishing setting, click Next to display the following page.
  • Page 38 VDSL2 Gateway Router Step4 In this page, you may modify the WAN IP settings. You may select obtain an IP address automatically or manually enter the IP address provided by your ISP. Click Next and the following page appears. Note: If selecting Obtain an IP address automatically, DHCP will be enabled for PVC in MER mode.
  • Page 39 VDSL2 Gateway Router Step5 In this page, you can set the network address translation settings,for example, enabling NAT, enabling firewall, and enabling IGMP multicast. After finishing setting, click Next and the following page appears. Step6 In this page, select a preferred WAN interface as the system default gateway and then click Next to display the following page.
  • Page 40 VDSL2 Gateway Router Step7 In this page, you can obtain the DNS server addresses from the selected WAN interface. After finishing setting, click Next to display the following page. Step8 In this page, it displays the information about the IPoE settngs.Click Apply/Save to save and apply the settings.
  • Page 41 VDSL2 Gateway Router Step2 Select the DSL link type to be PPPoA, and select the encapsulation mode to be VC/MUX (according to the uplink equipment). After finishing setting, click the Apply/Save button to apply the setings. Step3 Choose WAN Service and click Add to display the following page.
  • Page 42 VDSL2 Gateway Router Step4 Select the proper interface for the WAN service, and then click Next to display the following page. Step5 In this page, you may modify the service description. Click Next to display the following page.
  • Page 43 VDSL2 Gateway Router  PPP Username: The correct user name provided by your ISP.  PPP Password: The correct password provided by your ISP.  Authentication Method: The value can be AUTO, PAP, CHAP, or MSCHAP. Usually, you can select AUTO. ...
  • Page 44 VDSL2 Gateway Router  Enable PPP Debug Mode:Enable or disable this function.  Enable IGMP Multicast Proxy: If you want PPPoE mode to support IPTV, enable it. Step6 In this page, you can enter the PPP username and PPP password provided by your ISP.
  • Page 45 VDSL2 Gateway Router Step8 In this page, you can obtain the DNS server addresses from the selected WAN interface. After finishing setting, click Next to display the following page.
  • Page 46 VDSL2 Gateway Router Step9 In this page, it displays the information about the PPPoA settngs.Click Apply/Save to apply the settings. You can modify the settings by clicking the Back button if necessary. 6.2.2.4 Adding an IPoA WAN service This section describes the steps for adding the IPoA WAN service. Step1 Choose Network Setting >...
  • Page 47 VDSL2 Gateway Router Step2 Select the DSL link type to be IPoA, and select the encapsulation mode to be LLC/SNAP-ROUTING (according to the uplink equipment). After finishing setting, click the Apply/Save button to save the settings. Step3 Choose WAN Service and click Add to display the following page. Step4 Select the proper interface for the WAN service ,and then click Next to display the following page.
  • Page 48 VDSL2 Gateway Router Step5 In this page, you may modify the service description. Click Next to display the following page. Step6 In this page, enter the WAN IP address, the WAN subnet mask, and primary DNS server provided by your ISP and then click Next to display the following page.
  • Page 49 VDSL2 Gateway Router Step7 After finishing setting, click Next to display the following page. Step8 In this page, select a preferred WAN interface as the system default gateway and then click Next to display the following page.
  • Page 50 VDSL2 Gateway Router Step9 In this page, you can obtain the DNS server addresses from the selected WAN interface. After finishing setting, click Next to display the following page. Step10 In this page, it displays the information about the IPoA settngs. Click Apply/Save to save and apply the settings.
  • Page 51 VDSL2 Gateway Router Step2 Select the proper ATM Interface and then click Next to display the following page.
  • Page 52 VDSL2 Gateway Router Step3 In this page, you can select the WAN service type, and modify the service description for this service. After finishing setting, click Next to display the following page.

  • Page 53: Wan Setup

    VDSL2 Gateway Router Step4 In this page, it displays the information about the bridge settngs. Click Apply/Save to save and apply the settings. You can modify the settings by clicking the Back button if necessary. 6.2.3 3G WAN Setup Choose Network Setting > 3G WAN Setup , and the following page appears. This page is used to configure 3G connection.
  • Page 54 VDSL2 Gateway Router In this page, you are allowed to configure the settings of the 3G USB modem.  Support NDIS: If you want to use NDIS the Internet through the NDIS enabled 3G network card, you must enable this. ...
  • Page 55 VDSL2 Gateway Router If the 3G network card is installed, you may click the button on the Action column to establish or disconnect the 3G connection. Note: When there is no DSL WAN connection, insert the 3G network card, and then system will perform dial-up automatically.

  • Page 56: Lan Configuration

    VDSL2 Gateway Router 6.2.4 LAN Configuration Choose Network Setting > LAN, and the following page appears. In this page, you can configure an IP address for the DSL router, enable IGMP snooping, enable or disable the DHCP server, edit the DHCP option, configure the DHCP advanced setup and set the binding between a MAC address and an IP address.
  • Page 57 VDSL2 Gateway Router Configuring the Private IP Address for the VDSL2 Gateway Router In this page, you can modify the IP address of the device. The preset IP address is 192.168.1.1. Enabling IGMP Snooping IGMP snooping enables the router to forward multicast traffic intelligently, instead of flooding all ports in the VLAN.
  • Page 58 VDSL2 Gateway Router If you enable the DHCP sever, the clients will automatically acquire the IP address from the DHCP server. If the DHCP server is disabled, you need to manually set the start IP address, end IP address and the lease time for the clients in the LAN. Editing the DHCP Option60 Click the Edit DHCP Option60 button in the Local Area Network (LAN) Setup page to display the DHCP Option60 Setup page.
  • Page 59 VDSL2 Gateway Router DHCP Advanced Setup Click the DHCP Advance Setup button in the Local Area Network (LAN) Setup page to display the following page. In this page, you can enable or disable DHCP for every LAN interface. Configuring the DHCP Static IP Lease List The lease list of static IP address can reserve the static IP addresses for the hosts with the specific MAC addresses.
  • Page 60 VDSL2 Gateway Router In this page, enter the MAC address of the LAN host and the static IP address that is reserved for the host, and then click the Apply/Save button to apply the settings. Configuring the Second IP Address and Subnet Mask for a LAN Interface In the Local Area Network (LAN) Setup page, you are allowed to set the second IP address and the subnet mask for a LAN interface.
  • Page 61 VDSL2 Gateway Router In this page, you can set an IP address for the DSL IPv6 router, enable the DHCPv6 server, enable RADVD and enable the MLD snooping function.  Enable DHCPv6 Server: WIDE-DHCPv6 is an open-source implementation of dynamic host configuration protocol for IPv6 (DHCPv6) originally developed by the KAME project.

  • Page 62: Nat

    VDSL2 Gateway Router when requested by a node sending a router solicitation message. These messages are required for IPv6 stateless auto-configuration.  Enable MLD Snooping: Multicast Listener Discovery Snooping (MLD Snooping) is an IPv6 multicast constraining mechanism that runs on Layer 2 devices to manage and control IPv6 multicast groups.
  • Page 63 VDSL2 Gateway Router In this page, you are allowed to add or remove a virtual server entry. To add a virtual server, do as follows: Step 1 Click the Add button to display the following page.  Use interface: Select an interface that you want to configure. ...
  • Page 64 VDSL2 Gateway Router  Protocol: You may select TCP/UDP, TCP, or UDP in the drop-down list.  Internal Port Start: When selecting a service, the port number will automatically be displayed. You can modify it if necessary.  Internal Port End: When selecting a service, the port number will automatically be displayed.
  • Page 65 VDSL2 Gateway Router  Use interface: Select an interface that you want to configure.  Select an application: Select a proper application in the drop-down list.  Custom application: Manually define an application.  Trigger port Start: The start port number that LAN uses to trigger the open port.

  • Page 66: Security

    VDSL2 Gateway Router 6.2.5.3 DMZ Host DMZ allows all the ports of a PC on your LAN to be exposed to the Internet. Set the IP address of the PC to be DMZ host, so that the DMZ host will not be blocked by firewall.
  • Page 67 VDSL2 Gateway Router  Name: The name of firewall.  Interface: You can select LAN or WAN from the drop-down list.  Type: You can select IN or OUT from the drop-down list.  default action: You can select Permit or Drop from the drop-down list. MAC Filtering Setup In some cases, you may want to manage Layer2 MAC address to block or permit a computer within the home network.
  • Page 68 VDSL2 Gateway Router In this page, you can add or remove the MAC filtering rule. You may change the MAC filtering policy from FORWARDED to BLOCKED by clicking the Change Policy button. Click the Add button to display the following page. ...

  • Page 69: Parental Control

    VDSL2 Gateway Router 6.2.7 Parental Control Scheduling Choose Network Setting > Parental Control > Scheduling, and the following page appears. Click the Add button to display the following page. This page is used to control the time restriction to a special LAN device that connects to the DSL router.
  • Page 70 VDSL2 Gateway Router URL Filtering Click Network Setting > Parental Control > Url Filtering, and the following page appears. Thisp age is used to prevent the LAN users from accessing some Websites in the WAN. In this page, you may select the Exclude URL list type or the Include URL list type. If you select the Exclude URL list type, it means that the URLs in the list are not accessible.

  • Page 71: Quality Of Service

    VDSL2 Gateway Router 6.2.8 Quality of Service Enabling QoS Choose Advance Setup > Quality of Service and the following page appears. Select Enable QoS to enable QoS and configure the default DSCP mark.
  • Page 72 VDSL2 Gateway Router In this page, enable the QoS function and select the default DSCP mark. After finishing setting, click Apply/Save to save and apply the settings. Note: If the Enable Qos checkbox is not selected, all QoS will be disabled for all interfaces.
  • Page 73 VDSL2 Gateway Router In this page, you can enable, add or remove a QoS rule. Note: The lower integer value for precedence indicates the higher priority. Click the Add button to display the following page.  Name: Enter the name of QoS queue.
  • Page 74 VDSL2 Gateway Router  Enable: Enable or disable the QoS queue.  Interface: Select the proper interface for the QoS queue. After finishing setting, click Apply/Save to save and apply the settings. QoS Classification Choose Network Setting > Quality of Service > Qos Classification and the following page appears.

  • Page 75: Routing

    VDSL2 Gateway Router 6.2.9 Routing Default Gateway Choose Network Setting > Routing > Default Gateway, and the following page appears.
  • Page 76 VDSL2 Gateway Router In this page, you can modify the default gateway settings. Select a proper WAN interface in the drop-down list of Selected WAN Interface as the system default gateway. After finishing setting, click Apply/Save to save and apply the settings. Static Route Choose Network Setting >...
  • Page 77 VDSL2 Gateway Router Figure 5  IP Version: Select the IP version.  Destination IP address/prefix length: Enter the destination IP address.  Interface: select the proper interface for the rule.  Gateway IP Address: The next-hop IP address.  Metric: The metric value of routing.
  • Page 78 VDSL2 Gateway Router In this page, enter the policy name, source IP and default gateway, and select the physical LAN port and interface. After finishing setting, click Apply/Save to save and apply the settings. Choose Network Setting > Routing > RIP and the following page appears. In this page, if you want to configure an individual interface, select the desired RIP version and operation, and then select the Enabled checkbox for the interface.

  • Page 79: Dns

    VDSL2 Gateway Router 6.2.10 DNS Server Choose Network Setting > DNS > DNS Server and the following page appears. In this page, you can select a DNS server interface from the available interfaces, manually enter the DNS server addresses, or obtain the DNS address from a WAN interface.

  • Page 80: Dsl

    VDSL2 Gateway Router In this page, you are allowed to modify the DDNS settings. Click the Add button to display the following page.  D-DNS provider: Select a proper DDNS server in the drop-down list.  Hostname: It is the domain name and it can be modified. ...
  • Page 81 VDSL2 Gateway Router In this page, you can set the DSL settings. Usually, you do not need to modify the factory default settings. After finishing setting, click Apply/Save to save and apply the settings.

  • Page 82: Upnp

    VDSL2 Gateway Router 6.2.12 UPnP Choose Network Setting > UPnP and the following page appears. In this page, you can enable or disable the UPnP function. After finishing setting, click Apply/Save to save and apply the settings. 6.2.13 DNS Proxy Choose Network Setting >...

  • Page 83: Print Server

    VDSL2 Gateway Router 6.2.14 Print Server Choose Network Setting > Printer Server and the following page appears. In this page, you can enable or disable the printer server. After finishing setting, click Apply/Save to save and apply the settings. 6.2.15 DLNA Choose Network Setting >...

  • Page 84: Packet Acceleration

    VDSL2 Gateway Router 6.2.16 Packet Acceleration Choose Network Setting > Packet Acceleration and the following page appears. In this page, you can enable packet flow accelerator. 6.2.17 NAS Storage Device Info Choose Network Setting > NAS > Storage Device Info and the following page appears.

  • Page 85: Port Mapping

    VDSL2 Gateway Router 6.2.18 Port Mapping Choose Network Setting > Port Mapping and the following page appears. Interface grouping supports multiple ports to PVC and bridging groups. Each group will perform as an independent network. To support this feature, you must create mapping groups with the appropriate LAN and WAN interfaces using the Add button.
  • Page 86 VDSL2 Gateway Router In this page, please follow the on-screen configuration steps to configure the parameters of the interface grouping. After finishing setting, click Apply/Save to save and apply the settings.

  • Page 87: Ip Tunnel

    VDSL2 Gateway Router 6.2.19 IP Tunnel 6.2.19.1 IPv6 in IPv4 Choose Network Setting > IP Tunnel > IPv6inIPv4 and the following page appears. The default value is IPv6 in IPv4 information. Click Add and the following page appears. In this page, you can add a new tunnel. 6.2.19.2 IPv4 in IPv6 Choose Network Setting >...

  • Page 88: Ipsec

    VDSL2 Gateway Router Click Add and the following page appears. In this page, you can add a new tunnel of IPv4 in IPv6. 6.2.20 IPSec Choose Network Setting > IPSec and the following page appears. In this page, you can add or remove the IPSec tunnel connections. Click the Add button to display the following page.
  • Page 89 VDSL2 Gateway Router In this page, set the parameters such as the IPSec connection name, tunnel mode, and remote IPSec gateway address. If you need to configure the advanced settings of this IPSec tunnel connection, please click the Show Advanced Settings button to display the other parameters. After finishing setting, click Apply/Save to save and apply the settings.

  • Page 90: Certificate

    VDSL2 Gateway Router 6.2.21 Certificate Local Choose Network Setting > Certificate > local and the following page appears. In this page, you can acquire the local certificate by creating a certificate request or importing a certificate. You may also create or remove a certificate. ...
  • Page 91 VDSL2 Gateway Router  Organization Name: The name of the organization to which the entity belongs (such as the name of a company).  State/Province Name: This is the name of the state or province where your organization's head office is located. Please enter the full name of the state or province.
  • Page 92 VDSL2 Gateway Router In this page, paste the signed certificate, and then click the Apply button. A new certificate is created.  Importing an Existing Local Certificate To import an existing certificate, click the Import Certificate button to display the following page.
  • Page 93 VDSL2 Gateway Router In this page, paste the certificate and the private key. Finally, click the Apply button to import the certificate. Trusted CA Choose Network Setting > Certificate > Trusted CA and the following page appears.

  • Page 94: Power Management

    VDSL2 Gateway Router In this page, you may import or remove a CA certificate. Click the Import Certificate button to display the following page. In this page, enter the certificate name and paste the certificate content. Finally, click the Apply button to import the certificate. 6.2.22 Power Management Choose Network Setting >...
  • Page 95 VDSL2 Gateway Router After proper configurations, click Apply to take the configurations effect.

  • Page 96: Multicast

    VDSL2 Gateway Router 6.2.23 Multicast Choose Network Setting > Multicast and the following page appears. In this page, you can configure the multicast parameters. After finishing setting, click Apply/Save to save and apply the settings.

  • Page 97: Wireless

    VDSL2 Gateway Router Wireless Choose Wireless and the submenus of Wireless are shown as below: 6.3.1 Basic Settings Choose Wireless > Basic to display the following page.
  • Page 98 VDSL2 Gateway Router This page allows you to configure the basic features of the wireless LAN interface.  Enable Wireless: Enable or disable the wireless function.  Hide Access Point: if you want to hide any access point for your router, select this option, and then a station cannot obtain the SSID through the passive scanning.

  • Page 99: Security

    VDSL2 Gateway Router QR Code Wireless Page menu appears 2-dimensional code figure in the right area to access the GUI menu though any of mobile devices. Just scan the QR code and Click SSID to access router GUI menu and configure router settings In this page,.
  • Page 100 VDSL2 Gateway Router  WPS Setup There are 2 primary methods used in the Wi-Fi Protected Setup:  PIN entry, a mandatory method of setup for all WPS certified devices. – Enter STA PIN: If you select it, you need to enter the station PIN from client.
  • Page 101 VDSL2 Gateway Router...
  • Page 102 VDSL2 Gateway Router - Open Mode  Select SSID: Select a SSID for configuring the security settings.  Network Authentication: Select the Open mode.  WEP Encryption: Enable or disable WEP encryption. After enabling this function, you can set the encryption strength, current network key, and network keys.
  • Page 103 VDSL2 Gateway Router The parameters’ description of shared mode, please refer to the Open Mode. - 802.1x  Select SSID: Select a SSID for configuring the security settings.  Network Authentication: Select the 802.1X in the drop-down list.  RADIUS Server IP Address: Enter the IP address of the RADIUS server. RADIUS server is used to authenticate the hosts on the wireless network.
  • Page 104 VDSL2 Gateway Router  RADIUS Port: The port number that the RADIUS server uses. The default port number is 1812. You may change it according to the server setting.  RADIUS Key: Set the RADIUS key for accessing the RADIUS server. ...
  • Page 105 VDSL2 Gateway Router  Select SSID: Select a SSID for configuring the security settings.  Network Authentication: Select the WPA-PSK mode.  WPA/WAPI passphrase: The key for WPA encryption. Click the Click here to display button to display the current key. The default key is 87654321. ...
  • Page 106 VDSL2 Gateway Router  RADIUS Server IP Address: Enter the IP address of the RADIUS server. RADIUS server is used to authenticate the hosts on the wireless network.  RADIUS Port: The port number that the RADIUS server uses. The default port number is 1812.

  • Page 107: Mac Filter

    VDSL2 Gateway Router The parameters’ description of Mixed WPA2/WPA mode, please refer to the WPA2 mode. - Mixed WPA2/WPA-PSK The parameters’ description of Mixed WPA2/WPA-PSK mode, please refer to the WPA-PSK mode. 6.3.3 MAC Filter Choose Wireless > MAC Filter to display the following page. This page is used to allow or reject the wireless clients to access the wireless network of the wireless router.

  • Page 108: Bridge

    VDSL2 Gateway Router In this page, you can add or remove the MAC filters. The MAC restrict modes include Disabled, Allow, and Deny.  Disabled: Disable the wireless MAC address filtering function.  Allow: Allow the wireless clients with the MAC addresses in the MAC Address list to access the wireless network of the wireless router.

  • Page 109: Advanced

    VDSL2 Gateway Router After finishing setting, click the Apply/Save button to save and apply the settings. 6.3.5 Advanced Choose Wireless > Advanced to display the following page. This page allows you to configure the advanced features of the wireless LAN interface. Usually, you do not need to change the settings in this page.
  • Page 110 VDSL2 Gateway Router  802.11n/EWC: Select disable 802.11n or Auto.  Bandwidth: Select the bandwidth for the network. You can select 20MHz in Both Bands, 20MHz in 2.4G Band and 40MHz in 5G Band, or 40MHz in Both Bands.  Control Sideband: If you select 20MHz in Both Bands or 20MHz in 2.4G Band and 40MHz in 5G Band, the service of control sideband does not work.
  • Page 111 VDSL2 Gateway Router reduction of the default value, 2347, is recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The Router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame.

  • Page 112: Wireless Clients

    VDSL2 Gateway Router 6.3.6 Wireless Clients Choose Wireless > Wireless Clients to display the following page. This page shows the authenticated wireless stations and their status. Diagnostics 6.4.1 Diagnostics Click Diagnostics > Diagnostics, and the following page appears. This page is used to test the connection to your local network, the connection to your DSL service provider, and the connection to your Internet service provider.

  • Page 113: Fault Management

    VDSL2 Gateway Router 6.4.2 Fault Management Note: The Fault Management is only available for VDSL PTM Click Diagnostics > Fault Management, and the following page appears. 6.4.3 Diagnostic Tools Click Diagnostics Tools > Ping, This page is used to test the connection to your local network, the connection to your Internet service.

  • Page 114: System Tools

    VDSL2 Gateway Router System Tools Choose System Tools and the submenus of System Tools are shown as below: 6.5.1 Maintenance Backup Choose System Tools > Maintenance > Backup to display the following page. In this page, click the Backup Settings button to save your router’s settings to your local PC.

  • Page 115: System Log

    VDSL2 Gateway Router In this page, click the Browse… button to select the correct new settings file, and then click the Update Settings button to update the router’s settings. Factory Default Choose System Tools > Maintenance > Factory Default to display the following page.
  • Page 116 VDSL2 Gateway Router In this page, you can set 3 types of system log modes, including Local, Remote, and Both.  Local: When selecting Local, the events are recorded in the local memory.  Remote: When selecting Remote, the events are sent to the specified IP address and UDP port of the remote system log server.

  • Page 117: Snmp

    VDSL2 Gateway Router 6.5.3 SNMP Choose System Tools > SNMP, and the following page appears. Simple Network Management Protocol (SNMP) allows a management application to retrieve statistics and status from the SNMP agent in this device. In this page, you may enable or disable the SNMP agent and set the parameters such as the read community, system name and trap manager IP.

  • Page 118: Time Setting

    VDSL2 Gateway Router WAN Management Protocol (TR-069) allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device. In this page, you may configure the parameters such as the ACS URL, ACS password, and connection request user name. After finishing setting, click the Apply/Save button to save and apply the settings.
  • Page 119 VDSL2 Gateway Router In this page, you may configure the router to synchronize its time with the Internet time servers. After enabling Automatically synchronize with Internet time servers, the following page appears. In this page, set the proper time servers, and then click the Apply/Save button to save and apply the settings.

  • Page 120: Authentication

    VDSL2 Gateway Router 6.5.6 Authentication Passwords Choose System Tools > Authentication > Passwords, and the following page appears. In the page, you can modify the username and password of different users. After finishing setting, click the Apply/Save button to save and apply the settings. Services Choose Management >...
  • Page 121 VDSL2 Gateway Router In this page, you can enable or disable the different types of services. After finishing setting, click the Apply/Save button to save and apply the settings.

  • Page 122: Firmware Update

    VDSL2 Gateway Router 6.5.7 Firmware Update Choose System Tools > Firmware Update and the following page appears. If you want to upload the software, click the Browse… button to choose the new software, and then click the Update Software button. Note: When software update is in progress, do not shut down the router.

  • Page 123: Chapter 7. Q&A

    VDSL2 Gateway Router Chapter 7. Q&A (1) Q: Why all the indicators are off? A: Check the following:  The connection between the power adaptor and the power socket.  The status of the power switch. (2) Q: Why the LAN indicator is off? A: Check the following: ...
  • Page 124 VDSL2 Gateway Router Chapter 8. Hardware Specifications: VDSL Standard ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite), ITU G.994.1 (G.hs), ITU G.992.3 (ADSL2), ITU G.992.5 (ADSL2+), ITU G.993.1 (VDSL), ITU G993.2 (VDSL2) ADSL Standards Annex M IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, Standards IEEE 802.11n Wireless...
  • Page 125 VDSL2 Gateway Router Reset button Factory default LED Indicators PWR, DSL, LAN1-4, WLAN, WPS, Security Power 12V DC, 1.5A Physical and Environment Working 0% ~ 40% Temperature Working Humidity 10% ~ 90% RH (non-condensing) Storage Temperature -40% ~ 70% Storage Humidity 5% ~ 90% RH (non-condensing)

  • Page 126: Chapter 8. Contact Information

    COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. iBall Baton is a registered trademark of Best IT World (India) Pvt. Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.
