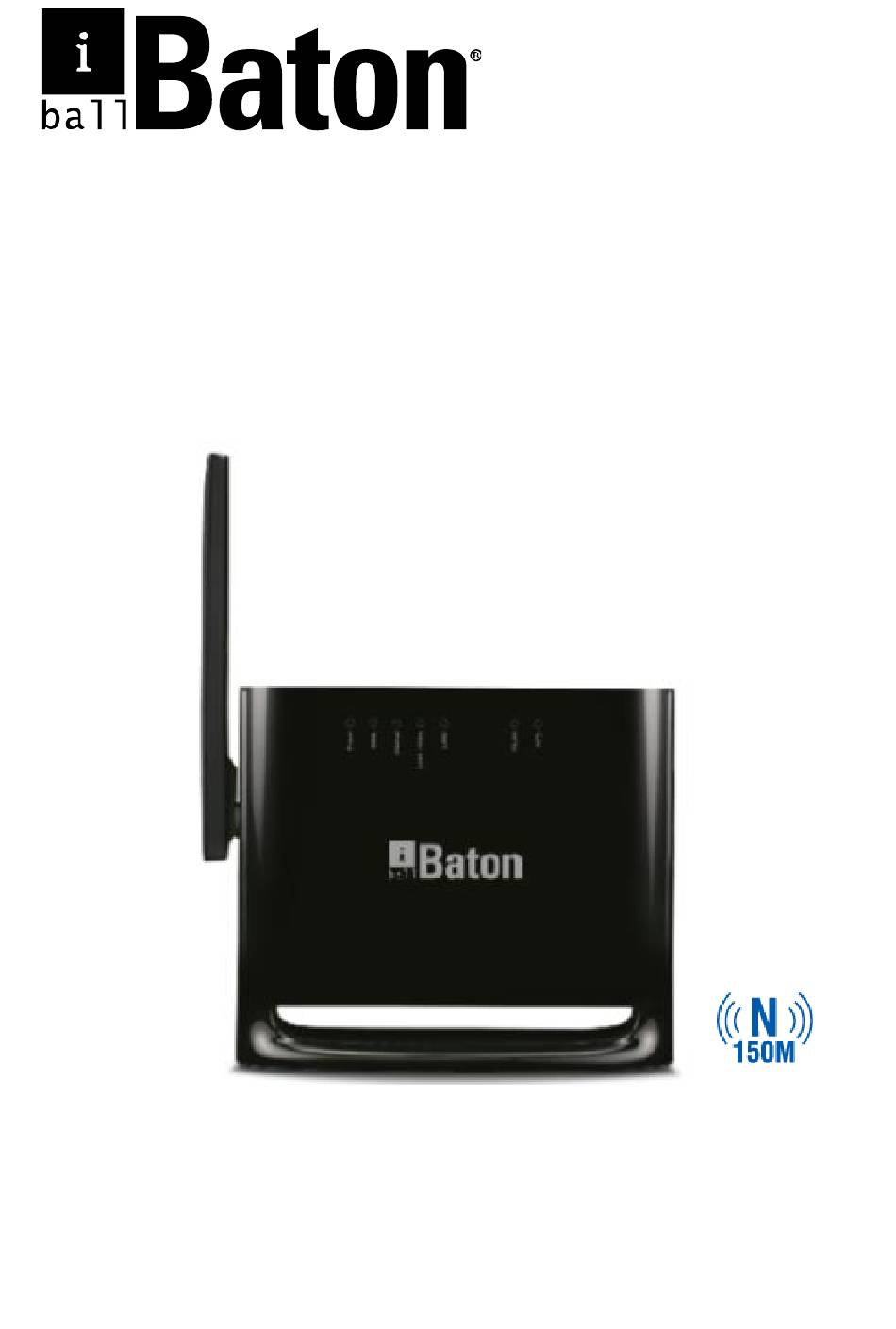

  • Page 1 802.11b/g/n wireless ADSL Router Model No. DWA-N150Series Ver.: 1.0.0...
  • Page 2 FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3 CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

  • Page 4: Table Of Contents

    Contents Introduction ........................3 Safety Precautions ......................... 4 Features ........................7 Hardware Connection ....................8 ADSL Connection ..................... 8 Broadband Connection ..................9 Router Configuration ....................10 Installation Guide ................... 10 Method – II ........................12 Web Based GUI Configuring ..................12 Status ......................
  • Page 5 Security Settings .................... 64 5.6.1 MAC Filter ..................64 5.6.2 IP/Port Filter ................... 64 5.6.3 URL Filter ..................66 5.6.4 ACL ....................67 5.6.5 DoS ....................70 Maintenance ....................71 5.7.1 Update ................... 71 5.7.2 Password ..................72 5.7.3 Restart ................... 73 5.7.4 Time ....................

  • Page 6: Introduction

    Introduction 150M Wireless-N ADSL2+ & Broadband Router (iB-WRA150N2) is a router for high performance. Enhanced Wireless transmission speed up to 150Mbps Complies with IEEE 802.11 b/g/n wireless standards Dual WAN Router ADSL Internet (xDSL): 1 - 10/100M (RJ11) WAN port ...

  • Page 7: Safety Precautions

    Package List The following contents should be found in the product packaging: 150M Wireless-N ADSL2+ & Broadband Router  5dBi Antenna (Fixed),  Power Adapter  Cd & Quick Installation Guide  RJ45 Patch Cord x 1  ADSL Splitter x 1 & RJ11 Patch cord x 2 ...
  • Page 8 LEDs Color Status Description Power The device is initializing. The DSL line is established. Green Blinking The DSL Line is training. No DSL signal. The Internet connection is normal in the routing mode (for example: PPP dial-up is successful), and no Internet data is being transmitted.
  • Page 9 Rear Panel The following table describes the interfaces and buttons of the device: Interface Description ON/OFF Power switch, power on or power off the device. Power interface, for connecting to the power adapter. Power Press the button and hold it for 1 second to 5 seconds, ...

  • Page 10: Features

    Features Complies with IEE802.3 & IEEE802.3u standards  Complies with IEEE 802.11b/g/n standards  3-in-1: 2-10/100M Auto-Negotiation (RJ45) Ethernet ports & 1-RJ11  (Internet) LINE port supporting Auto MDI/MDIX and Wireless-N Access Point Latest standards with downstream data rates up to 24Mbps, upstream ...

  • Page 11: Hardware Connection

    Hardware Connection ADSL Connection Method-I : Plug one end of the twisted-pair ADSL cable into the LINE port on the rear panel of iB-WRA150N2, and insert the other end into the wall socket. Method-II: You can use a ADSL splitter. External splitter can divide the data and voice, and then you can access the Internet and make calls at the same time.

  • Page 12: Broadband Connection

    Broadband Connection Connect the LAN Port of the Router to your PC with RJ45 Ethernet cable. Connect the ISP RJ45 LAN Cable (Internet Link) to LAN1/WAN Port of the Router Connect the power adapter to Power interface of the device.

  • Page 13: Router Configuration

    Router Configuration This chapter describes how to configure the router by using the Web-based configuration utility. TCP / IP Network Setting Step 1 Choose Start > Control Panel > Network and Internet > Network and Sharing Center Step 2 Choose Change Adapter Settings > Local Area Connection. Right-click Local Area Connection, and choose Properties.
  • Page 14 Click on Start to start the Easy Setup Wizard. Select Intenet connection type ADSL or Broadband as your ISP connection and click Next Select the proper Connection type & provide the details of user name and password as provided from our ISP.

  • Page 15: Web Based Gui Configuring

    Method – II Web Based GUI Configuring The following is the detailed description of accessing the router for the first time. Step 1 Open the Internet Explorer (IE) browser and enter http://192.168.1.1. Step 2 In the Login page that is displayed, enter the username and password. The default username and password of the super user are admin and admin.
  • Page 16 Figure 1 Status – 1 Figure 2 Status - 2...
  • Page 17 Figure 3 Status – 3...

  • Page 18: Adsl Info

    5.1.2 ADSL Info. Choose Status > Status info > ADSL Info and the following page appears. In this page, you can view information of ADSL configuration.

  • Page 19: Statistics

    5.1.3 Statistics Choose Status > Statistics > Statistics and the following page appears. In this page, you can view statistics information. Quick Start The Quick start page guides fast and accurate configuration of the Internet connection and other important parameters. In the navigation bar, click Quick Start. The page as shown in the following figure appears.
  • Page 20 In following page, enter VPI and VCI provided by your Internet service provider (ISP). In this example, select PPPoE as connection mode. And then enter PPP username and password provided by your Internet service provider (ISP).
  • Page 21 The following table describes the parameters in this page: Field Description Virtual path identifier (VPI) is the virtual path between two points in an ATM network. Its valid value is in the range of 0 to 255. Enter the correct VPI provided by your ISP. Virtual channel identifier (VCI) is the virtual channel between two points in an ATM network.
  • Page 22 Step 2 Wireless Quick settings In following page, you can select wireless band, set SSID and encryption. For wireless security, it is recommended to set the encryption mode to WPA2, and then enter a password. Step 3 Save settings If you want to finish setting, click Save. Otherwise click Cancel.

  • Page 23: Network Setup

    Network Setup 5.3.1 Choose Network Setup > WAN. The WAN page that is displayed contains WAN, 3G, Auto PVC, ATM, and ADSL. Choose Network Setup > WAN > WAN, the page shown in the following figure appears. In this page, you can add or configure WAN interface of your router.
  • Page 24 The following table describes the parameters of this page: Field Description You can select ADSL WAN or Ethernet WAN Physical Type WAN. Default Route Selection You can select Auto or Specified. The virtual path between two points in an ATM network, ranging from 0 to 255. The virtual channel between two points in an ATM network, ranging from 32 to 65535 (1 to 31 are reserved for known protocols)
  • Page 25 Field Description  When Fixed IP is selected, you should enter the local IP address, remote IP address and subnet mask.  When DHCP is selected, the router is a DHCP client and the WAN IP address is assigned by the remote DHCP server. Enter the IP address of WAN interface Local IP Address provided by your ISP.
  • Page 26 Figure 4 The following table describes the parameters and buttons of this page: Field Description Protocol It displays the protocol type used for this WAN connection. ATM VCC The ATM virtual circuit connection assigned for this PPP interface (VPI/VCI). Login Name The user name provided by your ISP.
  • Page 27 Field Description Method Connection You can choose Continuous, Connect on Demand, or Type Manual. Idle Time (s) If choose Connect on Demand, you need to enter the idle timeout time. Within the preset minutes, if the router does not detect the flow of the user continuously, the router automatically disconnects the PPPoE connection.
  • Page 28 ATM Settings Choose Network Setup > WAN > ATM, the page shown in the following figure appears. In this page, you can configure the parameters of the ATM, including QoS, PCR, CDVT, SCR, and MBS. Figure 5 The following table describes the parameters of this page:...
  • Page 29 Field Description The virtual path identifier of the ATM PVC. The virtual channel identifier of the ATM PVC. The QoS category of the PVC. You can choose UBR, CBR, rt-VBR, or nrt-VBR. Peak cell rate (PCR) is the maximum rate at which cells can be transmitted along a connection in the ATM network.

  • Page 30: Lan

    5.3.2 Choose Network Setup > LAN. The LAN page that is displayed contains LAN, DHCP, DHCP Static, and LAN IPv6. IP Address Choose Network Setup > LAN > LAN, the page shown in the following figure appears. In this page, you can change IP address of the router. The default IP address is 192.168.1.1, which is the private IP address of the router.
  • Page 31 Field Description IGMP snooping enables the router to forward multicast traffic intelligently, instead of flooding all ports in the VLAN. With IGMP snooping, the router listens to IGMP IGMP membership reports, queries and leave messages to Snooping identify the switch ports that are members of multicast groups.
  • Page 32 The following table describes the parameters of this page: Field Description If set to DHCP Server, the router can assign IP addresses, IP default gateway and DNS Servers DHCP Mode to the host in Windows95, Windows NT and other operation systems that support the DHCP client.
  • Page 33 Field Description The lease time determines the period that the Max Lease host retains the assigned IP addresses before Time the IP addresses change. Enter the domain name if you know. If you leave this blank, the domain name obtained by DHCP from the ISP is used.
  • Page 34 Description Field It displays the lease time. The lease time determines Expired (s) the period that the host retains the assigned IP addresses before the IP addresses change. Refresh Click it to refresh this page. Close Click it to close this page. Click Set VendorClass IP Range in the DHCP Mode page, the page as shown in the following figure appears.
  • Page 35 In the DHCP Mode field, choose DHCP Relay. The page shown in the following figure appears. The following table describes the parameters and buttons of this page: Field Description If set to DHCP Relay, the router acts a surrogate DHCP Mode DHCP Server and relays the DHCP requests and responses between the remote server and the client.
  • Page 36 The following table describes the parameters and buttons of this page: Field Description IP Address Enter the specified IP address in the IP pool range, which is assigned to the host. Mac Address Enter the MAC address of a host on the LAN. After entering the IP address and MAC address, click it.

  • Page 38: Wireless

    The following table describes the parameters of this page. Field Description Specify the LAN global ipv6 address. It can be Global Address assigned by ISP. Enable Enable or disable the Router Advertisement feature. Enable or disable the “Managed address configuration” M Flag flag in RA packet.
  • Page 39 The following table describes the parameters of this page: Field Description Choose the adapted band of the modem from the drop-down list. Band Set the working mode of the device. The mode Mode may vary from software to software. By default, the network mode of the modem is AP.
  • Page 40 Field Description can set this parameter. You can choose Upper or Lower from the drop-down list. A channel is the radio frequency used by 802.11b/g/n wireless devices. You may have a choice of channels (for your region) and you should use a different channel from an adjacent Channel Number AP to reduce the interference.
  • Page 41 Wireless Security Choose Network Setup > Wireless> Wireless Security and the following page appears. The following table describes the parameters of this page: Field Description Configure the wireless encryption mode. You can choose None, WEP, WPA (TKIP), WPA (AES), WPA2 (AES), WPA2 (TKIP), or WPA2 Mixed. ...
  • Page 42 Field Description  Select Enterprise (RADIUS), enter the port, IP address, and password of the Radius server. You need to enter the username and password provided by the Radius server when the wireless client connects the modem. If the encryption is set to WEP, the modem uses 802.1 X authentication, which is Radius authentication.
  • Page 43 The following describes the parameters of this page: Field Description Choose the WEP key length. You can Choose Key Length 64-bit or 128-bit.  If you choose 64-bit, you can choose ASCII (5 characters) or Hex (10 characters). Key Format ...
  • Page 44 Field Description same encryption key for data transmission.  If you choose 64-bit and ASCII (5 characters), enter any 5 ASCII characters.  If you choose 64-bit and Hex (10 characters), enter any 10 hexadecimal characters.  If choose 128-bit ASCII characters), enter any 13 ASCII characters.
  • Page 45 MAC Filtering Choose Network Setup > Wireless > MAC Filtering and the following page appears. If you choose Allow Listed, only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point. When Deny Listed is selected, these wireless clients on the list will not be able to connect the Access Point.
  • Page 46 Advanced Choose Network Setup > Wireless > Advanced and the following page appears. In this page, you can configure the wireless advanced parameters. It is recommended to use the default parameters. The following table describes parameters in this page: Field Description Fragmentation Set the threshold of fragmentation length.
  • Page 47 Field Description Choose the transmission rate of the wireless data from Data Rate the dropdown list.  Long Preamble: It means this card always use long preamble. PreambleType  Short Preamble: It means this card can support short preamble capability. Select whether the modem broadcasts SSID or not.
  • Page 48 Field Description Enable or disable it. WMM is a Wi-Fi Alliance interoperability certification, based on the IEEE802.11e standard. It provides basic Quality of service (QoS) features to IEEE 802.11 networks. WMM prioritizes traffic according to four Access Categories (AC) - voice, video, best effort, and background.
  • Page 49 The Wireless Client Generates PIN: Enter a PIN of the wireless client in the field, and then click Start PIN to establish the connection. Note: The wireless client is not able to establish the connection with iB-WRA150N2 through WPS negotiation unless it supports WPS. Wireless distribution system (WDS) enables interconnection between APs in an IEEE 802.11 wireless network.

  • Page 50: Advanced Setting

    Advanced Setting In the navigation bar, click Advanced. The Advanced Settings page that is displayed contains Route, NAT, QoS, TR-069, Virtual Port Group, and Management. 5.4.1 Routing Static Route Choose Advanced Settings > Routing > Static Route, and the page shown in the following figure appears.
  • Page 51 The following table describes the parameters and buttons of this page: Field Description Enable Select it to use static IP routes. Destination Enter the IP address of the destination device. Subnet Mask Enter the subnet mask of the destination device. Next Hop Enter the IP address of the next hop in the IP route to the destination device.
  • Page 52 Choose Advanced Settings > Routing > RIP, the page shown in the following figure appears. If you are using this device as a RIP-enabled router to communicate with others using Routing Information Protocol (RIP), enable RIP. This page is used to select the interfaces on your devices that use RIP, and the version of the protocol used.

  • Page 53: 5.4.2 Nat

    Field Description RIP-enabled devices. Apply Click it to save the settings of this page. Interface Choose the router interface that uses RIP. Recv Version Choose the interface version that receives RIP messages. You can choose RIP1, RIP2, or Both.  Choose RIP1 indicates the router receives RIP v1 messages.
  • Page 54 Virtual Server Choose Advanced Settings > NAT > Virtual Service, and the page shown in the following figure appears.
  • Page 55 The following table describes the parameters of this page. Field Description You can select the common service type, for example, AUTH, DNS . You can also define a service name. Usual Service Name,  If select Service Type corresponding parameter has the default settings. ...
  • Page 56 NAT Exclude IP Choose Advanced Settings> NAT > NAT Exclude IP, and the page shown in the following figure appears. In the page, you can configure some source IP addresses which use the purge route mode when accessing internet through the specified interface. Port Trigger Choose Advanced Settings >...
  • Page 57 Click the Usual Application Name drop-down menu to choose the application you want to Setup for port triggering. When you have chosen an application the default Trigger settings will populate the table below. If the application you want to Setup isn’t listed, click the User-defined Application Name radio button and type in a name for the trigger in the Custom application field.

  • Page 58: Qos

    Nat IP Mapping NAT is short for Network Address Translation. The Network Address Translation Settings window allows you to share one WAN IP address for multiple computers on your LAN. Choose Advanced Settings > NAT > Nat IP Mapping, the page shown in the following figure appears Entries in this table allow you to configure one IP pool for specified source IP address from LAN, so one packet whose source IP is in range of the specified address will select...
  • Page 59 5.4.4 TR-069 Choose Advanced Settings > TR-069, and the page shown in the following page appears. In this page, you can configure the TR-069 CPE.

  • Page 60: Virtual Port Group

    The following table describes the parameters of this page: Field Description The URL of the auto-configuration server to connect to. User Name The user name for logging in to the ACS. Password The password for logging in to the ACS. Periodic Inform Select Enable to periodically connect to the ACS to Enable...
  • Page 61 Figure 7 The procedure for manipulating a mapping group is as follows: Step 1 Select Enable to enable this function. Step 2 Select a group from the table. Step 3 Select interfaces from the WAN and LAN interface list and add them to the grouped interface list using the arrow buttons to manipulate the required mapping of the ports.

  • Page 62: Management

    5.4.6 Management Choose Advanced Settings > Management to display the submenus. You can select Bridge Setting, Client Limit, Tunnel, or Half Bridge to set relevant parameters. Access Management 5.5.1 IGMP IGMP Proxy Choose Access Management > IGMP > IGMP Proxy, and the page shown in the following figure appears.

  • Page 63: Upnp

    Choose Access Management > IGMP > IGMP Proxy, and the page shown in the following figure appears. 5.5.2 UPnP UPnP Choose Access Management > UPnP > UPnP, and the page shown in the following figure appears. This page is used to configure UPnP. The system acts as a daemon after you enable it.

  • Page 64: Dns

    The following table describes the parameters of this page: Description Field Select it to enable SNMP function. You need to Enable SNMP enable SNMP, then you can configure the parameters of this page. Enter the trap IP address. The trap information is Trap IP Address sent to the corresponding host.
  • Page 65 The following table describes the parameters and buttons of this page: Field Description Select it, the router accepts the first received DNS Set DNS assignment from one of the PPPoA, PPPoE or MER Automatically enabled PVC(s) during the connection establishment. Set DNS Select it, enter the IP addresses of the primary and Manually...

  • Page 66: Dyndns

    5.5.5 DynDNS Choose Access Management > DynDNS, and the page shown in the following figure appears. This page is used to configure the dynamic DNS address. You can add or remove to configure dynamic DNS. The following table describes the parameters of this page: Field Description DDNS provider...

  • Page 67: Security Settings

    Security Settings 5.6.1 MAC Filter Choose Security Settings > MAC Filter, and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets from your local network to Internet through the gateway. These filters are helpful in securing or restricting your local network.
  • Page 68 IPv6/ Port Filter Choose Security Settings > IP/Port Filter > IPv6/Port Filter, and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets through the gateway. These filters are helpful in securing or restricting your local network.

  • Page 69: Url Filter

    5.6.3 URL Filter Choose Security Settings > URL Filter, and the page shown in the following figure appears. This page is used to block a fully qualified domain name, such as tw.yahoo.com and filtered keyword. You can add or delete FQDN and filtered keyword.

  • Page 70: Acl

    The following table describes the parameters and buttons of this page: Field Description URL Blocking You can choose Disable or Enable. Capability  Select Disable to disable URL blocking function and keyword filtering function.  Select Enable to block access to the URLs and keywords specified in the URL Blocking Table.
  • Page 71 The following table describes the parameters and buttons of this page: Field Description Select the router interface. You can select LAN or Direction Select WAN. In this example, LAN is selected. LAN ACL Switch Select it to enable or disable ACL function. Enter the IP address of the specified interface.
  • Page 72 The following table describes the parameters and buttons of this page: Field Description Select the router interface. You can select LAN Direction Select or WAN. In this example, WAN is selected. WAN Setting You can choose Interface or IP Address. Choose the interface that permits data packets WAN Interface from WAN to access the router.

  • Page 73: Dos

    5.6.5 Denial-of-Service Attack (DoS attack) is a type of attack on a network that is designed to bring the network to its knees by flooding it with useless traffic. Choose Security Settings > DoS, and the page shown in the following figure appears. In this page, you can prevent DoS attacks.

  • Page 74: Maintenance

    Maintenance 5.7.1 Update Firmware Update Choose Maintenance > Update > Firmware Update, the page shown in the following figure appears. In this page, you can upgrade the firmware of the router. The following table describes the parameters and button of this page: Field Description Select File...

  • Page 75: Password

    The following table describes the parameters and button of this page: Field Description Click it, and select the path. Then you can save Save Settings to File the configuration file of the router. Load Settings from File Click Browse… to select the configuration file. After selecting the configuration file of the router, Upload click Upload to start uploading the configuration...

  • Page 76: Restart

    Field Description For adding a user, you can enter a user name. For changing the privilege and password of an User Name exist user, you can select one to be modified from User Account Table. Privilege Choose the privilege for the account. Old Password Enter the old password Enter the password to which you want to change...

  • Page 77: System Log

    The following table describes the parameters of this page: Field Description System Time Set the system time manually. NTP Configuration Select enable or disable NTP function. You need to State enable NTP if you want to configure the parameters of NTP. Server Set the primary NTP server manually.

  • Page 78: Diagnostics Tools

    5.7.6 Diagnostics Tools 5.7.6.1 Ping Choose Diagnostics Tools > Ping, and the page shown in the following figure appears. The following table describes the parameter and button of this page: Field Description Host Enter the valid IP address or domain name. Interface Select interface from drop-down list.
  • Page 79 5.7.6.2 Ping6 Choose Diagnostics Tools > Ping6, and the page shown in the following figure appears. The following table describes the parameter and button of this page: Field Description Host Enter the valid IP address or domain name. Interface Select interface from drop-down list. Ping Click it to start to Ping the IP address.
  • Page 80 NumberOfTries Number of repetitions. Timeout Put in the timeout value. Datasize Packet size. DSCP Differentiated Services Code Point, You should set a value between 0-63. MaxHopCount Maximum number of routes. Interface Select the interface. traceroute Click it to start traceroute. 5.7.6.4 Traceroute6 Choose Diagnostics Tools >...
  • Page 81 Interface Select the interface. traceroute Click it to start traceroute. 5.7.6.5 OAM Loopback Choose Diagnostics Tools > OAM Loopback. The page shown in the following figure appears. In this page, you can use VCC loopback function to check the connectivity of the VCC.

  • Page 82: Appendix B: Contact Details

    Click Start to start ADSL tone diagnostics. 5.7.6.7 Diag-Test Choose Diagnostics > Diag-Test, the page shown in the following figure appears. In this page, you can test the DSL connection. You can also view the LAN status connection and ADSL connection. Click Run Diagnostic Test to start testing...

  • Page 83: Appendix A: Specifications

    Appendix A: Specifications General Complies with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Standards & IEEE 802.3, IEEE 802.3u standards ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU Protocols G.992.5, Protocols TCP/IP, PPPoA, PPPoE, SNTP, HTTP, DHCP, ICMP, NAT 10/100M Auto-Negotiation RJ45 Ports...
  • Page 84 11n: up to 150Mbps（Automatic） Radio Data Rate 11g: 54/48/36/24/18/12/9/6Mbps（Automatic） 11b: 11/5.5/2/1Mbps（Automatic） Frequency DSSS(Direct Sequence Spread Spectrum) Expansion Modulation DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM WEP/WPA/WPA2/WPA2-PSK/WPA-PSK Security Physical and Environment Working 0% ~ 40% Temperature Working Humidity 10% ~ 90% RH (non-condensing) Storage Temperature -40% ~ 70% Storage Humidity...
