iBall Baton iB-WR7011A User Manual

150m 1-port wi-fi adsl2+ router
Hide thumbs
Table of Contents

Advertisement

Quick Links

150M 1-Port Wi-Fi ADSL2+ Router
Model No. iB-WR7011A
User Guide
Ver. 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iB-WR7011A and is the answer not in the manual?

Questions and answers

Related Manuals for iBall Baton iB-WR7011A

Summary of Contents for iBall Baton iB-WR7011A

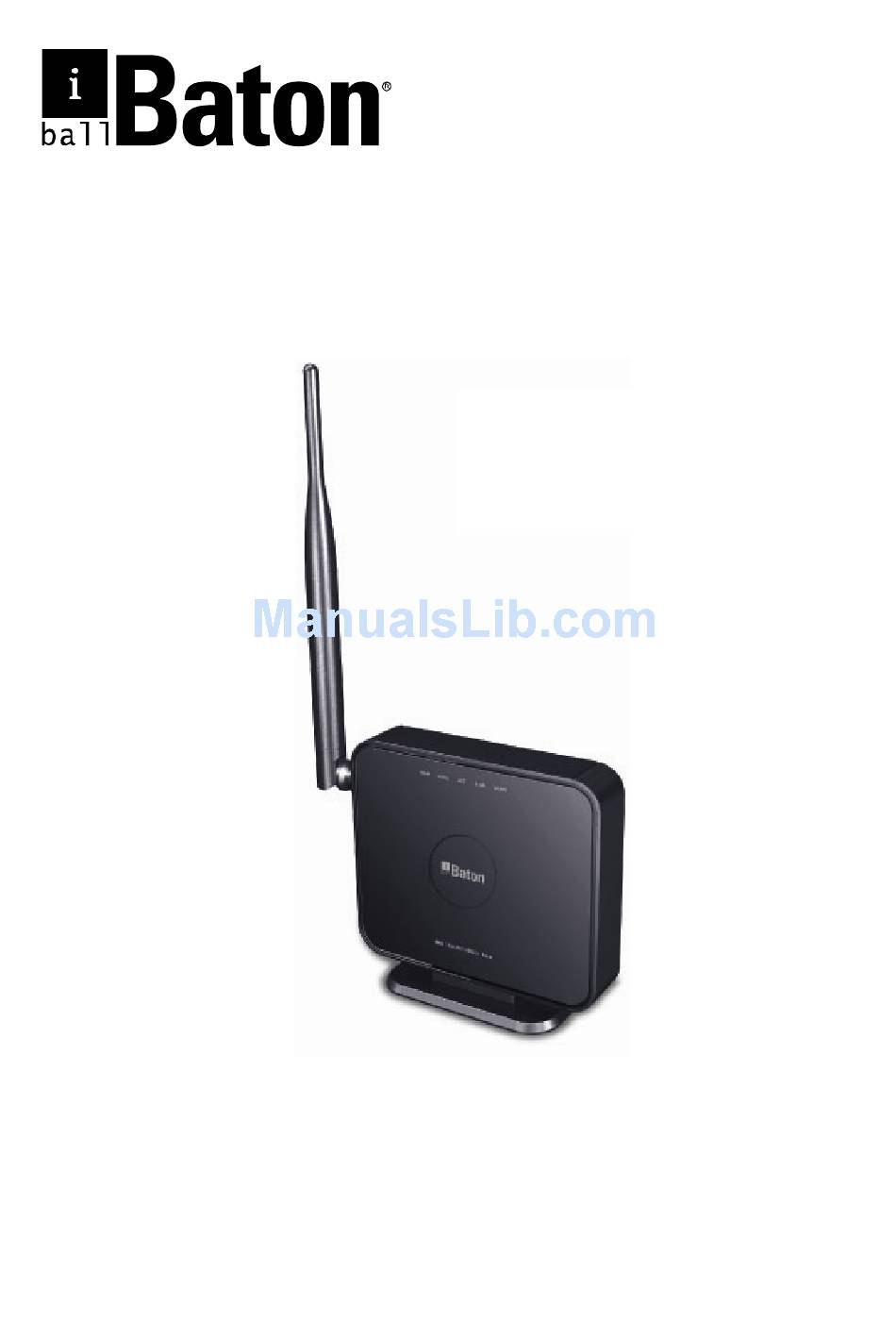

  • Page 1 150M 1-Port Wi-Fi ADSL2+ Router Model No. iB-WR7011A User Guide Ver. 1.0.0...

  • Page 2: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    CONTENTS Package Contents..................... 1 Chapter 1. Introduction..................2 Product Overview .................. 2 Main Features..................3 Conventions................... 3 Chapter 2. Hardware Installation ................4 The Front Panel ..................4 The Back Panel ..................5 Installation Environment ................ 5 Connecting the Router ................6 Chapter 3.
  • Page 4 Access Management ................50 4.5.1 ACL......................51 4.5.2 Filter......................51 4.5.3 SNMP ......................59 4.5.4 UPnP ......................59 4.5.5 DDNS ......................60 4.5.6 CWMP ......................61 Maintenance ..................62 4.6.1 Administration.....................62 4.6.2 Time Zone ....................62 4.6.3 Firmware ....................64 4.6.4 SysRestart ....................66 4.6.5 Diagnostics ....................67 Help ..................... 68 Appendix A: Specifications ...................

  • Page 5: Package Contents

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Package Contents The following contents should be found in your package:  150M 1-Port Wi-Fi ADSL2+ Router  Power Adapter  Quick Installation Guide  RJ45 cable  RJ11 cables  ADSL splitter ...

  • Page 6: Chapter 1. Introduction

    The device is designed to provide a simple and cost-effective ADSL Internet connection for a Wired Ethernet or Wireless IEEE 802.11n/ IEEE 802.11g/ IEEE 802.11b wireless network. iB-WR7011A connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors. Multiple workstations can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address.

  • Page 7: Main Features

    With 5-dBi Omni-Directional Antenna type. Conventions The Router or device mentioned in this User Guide stands for iBal Baton iB-WR7011A model without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ...

  • Page 8: Chapter 2. Hardware Installation

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Chapter 2. Hardware Installation The Front Panel Figure 2-1 The LEDs locate on the front panel. They indicate the device’s working status. LED Explanation: Name Status Indication On ( Red Colour) Device Init...

  • Page 9: The Back Panel

    150M 1-Port Wi-Fi ADSL2+ Router User Guide The Back Panel Figure 2-2  DSL: Through the port, you can connect the router with the telephone. Or you can connect them by an external separate splitter. For details, please refer to 2.4.

  • Page 10: Connecting The Router

    Method one: Plug one end of the twisted-pair ADSL cable into the ADSL LINE port on the rear panel of iB-WR7011A, and insert the other end into the wall socket. Method two：You can use a separate splitter. External splitter can divide the data and voice, and then you can access the Internet and make calls at the same time.
  • Page 11 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 2-3...

  • Page 12: Chapter 3. Quick Installation Guide

    Chapter 3. Quick Installation Guide Configure PC After you directly connect your PC to the iB-WR7011A or connect your adapter to a Hub/Switch which has connected to the Router, you need to configure your PC’s IP address. Follow the steps below to configure it.
  • Page 13 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 3-2 Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties button. Figure 3-3...
  • Page 14 150M 1-Port Wi-Fi ADSL2+ Router User Guide Step 4: Configure the IP address as Figure 3-4 shows. After that, click OK. Figure 3-4  Note: You can configure the PC to get an IP address automatically, select “Obtain an IP address automatically”...

  • Page 15: Login

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 3-5 If the result displayed is similar to the screen shown below, it means that your PC has not connected to the Router. Figure 3-6 You can check it follow the steps below:...
  • Page 16 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 3-7 Step 1: Select the Quick Start tab, then click RUN WIZARD, and you will see the next screen. Click the NEXT button. Figure 3-8 Step 2: Configure the time for the Router, and then click the NEXT button.
  • Page 17 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 3-10 Step 4: Configure the following options provided by your ISP: Username, Password, VPI, VCI and Connection Type. Then click NEXT. Figure 3-11 Step 5: Configure the rules for the WLAN, and click NEXT.
  • Page 18 150M 1-Port Wi-Fi ADSL2+ Router User Guide  Note: If the Access Point is activated, the wireless function will be available even without the external antenna because of an additional printed antenna. To adopt the wireless security protection measures, please refer to Section 4.3.3.

  • Page 19: Chapter 4. Software Configuration

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Chapter 4. Software Configuration This User Guide recommends using the “Quick Installation Guide” for first-time installation. For advanced users, if you want to know more about this device and make use of its functions adequately, maybe you will get help from this chapter to configure the advanced settings through the Web-based Utility.
  • Page 20 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-2  Note: Click the other submenus System Log or Statistics in Figure 4-2, and you will be able to view the system log and traffic statistics about the Router.

  • Page 21: System Log

    150M 1-Port Wi-Fi ADSL2+ Router User Guide 4.1.2 System Log Choose “Status→ System Log” menu, and you will be able to query the logs of the Router. Figure 4-3 The Router can keep logs of all traffic. You can query the logs to find what happened to the Router.
  • Page 22 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-4  Interface: You can select Ethernet, ADSL and WLAN to view the corresponding network traffic over different ports.  Select Ethernet, and you will see the statistics table as below.
  • Page 23 150M 1-Port Wi-Fi ADSL2+ Router User Guide  Select ADSL, and you will see the statistics table as below. Statistics Table: Transmit total PDUs The total PDUs transmitted over the ADSL port. Transmit The total errors occurred over the ADSL port when data...

  • Page 24: Quick Start

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Quick Start Please refer to " 3.2 Login". Network Setup Choose “Network Setup”, you can see the next submenus: WAN, LAN and Wireless. Figure 4-5 Click any of them, and you will be able to configure the corresponding function.
  • Page 25 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-6...
  • Page 26 150M 1-Port Wi-Fi ADSL2+ Router User Guide  ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP.
  • Page 27 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-7  Encapsulation: Select the encapsulation mode for the Dynamic IP Address, you can leave it default.  NAT: Select this option to Enable/Disable the NAT (Network Address Translation) function for this VC.
  • Page 28 150M 1-Port Wi-Fi ADSL2+ Router User Guide Static IP Address Select this option if your ISP provides static IP information to you. You should set static IP address, IP subnet mask, and gateway address in the screen below (shown in Figure 4-8).
  • Page 29 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-9  Service name: Enter a name to mark current connection, or you can leave it blank.  Username: Enter your username for your PPPoE/PPPoA connection.  Password: Enter your password for your PPPoE/PPPoA connection.

  • Page 30: Lan

    150M 1-Port Wi-Fi ADSL2+ Router User Guide  Static/Dynamic IP Address: For PPPoE/PPPoA connection, you need to specify the public IP address for this ADSL Router. The IP address can be either dynamically (via DHCP) or given IP address provided by your ISP. For Static IP, you need to specify the IP address, Subnet Mask and Gateway IP address.
  • Page 31 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-11  Router Local IP: These are the IP settings of the LAN interface for the device. These settings may be referred to as Private settings. You may change the LAN IP address if needed. The LAN IP address is private to your internal network and cannot be seen on the Internet.
  • Page 32 150M 1-Port Wi-Fi ADSL2+ Router User Guide Multicast: Select IGMP version, or disable the function. IGMP (Internet Group Multicast  Protocol) is a session-layer protocol used to establish membership in a multicast group. The ADSL ATU-R supports both IGMP version 1 (IGMP v1) and IGMP v2. Select “Disabled”...
  • Page 33 150M 1-Port Wi-Fi ADSL2+ Router User Guide DNS Relay: If you want to disable this feature, you just need to set both Primary and  secondary DNS IP to 0.0.0.0. If you want to use DNS relay, you can setup DNS server IP to 192.168.1.1 on their Computer.

  • Page 34: Wireless

    150M 1-Port Wi-Fi ADSL2+ Router User Guide 4.3.3 Wireless Choose “Network Setup→ Wireless” menu, and you will see the Wireless screen (shown in Figure 4-14 ). Please configure the parameters for wireless according to the descriptions below.
  • Page 35 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-14  Access point Settings: These are the settings of the access point. You can configure the rules to allow wireless-equipped computers and other devices to communicate with a wireless network.
  • Page 36 150M 1-Port Wi-Fi ADSL2+ Router User Guide Channel Bandwidth: Select the Bandwidth you want to use from the drop-down List.  There are two options, “20 MHz” and “20/40 MHz”. If bigger bandwidth is selected, device could transmit and receive data with higher speed.
  • Page 37 150M 1-Port Wi-Fi ADSL2+ Router User Guide WEP-64Bits To configure WPA-64Bits settings, select the WPA-64Bits option from the drop-down list. The menu will change to offer the appropriate settings. WPA-64Bits is a data privacy mechanism based on a 64-bit shared key algorithm, as described in the IEEE 802.11g standard.
  • Page 38 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-18  Encryption: Select the encryption you want to use: TKIP/AES, TKIP or AES (AES is an encryption method stronger than TKIP).  TKIP (Temporal Key Integrity Protocol) - a wireless encryption protocol that provides dynamic encryption keys for each packet transmitted.
  • Page 39 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-20  WPS Settings: WPS can help you to add a new wireless device to an existing network quickly. This section will guide you how to use WPS function. WPS state: Display the current WPS state.
  • Page 40 150M 1-Port Wi-Fi ADSL2+ Router User Guide The WPS Configuration Screen of Wireless Adapter PIN code If the wireless adapter supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods. Click PIN code, you will see the screen as shown below.
  • Page 41 150M 1-Port Wi-Fi ADSL2+ Router User Guide The WPS Configuration Screen of Wireless Adapter Step 2: For the Router, keep PIN code selected and enter the PIN code of the wireless adapter in the field after enrollee PIN code as shown below. Then click Start WPS.
  • Page 42 150M 1-Port Wi-Fi ADSL2+ Router User Guide The WPS Configuration Screen of Wireless Adapter  Note: The default PIN code of the Router can be found in its label or the WPS configuration screen as Figure 4-23.  WPS/WLAN: WPS/WLAN button can be used to enable and disable wireless feature.
  • Page 43 150M 1-Port Wi-Fi ADSL2+ Router User Guide  WDS Settings: Select On/Off to enable/disable WDS. With this function enabled, the Router can bridge two or more WLANs. MAC Address: Enter the MAC Address you wish to bridge in the field.

  • Page 44: Advanced Setup

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Advanced Setup Choose “Advanced Setup”, you can see the next submenus: Figure 4-24 Click any of them, and you will be able to configure the corresponding function. 4.4.1 Firewall Choose “Advanced Setup→ Firewall” menu, and you will see the next screen (shown in Figure 4-25).

  • Page 45: Routing

    150M 1-Port Wi-Fi ADSL2+ Router User Guide 4.4.2 Routing Choose “Advanced Setup→ Routing” menu, and you will see the routing information in the next screen (shown in Figure 4-26). Figure 4-26 Click ADD ROUTE button to add a new route in the next screen (shown in Figure 4-27).

  • Page 46: Nat

    150M 1-Port Wi-Fi ADSL2+ Router User Guide 4.4.3 NAT Choose “Advanced Setup→ NAT” menu, you can setup the NAT (Network Address Translation) function for the Router (shown in Figure 4-28). Figure 4-28  Virtual Circuit: Enter Virtual Circuit Index that you plan to setup for the NAT function.
  • Page 47 150M 1-Port Wi-Fi ADSL2+ Router User Guide 4.4.3.2. Virtual Server Choose “Advanced Setup→ NAT→ Virtual Server” in Figure 4-28, you can configure the Virtual Server in the next screen. The Virtual Server is the server or server(s) behind NAT (on the LAN), for example, Web server or FTP server, that you can make visible to the outside world even though NAT makes your whole inside network appear as a single machine to the outside world.
  • Page 48 150M 1-Port Wi-Fi ADSL2+ Router User Guide address for the virtual server; If the application list does not contain the service that you want, please configure the Port number, IP Address and Protocol manually. Step 4: After that, click SAVE to make the entry take effect.

  • Page 49: Qos

    150M 1-Port Wi-Fi ADSL2+ Router User Guide To add a mapping rule: Step 1: Select the “Virtual Circuit” and Multiple for the “Number of IPs”. Then select the tab IP Address Mapping (shown in Figure 4-28).  Note: IP Address Mapping is only available for VCs with Multiple IPs.
  • Page 50 150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-32  QoS: Select this option to Activate/Deactivate the IP QoS on different types (IP ToS and DiffServ).  Summary: Click the button to view the configurations of QoS.  Rule: Configure the rules for QoS. If the traffic complies with the rule, then the Router will take the corresponding action to deal with it.

  • Page 51: Vlan

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Destination host for the rule. Source MAC & IP & Mask & Port Range: Enter the IP information about the Source  host for the rule.  Protocol ID: Select one among TCP/UDP, TCP, UDP or ICMP protocols for the application.
  • Page 52 150M 1-Port Wi-Fi ADSL2+ Router User Guide can communicate as if they were attached to the same LAN, when in fact they are located on a number of different LAN segments. Because VLANs are based on logical instead of physical connections, it is very flexible for user/host management, bandwidth allocation and resource optimization.
  • Page 53 150M 1-Port Wi-Fi ADSL2+ Router User Guide Define VLAN Group Click Define VLAN Group in Figure 4-33, you can define VLAN groups in the next screen (shown in Figure 4-35). Figure 4-35  VLAN Index: Select the VLAN index for this VC. You can specify 8 groups in maximum.

  • Page 54: Adsl

    150M 1-Port Wi-Fi ADSL2+ Router User Guide 4.4.6 ADSL Choose “Advanced Setup→ ADSL”, you can select the ADSL Type and ADSL Mode in the next screen. The ADSL feature can be selected when you meet the physical connection problem.

  • Page 55: Acl

    150M 1-Port Wi-Fi ADSL2+ Router User Guide 4.5.1 ACL Choose “Access Management→ ACL”, You can specify the client to access the ADSL Router once setting his IP as a Secure IP Address through selected applications. Figure 4-38  ACL: If Activated, the IP addresses which are contained in the Access Control List can access to the Router.
  • Page 56 150M 1-Port Wi-Fi ADSL2+ Router User Guide 4.5.2.1. IP Filter Select IP/Mac Filter as the Filter type, and select IP as the Rule type (shown in Figure 4-39), then you can configure the filter rules based on IP address. The filtering includes Outgoing and Incoming, the detailed descriptions are provided below.
  • Page 57 150M 1-Port Wi-Fi ADSL2+ Router User Guide  Direction: Select the direction for this IP Filter rule. There are three filtering directions: Both, Incoming, Outgoing.  Note: Incoming means that IP traffic which is coming into the router, and the Outgoing means that IP traffic which is going out the router.
  • Page 58 150M 1-Port Wi-Fi ADSL2+ Router User Guide Step 1: Select the “IP/MAC Filter” as the Filter Type Selection (show in Figure 4-39). Select the “IP” as the Rule Type on the Filter screen, then you can configure the specific rule for the example.
  • Page 59 150M 1-Port Wi-Fi ADSL2+ Router User Guide  Note: After you complete the IP filter rules for the example, the Filter list will show as follows. You can enter the IP / MAC Filter Set Index to view the information about the rule.
  • Page 60 150M 1-Port Wi-Fi ADSL2+ Router User Guide  Active: Select “Yes” to make the rule to take effect.  MAC Address: Enter the MAC address for the rule.  Rule Unmatched: If the current rule can not match, and you select Forward, the router will skip the rule and transmit directly.
  • Page 61 150M 1-Port Wi-Fi ADSL2+ Router User Guide 00-0A-EB-00-07-5F to access the Internet.  Note: After you complete the MAC filter rules for the example, the Filter list will show as follows. You can enter the IP / MAC Filter Set Index to view the information about the rule.
  • Page 62 150M 1-Port Wi-Fi ADSL2+ Router User Guide 4.5.2.4. URL Select Application Filter as the Filter type (shown in Figure 4-42), and then you can configure the filter rules based on URL. Figure 4-42  Filter Type Selection: Select the URL Filter for the next configuration.

  • Page 63: Snmp

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Step 1: Select the “URL Filter” as the Filter Type Selection (show in Figure 4-42). Step 2: Select the Index for the rule, and then enter the website in the URL field.

  • Page 64: Ddns

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-44  UPnP: Activate or Deactivate the UPnP function. Only when the function is activated, can the UPnP take effect.  Auto-Configure: If you activate the function, then the UPnP network devices can automatically configure network addressing, announce their presence in the network to other UPnP devices and enable exchange of simple product and service descriptions.

  • Page 65: Cwmp

    150M 1-Port Wi-Fi ADSL2+ Router User Guide  E-mail Address: Enter your E-mail address here.  Username & Password: Type the “User Name” and “Password” for your DDNS account.  Wildcard support: Select the option to use Wildcard function 4.5.6 CWMP...

  • Page 66: Maintenance

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Maintenance Choose “Maintenance”, you can see the next submenus: Figure 4-47 Click any of them, and you will be able to configure the corresponding function. 4.6.1 Administration Choose “Maintenance→ Administration”, you can set new password for admin in the screen (shown in Figure 4-48).
  • Page 67 150M 1-Port Wi-Fi ADSL2+ Router User Guide Select NTP Server automatically as the Synchronize time, you only need to set the time zone. Figure 4-49  Note: The ADSL Router built-in some NTP Servers, when the Router connects to the Internet, the Router will get the system time automatically from the NTP Server.

  • Page 68: Firmware

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Select Manually as the Synchronize time, you need to set the date and time corresponding to the current time. Figure 4-51 4.6.3 Firmware Choose “Maintenance→ Firmware”, you can upgrade the firmware of the Router in the screen (shown in Figure 4-52).
  • Page 69 150M 1-Port Wi-Fi ADSL2+ Router User Guide To upgrade the router's firmware, follow these instructions below: Step 1: Type the path and file name of the update file into the “New Firmware Location” field. Or click the Browse button to locate the update file.

  • Page 70: Sysrestart

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Figure 4-54 To restore the Router’s settings: Step 1: Click the Browse button to locate the update file for the device, or enter the exact path in “New Romfile Location” field. Step 2: Click the UPGRADE button to complete.

  • Page 71: Diagnostics

    150M 1-Port Wi-Fi ADSL2+ Router User Guide 4.6.5 Diagnostics Choose “Maintenance→ Diagnostics”, you can view the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides in the screen (shown in Figure 4-56).

  • Page 72: Help

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Help Choose “Help”, you can view the help information for configuration of any function. Figure 4-57  Note: Click the tab, and you will be able to get the corresponding information.

  • Page 73: Appendix A: Specifications

    150M 1-Port Wi-Fi ADSL2+ Router User Guide Appendix A: Specifications General Complies with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Standards & IEEE 802.3, IEEE 802.3u standards Protocols ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5, Protocols TCP/IP, PPPoA, PPPoE, SNTP, HTTP, DHCP, ICMP, NAT LAN Ports: 1-10/100M Auto-Negotiation RJ45 ports （Auto MDI/MDIX)

  • Page 74: Appendix B: Contact Information

    Working Temperature ~ 40 Working Humidity 10% ~ 90% RH (non-condensing) ℃ ℃ Storage Temperature ~ 70 Storage Humidity 5% ~ 90% RH (non-condensing) Appendix C: Contact Information Note: For any technical help on iBall Baton products please contact support@iballbaton.com www.iBallBaton.com...
