iBall Baton iB-W3GT150N User Manual

3g+ wi-fi travel router
Hide thumbs
Table of Contents

Advertisement

Quick Links

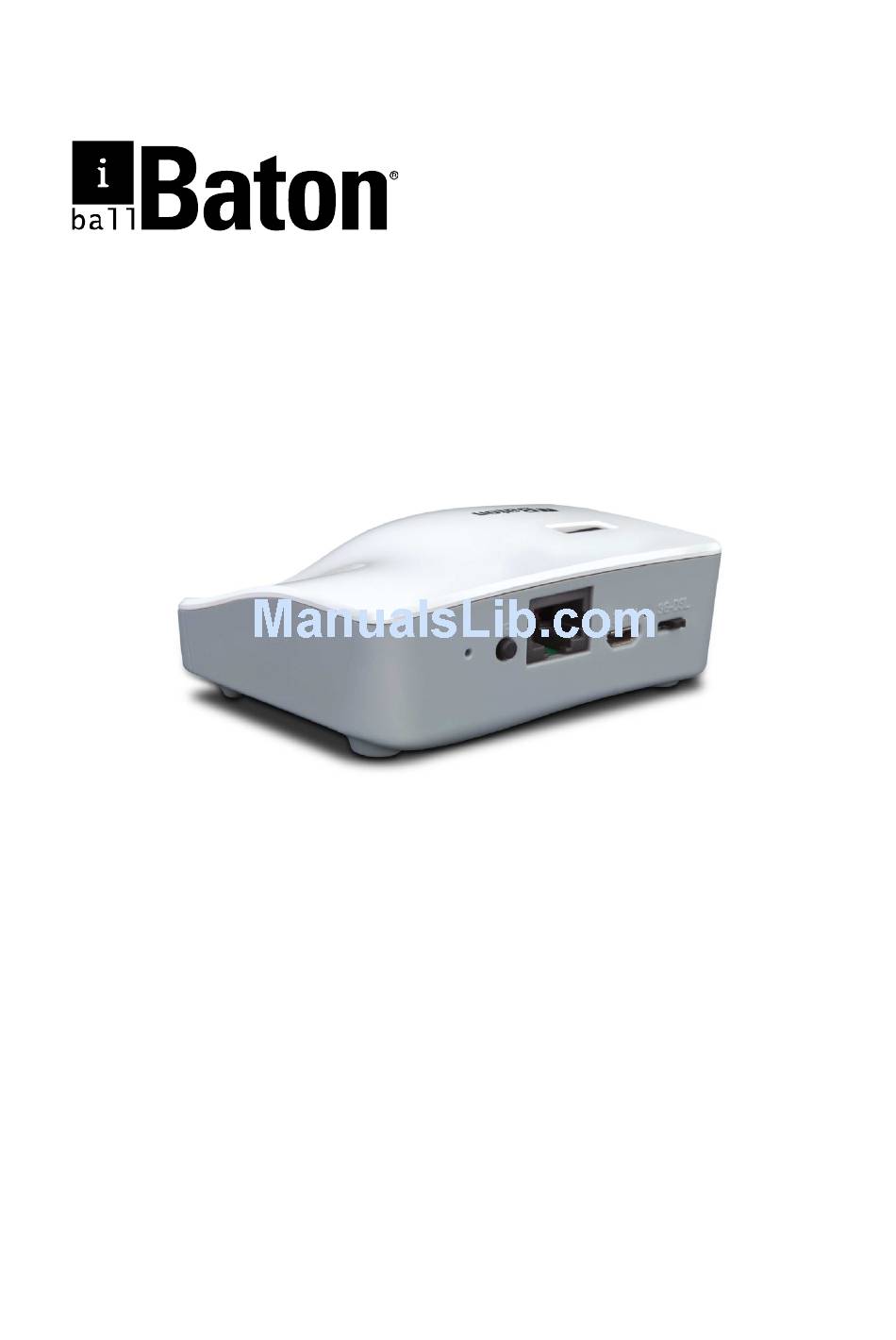

3G+ Wi-Fi Travel Router
Model No. iB-W3GT150N
User Manual
Ver. 1.0.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iB-W3GT150N and is the answer not in the manual?

Questions and answers

Related Manuals for iBall Baton iB-W3GT150N

Summary of Contents for iBall Baton iB-W3GT150N

  • Page 1 3G+ Wi-Fi Travel Router Model No. iB-W3GT150N User Manual Ver. 1.0.0...

  • Page 2: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Table of contents CHAPTER 1 INTRODUCTION................4 1.1 PACKAGE LIST ................4 1.2 HARDWARE INSTALLATION............5 CHAPTER 2 GETTING STARTED WITH EASY SETUP ........8 2.1 EASY SETUP BY WINDOWS UTILITY ..........8 2.2 EASY SETUP BY CONFIGURING WEB PAGES......13 CHAPTER 3 MAKING CONFIGURATION............

  • Page 4: Chapter 1 Introduction

    Introduction Chapter 1 iBall Baton 3G+ Wi-Fi Travel Router complies with IEEE 802.11 b/g/n wireless standards. Enhanced 150Mbps wireless transmission speed. Internet: Allows multiple users to access internet via wired as well as wireless connection • Connect Internet through 2G/3G+ USB model to router USB slot & access internet.

  • Page 5: Hardware Installation

    1.2 Hardware Installation A. Hardware configuration Reset RJ45 WPS Button WAN Mode Switch Power Jack Power/ Status LED Internet LED...
  • Page 6 B. LED indicators Power/ Status LED Blinking Color Status Description Speed Green Blinking Slow Device is on and system is working Green Blinking Quick Device is in Wi-Fi WPS mode None Device is powered off Internet LED Blinking Color Status Description Speed Solid...
  • Page 7 C. Installation Steps for 3G Connection Step 1. Plug in power: Connect with the power adapter to the receptor on the back panel of it. Then the device will be powered on. Step 2. Set WAN mode switch: Set WAN mode switch at “3G” side. Step 3.
  • Page 8 Note. If you set WAN mode switch at “DSL” side, the Ethernet port will became WAN port for you connect to xDSL modem. Your PC or laptop can only connect to it via WLAN at this condition.

  • Page 9: Login To The Router

    Chapter 2 Router Configuring There are two methods for you to set up the 3G+ Wi-Fi Travel Router quickly and easily. Method - I > Web Based configuration through browser Method - II > Easy Setup Wizard Method – I > Configuring the Router via Web based console Login to the Router To login to the router, you should set up the TCP/IP Protocol in "Obtain an IP address automatically"...

  • Page 10: Easy Setup By Windows Utility

    2.1 Easy Setup by Windows Utility Step 1： ： ： ： Install the Easy Setup Utility from the provided CD then follow the steps to configure the device. Step 2： ： ： ： Select Language then click “Next” to continue. Step 3：...
  • Page 11 Step 4： ： ： ： Click “Next” to continue. Step 5： ： ： ： Select Enable for Wireless if you want to setup WLAN configurations. Then click “Next” to continue.
  • Page 12 Step 6： ： ： ： Enter SSID, Channel and Security options, and then click “Next” to continue. Step 7： ： ： ： This utility will detect your WAN service automatically, or you can choose it by yourself. Here we check “Let me select WAN service by myself”.
  • Page 13 Step 9-1： ： ： ： Select “Auto-Detection”, and the Utility will try to detect and configure the required 3G service settings automatically. Click “Next” to continue. Step 9-2： ： ： ： Or you can select “Manual” and manually fill in the required 3G service settings provided by your ISP.
  • Page 14 Step 10： ： ： ： This page will show new configurations you have set. Click “Next” to continue. Step 11： ： ： ： The WiFi Mobile Router is rebooted to make your entire configuration take effect. Step 12： ： ： ： Click “Next”...

  • Page 15: Quick Wizard Setup

    Step 13： ： ： ： Click “Next” to test WAN Networking service. Step 14： ： ： ： WAN connection is tested successfully. Clink “Finish” button to quit this utility. 2.2 Quick Wizard Setup User need to login via web based UI to configure the device. •...
  • Page 16 Select “Wizard” to proceed basic settings. Click “Next” to start the Setup Wizard. Configure with the Setup Wizard...
  • Page 17 Step 1 Change System Password. Set up your system password. (Default：admin) Step 2: Select Time Zone Step 3: Select Wan Type. Please set LAN IP address of this device. If you want to use 3G service as the main Internet access, please choose WAN type as “3G”.
  • Page 18 Step 4: Setup 3G profile. Select “Auto Detection”. Step 5: Setup your Wireless Network and SSID. Step 6: Setup Wireless Security configurations.
  • Page 19 Step 7: Applying new configurations you have set. Click “Next” to continue. Step 8: The device will save all new settings, and reboot automatically. After reboot, it will try to connect to Internet according to new settings.

  • Page 20: Network Setting

    3.1 Network Setting 3.1.1. LAN (Wi-Fi) & WAN - Network Setup LAN IP Address: The local IP address of this device. The computers on your network must use the LAN IP address of this device as their default gateway. You can change it if necessary.
  • Page 21 A. 3G This device supports different WAN types of connection for users to connect to remote wireless ISP, such as 3G (WCDMA, HSxPA, HSPA+, CDMA2000, EV-DO, TD-SCDMA), iBurst, or Wi-Fi Hotspot. Note. Users need to insert USB modem card for 3G and iBurst WAN connections. 1.
  • Page 22 12. Primary DNS*: You can assign a Primary DNS server if required. (Optional) 13. Secondary DNS*: You can assign a Secondary DNS server if required. (Optional) 14. Connection Control: There are 3 options to start connection: Auto Reconnect (Always-on): The device will always try to link to Internet. Connect-on-demand: The device won’t try to connect to Internet until LAN PCs or devices try to go to Internet.
  • Page 23 B. iBurst 1. WAN Type: Choose iBurst for WAN connection. 2. Account: Enter the User Name for iBurst connection. 3. Password: Enter new Password for iBurst connection. 4. Primary DNS: You can assign a Primary DNS server if required. (Optional) 5.
  • Page 24 C. Wi-Fi HotSpot WAN Type: Choose Wi-Fi HotSpot. This WAN type allows you to share one Wi-Fi Hotspot account with your friends or colleagues. Local clients connect to this device via Wi-Fi connection, and surfing Internet by connecting to remote Wi-Fi Hotspot. Just follow a few steps below to connect to remote Wi-Fi HotSpot.
  • Page 25 Step 3: Click “Save” button to save settings after selecting. There will be a field here for you to input encryption key if remote Wi-Fi Hotspot or Wi-Fi AP requires. Step 4: Click “Reboot” button to restart device to take new settings effective. D.
  • Page 26 1. WAN Type: Choose Dynamic IP Address. 2. Host Name: Optional, required by some ISPs, for example, @Home. 3. ISP registered MAC Address: Some ISP (Cable company) will record your MAC address on PC. You can press “Clone” button to copy the MAC address on your PC here, or you can input it manually.
  • Page 27 F. PPP over Ethernet (PPPoE) 1. WAN Type: Choose PPP over Ethernet. 2. PPPoE Account and Password: The account and password your ISP assigned to you. 3. Primary DNS: You can indicate IP address of primary DNS if required. 4. Secondary DNS: You can indicate IP address of secondary DNS if required. 5.
  • Page 28 G. PPTP 1. WAN Type: Choose PPTP. 2. IP Mode: You can select “Static IP Address” or “Dynamic IP Address”. 3. My IP Address*, My Subnet Mask*, and Gateway IP*: The IP address, subnet mask, and IP address of gateway your ISP assigned to you. 4.
  • Page 29 H. L2TP 1. WAN Type: Choose L2TP. 2. IP Mode: You can select “Static IP Address” or “Dynamic IP Address”. 3. My IP Address*, My Subnet Mask*, and Gateway IP*: The IP address, subnet mask, and IP address of gateway your ISP assigned to you. 4.
  • Page 30 Note. The items with * above are only available when choosing Static IP Address in IP mode. 2.1.1.1 Wireless Wireless settings allow you to set the WLAN (WiFi) configuration items. 1. Wireless Module: You can enable or disable WLAN function. 2.
  • Page 31 Shared Shared key authentication relies on the fact that both stations taking part in the authentication process have the same "shared" key or passphrase. The shared key is manually set on both the client station and the AP/router. Three types of shared key authentication are available today for home or small office WLAN environments.
  • Page 32 By pressing “WPS Setup”, you can configure and enable the easy setup feature WPS (Wi-Fi Protected Setup) for your wireless network. 1. WPS: You can enable this function by selecting “Enable”. WPS offers a safe and easy way to allow the wireless clients connected to your wireless network. 2.
  • Page 33 For an example, if you have an FTP server (port 21) at 192.168.1.2, a Web server (port 80) at 192.168.1.3, and a VPN server at 192.168.1.4 then you need to specify the following virtual server mapping table: Service Port Server IP Enable 192.168.1.2 192.168.1.3...
  • Page 34 Trigger: The outbound port number issued by the application. Incoming Ports: When the trigger packet is detected, the inbound packets sent to the specified port numbers are allowed to pass through the firewall. This device provides some predefined settings. Select your application and click “Copy to” to add the predefined setting to your list.
  • Page 35 3.1.3. Routing If you have more than one routers and subnets, you will need to enable routing table to allow packets to find proper routing path and allow different subnets to communicate with each other. The routing table allows you to determine which physical interface address to use for outgoing IP data grams.
  • Page 36 3.1.4. Client/Server/Proxy In this section, you can configure DHCP Server and DDNS settings. 3.1.4.1 DHCP Server 1. DHCP Server: Choose either Disable or Enable. If you enable the DHCP Server function, the following settings will be effective. 2. IP Pool Starting/Ending Address: Whenever there is a request, the DHCP server will automatically allocate an unused IP address from the IP address pool to the requesting computer.

  • Page 37: Dynamic Dns

    3.1.4.2 Dynamic DNS To host your server on a changing IP address, you have to use dynamic domain name service (DDNS). So that anyone wishing to reach your host only needs to know the name of it. Dynamic DNS will map the name of your host to your current IP address, which changes each time you connect your Internet service provider.

  • Page 38: Advanced Settings

    3.2 Advanced Setting This router also support many advanced network features, such as firewall, QoS, and UPnP. You can finish those configurations in this section. 3.2.1 Security Settings The firewall functions include Packet Filters, Domain Filters, URL Blocking, and MAC Control. 3.2.1.1 Firewall Status This page shows all firewall rules that you have set.
  • Page 39 3.2.1.2 IP Filtering Packet Filter includes both outbound filter and inbound filter. And they have same way to setting. Packet Filter enables you to control what packets are allowed to pass the router. Outbound filter applies on all outbound packets. However, inbound filter applies on packets that destined to Virtual Servers or DMZ host only.
  • Page 40 Each rule can be enabled or disabled individually. Click on “Save” to store your settings or click “Undo” to give up the changes. For MAC Level settings, please refer to MAC Control for details. 3.2.1.3 Domain Filtering Domain Filter prevents users under this device from accessing specific domains. 1.
  • Page 41 3.2.1.4 URL Filtering URL Blocking will block LAN computers to connect with pre-define Websites. The major difference between “Domain filter” and “URL Blocking” is Domain filter require user to input suffix (like .com or .org, etc), while URL Blocking require user to input a keyword only. In other words, Domain filter can block specific website, while URL Blocking can block hundreds of websites by simply a keyword.

  • Page 42: Mac Filtering

    3.2.1.5 MAC Filtering MAC Address Control allows you to assign different access right for different users and to assign a specific IP address to a certain MAC address. 1. MAC Address Control: Check “Enable” to enable the “MAC Address Control”. All of the settings in this page will take effect only when “Enable”...

  • Page 43: Qos

    3.2.1.6 Security Tools 1. Discard PING from WAN side: When this feature is enabled, any host on the WAN cannot ping this product. 2. DoS Attack Detection: When this feature is enabled, the router will detect and log the DoS attack comes from the Internet. Currently, the router can detect the following DoS attack: SYN Attack, WinNuke, Port Scan, Ping of Death, Land Attack etc.

  • Page 44: Management

    5. QoS Priority: This defines the priority level of the current Policy Configuration. Packets associated with this policy will be serviced based upon the priority level set. For critical applications High or Normal level is recommended. For non-critical applications select a Low level.

  • Page 45: System

    1. Enable SNMP: You must check “Local”, “Remote” or both to enable SNMP function. If “Local” is checked, this device will response request from LAN. If “Remote” is checked, this device will response request from WAN. 2. Get Community: The community of GetRequest that this device will respond. 3.
  • Page 46 3.3.2 System Status 3.3.2.1 System Info You can view the System Information and System log, and download/clear the System log, in this page. 3.3.2.2 System Log With enabling Syslog function, this device will send log to certain host periodically. You need to install a syslog utility on a host to receive syslogs.
  • Page 47 3.3.2.3 Email Log This page support two methods to export system logs to specific destination by means of syslog (UDP) and SMTP(TCP). 1. Setting of E-mail Alert: Check if you want to enable Email alert (send syslog via email). 2. SMTP Server:Port: Input the SMTP server IP and port, which are connected with ':'. If you do not specify port number, the default value is 25.
  • Page 48 3.3.3.2 Firmware Upgrade If new firmware is available, you can upgrade router firmware here. Press “browse” button to indicate the file name of new firmware, and then press Upgrade button to start to upgrade new firmware on this device. If you want to upgrade a firmware which is from GPL policy, please check “Accept unofficial firmware”.
  • Page 49 Click on “Save” to store your settings or click “Undo” to give up the changes. 3.3.3.4 Diagnostic Tools & Misc 1. Backup Setting: You can backup your settings by clicking the “Backup” button, and save it as a bin file. Once you want to restore these settings, please follow the same instructions for Firmware Upgrade.
  • Page 50 1. Schedule: Check to enable the schedule rule settings. 2. Add New Rule: To create a schedule rule, click the “Add New Rule” button. You can edit the Name of Rule, Policy, and set the schedule time (Week day, Start Time, and End Time).

  • Page 51: Chapter 4 Troubleshooting

    Chapter 3 Troubleshooting This Chapter provides solutions to problems for the installation and operation of the WiFi Mobile Router. You can refer to the following if you are having problems. 1 Why can’t I configure the router even the cable is plugged and the LED is lit? Do a Ping test to make sure that the WiFi Mobile Note:...
  • Page 52 2 What can I do if my Ethernet connection does not work properly? Make sure the RJ45 cable connect with the router. Ensure that the setting on your Network Interface Card adapter is “Enabled”. If settings are correct, ensure that you are not using a crossover Ethernet cable, not all Network Interface Cards are MDI/MDIX compatible, and use a patch cable is recommended.
  • Page 53 4 Something wrong with the wireless connection? Can’t setup a wireless connection? Ensure that the SSID and the encryption settings are exactly the same to the Clients. Move the WiFi Mobile Router and the wireless client into the same room, and then test the wireless connection.
  • Page 54 5 What to do if I forgot my encryption key? 1. Go back to advanced setting to set up your Encryption key again. 2. Reset the WiFi Mobile Router to default setting 6 How to reset to default? 1. Ensure the WiFi Mobile Router is powered on 2.

  • Page 55: Appendix A. Spec Summary Table

    Appendix A. Spec Summary Table Wireless WAN USB 2.0 for external 3G/3.75G modem RJ-45 port, 10/100Mbps, WAN/LAN Ethernet WAN/LAN Configurable Antenna PIFA internal antenna WPS Button For WPS connection Reset Button Reset router setting to factory default LED Indication Status/ Internet ●...

  • Page 56: Appendix B. Glossary

    Appendix B: Glossary 802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks. 802.11g - specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b...

  • Page 57: Appendix C. Contact Information

    WPA (Wi-Fi Protected Access) - A wireless security protocol use TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server. Appendix C. Contact information Note: For any technical help on iBall Baton products please contact support@iballbaton.com www.iBallBaton.com...
