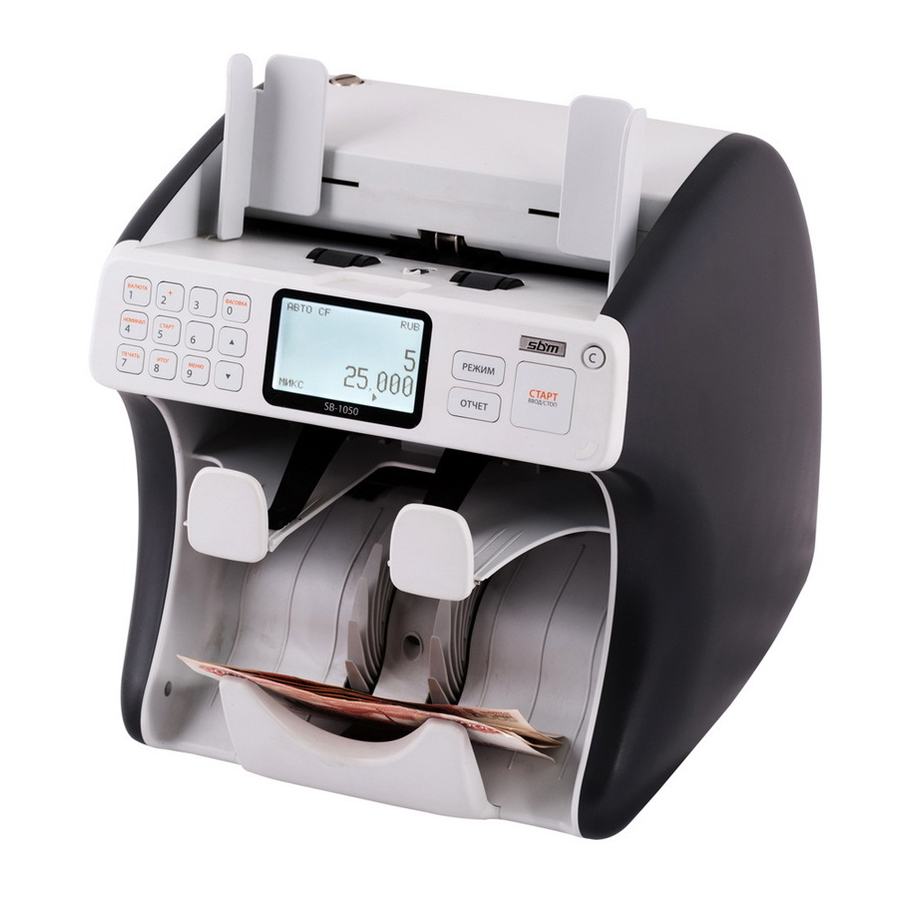

SBM SB-7 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Service Manual
SB-7 (SB-1050)
Leading Image Processing Technology
We've been there when you needed
SBM Co., Ltd.
Ver. 1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SBM SB-7

Summary of Contents for SBM SB-7

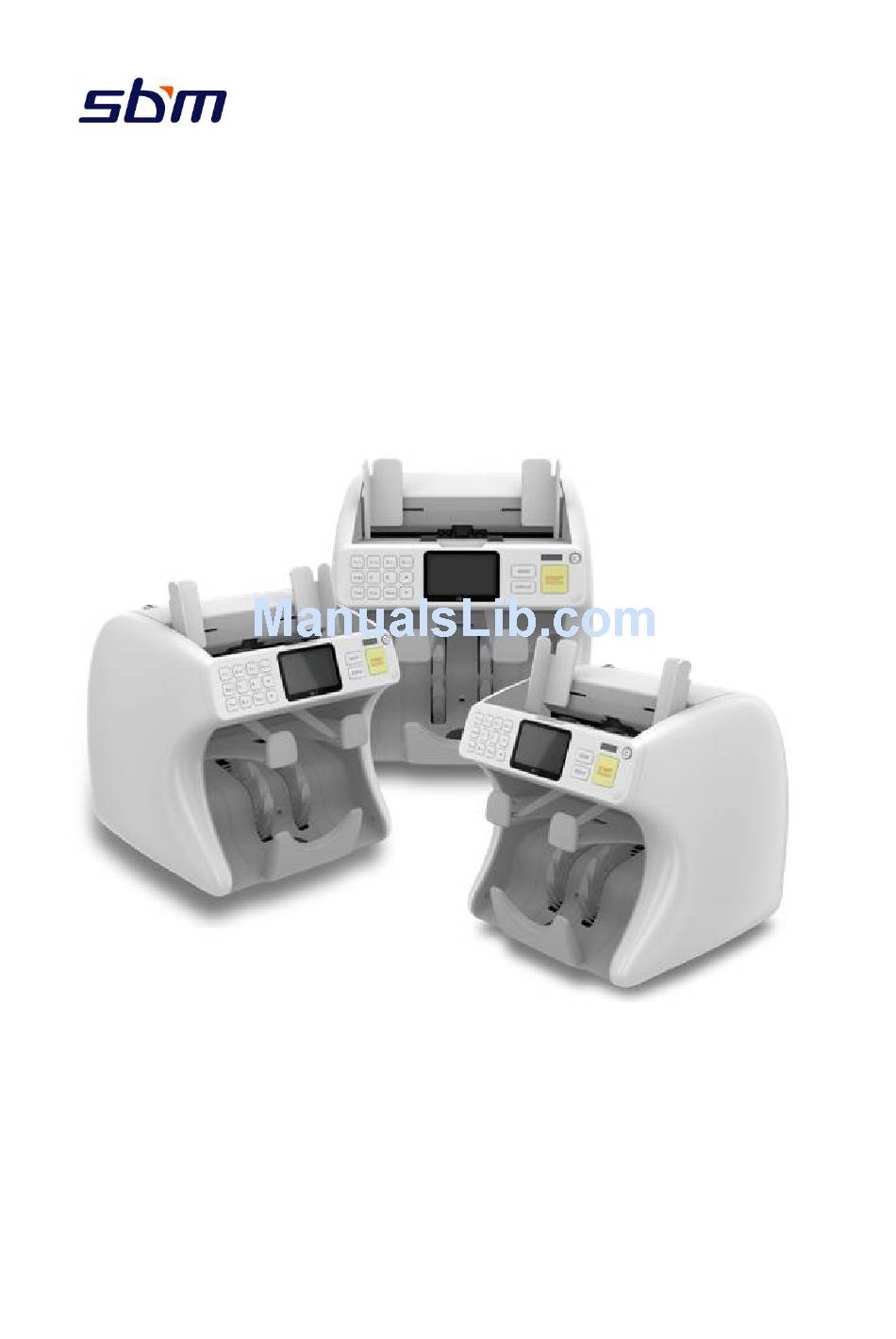

  • Page 1 Leading Image Processing Technology We've been there when you needed Service Manual SB-7 (SB-1050) SBM Co., Ltd. Ver. 1.01...
  • Page 2 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Important Safety Information Always be careful when using the machine. To reduce the risk of fire, electrical shocks, and other injuries, keep these safety considerations in mind when installing, using, and maintaining your machine: Stability : Place the machine on a secure, stable surface.
  • Page 3 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Managing the performance of the machine This unit has many sophisticated sensors. Without proper maintenance, it cannot last its good performance. Please read the “Daily Maintenance” section of this manual carefully, and do it everyday. When the performance is deteriorated on a sudden, please clean all the sensors first before calling a service.
  • Page 4 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Recommended Tools Picture Description and Size Picture Description and Size L Wrench Hexagonal Screwdriver Ø1.5 L Wrench Screwdriver(-) Ø2 Spanner Screwdriver(-) 1.5mm Screwdriver(-) Nipper 2.5mm Screwdriver(+) Long-nose Ø6 - 4 -...

  • Page 5: Table Of Contents

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Table of Contents Chapter 1 Installation ------------------------------------------------------------------------------------------- Unpacking List ----------------------------------------------------------------------------------------- Choosing a Location --------------------------------------------------------------------------------- Handling the Machine ------------------------------------------------------------------------------- Power Cord --------------------------------------------------------------------------------------------- Printer ---------------------------------------------------------------------------------------------------- Chapter 2 Description of the Parts --------------------------------------------------------------------------- Out Side -------------------------------------------------------------------------------------------------...
  • Page 6 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL IR SHADING (WHITE) ------------------------------------------------------------------------------- IR SHADING (DARK) -------------------------------------------------------------------------------- ERROR -------------------------------------------------------------------------------------------------- Chapter 10 Adjustment -------------------------------------------------------------------------------------------- Gap of ADF --------------------------------------------------------------------------------------------- ADF & Pickup Roller Timing ----------------------------------------------------------------------- Guide Selector ----------------------------------------------------------------------------------------- LCD (Back light) --------------------------------------------------------------------------------------- Hopper Sensitivity ------------------------------------------------------------------------------------...

  • Page 7: Chapter 1 Installation

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Installation 1-1. Unpacking List Machine 1 Unit Bill Guide 2 pcs. ( Left / Right) AC Power Code 1 pc. User's Manual 1 pc. Serial Cable 1 pc. * Optional Items: Printer, Serial to USB A Cable, USB A to USB B Cable 1-2.

  • Page 8: Power Cord

    Plug the cable of printer into the serial port of SB-7. Turn on the printer and SB-7. CAUTION In case that another port is used to avoid electrical shock, turn off SB-7 and turn on the machine after Port is connected. - 8 -...

  • Page 9: Chapter 2 Description Of The Parts

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Description of the Parts 2-1. Out Side 2-2. Interface Port PORT INTERFACE RJ11 Connected with Customer Display RS232C Connected with Printer or PC USB(Type B) Connected with PC in Dual User mode USB(Type A)

  • Page 10: Sensors

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 2-3. Sensors ■ TRN (Transmitter) ■ RCV (Receiver) This machine uses various sensors to detect the malfunction of the machine and the status of the notes in the machine and to recognize the denominations of the notes. The sensors are very sensitive and if they are not cleaned correctly everyday, this may negatively affect performance of the machine.
  • Page 11 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Note: In case of feed roller, clean with slightly dampened cloth with alcohol. While rotating one side of the roller manually, stick the cloth to the other side of the roller. - 11 -...

  • Page 12: Rollers

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 2-4. Rollers - 12 -...

  • Page 13: Chapter 3 Overview Of Control Panel

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Overview of Control Panel 3-1. Operation Panel 3-2. Key Define ◀▶ € Select Currency Add function On/Off Counterfeit Detector On/Off BATCH Batch function On/Off DENOM Select a denomination dual user mode : Counting Start (manual mode) /...

  • Page 14: Chapter 4 Reject Reason And Error Message

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Reject Reason and Error Message 4-1. Reject Reason The machine provides various information regarding counting results. Every time pressing DISPLAY key, the display mode is changed sequentially. There are 5 views. The last view is Reject Reason view. Below is some examples of each Display mode.

  • Page 15: Lcd Error Messages

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Summary of the ‘NO ID’ and ‘CF’ details NO ID (1) ~ NO ID (6): Asymmetrical Error NO ID (7) ~ NO ID (10) : IMAGE MATCHING ERROR NO ID (11) ~ NO ID (13) : IMAGE SACN ERROR...

  • Page 16: Chapter 5 Board & Component

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Board & Component 5-1. Connection Diagram - 16 -...

  • Page 17: P-Main - Front Side

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 5-2. Board Descriptions 5-2-1. P-MAIN (Front Side) - 17 -...

  • Page 18: P-Power_Io - Front Side

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 5-2-2. P-POWER_IO (Front Side) - 18 -...

  • Page 19: P-Amp - Front Side

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 5-2-3. P-AMP (Front Side) 5-2-4. P-IR_RCV (Front Side) - 19 -...

  • Page 20: P-Mrs_L - Front Side

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 5-2-5. P-MRS_L (Front Side) 5-2-6. P-MRS_R (Front Side) - 20 -...

  • Page 21: P-Mra - Front Side

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 5-2-7. P-MRA (Front Side) 5-2-8. P-JP_TRN (Front Side) 5-2-9. P-SP_TRN (Front Side) - 21 -...

  • Page 22: P-Mrs_R - Front Side

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 5-2-10. P-JPSP_RCV (Front Side) 5-2-11. P-IF (Front Side) 5-2-12. P-OPE - 22 -...

  • Page 23: Chapter 6 S/W Version Check

    VERSION 01.02 the version of the installed software to compare with new CHECKSUM 515E software provided by SBM, if the version and checksum of CURRENCY SPEC both software is exactly same, they are the same software. SPEC 5 SOFT SPEC 1 ...

  • Page 24: Chapter 7 Service Menu1

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL SERVICE MENU 1 There are Service Menu1 and Service Menu2. Service Menu1 includes mainly the menu adjusting Parameter of Sensors. 7-1. How to enter SERVICE MENU 1: Press : 9→MODE→ ***** To exit from the current function, press ‘9(menu)’ key and to move SERVICE MENU2, press ‘DISPLAY’...
  • Page 25 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 1. ERROR STOP CTRL. Sometimes there is need to prevent from stopping the ERROR STOP CTRL. machine even though some error is occurred when you test 1. ERROR STOP ON 2. ERROR STOP OFF the machine.
  • Page 26 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 5. SET MACHINE S/N S/N Display SET MACHINE S/N You can check the serial no. of the machine. 1. S/N DISPLAY (In order that S/N is displayed correctly, S/N should be input first in S/N Setting menu.)

  • Page 27: Chapter 8 Service Menu2

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL SERVICE MENU 2 There are Service Menu1 and Service Men2 in Service Menu. Service Menu2 includes the menu to have a test for development or for repair. 8-1. How to enter SERVICE MENU 2: Press : 9→MODE→...
  • Page 28 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 1. SENSOR TEST SENSOR TEST 1) LED TEST 1. LED TEST Turn ON/OFF LED. (It is not visible.) 2. HOPPER TEST 3. SENSOR LOGIC TEST 4. IR LOGIC TEST 2) HOPPER TEST 5. IRA TEST In this mode, the level of HOPPER is displayed Please refer to Page 47.
  • Page 29 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL CASE LCD DISPLAY PICTURE Reject F (Front) sensor is covered. Reject R (Rear) sensor is covered. Stacker sensor is covered. 4) IR LOGIC TEST In this mode, it is possible to check each channel of IR sensors 5) IRA TEST In this mode, it is possible to see the pattern and property of IR of notes.
  • Page 30 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 2. KEY TEST In this mode, you can have a test if the machine detects the input of key. Every time you press a key, the name of the key will be displayed on LCD. However, in case of CLEAR key, you exit from the current menu in stead of displaying.

  • Page 31: Chapter 9 Shading

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Shading What is Shading? Shading is to make a full swing reference waveform to read the full level of a signal. If the machine rejects too many notes in Mixed Mode or in CF Detection Mode, the system might not analyze the input of waveform.

  • Page 32: Uv Shading

    <UV SHADING SHEET : SHINWOO UV SHADING V1.0> 165 mm 75 mm Shading sheet provided from SBM should be used. Shading sheet provided from SBM should be used. Before UV shading, put UV shading sheet inside Front cover as the below image.
  • Page 33 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL CODE [ ***** ] 9 MENU MODE SERVICE MENU1 SHADING 1. ERROR STOP CTRL. 2 .SENSOR LEVEL 1. UV SHADING__________ 3. SYSTEM REPORT 2. MR SHADING 4. SET A/S CALL No. 3. IR SHADING (WHITE) 5.

  • Page 34: Mr Shading

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 9-2. MR SHADING <MR SHADING SHEET :USA ONE DOLLAR Real Banknote> Needed Quantity of MR SHADING SHEET 1 ~ 5 pcs CODE [*****] 9 MENU MODE SERVICE MENU1 SHADING 1. ERROR STOP CTRL.
  • Page 35 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Place 1~5 pcs of Sheet on the Arrange and place the sheets in the Hopper. middle of the Hopper like the picture. MR SHADING PLACE SHADING PAPER ON HOPPER Check The note is sent to Stacker.

  • Page 36: Ir Shading White

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 9-3. IR SHADING WHITE <IR SHADING SHEET (WHITE): SBM IR SHADING V3.0 White> 202 mm 145 mm 62 mm 70 mm This side faces upward This side faces downward Shading sheet provided from SBM should be used...
  • Page 37 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL CODE [ ***** ] 9 MENU MODE SERVICE MENU1 SHADING 1. ERROR STOP CTRL. 1. UV SHADING 2 .SENSOR LEVEL 2. MR SHADING 3. SYSTEM REPORT 4. SET A/S CALL No. 3. IR SHADING (WHITE) 5.
  • Page 38 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL BLACK This shows BLACK LEVEL. To return to first display, press ‘▼’. 500 - After check shading result, press clear button. 9 MENU If you want to move previous Level, press ‘9’. IR SHADING WHITE ‘NG’...

  • Page 39: Ir Shading Dark

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 9-4. IR SHADING DARK <IR SHADING (DARK) SHEET: SBM IR SHADING V3.0 Black> 202 mm 145 mm 62 mm 62 mm 70 mm This side faces downward This side faces upward Shading sheet provided from SBM should be used...
  • Page 40 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL CODE [ ***** ] 9 MENU MODE SERVICE MENU1 SHADING 1. ERROR STOP CTRL. 1. UV SHADING 2 .SENSOR LEVEL 2. MR SHADING 3. SYSTEM REPORT 4. SET A/S CALL No. 3. IR SHADING (WHITE) 5.
  • Page 41 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL This shows BLACK LEVEL. BLACK To return to first display showing ‘shading menu’, press ‘▼’ 500 - After check shading result, press clear button. 9 MENU If you want to move previous Level, press ‘9’.

  • Page 42: Error

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 9-5. ERROR 1) UV SHADING ‘NG’ UV SHADING Check if shading sheet is clean and there is no problem with the sheet. Then, have shading according the order. (▼ KEY TO SEE NEXT)

  • Page 43: Chapter 10 Adjustment

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Adjustment 10-1. Gap of ADF CAUTION Turn off the machine before adjustment. If too Wide  ‘Double Feeding’ or ‘Over Run’ If too Narrow  ‘Miss Feeding’ or ‘Jam0’ Check Gap of ADF by using one Check Gap of ADF by using 2 pcs note.

  • Page 44: Adf & Pickup Roller Timing

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 10-2. ADF & Pickup Roller Timing CAUTION Turn off the machine before adjustment. 4 Tooth ± 1 0 Tooth PICK_UP_ROLLER-P ADF_ROLLER-P Loosen the belt and then adjust the timing. Fit the belt on pulley.
  • Page 45 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Step 2. Open Rear Door. Put your hand inside of the machine and lift up Guide SELECTOR as the below image. (In this case, notes are sent to Stacker.) Step 3. Be careful with the tip of Selector Guide so that notes are not jammed in the Selector while the notes are transferred.

  • Page 46: Lcd (Back Light)

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 10-4. Brightness of LCD (Back Light) Step 1. . Remove Side Cover. Step 2. Pull OPE cover slightly to Step 3. Maintain the space as the below image so remove OPE cover as the below that you can adjust it comfortably.

  • Page 47: Hopper Sensitivity

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Step 5. Adjust brightness referring to the below image. Adjust R16 (Variable Resistor) with Driver checking LCD Back Light. High 10-5. Hopper sensitivity Step 1. Hopper Test Mode (Press : ‘9’→’MODE’→ ‘ ***** ’→’DISPLAY’→ ‘1.SENSOR TEST’→’2.HOPPER TEST’)

  • Page 48: Reject Pocket Sensor Level

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Step 4. Adjust R9 (Variable Resistor) so that DIFFERENCE can be from 190 to 210. HOPPER ON : HOPPER OFF. DIFFERENCE .: High 10-6. Reject Pocket Sensor Level If LED lights even though there are no notes on the REJECT POCKET or if LED does not light even though there are notes on the REJECT POCKET, adjust sensitivity of REJECT SENSOR.
  • Page 49 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 200 mm Step 1. How to make sheet for adjusting ‘Reject F’ Make sheet for adjustment with ‘IR SHADING 80 ~ 82mm (DARK) Sheet’ Provided by SBM. Cut dotted part as the image on the left side.

  • Page 50: Chapter 11 Program Update

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Program Upgrade 11-1. Program Upgrade Save Upgrade File (.sbm) provided by SBM in USB flash drive. Save only .sbm file, not to save the folder. ▲ Wait for a while. Turn on the machine...
  • Page 51 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Check version and checksum of the software and press “START” Key. 1. 01_USD(V1.00_5032) START 03_KRW_USD_EUR_JPY ENTER/STOP _CNY(V1.02_515E) 090820.sbm If the software is not the software for upgrade, press “C” key to move back to the previous step.

  • Page 52: Chapter 12 Parts List

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Spare Parts List Spare parts are sorted into by counterfeit sensors into 3 kinds of type as follows. O ; (Included), X ; (Not Included) SENSORS TYPE TYPE A TYPE B TYPE C O ;...
  • Page 53 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 1A05X2140A ASS'Y_PLATE_GUIDE_LOWER_P 1A05X2142A ASSY'_PLATE_GUIDE_UPPER_P 1A05X2141A ASS'Y_PLATE_REINFORCE 1A05X2151A ASS'Y_CASE_DETECTOR 1A05X2145A ASS'Y_GUIDE_LOWER 1A05X2146A ASS'Y_SHAFT_PINCH 1A05X2147A ASS'Y_SHAFT_PINCH_EXIT 740506900A PLATE_BASE_P 740507000A PLATE_SIDE_L 740507100A PLATE_SIDE_R 7805A059XA PIVOT_SUPPORT_REAR 740507700A PLATE_REINFORCE 740507900A PLATE_GUIDE_UPPER_P 740507600A PLATE_GUIDE_LOWER_P 740508000A BKT_COVER_TOP 7805C049XA ARM_ADJUST_LOWER 7805C046XA...
  • Page 54 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 720507801A BUSH_STACKER_WING 740507800A MOTOR_SHIELD 720004400A WINDOW_HOPPER 720509801A CAP_RP 720508600A CAP_UV 720508300A COVER_SENSOR 720508400A COVER_SENSOR_IR 740508400A CAP_STACKER_SENSOR 720511200A COVER_DOOR_TOP_UPPER 720511700A COVER_DOOR_TOP_LOWER 720511000A COVER_LEFT 720511100A COVER_RIGHT 720510100A COVER_OP_PANEL 8805B043XA ELECTRO_FORMING_BADGE (W/ Tape) 8805B037XA WINDOW_LCD_P (W/ Tape)
  • Page 55 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 720509701A CASE_DETECTOR ( W/ Filter x 2EA) 720509701A CASE_DETECTOR (W/ Dummy x 2EA) 6600G002XA SUV_FILTER (375nm, D7*2.5T) 6600G005XA UV_FILTER(N) (420nm, D7*2.5T) 720512401A DUMMY_MRA 7801G025XB UV_FILTER_DUMMY 720507401A OPEN_HOOK_L_P 720507501A OPEN_HOOK_R_P 720509001A GUIDE_LOWER 7805A044XA PIVOT_HINGE_LOWER...
  • Page 56 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 1A05X1089A P-IF_V1.3 (W/ SHP-25 Harness) 1A05X3127A ASS'Y_IR_TRN (W/ 2P Harness) 1A05X1074A P-IR_RCV V1.4 1A05X1075A P-JP_TRN V1.3 1A05X1088A P-JP_TRN V1.3A 1A05X1076A P-SP_TRN V1.3 1A05X1077A P-JPSP_RCV V1.3 1A05X1090A P-MAIN V1.4 1A05X1071A P-MRA V1.3 1A05X1072A P-MRS_L V1.4 1A05X1085A P-MRS_L V1.4A (W/ MRS_DUMMY)
  • Page 57 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 8205B014XA BELT_FEEDER (S3M228) 1A05X2120A ROLLER_ADF_P (W/ WAVE_WASHER_GUIDE) 1A05X2122A ROLLER_FEED_1_P 1A05X2123A ROLLER_FEED_2_P 1A05X2121A ROLLER_FEED_MR_P 1A05X2119A ROLLER_PICK_UP_P 800000900A ROLLER_PINCH 800001000A ROLLER_PINCH_EXIT 1A05X2128A ROLLER_SEPARATOR_P 800502300A ROLLER_TRANSFER_P 7605B019XA SPRING_LIMIT_REJECT 7605A014XA COIL_SPRING_ADJUST 7605B015XA TORSION_SPRING_ADJUST 7605B011XA TORSION_SPRING_OPEN_HOOK_L_P 7605B012XA TORSION_SPRING_OPEN_HOOK_R_P...
  • Page 58 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 7005A088XA SHP-07 12P-10P (SMPS-POWER) 7005A089XA SHP-08 4P (POWER-SP_T) 7005A090XA SHP-09 4P (POWER-JP_T) 7005A091XA SHP-10 8P (POWER-REJECT) 7005A092XA SHP-11 5P (POWER-SP_R) 7005A093XA SHP-12 24P (AMP-MRA) 7005A094XA SHP-13 4P (POWER-STACKER) 7005A095XA SHP-14 4P (MRS_R-MRS_L) 7005A096XA...
  • Page 59 CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 8400E016XA SCREW_M/C_FH_M3X12_Fe_Ni 8405E049XA SCREW_M/C_PWH_M3X6_Fe_Ni 8405E054XA SCREW_T/P_PH_T2_Ø3X8_Fe_Ni 8405E051XA SCREW_T/P_FH_M3X8_Fe_Ni 8400E031XA SCREW_T/P_FH_M4x10_Fe_Ni 8400E018XA SCREW_M/C_FH_M3X8_Fe_Ni 8400E016XA SCREW_M/C_FH_M3X12_Fe_Ni 8400E032XA SCREW_T/P_PH_T2_Ø2.6X6_Fe_Zy 8400E033XA SCREW_T/P_PH_T2_Ø3X6_Fe_Zy 8400E034XA SCREW_T/P_PH_T2_Ø3X8_Fe_Zy 8405E047XA SCREW_M/C_PH_M3X8_Fe_Zy 8400E020XA SCREW_M/C_PH/SW_M3X8_Fe_Zy 8400E021XA SCREW_M/C_PH/SWW_M3X6_Fe_Zy 8400E022XA SCREW_M/C_PH/SWW_M3X8_Fe_Zy 8400E025XA SCREW_M/C_PH/SWW_M4X8_Fe_Ni 8400E023XA SCREW_M/C_PH/SWW_M4X10_Fe_Ni 8405E052XA...

  • Page 60: Chapter 13 Assembly Drawings

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL Assembly Drawings INDEX Cover Exp View Ass'y Exp View Frame Exp View Roller Exp View Cover Door Top Cover Door Top Upper Housing Pocket Ass'y Ope. Plate Side R Plate Side L Base Exp View...

  • Page 61: Cover Exp View

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-1. Cover Exp View COVER_RIGHT SCREW_M/C_PWH_M3X6_Fe_Ni COVER_SMPS SCREW_M/C_FH_M3X8_Fe_Ni ASS'Y_COVER_DOOR_TOP COVER_SPECIAL_SCREW SCREW_T/P_FH_M3X10_Fe_ZB COVER_LEFT ASS'Y_OPE ASS'Y_HOUSING_POCKET SCREW_T/P_PH_T2_Ø3X8_Fe_Ni CAP_STACKER_SENSOR GUIDE_STACKER ASS'Y_REJECT_PLATE - 61 -...

  • Page 62: Ass'y Exp View

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-2. Ass'y Exp View SCREW_M/C_PH/SWW_M4X8_Fe_Ni PIVOT_HINGE_LOWER ASS'Y_GUIDE_LOWER LINK_COVER_REAR_L COVER_REAR E_RING_Ø4(4x11x0.6)_Fe_ZB LINK_COVER_REAR_R SHAFT_COVER_REAR E_RING_Ø6(6x12x0.8)_Fe_ZB SHAFT_COVER_TOP BUSH_HINGE ASSY'_PLATE_GUIDE_UPPER_P SCREW_M/C_PH/SWW_M3X6_Fe_Zy ASS'Y_PLATE_GUIDE_LOWER_P SCREW_M/C_PH/SWW_M4X8_Fe_Ni P-MAIN V1.4 P-AMP V1.3 P-POWER_IO V1.5 ASS'Y_PLATE_REINFORCE ASS'Y_COVER_TOP SCREW_M/C_PWH_M3X6_Fe_Ni - 62 -...

  • Page 63: Frame Exp View

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-3. Frame Exp View ASS'Y_BKT_SMPS_BOTTOM SCREW_M/C_FH_M3X8_Fe_Ni ASS'Y_BKT_SMPS_TOP ASS'Y_PLATE_SIDE_L SUPPORT_PCB SCREW_M/C_PH/SWW_M4X8_Fe_Ni ASS'Y_WING_STACKER_SENSOR ASS'Y_PLATE_BASE_P ASS'Y_PLATE_SIDE_R SCREW_M/C_PH/SWW_M3X6_Fe_Zy - 63 -...

  • Page 64: Roller Exp View

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-4. Roller Exp View BELT_FEEDER (S3M228) PIPE_SELECTOR_CONN E_RING_Ø6(6x12x0.8)_Fe_ZB SOLENOID (KHA38H06A) (W/ SHP-19 Harness) PULLEY_FEED BKT_SELECTOR_P BEARING_LF_1680ZZ MOTOR_SHIELD ROLLER_FEED_2_P ASS'Y_MOTOR_FEED_P (W/ Pulley and Harness) ROLLER_FEED_1_P ASS'Y_MOTOR_MAIN_P (W/ Pulley and Harness) BKT_ENCODER PIVOT_SUPPORT_REAR SCREW_M/C_PH/SWW_M4X8_Fe_Ni PULLEY_ADF_P...

  • Page 65: Cover Door Top

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-5. Cover Door Top COVER_DOOR_TOP_UPPER COVER_DOOR_TOP_LOWER SCREW_T/P_PH_T2_Ø3X8_Fe_Zy 13-6. Cover Door Top Upper COVER_DOOR_TOP_UPPER HOPPER_GUIDE_L SCREW_T/P_PH_T2_Ø3X6_Fe_Zy RACK_L GEAR_BILL_GUIDE_P GUIDE_RACK SCREW_T/P_PH_T2_Ø3X8_Fe_Zy RACK_R HOPPER_GUIDE_R - 65 -...

  • Page 66: Housing Pocket

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-7. Housing Pocket HOUSING_POCKET PIN_REJECT_BAR SPRING_LIMIT_REJECT LIMIT_REJECT SCREW_T/P_FH_M3X8_Fe_Ni PORON_LIMIT_REJECT REJECT_PLATE ELECTRO_BRUSH BKT_E_BRUSH TAPE_E_BRUSH - 66 -...

  • Page 67: Ass'y Ope

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-8. Ass'y OP PANEL WINDOW_LCD_P (W/Tape) COVER_OP_PANEL ELECTRO_FORMING_BADGE LCD(ODT_TECH 128X80) (W/ 2P Harness) BUTTON_NUMERIC_P LENS_LED DOME_SHEET_NUMERIC BUTTON_FUNCTION_P DOME_SHEET_FUNCTION P-OPE V1.4 SCREW_T/P_PH_T2_Ø3X6_Fe_Zy QUICK_CLAMP_DQC_106 HEX_NUT_M3X0.5_Fe_Zy PBA_HOPPER_1 (W/ SHP-22 Harness) WINDOW_HOPPER SCREW_M/C_FH_M3X12_Fe_Ni SCREW_T/P_PH_T2_Ø3X8_Fe_Zy - 67 -...

  • Page 68: Plate Side R

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-9. Plate Side R PLATE_SIDE_R TORSION_SPRING_OPEN_HOOK_R_P OPEN_HOOK_R_P E_RING_Ø6(6x12x0.8)_Fe_ZB COVER_SADDLE_DS-2 WIRE_SADDLE_SMALL - 68 -...

  • Page 69: Plate Side L

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-10. Plate Side L PLATE_SIDE_L TORSION_SPRING_OPEN_HOOK_L_P OPEN_HOOK_L_P E_RING_Ø6(6x12x0.8)_Fe_ZB SUPPORT_PCB SIDE_LOCKING_SADDLE_DS-110 SIDE_LOCKING_SADDLE_DS-111A COVER_SADDLE_DS-2 - 69 -...

  • Page 70: Base Exp View

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-11. Base Exp View PLATE_BASE_P FOOT_MOLD SCREW_M/C_PH/SWW_M3X6_Fe_Zy RUBBER_FOOT_P WIRE_SADDLE_SMALL - 70 -...

  • Page 71: Bkt Stacker Sensor

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-12. Bkt Stacker Sensor MOTOR_STACKER (W/ SHP-18 Harness) SCREW_M/C_PH/SWW_M3X6_Fe_Zy BUSH_STACKER_MOTOR_P WING_STACKER_P SHAFT_STACKER_P BUSH_STACKER_WING BKT_STACKER_SENSOR_P WIRE_SADDLE_SMALL P-STACKER_TRN_V1.2 (W/ 2P Harness) CAP_UV P-STACKER_RCV_V1.2 (W/ 2P Harness) SNAP_RIVET_(SR2664B) GROUND_FINGER - 71 -...

  • Page 72: Cover Top

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-13. Cover Top ASS'Y_CASE_DETECTOR SCREW_T/P_PH_T2_Ø3X8_Fe_Zy E_RING_Ø5(5x11x0.6)_Fe_ZB BUSH_REAR_HINGE E_RING_Ø6(6x12x0.8)_Fe_ZB BUSH_HINGE BKT_COVER_TOP ARM_ADJUST_UPPER COIL_SPRING_ADJUST SPECIAL_SCREW_ADJUST SCREW_M/C_PH/SWW_M3X8_Fe_Zy COVER_SADDLE_DS-2 ASS'Y_BKT_SEPARATOR_P - 72 -...

  • Page 73: Shaft Case Detector

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-14. Shaft Case Detector ASS'Y_GUIDE_PRESS_ROLLER_P ROLLER_SEPARATOR_P ASS'Y_BUSH_ONEWAY_BEARING_P E_RING_Ø7(7x14x0.8)_Fe_ZB BKT_SEPARATOR_P SHAFT_CASE_DETECTOR SCREW_M/C_PH/SWW_M4X10_Fe_Ni HEX_NUT_M4X0.7_Fe_Zy SCREW_SET_SIH_FP_M4x6_Fe_ZB SCREW_M/C_PH/SWW_M4X20_Fe_Ni ARM_ADJUST_LOWER TORSION_SPRING_ADJUST E_RING_Ø6(6x12x0.8)_Fe_ZB BEARING_LF_1680ZZ SCREW_M/C_PH/SWW_M3X6_Fe_Zy ASS'Y_GUIDE_TRANSFER_ROLLER_P - 73 -...

  • Page 74: Case Detector With Mr

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-15. Case Detector With MR UV_FILTER(N) (420nm, D7*2.5T) SUV_FILTER (375nm, D7*2.5T) CASE_DETECTOR CAP_RP ASS'Y_IR_TRN E_RING_Ø5(5x11x0.6)_Fe_ZB ROLLER_PINCH TORSION_SPRING_PINCH_MR SHAFT_PINCH_MR P-MRS_L V1.4 SCREW_T/P_PH_T2_Ø3X8_Fe_Zy SCREW_T/P_PH_T2_Ø3X6_Fe_Zy P-MRA V1.3 P-MRS_R V1.3 - 74 -...

  • Page 75: Plate Reinforce

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-16. Plate Reinforce REJECT_BAR_P PLATE_REINFORCE SCREW_M/C_PH/SWW_M3X8_Fe_Zy PBA_HOPPER_2 (W/ SHP-10 Harness + 2 PBA) WINDOW_HOPPER QUICK_CLAMP_DQC_103 SCREW_M/C_PH/SWW_M3X6_Fe_Zy - 75 -...

  • Page 76: Plate Guide Upper

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-17. Plate Guide Upper PLATE_GUIDE_UPPER_P COVER_SENSOR CAP_UV P-JP_TRN V1.3 SCREW_M/C_PH/SW_M3X8_Fe_Zy SCREW_T/P_PH_T2_Ø3X6_Fe_Zy COVER_SENSOR_IR IR_GUIDE P-IR_RCV V1.4 SCREW_T/P_PH_T2_Ø2.6X6_Fe_Zy SCREW_M/C_PH/SW_M3X8_Fe_Zy - 76 -...

  • Page 77: Plate Guide Lower

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-18. Plate Guide Lower PLATE_GUIDE_LOWER_P COVER_SENSOR P-JPSP_RCV V1.3 SCREW_M/C_PH/SW_M3X8_Fe_Zy SCREW_T/P_PH_T2_Ø3X6_Fe_Zy - 77 -...

  • Page 78: Exp Guide Lower-P

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-19. Exp Guide Lower-P SCREW_T/P_PH_T2_Ø3X8_Fe_Zy GUIDE_PINCH_ROLLER TORSION_SPRING_PINCH ASS'Y_SHAFT_PINCH GUIDE_LOWER P-SP_TRN V1.3 COVER_SENSOR ASS'Y_SHAFT_PINCH_EXIT SCREW_T/P_PH_T2_Ø3X6_Fe_Zy - 78 -...

  • Page 79: Bkt Smps Bottom

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-20. Bkt SMPS Bottom BKT_SMPS_BOTTOM COOLING_FAN_40X40(t=10mm) (W/ SHP-24 Harness) SCREW_T/P_FH_M4x10_Fe_Ni SHP-23 3P (AC INLET) P-IF_V1.3 SHP-20 8P (MAIN-IF) SHP-21 4P (MAIN-IF) SIDE_LOCKING_SADDLE_DS-111A SHP-29 (IF-SASH) SCREW_M/C_PWH_M3X6_Fe_Zy SHP-25 (IF-GROUND) SHP-07 12P-10P (SMPS-POWER) SCREW_M/C_PH/SWW_M3X6_Fe_Zy SMPS_P FLIM_SMPS_P...

  • Page 80: Bkt Smps Top

    CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL 13-21. Bkt SMPS Top BKT_SMPS_TOP CUSHION_SUPPRESS_NOISE COVER_SADDLE_DS-2 - 80 -...

  • Page 81: Chapter 14 Specifications

    UV SHADING CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL (▼ KEY TO Specifications Item Unit Specification Size (W x D x H) 280 x 269 x 261 Weight (Net) Kg / lbs Approx. 9 / 20 Hopper capacity Notes Max. 500...
