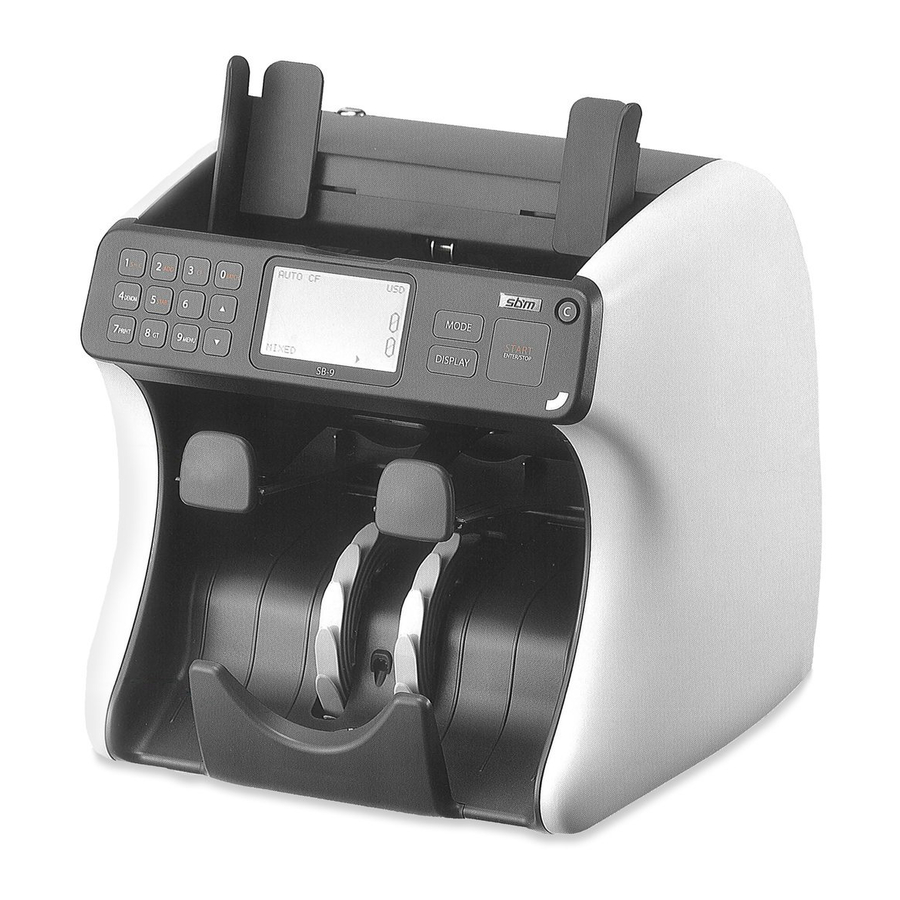

SBM SB-9 Service Manual

Currency discrimination counter
Hide thumbs Also See for SB-9:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Service Manual
SB-9
Leading Image Processing Technology
We've been there when you needed
SBM Co., Ltd.
Ver. 1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SBM SB-9

Summary of Contents for SBM SB-9

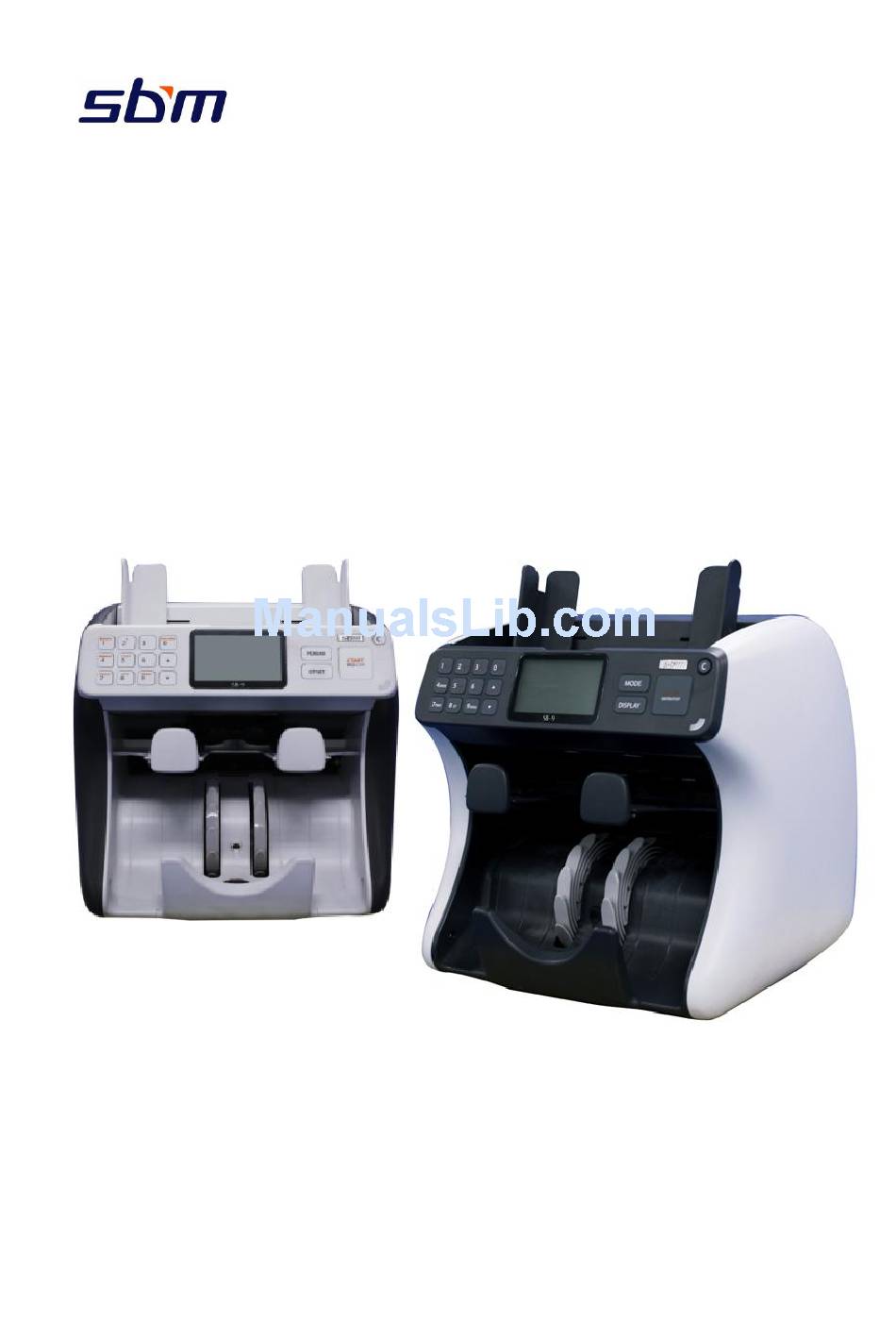

  • Page 1 Leading Image Processing Technology We've been there when you needed Service Manual SB-9 SBM Co., Ltd. Ver. 1.01...
  • Page 2 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Important Safety Information Always be careful when using the machine. To reduce the risk of fire, electrical shocks, and other injuries, keep these safety considerations in mind when installing, using, and maintaining your machine: Stability : Place the machine on a secure, stable surface.
  • Page 3 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Managing the performance of the machine This unit has many sophisticated sensors. Without proper maintenance, it cannot last its good performance. Please read the “Daily Maintenance” section of this manual carefully, and do it everyday. When the performance is deteriorated on a sudden, please clean all the sensors first before calling a service.
  • Page 4 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Recommended Tools Picture Description and Size Picture Description and Size L Wrench Hexagonal Screwdriver Ø1.5 L Wrench Screwdriver(-) Ø2 Spanner Screwdriver(-) 1.5mm Screwdriver(-) Nipper 2.5mm Screwdriver(+) Long-nose Ø6 - 4 -...

  • Page 5: Table Of Contents

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Table of Contents Chapter 1 Installation ------------------------------------------------------------------------------------------ Unpacking List ----------------------------------------------------------------------------------------- Choosing a Location --------------------------------------------------------------------------------- Handling the Machine ------------------------------------------------------------------------------- Power Cord -------------------------------------------------------------------------------------------- Printer --------------------------------------------------------------------------------------------------- Chapter 2 Description of the Parts --------------------------------------------------------------------------- Out Side ------------------------------------------------------------------------------------------------- Interface port -------------------------------------------------------------------------------------------...
  • Page 6 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Chapter 12 Assembly Drawings -------------------------------------------------------------------------------- Cover Exp View --------------------------------------------------------------------------------------- Ass'y Exp View ---------------------------------------------------------------------------------------- Frame Exp View -------------------------------------------------------------------------------------- Roller Exp View --------------------------------------------------------------------------------------- Cover Door Top --------------------------------------------------------------------------------------- Cover Door Top Upper ------------------------------------------------------------------------------ Housing Pocket --------------------------------------------------------------------------------------- Ass'y Ope -----------------------------------------------------------------------------------------------...

  • Page 7: Chapter 1 Installation

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Installation 1-1. Unpacking List Machine 1 Unit Bill Guide 2 pcs. ( Left / Right) AC Power Code 1 pc. User's Manual 1 pc. Serial Cable 1 pc. * Optional Items: Printer, Serial to USB A Cable, USB A to USB B Cable 1-2.

  • Page 8: Power Cord

    321 7654 9876 1-4-2. Printer Your SB-9(2000S) has a serial interface port, which allows you to connect the printer to print out counting result. To connect the printer to the machine, follow the steps below: Make sure that both the SB-9(2000S) and the printer are turned off.

  • Page 9: Chapter 2 Description Of The Parts

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Description of the Parts 2-1. Out Side 2-2. Interface Port RS232C RS232C (RJ-11) (RJ-45) (9P D-SUB) (Type B) (Type A) PORT INTERFACE RS232C (RJ-11) Customer Display LAN (RJ-45) Network (100M BPS) : Optional RS232C (9P D-SUB)

  • Page 10: Sensors

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 2-3. Sensors This machine uses various sensors to detect the malfunction of the machine and the status of the notes in the machine and to recognize the denominations of the notes. The sensors are very sensitive and if they are not cleaned correctly everyday, this may negatively affect performance of the machine.
  • Page 11 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Clean the sensors described below everyday after operating. The power must be turned off before cleaning and please do not use a volatile solvent for cleaning. Note: In case of feed roller, clean with slightly dampened cloth with alcohol. While rotating one side of the roller manually, stick the cloth to the other side of the roller.

  • Page 12: Rollers

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 2-4. Rollers - 12 -...

  • Page 13: Chapter 3 Overview Of Control Panel

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Overview of Control Panel 3-1. Operation Panel 3-2. Key Define ◀▶ € Select Currency Add function On/Off Counterfeit Detector On/Off BATCH Batch function On/Off DENOM Select a denomination dual user mode : Counting Start (manual mode) /...

  • Page 14: Chapter 4 Reject Reason And Error Message

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Reject Reason and Error Message 4-1. Reject Reason The machine provides various information regarding counting results. Every time pressing DISPLAY key, the display mode is changed sequentially. There are 5 views. The last view is Reject Reason view. Below is some examples of each Display mode.

  • Page 15: Lcd Error Messages

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Summary of the ‘NO ID’ and ‘CF’ details NO ID (1) ~ NO ID (6): Asymmetrical Error NO ID (7) ~ NO ID (10): IMAGE MATCHING ERROR NO ID (12) ~ NO ID (13): IMAGE SACN ERROR...

  • Page 16: Chapter 5 Connection Diagram

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Connection Diagram - 16 -...

  • Page 17: Chapter 6 S/W Version Check

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL S/W Version and Currency Check 9 MENU MODE CODE [*****] SERVICE MENU1 1.ERROR STOP CTRL. 2.SENSOR LEVEL 3.SYSTEM REPORT________ 4.SET A/S CALL No. 5.SET MACHINE S/N 6.SHADING 7.SENSOR SELECT SYSTEM REPORT 1. COUNTING REPORT 2.

  • Page 18: Chapter 7 Service Menu1

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL SERVICE MENU 1 There are ‘Service Menu1’ and ‘Service Menu2.’ ‘Service Menu1’ includes mainly the menu for adjusting Parameter of Sensors. 7-1. How to enter ‘SERVICE MENU 1’: Press: 9→MODE→ ***** To exit from the current function, press ‘9(menu)’ key and to move ‘SERVICE MENU2’, press ‘DISPLAY’...
  • Page 19 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 1. ERROR STOP CTRL. Sometimes there is need to prevent from stopping the ERROR STOP CTRL. machine even though some error is occurred when you test 1. ERROR STOP ON 2. ERROR STOP OFF the machine.
  • Page 20 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 5. SET MACHINE S/N S/N Display SET MACHINE S/N You can check the serial no. of the machine. 1. S/N DISPLAY (In order that S/N is displayed correctly, S/N should be input first in S/N Setting menu.)

  • Page 21: Chapter 8 Service Menu2

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL SERVICE MENU 2 There are ‘Service Menu1’ and ‘Service Men2’ in Service Menu. ‘Service Menu2’ includes the menu to have a test for development or for repair. 8-1. How to enter ‘SERVICE MENU 2’: Press: 9→MODE→...
  • Page 22 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 1. SENSOR TEST SENSOR TEST 1) LED TEST 1. LED TEST Turn ON/OFF LED. (IR sensors are not visible, i.e. hopper, RP1 2. HOPPER TEST …) 3. SENSOR LOGIC TEST 4. DOUBLE LOGIC TEST...
  • Page 23 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL CASE LCD DISPLAY PICTURE Reject F LEFT RIGHT (Front) sensor is covered. FRONT REAR REJECT F STACKER Reject R LEFT RIGHT (Rear) sensor is covered. FRONT REAR REJECT F STACKER Stacker sensor is LEFT RIGHT covered.
  • Page 24 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 2. KEY TEST In this mode, you can have a test if the machine detects the input of key. Every time you press a key, the name of the key will be displayed on LCD. However, in case of CLEAR key, you exit from the current menu in stead of displaying.

  • Page 25: Chapter 9 Shading

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Shading What is Shading? Shading is to make a full swing reference waveform to read the full level of a signal. If the machine rejects too many notes in Mixed Mode or in CF Detection Mode, the system might not analyze the input of waveform.

  • Page 26: Uv Shading

    <UV SHADING SHEET : SHINWOO UV SHADING V1.0> 165 mm 75 mm Shading sheet provided from SBM should be used. Shading sheet provided from SBM should be used. Before UV shading, put UV shading sheet inside Front cover as the below image.
  • Page 27 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL CODE [ ***** ] 9 MENU MODE SERVICE MENU1 SHADING 1. ERROR STOP CTRL. 2 .SENSOR LEVEL 1. UV SHADING__________ 3. SYSTEM REPORT 2. MR SHADING 4. SET A/S CALL No. 3. CIS SHADING 5.

  • Page 28: Mr Shading

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 9-2. MR SHADING <MR SHADING SHEET :USA ONE DOLLAR Real Banknote> Needed Quantity of MR SHADING SHEET 1 ~ 5 pcs CODE [*****] 9 MENU MODE SERVICE MENU1 SHADING 1. ERROR STOP CTRL. 1. UV SHADING 2 .SENSOR LEVEL...
  • Page 29 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Place 1~5 pcs of Sheet on the Place the sheets in the middle of the Hopper. Hopper like the picture. MR SHADING PLACE SHADING PAPER ON HOPPER Check The note is sent to Stacker.
  • Page 30 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL MR SHADING and MDD(Module Double Detector) SHADING are performed simultaneously. As a figure below, MR SENSOR is O.K. in NOISE and LEVEL. But in case NG REASON displays NG(0), MDD is not good. Module Double Detector NG...

  • Page 31: Cis Shading

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 9-3. CIS SHADING If ‘MAIN PCB’ is replaced with a new one or there are lots of rejected notes from failure of recognition (NO I.D), it is recommended to make a new CIS Shading.
  • Page 32 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL CODE [*****] 9 MENU MODE SERVICE MENU1 SHADING 1. ERROR STOP CTRL. 1. UV SHADING 2 .SENSOR LEVEL 2. MR SHADING 3. SYSTEM REPORT 4. SET A/S CALL No. 3. CIS SHADING 5. SET MACHINE S/N 4.

  • Page 33: Ir Shading

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 9-4. IR SHADING <IR SHADING SHEET (WHITE): SBM IR SHADING V3.0 White> 202 mm 145 mm 62 mm 70 mm This side faces upward This side faces downward Shading sheet provided from SBM should be used...

  • Page 34: Error

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL CODE [ ***** ] 9 MENU MODE SERVICE MENU1 SHADING 1. ERROR STOP CTRL. 1. UV SHADING 2 .SENSOR LEVEL 2. MR SHADING 3. SYSTEM REPORT 4. SET A/S CALL No. 3. CIS SHADING 5.
  • Page 35 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 9-5. ERROR 1) UV SHADING ‘NG’ UV SHADING Check if shading sheet is clean and there is no problem with the sheet. Then, have shading according the order. (▼ KEY TO SEE NEXT) 2) NO UV SHADING SHEET...

  • Page 36: Chapter 10 Adjustment

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Adjustment 10-1. Gap of ADF CAUTION Turn off the machine before adjustment. If too Wide  ‘Double Feeding’ or ‘Over Run’ If too Narrow  ‘Miss Feeding’ or ‘Jam0’ Check Gap of ADF by using one Check Gap of ADF by using 2 pcs note.

  • Page 37: Adf & Pickup Roller Timing

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 10-2. ADF & Pickup Roller Timing CAUTION Turn off the machine before adjustment. 4 Tooth ± 1 0 Tooth PICK_UP_ROLLER-P ADF_ROLLER-P Loosen the belt and then adjust the timing. Fit the belt on pulley.
  • Page 38 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Step 2. Open Rear Door. Put your hand inside of the machine and lift up Guide SELECTOR as the below image. (In this case, notes are sent to Stacker.) Step 3. Be careful with the tip of Selector Guide so that notes are not jammed in the Selector while the notes are transferred.

  • Page 39: Lcd (Back Light)

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 10-4. Brightness of LCD (Back Light) Step 1. . Remove Side Cover. Step 2. Pull OPE cover slightly to Step 3. Maintain the space as the below image so remove OPE cover as the below that you can adjust it comfortably.

  • Page 40: Hopper Sensitivity

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Step 5. Adjust brightness referring to the below image. Adjust R16 (Variable Resistor) with Driver checking LCD Back Light. High 10-5. Hopper sensitivity Step 1. Hopper Test Mode (Press : ‘9’→’MODE’→ ‘ ***** ’→’DISPLAY’→ ‘1.SENSOR TEST’→’2.HOPPER TEST’)

  • Page 41: Reject Pocket Sensor Level

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Step 4. Adjust R9 (Variable Resistor) so that DIFFERENCE can be from 190 to 210. HOPPER ON : HOPPER OFF. DIFFERENCE .: High 10-6. Reject Pocket Sensor Level If LED lights even though there are no notes on the REJECT POCKET or if LED does not light even though there are notes on the REJECT POCKET, adjust sensitivity of REJECT SENSOR.
  • Page 42 Step 1. How to make sheet for adjusting ‘Reject F’ Make a test sheet for adjustment with ‘IR SHADING 80 ~ 82mm (DARK) Sheet’ Provided by SBM. Cut dotted part as the image on the left side. Step 2. Place the cut sheet on the REJECT POCKET.

  • Page 43: Double Sensor Level

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Step 3. Adjustment of ‘Reject F’ Adjust R97 (Variable Register) so that the voltage of TP3 (Test Point 3) can be 3.2V. Step 4. Adjustment of ‘Reject R’ Adjust R35 (Variable Register) so that the voltage of TP4 (Test Point 4) can be 1.2V.
  • Page 44 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Press ‘Menu’  ‘Mode’  ‘55757’  ‘1.Sensor Test’  ‘4. Double logic test’. Please adjust ‘Channel Left’ using ‘R123’ and adjust ‘Channel Right’ using ‘R128’. Both of target levels are ‘550’ (± 50).

  • Page 45: Chapter 11 Program Update

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Program Upgrade 11-1. Program Upgrade Save Upgrade File (.sb9) provided by SBM in USB flash drive. Save only .sb9 file, not to save the folder. ▲ Wait for a while. Turn on the machine...
  • Page 46 CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Check version and checksum of the software and press “START” Key. 1. 01_USD(V1.00_5032) START 03_KRW_USD_EUR_JPY ENTER/STOP _CNY(V1.02_515E)E5AAT [IW]_090820.sb9 If the software is not the software for upgrade, press “C” key to move back to the previous step.

  • Page 47: Chapter 12 Assembly Drawings

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Assembly Drawings INDEX Cover Exp View Ass'y Exp View Frame Exp View Roller Exp View Cover Door Top Cover Door Top Upper Housing Pocket Ass'y Ope. Plate Side R Plate Side L Base Exp View...

  • Page 48: Cover Exp View

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-1. Cover Exp View COVER_RIGHT SCREW_M/C_PWH_M3X6_Fe_Ni COVER_SMPS SCREW_M/C_FH_M3X8_Fe_Ni ASS'Y_COVER_DOOR_TOP COVER_SPECIAL_SCREW SCREW_T/P_FH_M3X10_Fe_Zy COVER_LEFT ASS'Y_OPE ASS'Y_HOUSING_POCKET SCREW_T/P_PH_T2_Ø3X8_Fe_Ni CAP_STACKER_SENSOR GUIDE_STACKER ASS'Y_REJECT_PLATE - 48 -...

  • Page 49: Ass'y Exp View

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-2. Ass'y Exp View SCREW_M/C_PH/SWW_M4X8_Fe_Ni PIVOT_HINGE_LOWER ASS'Y_GUIDE_LOWER LINK_COVER_REAR_L COVER_REAR E_RING_Ø4(4x11x0.6)_Fe_ZB LINK_COVER_REAR_R SHAFT_COVER_REAR E_RING_Ø6(6x12x0.8)_Fe_ZB SHAFT_COVER_TOP BUSH_HINGE ASSY'_PLATE_GUIDE_UPPER_P SCREW_M/C_PH/SWW_M3X6_Fe_Zy ASS'Y_PLATE_GUIDE_LOWER_P SCREW_M/C_PH/SWW_M4X8_Fe_Ni P-MAIN P-AMP P-POWER_IO ASS'Y_PLATE_REINFORCE ASS'Y_COVER_TOP SCREW_M/C_PWH_M3X6_Fe_Ni - 49 -...

  • Page 50: Frame Exp View

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-3. Frame Exp View ASS'Y_BKT_SMPS_BOTTOM SCREW_M/C_FH_M3X8_Fe_Ni ASS'Y_BKT_SMPS_TOP ASS'Y_PLATE_SIDE_L SUPPORT_PCB SCREW_M/C_PH/SWW_M4X8_Fe_Ni ASS'Y_WING_STACKER_SENSOR ASS'Y_PLATE_BASE_P ASS'Y_PLATE_SIDE_R SCREW_M/C_PH/SWW_M3X6_Fe_Zy - 50 -...

  • Page 51: Roller Exp View

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-4. Roller Exp View BELT_FEEDER (S3M228) BUSH_SELECTOR E_RING_Ø6(6x12x0.8)_Fe_ZB ASS'Y_SWING_SELECTOR PULLEY_FEED SCREW_M/C_PH_M3X8_Fe_Zy BEARING_LF_1680ZZ PIPE_SELECTOR_CONN ROLLER_FEED_2_P SOLENOID (KHA38H06A) (W/ SHP-19 Harness) ROLLER_FEED_1_P BKT_SELECTOR_P ENCODER_WHEEL MOTOR_SHIELD SCREW_M/C_PH/SWW_M4X8_Fe_Ni ASS'Y_MOTOR_FEED_P (W/ Pulley and Harness) COVER_ENCODER_WHEEL ASS'Y_MOTOR_MAIN_P (W/ Pulley and Harness)

  • Page 52: Cover Door Top

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-5. Cover Door Top COVER_DOOR_TOP_UPPER COVER_DOOR_TOP_LOWER SCREW_T/P_PH_T2_Ø3X8_Fe_Zy 13-6. Cover Door Top Upper COVER_DOOR_TOP_UPPER HOPPER_GUIDE_L SCREW_T/P_PH_T2_Ø3X6_Fe_Zy RACK_L GEAR_BILL_GUIDE_P GUIDE_RACK SCREW_T/P_PH_T2_Ø3X8_Fe_Zy RACK_R HOPPER_GUIDE_R - 52 -...

  • Page 53: Housing Pocket

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-7. Housing Pocket HOUSING_POCKET PIN_REJECT_BAR SPRING_LIMIT_REJECT LIMIT_REJECT SCREW_T/P_FH_M3X8_Fe_Ni PORON_LIMIT_REJECT REJECT_PLATE ELECTRO_BRUSH BKT_E_BRUSH TAPE_E_BRUSH - 53 -...

  • Page 54: Ass'y Ope

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-8. Ass'y OP PANEL WINDOW_LCD_P (W/Tape) COVER_OP_PANEL ELECTRO_FORMING_BADGE LCD(ODT_TECH 128X80) (W/ 2P Harness) BUTTON_NUMERIC_P LENS_LED DOME_SHEET_NUMERIC BUTTON_FUNCTION_P DOME_SHEET_FUNCTION P-OPE SCREW_T/P_PH_T2_Ø3X6_Fe_Zy QUICK_CLAMP_DQC_106 HEX_NUT_M3X0.5_Fe_Zy PBA_HOPPER_1 (W/ SHP-22 Harness) WINDOW_HOPPER SCREW_M/C_FH_M3X12_Fe_Ni SCREW_T/P_PH_T2_Ø3X8_Fe_Zy - 54 -...

  • Page 55: Plate Side R

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-9. Plate Side R PLATE_SIDE_R TORSION_SPRING_OPEN_HOOK_R_P OPEN_HOOK_R_P E_RING_Ø6(6x12x0.8)_Fe_ZB COVER_SADDLE_DS-2 WIRE_SADDLE_SMALL - 55 -...

  • Page 56: Plate Side L

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-10. Plate Side L PLATE_SIDE_L TORSION_SPRING_OPEN_HOOK_L_P OPEN_HOOK_L_P E_RING_Ø6(6x12x0.8)_Fe_ZB SUPPORT_PCB SIDE_LOCKING_SADDLE_DS-110 SIDE_LOCKING_SADDLE_DS-111A COVER_SADDLE_DS-2 - 56 -...

  • Page 57: Base Exp View

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-11. Base Exp View PLATE_BASE_P FOOT_MOLD SCREW_M/C_PH/SWW_M3X6_Fe_Zy RUBBER_FOOT_P WIRE_SADDLE_SMALL - 57 -...

  • Page 58: Bkt Stacker Sensor

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-12. Bkt Stacker Sensor MOTOR_STACKER (W/ SHP-18 Harness) SCREW_M/C_PH/SWW_M3X6_Fe_Zy BUSH_STACKER_MOTOR_P WING_STACKER_P SHAFT_STACKER_P BUSH_STACKER_WING BKT_STACKER_SENSOR_P WIRE_SADDLE_SMALL P-STACKER_TRN_V1.2 (W/ 2P Harness) CAP_UV P-STACKER_RCV_V1.2 (W/ 2P Harness) SNAP_RIVET_(SR2664B) GROUND_FINGER - 58 -...

  • Page 59: Cover Top

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-13. Cover Top ASS'Y_CASE_DETECTOR SCREW_T/P_PH_T2_Ø3X8_Fe_Zy E_RING_Ø5(5x11x0.6)_Fe_ZB BUSH _HINGE BKT_COVER_TOP ARM_ADJUST_UPPER COIL_SPRING_ADJUST SPECIAL_SCREW_ADUSJT SCREW_M/C_PH/SWW_M3X8_Fe_Zy COVER_SADDLE_DS-2 ASS'Y_BKT_SEPARATOR_P - 59 -...

  • Page 60: Shaft Case Detector

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-14. Shaft Case Detector ASS'Y_GUIDE_PRESS_ROLLER_P ROLLER_SEPARATOR_P ASS'Y_BUSH_ONEWAY_BEARING_P E_RING_Ø7(7x14x0.8)_Fe_ZB BKT_SEPARATOR_P SHAFT_CASE_DETECTOR SCREW_M/C_PH/SWW_M4X10_Fe_Ni HEX_NUT_M4X0.7_Fe_Zy SCREW_SET_SIH_FP_M4x6_Fe_ZB SCREW_M/C_PH/SWW_M4X20_Fe_Ni ARM_ADJUST_LOWER TORSION_SPRING_ADJUST E_RING_Ø6(6x12x0.8)_Fe_ZB BEARING_LF_1680ZZ SCREW_M/C_PH/SWW_M3X6_Fe_Zy ASS'Y_GUIDE_TRANSFER_ROLLER_P - 60 -...

  • Page 61: Case Detector With Mr

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-15. Case Detector With MR UV_FILTER(N) (420nm, D7*2.5T) SUV_FILTER (375nm, D7*2.5T) MRS_R GLASS_UV_REFLECT MRS_L CASE_DETECTOR_P2 RP_RCV CAP_RP SCREW_T/P_PH_T2_Ø3X8_Fe_Zy PBA_IR_TRN_MODULE SCREW_T/P_PH_T2_Ø3X6_Fe_Zy LOCKER_IR_LED MDD (Module Double Detector) - 61 -...

  • Page 62: Double Sensor

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-16. Double Sensor DOUBLE_BRACKET_BASE DOUBLE_BRACKET_ROLLER BEARING L_1560ZZ SHAFT_DOUBLE DOUBLE_PLATE_DUST SPRING_DOUBLE DOUBLE_SENSOR - 62 -...

  • Page 63: Plate Reinforce

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-17. Plate Reinforce REJECT_BAR PLATE_REINFORCE GUIDE_RPS PBA_REJECT_T WINDOW_HOPPER PBA_REJECT_R SCREW_M/C_PH/SWW_M3X8_Fe_Zy SCREW_M/C_PH/SW_M3X6_Fe_Zy QUICK_CLAMP_DQC_103 - 63 -...

  • Page 64: Plate Guide Upper

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-18. Plate Guide Upper PLATE_GUIDE_UPPER_P2 COVER_SENSOR_P2 JP_TRN GUIDE_RPS PBA_JP/SP_T CIS(SB9) BKT_CIS_P2 SCREW_T/P_PH_T2_Ø3X6_Fe_Zy SCREW_M/C_PH_M3X8_Fe_Zy SCREW_M/C_PH/SWW_M3X8_Fe_Zy SCREW_M/C_PH/SWW_M3X6_Fe_Zy - 64 -...

  • Page 65: Plate Guide Lower

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-19. Plate Guide Lower PLATE_GUIDE_LOWER_P COVER_SENSOR P-JPSP_RCV SCREW_M/C_PH_M3X8_Fe_Zy SCREW_T/P_PH_T2_Ø3X6_Fe_Zy - 65 -...

  • Page 66: Exp Guide Lower-P

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-20. Exp Guide Lower-P SCREW_T/P_PH_T2_Ø3X8_Fe_Zy GUIDE_PINCH_ROLLER TORSION_SPRING_PINCH ASS'Y_SHAFT_PINCH GUIDE_LOWER P-SP_TRN COVER_SENSOR ASS'Y_SHAFT_PINCH_EXIT SCREW_T/P_PH_T2_Ø3X6_Fe_Zy - 66 -...

  • Page 67: Bkt Smps Bottom

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-21. Bkt SMPS Bottom BKT_SMPS_BOTTOM SHP-23 3P (AC INLET) SCREW_T/P_FH_M4x10_Fe_Ni COOLING_PAN_40X40(t=10mm) SHP-24 2P (IF-FAN) SB-9-IF V1.5 NHP-02 12P (MAIN - IF) NHP-03 06P (MAIN - IF) SHP-25 (IF-GROUND) SCREW_M/C_PWH_M3X6_Fe_Ni SHP-29 (IF-SASH) SHP-07 12P-10P (SMPS-POWER)

  • Page 68: Bkt Smps Top

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL 13-22. Bkt SMPS Top BKT_SMPS_TOP CUSHION_SUPPRESS_NOISE COVER_SADDLE_DS-2 - 68 -...

  • Page 69: Chapter 13 Specifications

    CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL Specifications Item Unit Specification Size (W x D x H) 280 x 269 x 261 Weight (Net) Kg / lbs Approx. 9 / 20 Hopper capacity Notes Max. 500 Stacker capacity Notes Max. 200...
