18) STEP KEY
Press it once and the program go one step.
19) AUDIO KEY
Press it to get into audio control.
20) HOLD KEY
Press and hold it, whole output will be hold.
21) PARK
In Chase-Scene mode, press it to select SINGLE CHASE or MIX CHASE. In DOUBLE PRESET
,pressing PARK B is same as MASTER B at the maximum.In SINGLE PRESET, pressing PARK A is
same as MASTER A at the maximum.
22) REC EXIT
Exit record. When the LED is lighting, it is in KILL, press any one of all channel FLASH and all output is
zero except the one channel.
23) RECORD KEY
Press it to record the step of program.
24) PAGE KEY
Press it to select desired SCENE program in appropriate page.
25) MODE SELECT
By pressing the key you can select Chase-Scenes DOUBLE PRESET or SINGLE PRESET.
26) DARK KEY
Press it to pause whole output, including FULL ON and FLASH.
27) ALL REV
The key, when activated, will revers chasing direction of all program.
28) 0% OR 0-255 KEY
Press it to select 0% or 0-255 on DISPLAY.
29) REV ONE
Pess and hold the key, then press any one of PRESET B the SCENE program will chase in reversed
direction.
30) CHASE REV
The key will reversed the SCENE program chase direction controlled by slider of speed.
31) BEAT REV
The key will reversed the SCENE program chase direction controlled by regular beat.

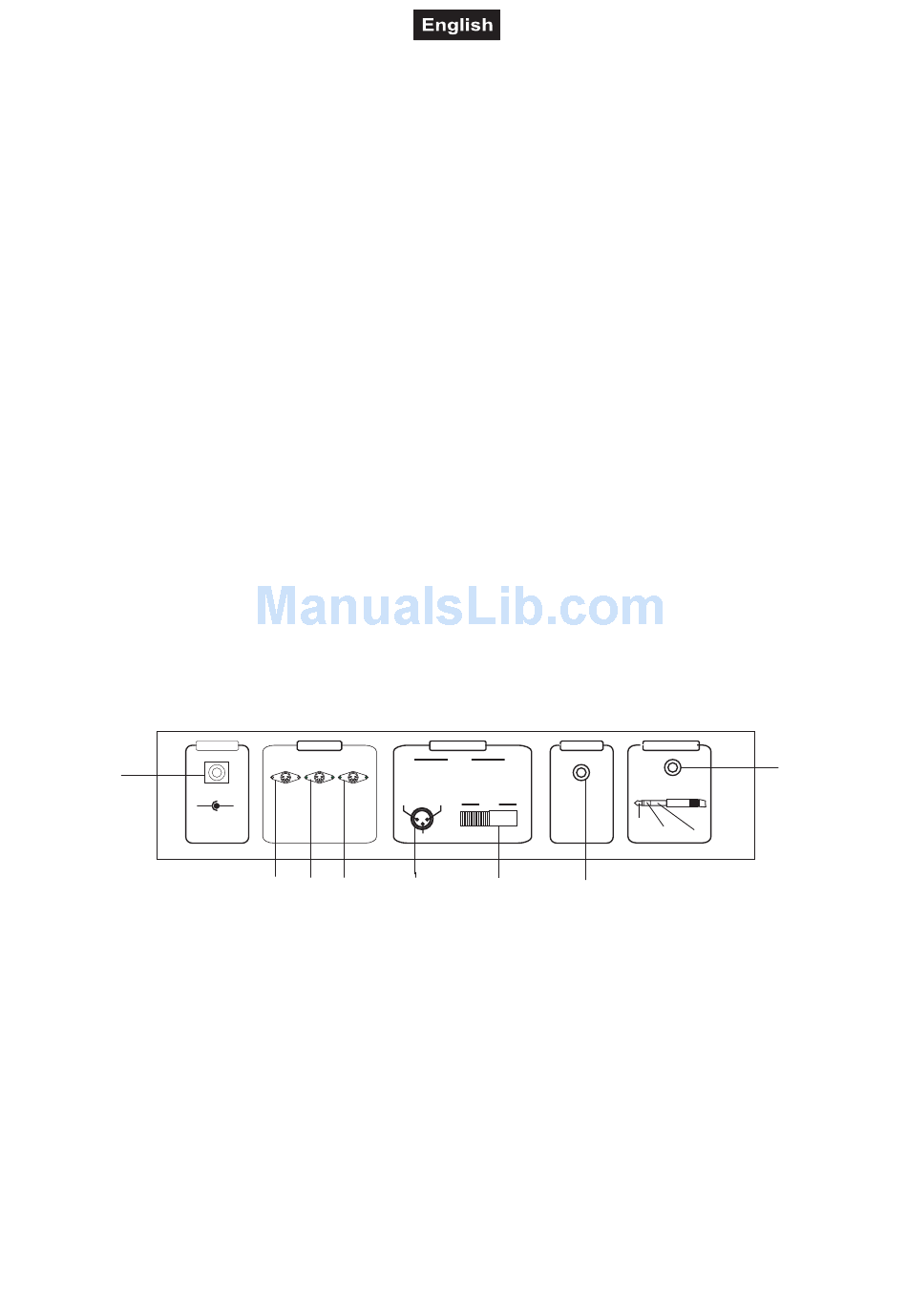

Rear panel:
DC INPUT
1
- +
DC 12V 18V DC 12V 18V
~
500 mA min
1) DC IN socket
2) MIDI THROUGH socket
3) MIDI OUT socket
4) MIDI IN socket
5) DMX output socket
6) DMX POLARITY selector
7) AUDIO IN socket
8) REMOTE socket
MIDI
1=Ground
2=Data-
3=Data+
2
1
THRU OUT IN
3
2 3 4
5
DMX OUT AUDIO
1=Ground
2=Data+
3=Data-
LINE IN
100mV 1Vp-p
~
DMX polarity select
6
7
18
REMOTE
8
1/4"stereo jack
Full on
Black out
GND
