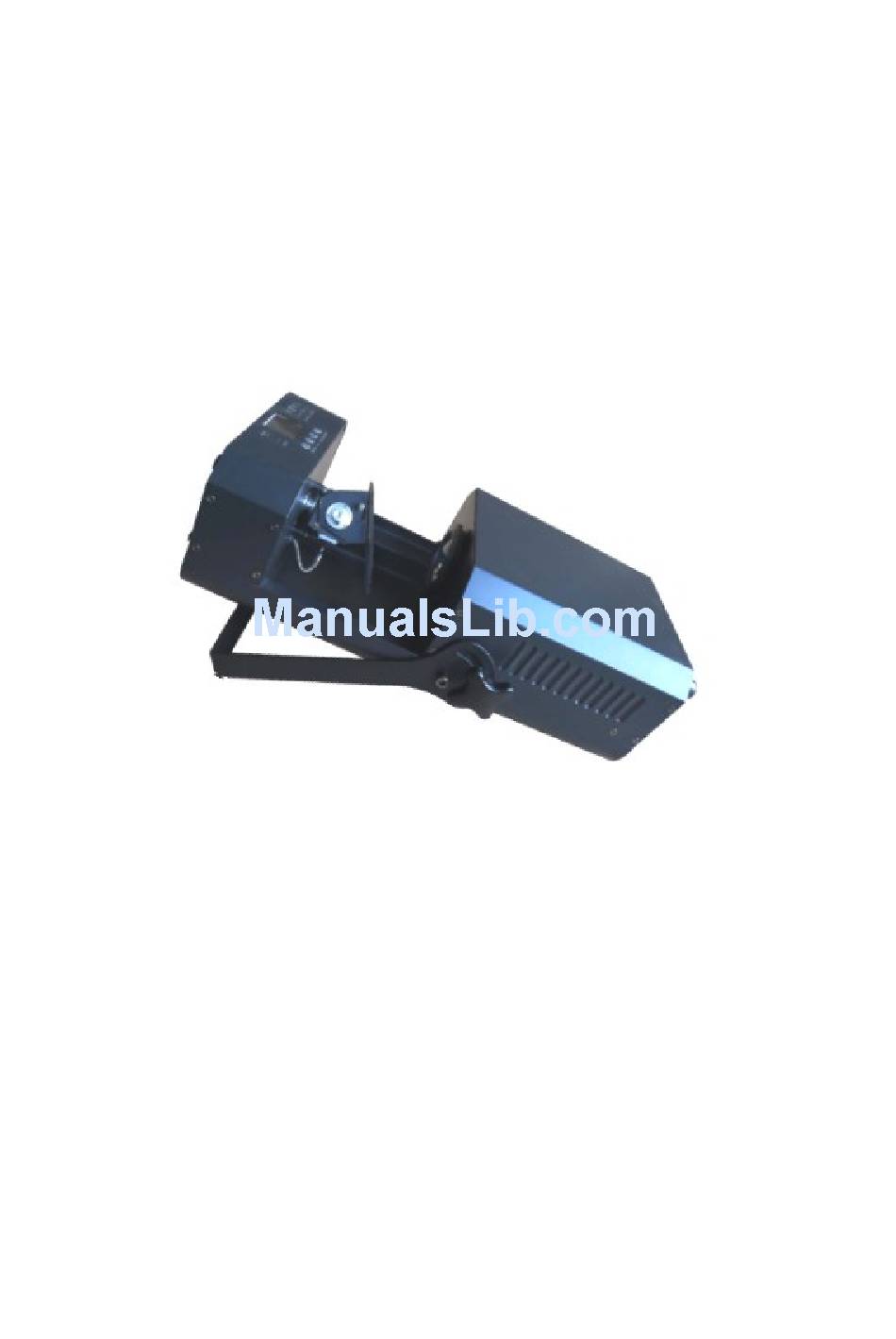

Page 1: User Manual
SCAN 75 LED SCANNER User Manual Ver1.0... -
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7... -
Page 3: Safety Instruction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Description Of The Device
mechanics may be damaged. When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cable lying around. Please make sure that the fixture can not be touched or bumped. Your endanger your own and the safety of others. -
Page 5: Operation
The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation The master/slave-operation enables that several devices can be synchronized and controlled by one master-device... -
Page 6: Dmx Protocol
ON/OFF Reset D M X- pr o toc o l 15/19 DMX channel mode channel value function Pan movement 0-255 Pan movement Pan Fine 0-255 Pan fine movement Tilt movement 0-255 Tilt movement Tilt Fine 0-255 Tilt fine movement Pan Tilt speed 0-255 Pan/Tilt movement with increasing speed Shutter/Strobe... - Page 7 Open/White Gobo 1 10-14 Gobo 2 15-19 Gobo 3 20-24 Gobo 4 25-29 Gobo 5 30-34 Gobo 6 35-39 Gobo 7 40-129 Anti-clockwise gobo change with decreasing speed 130-134 White 135-220 Clockwise gobo change with decreasing speed 221-225 Gobo 1 shaking 226-230 Gobo 2 shaking 231-235...
- Page 8 0-255 Prism in decreasing speed Gobo wheel Speed 0-255 Gobo wheel in decreasing speed TECHNICIAL SPECIFICATIONS Model SCAN 75 LED SCANNER Voltage 110V- 250V / 50-60Hz Power consumption: 120W 75w high power white led Net Weight / Gross Weight 5.2 / 6.5Kgs...
