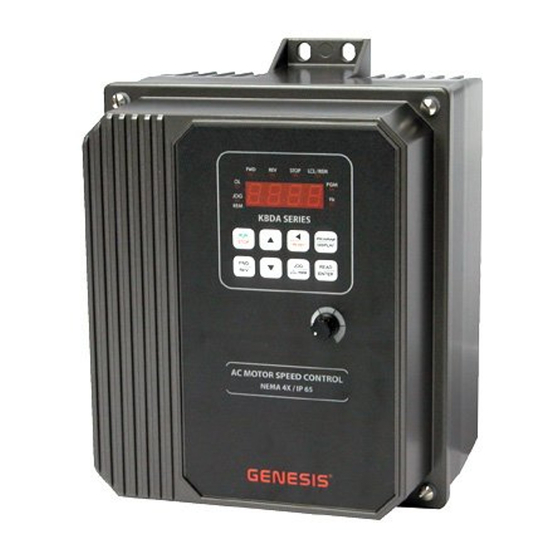

KB Electronics KBDA-24D Installation And Operation Manual

K4 series. adjustable frequency drives for 3-phase ac motor nema-4x / ip-65
Hide thumbs
Table of Contents

Advertisement

Quick Links

K 4 S E R I E S ( K B D A )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBDA-24D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KB Electronics KBDA-24D

Summary of Contents for KB Electronics KBDA-24D

  • Page 1 K 4 S E R I E S ( K B D A )

  • Page 2: Table Of Contents

    13 Model KBDA-24D AC Line Input Voltage Selection (Jumper J1) .......
  • Page 3 20 Flow Chart to Program the Drive to Display Motor RPM ........27 21 Flow Chart to Program the Drive to Display Custom Units “012.0”...

  • Page 4: Quick-Start Instructions

    Section 6.2, on page 19. see Section 6.2, on page 19. (Terminals "L1", "L2", "L3") (Models KBDA-29, 45, 48): Notes: 1. Layout of Models KBDA-24D, 27D see Section 6.1, on page 18. vary slightly. 2. 50/60 Hz AC line input.
  • Page 5 Models KBDA-24D, 27D, the setting of Jumper J1 must match the AC line input voltage. Model KBDA-24D – Terminals “L1”, “L2” – Designed for single-phase AC line input only. Rated for 208/230 Volt AC line input with Jumper J1 set to the “230V” position (factory setting) and rated for 115 Volt AC line input with Jumper J1 set to the “115V”...

  • Page 6: Safety Warning

    SAFETY WARNING Definition of Safety Warning Symbols Electrical Hazard Warning Symbol – Failure to observe this warning could result in electrical shock or electrocution. Operational Hazard Warning Symbol – Failure to observe this warning could result in serious injury or death. This product should be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved.

  • Page 7: Introduction

    INTRODUCTION Thank you for purchasing the KBDA Adjustable Frequency Drive. KB Electronics, Inc. is committed to providing total customer satisfaction by producing quality products that are easy to install and operate. The KBDA Adjustable Frequency Drives are variable speed controls housed in a rugged NEMA-4X / IP-65 washdown and watertight die-cast aluminum enclosure.
  • Page 8 • LED Status Indicators – The LEDs provide indication of the drive’s status and operating mode (Hz, PGM, LCL/REM, STOP, FWD, REV, OL, JOG/REM). • Multi-Function Output Relay Contacts – Can be used to turn on or off equipment or to signal a warning if the drive is put into various modes of operation.

  • Page 9: Optional Accessories

    TABLE 1 – OPTIONAL ACCESSORIES Accessory Part No. Model Model Model Model Model Description KBDA-24D KBDA-27D KBDA-29 KBDA-45 KBDA-48 On/Off AC Line Switch – Disconnects the AC line. Mounts on the enclosure 9482 9523 9532 9532 9532 cover and is supplied with a switch seal to maintain liquidtight integrity.

  • Page 10: Electrical Ratings

    KBDA-48 Notes: 1. White FDA approved finish. 2. Bold indicates factory setting of AC line input voltage for Models KBDA-24D, 27D. 3. Factory setting of motor current (Function No. 0.01). 4. Models KBDA-24D, 27D contain an AC line input voltage selection jumper. 5. Model KBDA-27D is rated 1 ⁄...

  • Page 11: Model Kbda-24D Drive Layout

    FIGURE 3 – MODEL KBDA-24D DRIVE LAYOUT MOTOR AC LINE...

  • Page 12: Model Kbda-27D Drive Layout

    FIGURE 4 – MODEL KBDA-27D DRIVE LAYOUT 115V 230V MOTOR AC LINE...

  • Page 13: Models Kbda-29, 45, 48 Drive Layout

    FIGURE 5 – MODELS KBDA-29, 45, 48 DRIVE LAYOUT MOTOR AC LINE...

  • Page 14: Model Kbda-24D Mechanical Specifications

    4* 4* 1* 1* 9.53 8.85 8.20 Model KBDA-24D contains mounting holes for standard 1/2” liquidtight fittings. The recommended mounting screw size is 1/4” (M6). *Tighten the four enclosure cover screws, in the sequence shown, to 12 in-lbs (14 kg-cm).

  • Page 15: Models Kbda-27D, 29, 45, 48 Mechanical Specifications

    FIGURE 7 – MODELS KBDA-27D, 29, 45, 48 MECHANICAL SPECIFICATIONS (Inches/mm) 0.275 1.00 0.30 ø 25.4 7.37 8.50 9.25 9.80 7.15 7.55 7.25 Max. Depth: Models KBDA-27D, 29, 45, 48 contain two mounting holes for standard 1/2” liquidtight fittings and one mounting hole for standard 3/4”...

  • Page 16: Important Application Information

    IMPORTANT APPLICATION INFORMATION MOTOR WITH EXTERNAL FAN COOLING – Most totally enclosed fan-cooled (TEFC) and open ventilated 3-phase AC induction motors will overheat if used beyond a limited speed range at full torque. Therefore, it is necessary to reduce motor load as speed is decreased. Note: Some fan-cooled motors can be used over a wider speed range.

  • Page 17: Mounting Instructions

    To maintain the watertight integrity of the drive, be sure to use suitable liquidtight fittings and wires that are appropriate for the application. Model KBDA-24D contains mounting holes for standard 1/2” liquidtight fittings (not supplied) (two liquidtight plugs are provided, if only one knockout is used).

  • Page 18: Drive Terminal Block Wire And Tightening Torque Specifications

    Note: The rated AC line voltage of the drive must match the actual AC line input voltage. On Models KBDA-24D, 27D, the setting of Jumper J1 must match the AC line input voltage. AC Line Fusing – The drive does not contain line fuses. Most electrical codes require that each ungrounded conductor contain circuit protection.

  • Page 19: Multi-Function Output Relay "Run" And "Fault" Operating Modes

    Mode, the relay contacts will change state (the Normally Open (N.O.) contact will close and the Normally Closed (N.C.) contact will open). See Table 5. FIGURE 12 – MULTI-FUNCTION OUTPUT RELAY CONTACTS KBDA-27D, 29, 45, 48 KBDA-24D Normally Closed Normally Closed Relay Common...

  • Page 20: Ac Line Input Voltage Selection (Jumper J1 (Models Kbda-24D, 27D Only))

    Speed Potentiometer (5 kΩ), Multi-Function Output Relays, and Multi-function Open Collector Outputs. AC LINE INPUT VOLTAGE SELECTION (JUMPER J1 (MODELS KBDA-24D, 27D ONLY)) Do not connect the AC line input until Jumper J1 is set for the proper input voltage being applied to the drive.

  • Page 21: Drive Operation

    The hi-pot tester must have an automatic ramp-up to the test voltage and an automatic ramp-down to zero voltage. Note: If the hi-pot tester does not have automatic ramping, then the hi-pot output must be manu- ally increased to the test voltage and then manually reduced to zero. This procedure must be fol- lowed for each machine to be tested.

  • Page 22: Keypad Description

    operational status, as described in Section 11, on page 41. A Main Speed Potentiometer is also provided to set the Drive Frequency (Function No. 2.00 set to “0001”). See Figure 2, on page 10. Note: To avoid damage, never operate the keypad with a screwdriver or other sharp-ended tool. TABLE 6 –...

  • Page 23: Flow Chart To Program The Drive For 50 Hz Motors

    FIGURE 16 – FLOW CHART TO PROGRAM THE DRIVE FOR 50 H MOTORS POWER ON Set Frequency Flashes Press Program Key Group No. ("FWD", "STOP", "Hz" LEDs On) to Display Digit Flashes Function No. ("PGM" LED On) Press Read Key Rated Motor Frequency Press Up Key 1 Time to Read Code...

  • Page 24: Flow Chart To Program Motor Current From 6.7 Amps To 5.5 Amps

    FIGURE 17 – FLOW CHART TO PROGRAM MOTOR CURRENT FROM 6.7 AMPS TO 5.5 AMPS POWER ON Set Frequency Flashes Press Program Key Group No. ("FWD", "STOP", "Hz" LEDs On) to Display Digit Flashes Function No. ("PGM" LED On) Press Shift Key 2 Times Code No.

  • Page 25: Flow Chart To Change Set Frequency From 5.00 Hz To 43.21 Hz

    FIGURE 18 – FLOW CHART TO CHANGE SET FREQUENCY FROM 5.00 Hz TO 43.21 Hz (DRIVE IN THE STOP MODE)* POWER ON Set Frequency Flashes Press Up Key 1 Time Digit Flashes ("FWD", "STOP", "Hz" LEDs On) to Increase Digit Press Shift Key 1 Time Digit Flashes Press Up Key 2 Times...

  • Page 26: Flow Chart To Program Accel Time From 1.5 Seconds To 120 Seconds

    FIGURE 19 – FLOW CHART TO PROGRAM ACCEL TIME FROM 1.5 SECONDS TO 120 SECONDS POWER ON Set Frequency Flashes Press Program Key Group No. Press Up Key 3 Times ("FWD", "STOP", "Hz" LEDs On) to Display Digit Flashes to Increase Digit Function No.

  • Page 27: Flow Chart To Program The Drive To Display Motor Rpm

    FIGURE 20 – FLOW CHART TO PROGRAM THE DRIVE TO DISPLAY MOTOR RPM POWER ON Set Frequency Flashes Press Program Key Group No. ("FWD", "STOP", "Hz" LEDs On) to Display Digit Flashes Function No. ("PGM" LED On) Press Up Key 4 Times Display Mode Press Read Key to Increase Digit...

  • Page 28: Flow Chart To Program The Drive To Display Custom Units "012.0

    FIGURE 21 – FLOW CHART TO PROGRAM THE DRIVE TO DISPLAY CUSTOM UNITS “012.0” POWER ON Set Frequency Flashes Press Program Key Group No. Press Up Key 4 Times ("FWD", "STOP", "Hz" LEDs On) to Display Digit Flashes to Increase Digit Function No.

  • Page 29: Flow Chart Showing Motor Current, Motor Voltage, And Bus Voltage Added To The Basic Display

    FIGURE 22 – FLOW CHART SHOWING MOTOR CURRENT, MOTOR VOLTAGE, AND BUS VOLTAGE ADDED TO THE BASIC DISPLAY* POWER ON Set Frequency Flashes Press Run Key Set Frequency ("FWD", "STOP", "Hz" LEDs On) to Run Drive ("STOP" LED Off) Press Display Key Group No Press Display Key to Change Display...

  • Page 30: Digital Readout Codes

    4-DIGIT DISPLAY – The 4-digit display provides readout of drive status, operating parameters, and faults. See Table 7 for the Digital Readout Codes displayed and their descriptions. WARNING! Do not depend on the LEDs or the 4-Digit Display to no longer be illu- minated as a guaranteed power off condition.

  • Page 31: Programmable Function Summary List

    circuit breaker is in the “OFF” position before servicing the drive. FAULT RECOVERY – The drive monitors many faults. See Function No. 1.05, on page 33, for restarting the drive after a fault has been cleared. See Section 9.4, on page 30, for the Digital Readout Codes.
  • Page 32 KBDA PROGRAMMABLE FUNCTION SUMMARY LIST (REV. 100.1) PROGRAMMABLE FUNCTION GROUPS Function Group No. Description Motor and Drive Parameters Run/Stop Mode Frequency Control Drive Operating Parameters Digital Display Modes Onboard Multi-Function Output Relay Operating Mode Drive Status and Reset Multi-Function Input Terminals Multi-Function Output Relays and Output Signal Operation Analog Input Signal Operation Communication Mode...
  • Page 33 FUNCTION GROUP 1 – RUN/STOP MODE Function Factory Description Range/Code Setting 0000: Keypad 1.00* Run/Stop-Forward/Reverse Control 0001: External Contacts 0000 0002: Communication 0000: Instant Reverse 0001: Stop Command Must be Given 1.01* Forward/Reverse Control Prior to Reverse Command 0000 0002: Reverse Command Disabled 0003: Forward Command Disabled 0000: Forward 1.02*...
  • Page 34 FUNCTION GROUP 2 – FREQUENCY CONTROL Function Factory Description Code Setting 0000: Keypad 0001: Built-In Potentiometer 0002: Analog Signal 1 2.00* Frequency Control 0000 0003: Analog Signal 2 0004: Communication 0005: Up/Down Using MFITs 0000: Frequency Change Requires Enter Command 2.01* Up Key, Down Key Operation Mode 0001: Direct Frequency Change...
  • Page 35 FUNCTION GROUP 4 – DIGITAL DISPLAY MODES Function Factory Description Range/Code Setting 0000: Frequency 4.00 Display Mode 0000 0001: RPM 0002: Custom Units 4.01 Custom Units Significant Digits 0 – 9999 0000: Whole Numbers 0001: One Decimal Place 4.02 Custom Units Display 0000 0002: Two Decimal Places 0003: Three Decimal Places...
  • Page 36 FUNCTION GROUP 6 – DRIVE STATUS AND RESET Function Factory Description Code Setting 6.00* Software Version — — 6.01* Drive Horsepower — — 6.02* Fault Log 1 — — 6.03* Fault Log 2 — — 6.04* Fault Log 3 — —...
  • Page 37 FUNCTION GROUP 8 – MULTI-FUNCTION OUTPUT RELAYS AND OUTPUT SIGNAL OPERATION (IODA OPTION BOARD REQUIRED) Function Factory Description Range/Code Setting 0000: Run Multi-Function Output Relay 1 8.00* 0000 0001: Fault (Terms. 23 – 25) 0002: Target Frequency (Function No. 8.04 ± Function No. 8.05) Multi-Function Output Relay 2 8.01* 0001...
  • Page 38 FUNCTION GROUP 9 – ANALOG INPUT SIGNAL OPERATION (IODA OPTION BOARD REQUIRED) Function Factory Description Range/Code Setting 9.00 0 – 500 Analog Input 1 Gain (%) 0000: Positive 9.01 0000 Analog Input 1 Slope 0001: Negative 9.02 0 – 100 Analog Input 1 Offset (%) 0000: Unidirectional 9.03...
  • Page 39 FUNCTION GROUP 10 – COMMUNICATION MODE (DIAC OPTION BOARD REQUIRED) (Continued) Function Factory Description Range/Code Setting 0: Stop 1: Run 0: Forward 1: Reverse 0: Normal 1: Fault 0: JOG-LCL/REM Command Off 1: JOG-LCL/REM Command On 0: N/A 1: Preset Frequency 1 0: N/A 1: Preset Frequency 2 0: N/A...

  • Page 40: Model Software Revision Codes

    TABLE 8 – MODEL SOFTWARE REVISION CODES (REV. 100.1) The Programmable Function List, on Pages 32 – 40, is Applicable to the Following* Software Revision Codes Model No. Software Revision Code KBDA-24D 29 / 1.02 KBDA-27D 35 / 1.02 KBDA-29 37 / 1.01...

  • Page 41: Diagnostic Leds

    11 DIAGNOSTIC LEDs The drive contains 8 Status LEDs to provide indication of the drive’s status and operating mode (Hz, PGM, LCL/REM, STOP, FWD, REV, OL, JOG/REM). See Table 9, for a description of the LEDs. WARnInG! Do not depend on the lEDs or the 4-Digit Display to no longer be illuminated as a guaranteed power off condition.

  • Page 42: Appendix A - Optional Ioda Input/Output Multi-Function Board

    APPENDIX A – OPTIONAL IODA INPUT/OUTPUT MULTI-FUNCTION BOARD The IODA Input/Output Multi-Function Board provides a variety of functions, which include preset frequency, up/down frequency control, signal isolation, isolated output voltage for controlling auxiliary devices, open col- lector outputs, and output relay contacts. The IODA mounts on the drive’s PC board with 2 snap-ins (located on the bottom of the mounting base) and 2 screws (provided).

  • Page 43: Ioda Terminal Block Tb1 Wire And Tightening Torque Specifications

    J2 & J3: Current or Voltage Signal Input Selection mounting bases. Use the for Analog Output 2 small base for Model Power On LED (Green) KBDA-24D and the large base for Models CON1: Used for the Interconnecting KBDA-27D, 29, 45, 48. Ribbon Cable to the Drive FIGURE 25 –...

  • Page 44: Ioda Functions And Features

    TABLE 12 – IODA FUNCTIONS AND FEATURES Terminal Assignment Multi-Function Input Power Multi-Function Analog Analog Relay Multi-Function Terminals Input Terminal Codes (Digital Inputs) Supply Outputs Outputs Inputs Outputs 0000: Preset Frequency 1 – 7 8: Common 11: Open 15: Analog Out 1 19: Analog In 1 23: RY1 N.O.

  • Page 45: Preset Frequency Selection

    PRESET FREQUENCIES The drive is factory programmed for 7 Preset Frequencies, which can be selected using remote switches or contacts connected to the Multi-Function Input Terminals “1” – “7”, as shown in Figure 26. See Table 13, for the Multi-Function Input Terminals to select for the preset frequencies. The Preset Frequencies can be changed from their factory settings by reprogramming Preset Frequencies 1 –...

  • Page 46: Up/Down Frequency Control Switch Or Contact Connections And Function Settings

    FIGURE 27 – UP/DOWN FREQUENCY CONTROL SWITCH OR CONTACT CONNECTIONS AND FUNCTION SETTINGS Function Settings Function No. Range/Code 2.00 0005 Frequency Up/Down Control Using MFITs 7.03 0003 Multi-Function Up Frequency Input Terminal 4 Command 7.04 0004 Multi-Function Down Frequency Input Terminal 5 Command 7.14 0000 or 0001...

  • Page 47: Forward/Stop-Reverse/Stop Switch Or Contact Connections And Function Settings

    FIGURE 29 – FORWARD/STOP-REVERSE/STOP SWITCH OR CONTACT CONNECTIONS AND FUNCTION SETTINGS Function Settings Function No. Code 1.00 0001 Run/Stop-Forward/Reverse External Control Contacts 7.03 0006 Multi-Function Forward/Stop Input Terminal 4 Command 7.06 0007 Multi-Function Reverse/Stop Forward/Stop Reverse/Stop Input Terminal 7 Command EXTERNAL FAULT The Multi-Function Input Terminals can be used to provide feedback to the drive when a fault condition occurs in auxiliary equipment.

  • Page 48: 32 2-Wire Start/Stop Switch Or Contact Connection And Function Settings

    2-WIRE AND 3-WIRE START/STOP A remote Start/Stop Switch or Contact can be used to start and stop the motor in lieu of the RUN/STOP Key on the Keypad. The Start/Stop Switch or Contact can be connected for 2-Wire or 3- Wire configuration, as described below.

  • Page 49: 33 3-Wire Start/Stop Switch Or Contact Connection And Function Settings

    FIGURE 33 – 3-WIRE START/STOP SWITCH OR CONTACT CONNECTION AND FUNCTION SETTINGS Function Settings Function No. Code 1.00 0001 Run/Stop-Forward/Reverse External Control Contacts 7.00 0010 Multi-Function Normally Open Input Terminal 1 Start 7.01 0011 Start Stop Momentarily close the Start Switch or Contact to run the drive. Multi-Function Normally Closed Momentarily open the Stop Switch or Contact to stop the drive.

  • Page 50: Analog Input 1 Electrical Ratings

    TABLE 14 – ANALOG INPUT 1 ELECTRICAL RATINGS Parameter Specification Factory setting Voltage Range (Volts DC) 0 – ±5 0 – 5 MAX1 Scaling Trimpot Range (Volts DC) 0 – 24 Analog Input 2 – Connect the signal input to Terminal “21” and the common to Terminal “22”, as shown in Figure 35.

  • Page 51: Analog Outputs 1 And 2 Electrical Ratings

    ANALOG SIGNAL OUTPUT Two analog signal outputs are provided, which will linearly follow the parameter programmed in Analog Output 1 Mode (Function No. 8.06) and Analog Output 2 Mode (Function No 8.08). They can be used to monitor Motor Frequency, Set Frequency, Motor Voltage, Bus Voltage, and Motor Current. See Table 16, for the Analog Outputs 1 and 2 Electrical Ratings.

  • Page 52: Bidirectional Motor Operation Main Speed Potentiometer Connection And Function Setting

    BIDIRECTIONAL MOTOR OPERATION (Use Analog Input 1 Only) Connect the potentiometer to Terminals “9” (+5 Volts), “19” (Analog Input 1), and “10” (-5 Volts), as shown in Figure 37. Set Frequency Control (Function No. 2.00) to Analog Input 1 (“0002”). In this mode, the remote potentiometer is set for zero speed at 50% rotation.

  • Page 53: Multi-Function Output Relay Contacts Connections And Function Settings

    Multi-Function Output Relay 2 Contacts Normally Open (N.O.) Contact: TB1 Terminal “26”. Common (COM): TB1 Terminal “27” (contact common for Relay 2 only). FIGURE 38 – MULTI-FUNCTION OUTPUT RELAY CONTACTS CONNECTIONS AND FUNCTION SETTINGS Function Settings Relay 1 Relay 2 Function No.

  • Page 54: Multi-Function Open Collector Outputs Electrical Ratings

    FIGURE 39 – MULTI-FUNCTION OPEN COLLECTOR CONNECTIONS AND FUNCTION SETTINGS Function Settings Function No. Code 0000 – 0008 Output 1 Output 2 Run, Fault, Target Frequency, Frequency Threshold Level 8.02 (> 8.04 – 8.05), Multi-Function Frequency Threshold Level Open Collector (<...
  • Page 55 – nOTEs –...

  • Page 56: Limited Warranty
