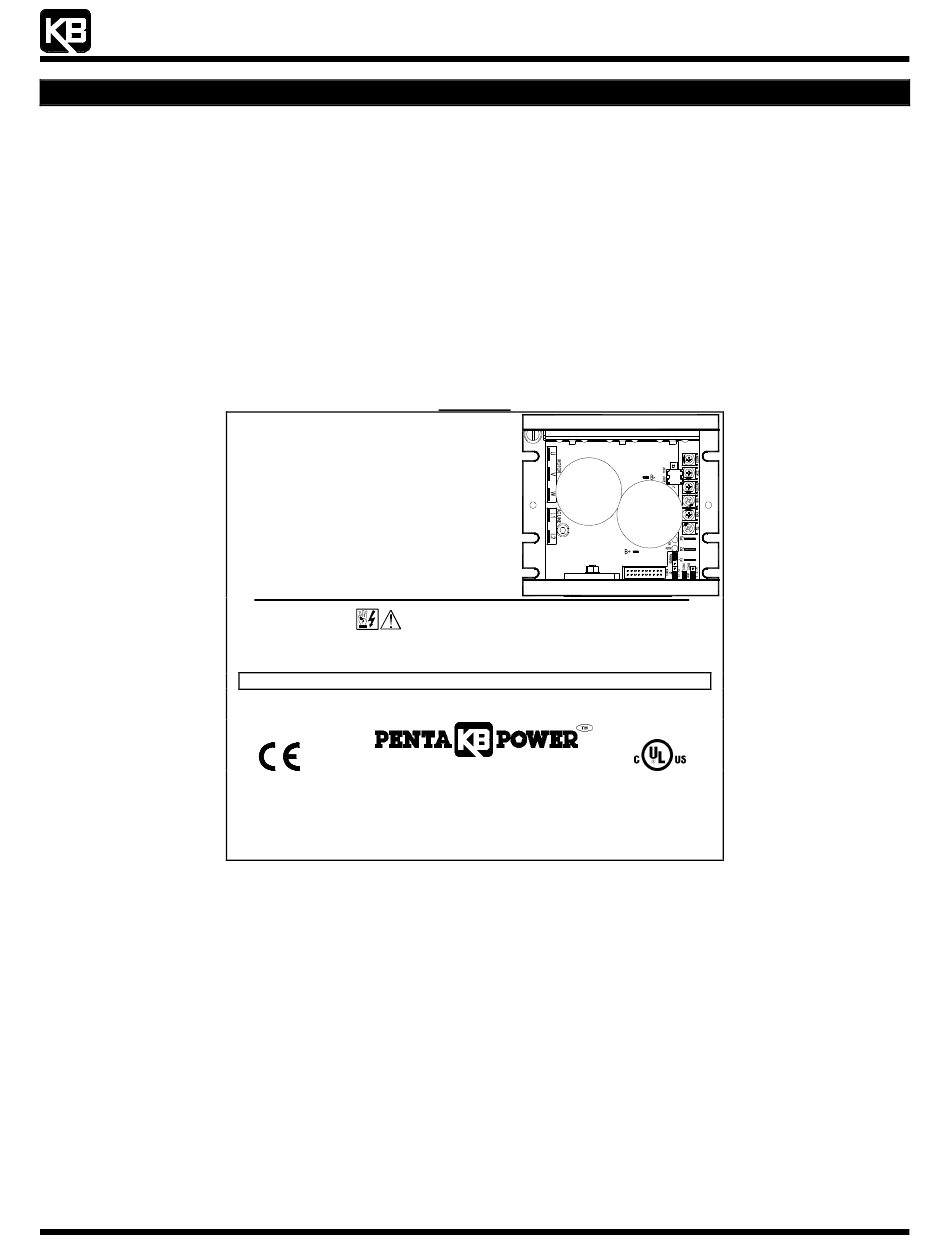

Installation and Operation Manual
KBVF SERIES
Chassis / IP-20 Inverters
Variable Speed / Soft-Start AC Motor Drive
with Electronic Motor Overload Protection*
Rated for 208-230 Volt 50 & 60 Hz
3-Phase & PSC** AC Induction Motors
from Subfractional thru 1½ HP
Operates from 115 and 208/230 Volt
50/60 Hz AC Line Input
See Safety Warning, on
This manual covers Models
KBVF-21D, 22D, 13, 23, 23D, 14, 24, 24D, 26D
Note: The drive is factory set for 60 Hz motors. For 50 Hz motors, see
The information contained in this manual is intended to be accurate. However, the manufacturer
retains the right to make changes in design which may not be included herein.
***
A Complete Line of Motor Drives
* UL approved as an electronic overload protector for motors. ** Custom software is required for PSC
motors. See PSC Motor Addendum (Part No. AXXXXX). *** Requires CE approved RFI Filter. See RFI
Filters & Chokes Selection Guide D-321 (Part No. A42027) for selection of filters to meet the Industrial or
Residential Standard.
**** Models KBVF-22D, 13, 23, 23D, 14, 24, 24D, 26D are UL Listed for USA and
Canada. Other models pending.
12095 NW 39 Street, Coral Springs, FL 33065-2516
Front Page
page
XX.
Section 6.2, on page
© 2005 KB Electronics, Inc. (see back cover)
Phone: 954-346-4900; Fax: 954-346-3377
XX.
****
Page 1 of 20
