Sony CP-W5 Operating Instructions

Wireless portable charger.
Hide thumbs


Advertisement

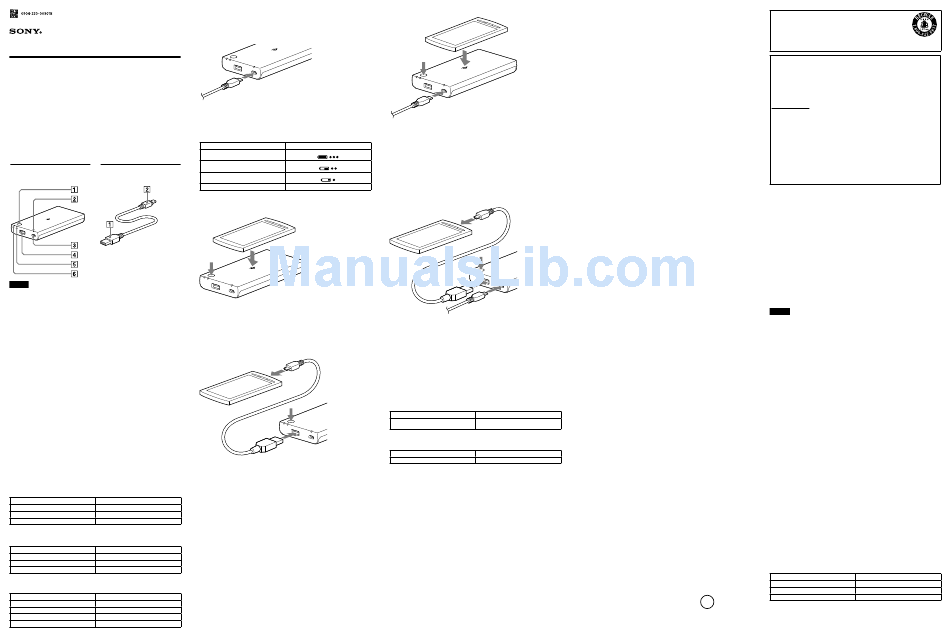

Wireless Portable Charger
Operating Instructions
Manual de Instrucciones
CP-W5
© 2014 Sony Corporation Printed in China
The device should not be used next to the body.
This device is designed for desktop usage.
This device has been tested for compliance with RF exposure limits at 10 cm from user.
English
Features and Functions
The unit is a portable power supply with a built-in Li-ion rechargeable battery. In order for the unit to
supply power to a portable device, you first need to charge the unit by connecting to your PC or an AC
adaptor (sold separately) with the supplied USB cable.
 Wireless Charging
You can charge your Qi compatible device with the unit wirelessly.
 Portable unit
You can carry the unit anywhere to supply power to portable devices (music player or mobile phone,
etc.). The unit can be charged approx. 1,000 times*.
*
This is an approximation based on the results of tests performed by Sony under the following
conditions. The actual number of times the unit can be used depends on the device and usage
conditions.
Charge conditions: 4.2 V 0.5 ItA (CC/CV) Charge cut-off current: 0.05 ItA
Discharge conditions: 0.5 ItA Discharge cut-off voltage: 3 V
Temperature condition: 23 °C
 Safety functions
- Overcharge prevention function
- Safety timer
- Abnormal temperature detection function
 Chargeable by connecting to the USB port of your computer
You can charge the unit with the supplied USB cable.
 Pass Through Charging.
Charge and power at same time.
*
Dependent on the specification of the AC adapter and your device.
Please read the following instructions carefully before use.
Parts
 Unit
 Button to stop/start USB/Qi power and to check remaining battery capacity
 Orange LED indicator
 Micro USB input port
 USB output port
 Green LED indicator
 Blue/Red LED indicator
 USB cable
 USB connector
 Micro USB connector
Reference chart for LED indicator status
Orange LED indicator
This indicator shows charging conditions of the unit.
LED indicator
Charging conditions
 (Turns on)
Charging
. . . . . . . . . . . . . . . . . . . . (Turns off)
Finished charging/Disconnected
 .  .  .  .  (Flashes rapidly)
Malfunction
Green LED indicator
This indicator shows power supplying conditions to the portable device with USB cable.
LED indicator
Power Supplying conditions
 (Turns on)
Supplying
 . .  . .  . .  (Flashes slowly)
Low battery
 .  .  .  .  (Flashes rapidly)
Malfunction
Blue/Red LED indicator
This indicator shows power supplying conditions to the portable device wirelessly.
LED indicator
Power Supplying conditon
Red LED  (Turns on)
Ready to supply power/Disconnected
Blue LED  (Turns on)
Supplying
Blue LED  . .  . .  . .  (Flashes slowly)
Low battery
Blue LED  .  .  .  .  (Flashes rapidly)
Malfunction
To Charge the Unit
You cannot charge the unit when the PC is in sleep mode.
1. Connect the micro USB connector of the supplied USB cable to the micro USB input port of the
unit.
2. Connect the other end of the supplied USB cable to the USB port of your computer, etc.
The orange LED indicator turns on. Refer to "Troubleshooting" if the orange LED indicator turns off
a few minutes later or does not turn on.
3. Disconnect the USB cable after the orange LED indicator turns off.
To Check Remaining Power
1. Press the button on the unit.
The orange LED indicator flashes depending on the remaining power.
LED indicator
Remaining power
Full
 .  .  . .  .  .  (Flashes three times × 2)
Medium
 .  . .  .  (Flashes twice × 2)
Low
 . .  (Flashes once × 2)
. . . . . . . . . . . . . . . . . . . . (Does not flash)
None
*
Battery condition cannot be checked when the unit is supplying power to a portable device.
Supplying Power to a Portable Device Using the Charged Unit
Wireless Charging
1. Push the button on the unit and Red LED indicator turns on.
The red LED indicator turns on, and the unit starts to ready to supply power.
The orange LED indicator flashes depending on the remaining power.
2. Quickly place your device on the Qi mark of the unit.
The unit detects your device and supply the power. Then the colors of LED indicator change from red
to blue.
*
Wireless charging cannot be done when the coil between the receiver and the transmitter is off center.
Make sure the LED color change from Red to Blue and your device is charged. While your device is
charged, the Blue LED turns on until your device finished charging. When the red LED indicator turns
off, press the button again.
Charging with USB cable
1. Connect a USB charging cable (officially supported by the portable device) to the portable
device.
2. Connect the other end of the cable to the USB output port of the unit.
3. Press the button on the unit.
The green LED indicator turns on, and the portable power supply starts supplying power.
The orange LED indicator flashes depending on the remaining power.
*
Check the charge status of your portable device.
4. Unplug your device when charging is complete.
Notes
The USB output port of the unit is a power supply only. Do not connect to the USB ports of computers,
etc. Doing so may cause a malfunction.
When charging a portable device by this unit, charging time will vary depending on the battery status of
the portable device.
Qi and USB cannot be output simultaneously.
Before connecting a portable device to the unit, attach the portable device's battery pack. Connecting a
portable device while its battery is removed may cause loss of data or damage to the portable device.
It is cautioned that some portable devices may incur sudden loss of input memory whether or not they are
used with this unit (for details, refer to the user manual supplied with the portable device). Before using
this product, be sure to back up input memory. Sony is not liable for loss of memory.
If the unit has not been used for long period, it cannot be charged fully; however, the unit will become
capable of charging fully by charging and supplying repeatedly (two or three times).
Charging the Unit and Supplying Power to a Portable Device
from the Unit Using the AC Adaptor(sold separetely)*
Depending on the specifications of the adapter or device, power may not be supplied to the portable
*
device when charging the unit.
Supplying power using wireless power supply
1. Connect the micro USB connector of the USB cable to the micro USB input port of the unit and
connect the other end of the USB cable to the USB port of AC adaptor.
2. Plug AC adaptor into a wall outlet, holding the AC adaptor.
The orange LED indicator turns on. Refer to "Troubleshooting" if the orange LED indicator turns off a
few minutes later or does not turn on.
3. Press the button on the unit and Red LED indicator turns on.
The red LED indicator turns on, and the unit starts to ready to supply power. The orange LED indicator
flashes depending on the remaining power.
4. Quickly put your device on the unit.
The unit detects your device and supply the power. Then the colors of LED indicator change from red
to blue.
*
Wireless charging cannot be done when the coil between the receiver and the transmitter is off center.
Make sure the LED color change from Red to Blue and your device is charged. While your device is
charged, the Blue LED turns on until your device finished charging.
Supplying power using the USB cable
In order to supply power to the portable device, a USB charging cable is required (not supplied).
Please check the portable device for specific pin connection. USB Type-A is required for the unit.
1. Connect the micro USB connector of the supplied USB cable to the micro USB input port of the
unit and connect the other end of the supplied USB cable to the USB port of AC adaptor.
2. Connect a USB charging cable (officially supported by the portable device) to the portable
device.
3. Connect the other end of the cable to the USB port of the unit.
4. Plug AC adaptor into a wall outlet, holding the AC adaptor.
The orange LED indicator turns on. Refer to "Troubleshooting" if the orange LED indicator turns off a
few minutes later or does not turn on.
5. Press the button on the unit.
The green LED indicator turns on, and the unit starts supplying power.
The orange and green LED indicators turn on, and charging the unit and supplying power to a portable
device start.
Power supply stops automatically when the portable device is fully charged. If you want to stop the power
supply, press the button on the portable power supply.
Check the charge status of your portable device.
*
6. Unplug your device when charging is complete.
Charging Time
Built-in Battery
Charging Time
3.7 V
Approx. 4 hours (from 1.5 A AC Adaptor)
(typ. 5,000 mAh / min. 4,880 mAh)
Approx. 11 hours (from standard USB port)
*
Recharging using a USB output AC adaptor rated at 5 V 0.5 A or greater is possible.
Please note that this product's maximum input current is 1.5 A.
Supply Time
Output
Supply Time
USB output: 5 V, 1.5 A
Approx. 120 minutes
*
Supply time varies depending on battery condition, storage condition and portable device.
Specifications
Input
DC 5 V
Output
USB: DC 5 V, 1.5 A (Max.)
Dimensions
66.0 mm × 130.0 mm × 16.5 mm (2 5/8 inches × 5 1/8 inches × 21/32 inches)
(W/H/L)
Weight
Approx. 188 g (6.6 oz)
Operating temperature
32 °F - 95 °F (0 °C - 35 °C)
Design and specifications are subject to change without notice.
Troubleshooting
The unit cannot be charged.
When the PC is in sleep mode, you cannot charge the unit. Recover the PC from the sleep mode.
When it takes time for USB authentication, plug in and out the USB cable from the PC, and try
again.
The orange LED indicator does not turn on.
The usage environment is out of operating temperature range.
Use in the operating temperature range.
There is a bad connection in the micro USB input port.
Clean the micro USB input port.
The orange LED indicator flashes quickly.
Charging is abnormal.
Stop use. Contact your Sony dealer or authorized Sony service facility.
Charging time of the unit is short [charging takes less than 4 hours (from AC adaptor) or 11
hours (from standard USB port)].
The unit has reached the end of its service life or is malfunctioning.
When the supply time is extremely short even when the unit is fully charged, the unit has reached
the end of its service life. Purchase a new product (service life varies depending on use).
If a malfunction occurs, contact your Sony dealer or authorized Sony service facility.
The usage environment is out of operating temperature range.
Use in the operating temperature range.
The unit cannot supply power to a portable device, or the green LED or blue LED indicator does
not turn on.
Supplying power using the USB cable
The USB cable between the unit and the portable device is connected incorrectly.
Connect the USB cable correctly.
The usage environment is out of operating temperature range.
Use in the operating temperature range.
The remaining battery capacity is low.
Charge the unit.
The portable device is not in charging mode.
Check and set up the portable device in charging mode.
Turn the portable device on before charging.
Supplying power using wireless power supply
The device is not placed in an appropriate place.
Wireless charging cannot be done when the coil between the receiver and the transmitter is off
center. Check the charging status of the device, and place the device in a chargeable location, or
place the device in a location so that the unit's blue LED indicator illuminates.
The placed device does not support Qi.
If the device is not Qi certified, wireless power supply is unavailable.
Foreign material such as a sticker may be located between the device and the unit.
Remove the foreign material immediately.
A cover is on the device.
Remove the cover before charging.
The supply time to the portable device is short.
Supplying power using the USB cable
The connector or USB port on the portable device is dirty.
Clean it.
The usage environment is out of operating temperature range.
Use in the operating temperature range.
The unit has reached the end of its service life or is malfunctioning.
When the supply time is extremely short, even when the unit is fully charged, the unit has reached
the end of its service life. Purchase a new product (service life varies depending on use).
If a malfunction occurs, contact your Sony dealer or authorized Sony service facility.
The unit is out of power or the remaining battery capacity is low.
Charge the unit.
During wireless power supply
Charging position shifts when the device is charged.
Place the device in a chargeable location.
Charging time is long.
Charging the Unit and Supplying Power to a Portable Device from the Unit.
Stop supplying power or continuously supply power to a portable device.
The unit has reached the end of its service life or is malfunctioning.
When the supply time is extremely short, even when the unit is fully charged, the unit has reached
the end of its service life. Purchase a new product (service life varies depending on use).
If a malfunction occurs, contact your Sony dealer or authorized Sony service facility.
The usage environment is out of operating temperature range.
Use in the operating temperature range.
The green LED indicator flashes rapidly.
The portable device and the unit are not connected correctly, or the portable device or cable
has a malfunction.
Connect the portable device or cable properly. Or contact your dealer or authorized service facility
of the portable device.
USB power output exceeds the limit of this product.
Make sure that the power specification of the portable device is within the limit of this product.
The Blue LED indicator flashes rapidly.
Remove the device quickly.
Remove the foreign material immediately.
You cannot connect the USB cable properly.
You may have connected a different type of cable.
Use the correct USB cable.
The USB cable is not connected properly.
Connect the USB cable properly.
Some dust, etc., may be in the USB port.
Clean the USB port.
Contact your Sony dealer or authorized Sony service facility for any further questions.
Warning
Supplying power using the USB cable
Do not short-circuit the unit. To avoid short-circuiting, keep the unit away from all metal objects (e.g.
coins, hair-pins, keys, etc.).
The unit may become hot when charging. This is normal. Use caution when handling.
Use this product properly to avoid electric shock.
Supplying power using wireless power supply
Do not place a metal object such as coins, hairpins, or keys on the unit. (e.g. coins, hairpins, keys,
aluminum foil, etc.)
Do not use this product near a magnetic card or magnetic storage media.
Do not use this product in locations where use is prohibited such as inside an airplane.
Do not use this product if you use a pacemaker or have a medical device connected to you.
CAUTION
Risk of Fire and Burns. Do Not Open, Crush, Heat Above 140 °F (60 °C) or Incinerate. Follow
Manufacturer's Instructions.
Do not drop, place heavy weight on, or allow strong impact to this product.
Do not heat the unit or dispose of it in fire.
Do not disassemble or reassemble this product.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Operating Temperature: 32 °F - 95 °F (0 °C - 35 °C). To optimize charging capacity, charge the unit in
temperatures between 50 °F - 86 °F (10 °C - 30 °C).
Do not expose this product to direct sunlight or water.
Keep away from high temperatures or humidity.
While in use, do not cover this product with materials such as blankets.
Place the product in a stable location when using the wireless power supply.
Place your device 20cm or more away from you when using the wireless power supply.
The contact surface of the unit must always be kept clean.
Notes on using this product
Use the unit away from a TV, radio or tuner as noise may occur.
For details on operation of the portable device, refer to its user manual. Operation varies depending on
the device.
Do not expose this product to liquid and use it if it remains moist.
Do not use or store this product in a humid or dusty place.
Place this product in a stable location.
Keep clean the plug, inside of the USB output port and joining terminals of the unit.
Do not touch the joining terminals directly or insert your fingers into them.
WARRANTY *For USA only.
Our product warranty is limited only to the unit itself, when used normally in accordance with the
operating instructions and the system environment. Therefore, Customer acknowledges and agrees that:
Sony is not liable for damage or loss resulting from the use of this product, or for any claim from a third
party.
Sony is not liable for problems with your MP3 player, cell phone or other hardware arising from the use
of this product; the suitability of the product for specific hardware, software, or peripherals; operating
conflicts with other installed software; data loss; or other accidental or unavoidable damages.
Sony is not liable for financial damages, lost profits, claims from third parties, etc., arising from the use
of this product.
Customer Service
Phone: (956) 795-4552 U.S.A.
BC
e-mail: snl.service@am.sony.com
INTERNET: http://www.sony.com/battery
*For USA only.
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are recyclable.
You can help preserve our environment by returning your used rechargeable
batteries to the collection and recycling location nearest you.
For more information regarding recycling of rechargeable batteries, call toll free 1-800-
822-8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking Lithium-Ion batteries.
Limited Warranty *For USA only.
Sony Electronics Inc. (for U.S. purchases) warrants this product ("Product") against defects in material
or workmanship for one (1) year from original retail purchase and when purchased directly from Sony
or a Sony Retailer. If Sony finds the Product contains any such defect, Sony will either replace the
Product at no charge or, at Sony's discretion, refund the purchase price shown on your receipt. To
obtain warranty service, you must, during the warranty period, send your defective Product to Sony,
postage prepaid, with a letter that includes your name, address and phone number and a description of
the problem encountered. A dated purchase receipt is required from Sony or a Sony Retailer. To
determine if a retailer is part of the Sony Retailer Network, please contact Sony's Customer Service Call
Center or go to
www.sony.com/support. In the U.S. and Puerto Rico, call (800) 942-SONY (7669). This warranty is
valid only in the country of purchase.
REPLACEMENT OR REFUND OF THIS PRODUCT AS PROVIDED UNDER THIS LIMITED
WARRANTY SHALL BE THE EXCLUSIVE REMEDY OF THE CONSUMER. SONY SHALL NOT BE
LIABLE FOR ANY LOSS OR DAMAGES, INCLUDING CONSEQUENTIAL, INDIRECT AND
INCIDENTAL DAMAGES, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THE
PRODUCT OR FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON
THIS PRODUCT. UNDER NO CIRCUMSTANCES SHALL SONY BE LIABLE FOR AN AMOUNT
GREATER THAN THE ACTUAL PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE
EXTENT PROHIBITED BY LAW, ANY IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN
DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Some states or jurisdictions do not allow limitations on how long an implied warranty or condition lasts
or exclusions or limitations of consequential or incidental damages, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state or jurisdiction to jurisdiction.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT
TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-
R
eorient or relocate the receiving antenna.
-
Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-
Consult the dealer or an experienced radio/TV technician for help.
Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.
Español
CARGADOR INALÁMBRICO PORTÁTIL
MODELO CP-W5
POR FAVOR LEA DETALLADAMENTE ESTE MANUAL DE INSTRUCCIONES ANTES DE CONECTAR Y
OPERAR ESTE EQUIPO.
RECUERDE QUE EL MAL USO DE ESTE APARATO PODRIA ANULAR LA GARANTIA.
Este dispositivo no debe usarse junto al cuerpo.
Este dispositivo está diseñado para usarse sobre una mesa u otra superficie.
Este dispositivo ha sido inspeccionado y cumple con los límites de exposición a radiofrecuencias a 10 cm
del cuerpo.
Características y funciones
Esta unidad es un suministrador de energía portátil con una batería recargable de iones de litio. Para que
la unidad suministre energía a un dispositivo portátil, debe cargar antes la unidad conectándola al PC o a
un adaptador de CA (se vende por separado), con el cable USB suministrado.
 Carga inalámbrica
La unidad le permite cargar un dispositivo compatible con Qi de forma inalámbrica.
 Unidad portátil
Puede transportar la unidad a cualquier lugar para suministrar energía a dispositivos portátiles
(reproductor de música, teléfono móvil, etc.). La unidad se puede cargar unas 1 000 veces*.
*
Esta es una aproximación basada en los resultados de las pruebas realizadas por Sony en las
condiciones indicadas a continuación. El número real de veces que la unidad se puede usar varía en
función del dispositivo y las condiciones de uso.
Condiciones de carga: 4.2 V a 0.5 ItA (CC/CV) Corriente de carga mínima: 0.05 ItA
Condiciones de descarga: 0.5 ItA Tensión final de descarga: 3 V
Condiciones de temperatura: 23 °C
 Funciones de seguridad
- Función de prevención de sobrecargas
- Temporizador de seguridad
- Función de detección de temperaturas anómalas
 Para cargarlo se puede conectar al puerto USB del ordenador
Puede cargar la unidad con el cable USB suministrado.
 Carga de paso.
Carga y suministro de energía al mismo tiempo.
*
En función de la especificación del adaptador de CA y del dispositivo.
Lea detenidamente las instrucciones siguientes antes de su utilización.
Componentes
 Unidad
 Botón para detener/iniciar la salida de energía USB/Qi y para comprobar la capacidad restante de
la batería.
 Indicador LED naranja
 Puerto de entrada micro USB
 Puerto de salida USB
 Indicador LED verde
 Indicador LED azul/rojo
 Cable USB
 Conector USB
 Conector micro USB
Tabla de referencia del estado de los indicadores LED
Indicador LED naranja
Este indicador muestra las condiciones de carga de la unidad.
Indicador LED
Condiciones de carga
 (Encendido)
Cargando
. . . . . . . . . . . . . . . . . . . . (Apagado)
Carga completa o unidad desconectada
 .  .  .  .  (Parpadeo rápido)
Fallo de funcionamiento

Advertisement

Table of Contents

   Summary of Contents for Sony CP-W5

  • Page 1 (two or three times). Use in the operating temperature range. Sony is not liable for damage or loss resulting from the use of this product, or for any claim from a third ...
  • Page 2  Si el producto presenta un fallo de funcionamiento, póngase en contacto con su distribuidor de Sony no se responsabiliza de los daños o de las pérdidas derivadas del uso de este producto, ni de las  Sony o con un centro de servicio técnico autorizado de Sony.

Comments to this Manuals

Symbols: 0
Latest comments:
