Page 1: User Instructions

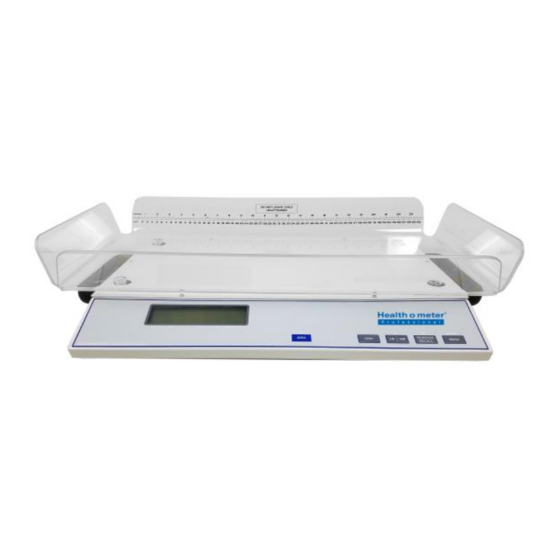

Model 2210KL / 2210KL4 High Resolution Digital Neonatal/Pediatric Tray Scale 2210KL 2210KL4 User Instructions PELSTAR, LLC 9500 West 55 St. McCook, IL 60525-7110 USA www.homscales.com © Pelstar, LLC 2017 P/N UM2210KL 2210KL4 Rev20171218... - Page 2 Model 2210KL / 2210KL4 Thank you for your purchase of this Health o meter® Professional product. Please read this manual carefully, and keep it for easy reference or training. TABLE OF CONTENTS Cautions and Warnings ..................... 3 Specifications for This Scale ..................4 Certifications / Connectivity / Disposal ..............
-
Page 3: Cautions And Warnings
CAUTIONS AND WARNINGS INTENDED USE ® This Health o meter Professional neonatal/pediatric scale is intended to be used in a professional medical environment by trained medical staff. This product was designed to weigh pediatric patients who are safely positioned on the scale tray. Do not modify the product or use it for anything other than its intended purpose. -
Page 4: Specifications For This Scale
SPECIFICATIONS FOR THIS SCALE General Health o meter® Professional scales use the most sophisticated microprocessor technology available. Each precision instrument is designed to provide accurate, reliable and repeatable weight measurements, as well as other features that make the weighing process simple, fast and convenient. - Page 5 1. CSA C22.2 No. 601-1 M90: Medical Electrical Equipment Scale Disposal This Health o meter® Professional scale must be disposed of properly as electronic waste. Follow the national, regional or local regulations which apply to you for disposal of electronic waste or...
-
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before Assembly Each 2210KL / 2210KL4 neonatal/pediatric tray scale is shipped disassembled in one carton. Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact your ® shipper or a Health o meter Professional representative immediately at 1-800-815-6615. Claims must be filed with the shipper as soon as possible after receipt of the package. - Page 7 ASSEMBLY INSTRUCTIONS (CONTINUED) Assembling the Scale This scale is powered by six (6) standard disposable C-cell alkaline batteries. Use the following procedure to install the batteries: 1. Remove the scale top cover by removing the six (6) screws (Fig. 1a). 2.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS REWEIGH LB/GM RECALL Screen Icons Icon Description Indicates level of battery power remaining. Indicates weight mode is in kilograms. lb:oz Indicates weight mode is in pounds/ounces. gram Indicates weight mode is in grams. NET WT Is displayed when a weight is tared. PRIOR WT Is displayed after a weight measurement. - Page 9 5. To clear the displayed weight and ready the scale for the next weighing, press blue ON/ZERO button. The 2210KL scale comes standard with these features. 1. Auto-Zero: The scale will automatically display “0” when turned on. If the display reads between “-20 gram”...
- Page 10 OPERATING INSTRUCTIONS (CONT) Using the Tare Function When using this scale, the weight of an object, such as a blanket, on the scale with the baby being weighed can be subtracted from the total weight to determine the net weight of the baby alone. The Tare function automatically performs this subtraction, avoiding the need for manual calculations.
- Page 11 ON/ZERO. Programming Auto-Off Time The 2210KL / 2210KL4 has been pre-set at the factory to shut down after one minute of inactivity. This can be changed to any increment (from 12 seconds to 25 minutes) to suit your needs. 1. Press ON/ZERO and wait for the display to show “0.0”. Do not place anything on tray.
- Page 12 OPERATING INSTRUCTIONS (CONT) Motion Detection Motion detection uses a proprietary technology that automatically provides accurate weight measurement when there is motion on the tray. If there was considerable motion during the weight measurement, motion detection will activate after seven seconds and “AVERAGE WT” will be displayed along with the weight measurement and “PRIOR WT”...
- Page 13 OPERATING INSTRUCTIONS (CONT) User Setting Options Your scale has three additional settings that you may customize for your specific needs. Tone on/off: A tone sounds whenever a weight is locked or a button is pressed. (Factory setting is “on”.) Unit lock: The LB/GM button can be disabled so that the scale will weigh in only the selected unit of measure.
-
Page 14: Calibration
CALIBRATION Calibration Your scale has been factory calibrated and does not require calibration prior to use. The following procedure should be performed only to correct any error in calibration. Calibration is protected by a security code to avoid inadvertent access. For maximum accuracy, calibration must be done in grams. -
Page 15: Troubleshooting
TROUBLESHOOTING Troubleshooting Before contacting service personnel, refer to the following instructions to check and to correct any ® failures. If you have further questions, call Health o meter Professional Scales Customer Service at 1-800-815-6615. Symptom Possible Cause Corrective Action Scale does not turn on 1. -
Page 16: Maintenance
MAINTENANCE Cleaning Procedures Proper care and cleaning of the scale is essential to ensure a long life of accurate and effective operation. In addition to routine cleaning, include a regular check of all structural apparatus. All external surfaces can be wiped clean with a damp cloth. A mild soap and water solution may be used as well. -
Page 17: Warranty
What does the Warranty Cover? This Health o meter® Professional scale is warranted from date of purchase against defects of materials or in workmanship for a period of two (2) years. If product fails to function properly, return the product, freight prepaid and properly packed to Pelstar, LLC (see “To Get Warranty Service”, below, for instructions).
