Series 3730
Electropneumatic Positioner
Type 3730-6
®
with HART
communication and pressure sensors

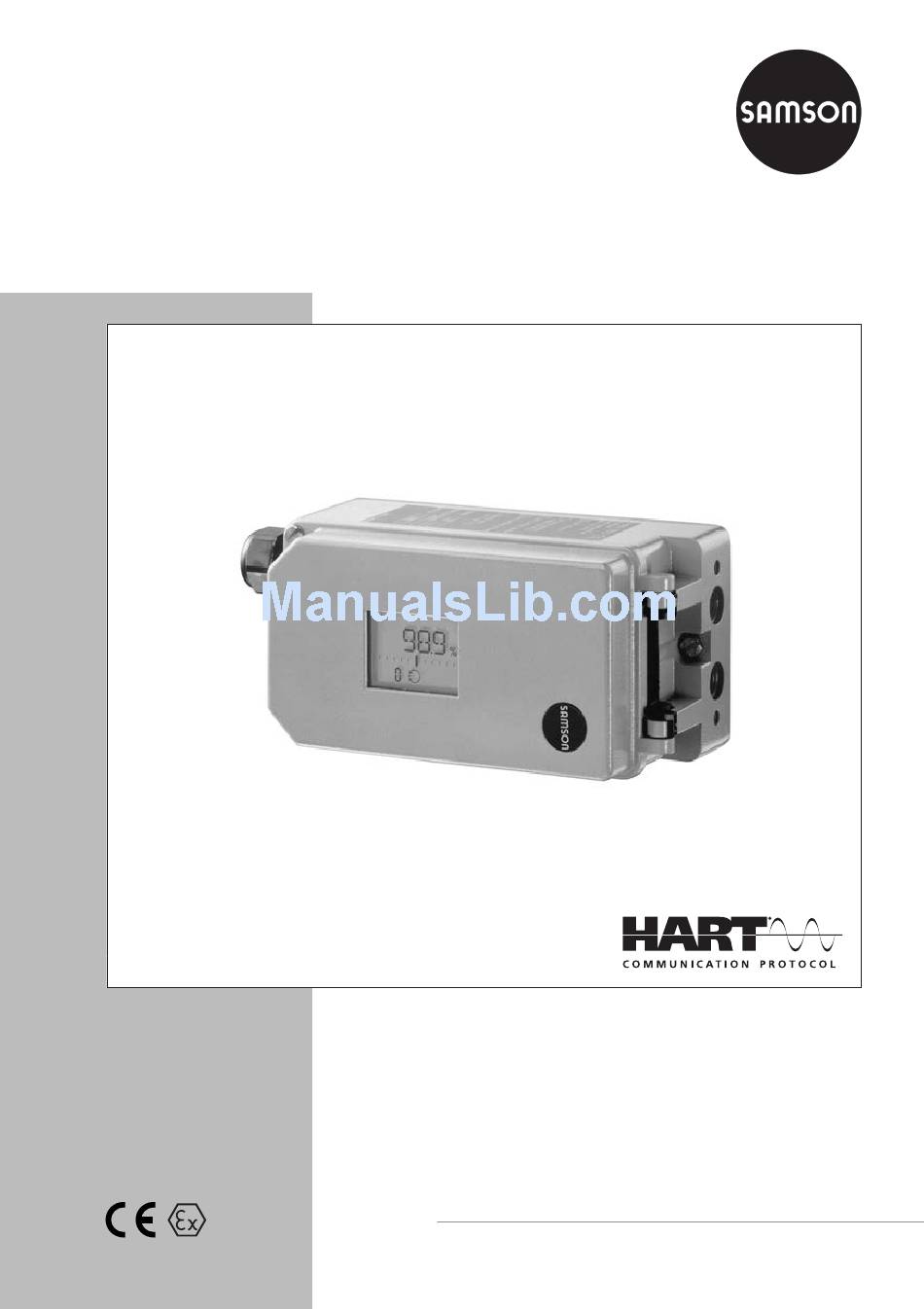

Fig. 1 · Type 3730-6
Mounting and
Operating Instructions
EB 8384-6 EN (1300-1623)
Firmware version 1.01
Edition February 2012
