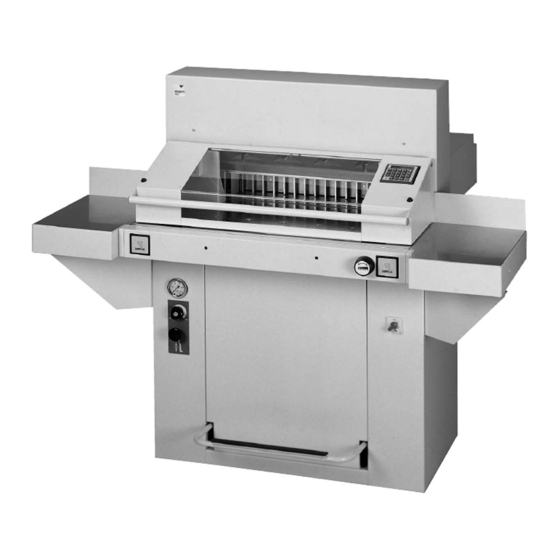

EBA 550 / 550LT
Guillotine
Instruction Manual
Provided By
http://www.MyBinding.com
http://www.MyBindingBlog.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 550LT and is the answer not in the manual?

Questions and answers

Related Manuals for EBA 550LT

Summary of Contents for EBA 550LT

  • Page 1 EBA 550 / 550LT Guillotine Instruction Manual Provided By http://www.MyBinding.com http://www.MyBindingBlog.com...
  • Page 2 Guillotines GB Operating Instructions EBA 550 EBA 550 LT...
  • Page 3 • Safety precautions • EBA 550 • EBA 550 LT D Bitte lesen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung und beachten Sie die Sicherheitshinweise. Die Betriebsanleitung muss jederzeit verfügbar sein. GB Please read these operating instructions before putting the machine into operation and observe the safety precautions.
  • Page 4 • Safety precautions • D Keine Bedienung durch Kinder! GB Children must not operate the machine! F Pas d‘utilisation par un enfant! NL Geen bediening door kinderen! Non lasciare utilizzare il tagliacarte a bambini! E ¡No dejar que la utilicen los niños! S Installera maskinen utom räckhåll för barn! FIN Asentakaa laite lasten ulottumattomiin! N Installer maskinen utenfor rekkevidde for barn!
  • Page 5 • Safety precautions • EBA 550 • EBA 550 LT D Messer nie lose liegen lassen! Messer nur mit Messer- wechselvorrichtung oder im Messertransportkasten befördern! (siehe Seite 28 und 30). Warnung! Verletzungsgefahr! GB Never leave the blade unattended! Do not extract or transport the blade without protection! (See page 28 and 30).
  • Page 6 • Safety precautions • DK Knivbladet må aldrig efterlades uden opsyn! Forsøg ikke at afmontere eller transportere knivbladet uden beskyttelse! (Se side 28 og 30). FARE! Risiko for legemlig beskadigelse! CZ Nikdy nenechávejte nůž bez krytu! Nikdy nevyjímejte nebo neprepravujte nuz bez ochranného krytu! (Viz. strany 28 a 30). Nebezpecí! Riskujete zranení! P Deixar a faca sempre em local seguro! Não retirar ou transportar a faca sem protecção! (Ver pág.
  • Page 7 • Safety precautions • EBA 550 • EBA 550 LT D Keine harten und splitternden Materialien schneiden! GB Do not cut hard materials or materials which may splinter! F La coupe de matériaux trop durs ou risquant des projections est interdite!
  • Page 8 • Safety precautions • The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may be performed only when the main switch is switched off! - 7 -...
  • Page 9 • Safety precautions • EBA 550 • EBA 550 LT All components which could endanger the operator are covered by a guard (B)! Do not operate the machine without the following safety devices: • Front safety guard (A) • Panels, tightly screwed (B).
  • Page 10 • Safety precautions • When not in use for a longer period switch off. (Main switch to "0"). Danger! Blade must always be covered by the pressing bar. Clamping Blade - 9 -...
  • Page 11 • Installation • EBA 550 • EBA 550 LT The machine is mobile on castors. Align the machine as followes: • Align machine with water level and adjust accordingliy. 4 x screws size 19 (A). • Reference area machine table (B).
  • Page 12 • Operation • It is forbidden to operate the machine if the operating and safety instructions have not been understood. Please check the safety devices are functioning and complete before use. • All covers have to be mounted (A). • The release for cutting is allowed only if the cover (B) is closed and the two-hand safety device is operated at the same time (C).
  • Page 13 • Operation • EBA 550 • EBA 550 LT Position the main switch to "I" (A). Blade locking facility (B) must be pulled out. Open the safety guard (C). Press button (D). Machine will automatically go to the start position.
  • Page 14 • Operation • Optical cutting line indicator: Optical cutting red line (A), indicates the position of the cut. Blade cuts on the front edge of the light beam. Mechanical cutting line indicator: The clamp (B) can be used as cutting line indicator for cutting.
  • Page 15 • Operation • EBA 550 • EBA 550 LT Clamp plate: A clamp plate (A) is fitted to the machine to prevent pressure marks on sensitive material. To dismantle: • Remove the clamp plate (A) by turning the screwdriver (found in tool box) in the space between the clamp and clamp plate.
  • Page 16 • Operation • Setting clamping pressure If necessary, set clamping pressure with setting wheel (A). If a cutting process has been activated, the oil pressure can be seen on the oil pressure indicator (B). The clamp moves automatically when cutting is activated.
  • Page 17 • Operation • EBA 550 • EBA 550 LT Cutting activation A cut can only be activated when the specified size is approached. The LED "S" on the display must be deleted. Step • Close the guard (A). • Press both buttons of the safety two-handed control system (B) simultaneously and keep them pressed until the paper is completely cut.
  • Page 18 • Operation • Operating elements - Front safety guard - Safety two-handed control system clamping and cutting - Air table On-Off - Backgauge control - Foot pedal - Main switch - Hand-wheel for backgauge setting - Blade locking - Backgauge - Side lay left and right - Clamp pressure - Clamp pressure adjustment...
  • Page 19 • Operation • EBA 550 • EBA 550 LT Start machine • Main switch to position "I", Pull out blade locking key Open the front safety guard • Press button backgauge I moves to the rear and searches for the reference...
  • Page 20 • Operation • Cut according to markings • Adjust the backgauge with the hand-wheel or crank handle to the back. • Insert paper and move by means of the stacking angle to the backgauge side lay on the left • Turn the hand-wheel to the right until the marking on the paper to be cut is below the cutting line indicator.
  • Page 21 • Operation • EBA 550 • EBA 550 LT Eject function If button is pressed instead of button , after inserting the measurement , the backgauge will advance forwards so that paper can be removed. Finally the backgauge moves to the last setting.
  • Page 22 • Operation • Programming This control system enables you to store 99 programs with 99 programmable steps. One step represents one measurement. After entering the program numbers you are able to change between several program steps with the button " "...
  • Page 23 • Operation • EBA 550 • EBA 550 LT Eject function program The eject function can be added each time a measurement is entered and ejects before advancing to the next measurement. An eject at the end of a program must be programmed in the first step at the program.
  • Page 24 • Operation • Programming of multiple cut dimension • Press " " appears on the display. • Enter program number 01 ... Top number on display = program number. Lower number = program step. • Enter the cut size on the display •...
  • Page 25 • Operation • EBA 550 • EBA 550 LT Working with programs • Press " " appears on the display • Enter program number 01 ... 99 With the button you are able to change between several program steps. With the backgauge moves to the indicated dimension.
  • Page 26 • Blade and cutting stick replacement • If the cutting quality decreases: • Check the cutting depth (see page 35). • Check the cutting stick (see page 29). • Replace or grind the blade (see page 25 - 35). The blade cannot be ground if the blade height is less than 8,2 cm / 3,23 inches.
  • Page 27 • Blade and cutting stick replacement • EBA 550 • EBA 550 LT • Set mains switch (A) to position "I" . • Set clamping oil pressure (B) to min. 50 bar. • Press in blade locking key (C). • Activate cutting blade remains in lowest position.
  • Page 28 • Blade and cutting stick replacement • Remove both outer screws. Mount blade changing tool (A). Tighten screws (B). - 27 -...
  • Page 29 • Blade and cutting stick replacement • EBA 550 • EBA 550 LT Remove remaining two screws (A). Simultaneously slightly loosen both screws (B) and remove blade with blade changing tool. Weight of blade approx. 5 kg. Place the blade into the blade carrier and screw it into place.
  • Page 30 • Blade and cutting stick replacement • • Loosen screws (A) (SW4). • Remove cutting stick (B). • If needed the cutting stick can be turned or exchanged. • Turn screw (C) as far as possible to the right. • Slightly tighten screws (A). The cutting stick can be used eight times.
  • Page 31 • Blade and cutting stick replacement • EBA 550 • EBA 550 LT Take the exchange blade carefully out of the blade box and screw it to the blade changing tool (D). • Check, if when using the upper threads (B), the blade (E) is protected.
  • Page 32 • Blade and cutting stick replacement • Screw in middle screws and tighten. Remove the blade changing tool. Slightly screw in outer screws. - 31 -...
  • Page 33 • Blade and cutting stick replacement • EBA 550 • EBA 550 LT • Press in blade locking key. • Set main switch to position "I". • Activate cutting blade remains in the lowest position. • Set main switch to position "0".
  • Page 34 • Blade and cutting stick replacement • Loosen slightly screws (A) so that the blade slides onto the cutting stick. Push the blade and screw (B) as far as possible to the left or right and then centralize them. The blade must rest on the cutting stick. Push in the first screw on the left side and tighten.
  • Page 35 • Blade and cutting stick replacement • EBA 550 • EBA 550 LT Tighten the remaining 3 screws beginning from the left. Pull out blade locking key blade moves to the top. Tighten the screw which is visible at the right.
  • Page 36 • Blade and cutting stick replacement • Danger! Blade must always be covered by the pressing bar. Clamping Blade Turn main switch to position "I". Paper cutting test. If the last sheet or several sheets are not completely cut, gradually turn the knob for blade depth adjustment (A) 1/6 turn to the left until the paper is cut along the entire length.
  • Page 37 • Maintenance and cleaning • EBA 550 • EBA 550 LT Maintenance work may only be performed by trained staff. Danger! Disconnect the mains before starting any service work or before removing the cover. Grease and oil the machine according to the lubrication diagram after 1000 operating hours or once a year.
  • Page 38 • Maintenance and cleaning • Lubrication schedule Lubricate (1) to (8). Type of oil: SAE10 to SAE50 all types. Grease (9) to (16) (9+10) Blade guidance (11-12) Clamp guidance Type of grease: Roller bearing grease - all types. Oil hinges of the foot clamping device at the front area of the machine room.
  • Page 39 • Possible malfuntions • EBA 550 • EBA 550 LT Machine does not function! Is the machine plugged in? • Main switch to position "I"? (A) • Blade locking facility (B) must be pulled out. • Push in the fuses in the back of the machine F1, F2, F3.
  • Page 40 • Possible malfuntions • Cut cannot be made. • Measurement has not been reached correctly. LED "S" does not turn off. Push the button again. • Oil pressure set too low. Increase oil pressure at rotary control (A). • Hydraulic oil shortage. Check hydraulic oil level (B), if necessary, top up.
  • Page 41 • Possible malfuntions • EBA 550 • EBA 550 LT Does not cut through the last sheet. Reset the cutting depth (A) ..or turn / replace the cutting stick (B). (See page 29 "Blade and cutting stick replacement").
  • Page 42 • Accessories • Recommended accessories HSS - Blade • 4 244 4 036 6 Cutting sticks • 4 244 1 209 Blade changing tool • 3 244 0 024 Paper knock-up block • 9000 521 Side tables left and right •...
  • Page 43 • Technical data • EBA 550 • EBA 550 LT Technical Data Power supply: 230 V / 50 Hz / 8,5A / 1~ 120 V / 60 Hz / 12A / 1~ Leakage current: < 3,5mA Power cord gauge: min. 1,5mm...
  • Page 44 EG-KONFORMITÄTSERKLÄRUNG EC-declaration of conformity Déclaration de conformité CE - Hiermit erklären wir, daß die Bauart von - Herewith we declare that - Par la présente, nous déclarons que 550; 550 LT - folgenden einschlägigen Bestimmungen entspricht - complies with the following provisons applying to it - sont conformes aux dispositions pertinentes suivantes 98/37/EG;...
  • Page 45 • Made in Germany Aktenvernichter Document Shredders Destructeurs de Documents Papiervernietigers Distruggidocumenti Destructoras de Documentos Schneidemaschinen Guillotines Massicots Snijmachines Tagliacarte Guillotinas • • • • • EBA Krug & Priester 72336 Balingen Germany www.eba.de...
