EBA 485 A Operating Instructions Manual

Guillotines
Hide thumbs

Advertisement

Quick Links

Download this manual
Guillotines
GB Operating Instructions
EBA 485 A
EBA 485 EP

Advertisement

loading
Need help?

Need help?

Do you have a question about the 485 A and is the answer not in the manual?

Questions and answers

Related Manuals for EBA 485 A

Summary of Contents for EBA 485 A

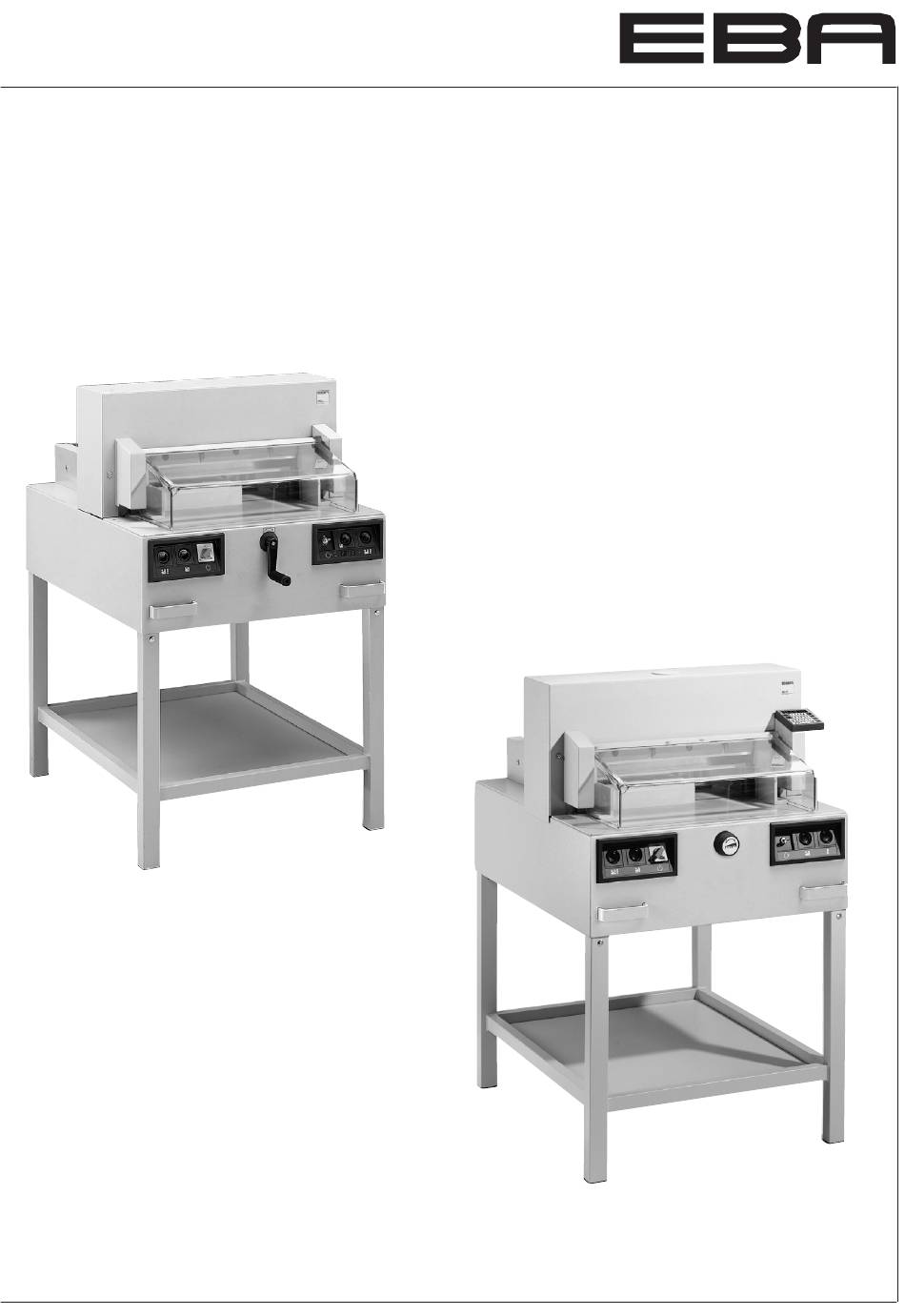

  • Page 1 Guillotines GB Operating Instructions EBA 485 A EBA 485 EP...
  • Page 2 • Safety precautions • EBA 485 A • EBA 485 EP Bitte lesen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung und beachten Sie die Sicherheitshinweise. Die Betriebsanleitung muss jederzeit verfügbar sein. Please read these operating instructions before putting the machine into operation and observe the safety precautions.
  • Page 3 • Safety precautions • Keine Bedienung durch Kinder! GB Children must not operate the machine! Pas d‘utilisation par un enfant! Geen bediening door kinderen! Non lasciare utilizzare il tagliacarte a bambini! No dejar que la utilicen los niños! Installera maskinen utom räckhåll för barn! FIN Asentakaa laite lasten ulottumattomiin ! Installer maskinen utenfor rekkevidde for barn! Dzieciom nie wolno obsługiwać...
  • Page 4 • Safety precautions • EBA 485 A • EBA 485 EP Messer nie lose liegen lassen! Messer nur mit Messerwechselvorrichtung oder im Messertransportkasten befördern! (siehe Seite 31 und 33). Warnung! Verletzungsgefahr! GB Never leave the blade unattended! Do not extract or transport the blade without protection! (See page 31 and 33).
  • Page 5 • Safety precautions • DK Knivbladet må aldrig efterlades uden opsyn. Forsøg ikke at afmontere eller transportere knivbladet uden beskyttelse! (Se side 31 og 33) FARE! Risiko for legemlig beskadigelse. Nikdy nenechávejte nůž bez krytu. Nikdy nevyjímejte nebo neprepravujte nuz bez ochranného krytu (viz.
  • Page 6 Safety precautions • • EBA 485 A • EBA 485 EP Keine harten und splitternden Materialien schneiden! GB Do not cut hard materials or materials which may splinter! La coupe de matériaux trop durs ou risquant des projections est interdite !
  • Page 7 Safety precautions • • The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Warning! Clips or similar damage the cutting blade. Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may be performed only when the main switch is...
  • Page 8 Safety precautions • • EBA 485 A • EBA 485 EP All components which could endanger the operator are covered by a guard! Operating the machine without safety device is forbidden! (Front safety guard (A), rear screwed safety guard (B) and panel (C).
  • Page 9 Safety precautions • • The dangerous cutting movement is safeguarded by a movable guard (A) and a safety two-handed control system! (B) Before working with the machine and after every blade replacement the automatic cut-off function of safety guard (A) (correct if distance between cover and table is <...
  • Page 10 Safety precautions • • EBA 485 A • EBA 485 EP Protect mains cable against heat, oil and sharp edges! Connect the power cord to a single phase socket. 230V / 10A min 115V / 15A min Ensure free access to mains!
  • Page 11 Safety precautions • • When not in use for a longer period switch off. (Main switch to "0"). Danger! Blade must always be covered by the pressing bar. Clamping Blade - 11 -...
  • Page 12 Installation • • EBA 485 A • EBA 485 EP Remove the stand from the wooden pallet. 4 strong people are required to lift the machine from the pallet and place it on the stand. Secure with 4 screws (A). Put the shelf (B) on the stand.
  • Page 13 Installation • • Only EBA 485 A Tighten the backgauge crank (A). Parts and tools are in the tool set (C). Plug into socket. The machine must be connected directly to the socket. - 13 -...
  • Page 14 Operation • • EBA 485 A • EBA 485 EP It is forbidden to operate the machine if the operating and safety instructions have not been understood. Please check the safety devices are functioning and complete before use. • All covers have to be mounted (A).
  • Page 15 Position the main switch to "I" (A). Insert the key for the control system and move it to the right (B). Open the safety guard (C). The machine is now ready for use. Only EBA 485 EP Press button (D). Machine will automatically go to the start position.
  • Page 16 Operation • • EBA 485 A • EBA 485 EP EBA 485 A The measurement is set with the backgauge crank.(A) The symbol – rotary direction – moves to the right on the display (B) (see picture C). The rotary direction of the backgauge crank (A) is indicated on the right.
  • Page 17 Operation • • Only EBA 485 A Pull out the handle to avoid the measurement being wrongly adjusted. Position the paper on the backgauge (A) and side lays left or right (B). To move paper stacks, please use the paper knock-up block (C) provided.
  • Page 18 Operation • • EBA 485 A • EBA 485 EP The clamp moves automatically when cutting is activated. The paper can also be pressed in advance. Clamping and cutting is activated by pressing button (A) on the front table. Pre-clamping...
  • Page 19 Operation • • Close the safety guard. Cutting activation: Press both buttons of the two-handed control system activation (A) simultaneously and them pressed until the paper is completely cut. To interrupt or stop cutting: To interrupt or stop cutting, release both buttons (A) of the two-hand control.
  • Page 20 Operation • • EBA 485 A • EBA 485 EP Operating elements - Front safety guard - Safety two-handed control system Pre-clamping and cutting - Overload switch (blade drive/clamp drive/ backgauge drive) - Backgauge control (EP) - Main switch - Hand-wheel (EP) or crank handle...
  • Page 21 Main switch to position "I", insert the key for the control panel and turn it to the right. Open the front safety guard Only by EBA 485 A Cutting to specified dimensions • The measurement is set with the backgauge crank.(A) The symbol –...
  • Page 22 Operation • • EBA 485 A • EBA 485 EP EBA 485 EP Start machine • Main switch to position "I", insert the key for the control panel and turn it to the right. Open the front safety guard •...
  • Page 23 Operation • • Eject function If button is pressed instead of button after inserting the measurement , the backgauge will advance forwards so that paper can be removed. Finally the backgauge moves to the last setting. Adjust the eject-dimension © •...
  • Page 24 Operation • • EBA 485 A • EBA 485 EP Programming Only EBA 485 EP This control system enables you to store 99 programs with 99 programmable steps. One step represents one measurement. After entering the program numbers you are able to...
  • Page 25 Operation • • Eject function program The eject function can be added each time a measurement is entered and ejects before advancing to the next measurement. An eject at the end of a program must be programmed in the first step at the program. If the dimension and eject function are stored in the program step the program number appears on the display...
  • Page 26 Operation • • EBA 485 A • EBA 485 EP Cancel a program • press © " " appears on the display. • Enter program number 01 ... 99. • Press button twice. Each program has to be cancelled separately.
  • Page 27 Operation • • Working with programs © " • Press " appears on the display • Enter program number 01 ... 99 With the button you are able to change between several program steps. With the backgauge moves to the indicated dimension.
  • Page 28 Blade and cutting stick replacement • • EBA 485 A • EBA 485 EP If the cutting quality decreases: • Check the cutting depth (see page 36). • Check the cutting stick (see page 32). • Replace or grind the blade (see page 28 - 36).
  • Page 29 Blade and cutting stick replacement • • Turn the blade depth adjustment screw to the left until it stops. (Screwdriver found in tool set (A). Close the safety guard (1.). Lower the blade by pressing both cutting buttons (2.). Keep one button pressed and turn off the main switch (3.).
  • Page 30 Blade and cutting stick replacement • • EBA 485 A • EBA 485 EP The 3 eccentrics are now exposed and should be turned counter clockwise to position "0" with the special wrench and attachable extension pipe (A) (in the tool set). The slot must correspond to position "0"...
  • Page 31 Blade and cutting stick replacement • • Position the main switch to "0" (1.) Remove the 2 blade screws on the elongated holes (2.). Then put the blade changing tool (A) into place and fasten it to the blade (3.). Remove the rest of 2 blade screws (1.) Loosen the grips (2.) of the blade changing tool (A) lightly and allow the blade to be taken...
  • Page 32 Blade and cutting stick replacement • • EBA 485 A • EBA 485 EP Take out the cutting stick with a small screw- driver. If needed the cutting stick can be turned or exchanged. (The cutting stick can be used eight times).
  • Page 33 Blade and cutting stick replacement • • Take the exchange blade carefully out of the blade box and screw it to the blade changing tool (A). • Make sure there is a space ot 11 mm or 0.43 inches! (B). •...
  • Page 34 Blade and cutting stick replacement • • EBA 485 A • EBA 485 EP Lightly tighten 2 of the 5 blade screws with washers (1.). Remove the blade changing tool (2.). Lightly tighten the remaining blade screws with washers (3.).
  • Page 35 Blade and cutting stick replacement • • Close the safety guard (1.) Lower the blade by pressing both cutting buttons (2.). Keep one button pressed and turn off the main switch (3.). Open the safety guard (4.). With the special wrench (B) the 3 eccentrics should be screwed down (5.)until the paper is cut along the entire length of the blade (The blade must...
  • Page 36 Blade and cutting stick replacement • • EBA 485 A • EBA 485 EP Paper cutting test. If the last sheet or several sheets are not completely cut, gradually turn the knob for blade depth adjustment (A) ¼ turn to the right until the paper is cut along the entire length.
  • Page 37 Maintenance and cleaning • • Maintenance work may only be performed by trained staff. Danger! Disconnect the mains before starting any service work or before removing the cover. Grease the backgauge (A) control weekly with a grease gun. Advance the backgauge as far as possible to the front.
  • Page 38 Maintenance and cleaning • • EBA 485 A • EBA 485 EP Safety test The safety regulations are according to the regulations of the country where the cutting machine is operated. The manufacturer recommends a safety check is made every 5 years by an authorised service team.
  • Page 39 Possible malfuntions • • Machine does not function! Is the machine plugged in? Main switch to position "I"? (A) Control system activated? (B) (Turn key to the right) Release a cut see page 19. - 39 -...
  • Page 40 Possible malfuntions • • EBA 485 A • EBA 485 EP Cut cannot be made. • If cover is open: close it. • If cover is closed: open and re-close it. (Security check). Machine turns off: • Machine overloaded. Safety button (A) ejects.
  • Page 41 Possible malfuntions • • Does not cut through the last sheet: • Turn or turn around the cutting stick (A), readjust the blade by means of the blade adjusting knob (B) (see page 36). Poor cutting quality or blade stays in the paper stack.
  • Page 42 Possible malfuntions • • EBA 485 A • EBA 485 EP Motor runs but blade does not move downwards. • Security brake has been activated! Inform the Service Team! www.eba.de © "Service" • service@krug-priester.com Display illumination off • Machine is plugged in? (A) •...
  • Page 43 Possible malfuntions • • EBA 485 EP Cut cannot be made. • Measurement has not been reached correctly. • LED "S" does not turn off. Push the button again. Check the security cover (see page 40). • Measurement below 9 cm/3,54 inch...
  • Page 44 Accessories • EBA 485 A • EBA 485 EP Recommended accessories: Blade • Nr. 9000 021 EBA 485 A, EBA 485 EP Cutting stick (6 pieces) • Nr. 9000 022 EBA 485 A, EBA 485 EP Blade changing tool •...
  • Page 45 Technical data • • Technical data: • Power supply: 230V/50Hz/1~,120V/60Hz/1~ • Cutting height: 80 mm • Sound level EN 13023: < 70 dB (A) • Leakage current < 3,5mA • Power cord gauge min. 1,5mm (230V). • Power cord gauge AWG 12 (20A) (120V) The exact technical specifications can be found on the technical specifications sticker (A) on the machine.
  • Page 46 Technical data • • EBA 485 A • EBA 485 EP This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2006/42/EG and 2004/108/EG. Sound level information: The sound level is < 70 db (A) as defined by EN 13023.
  • Page 47 Déclaration de conformité CE - Hiermit erklären wir, daß die Bauart von - Herewith we declare that - Par la présente, nous déclarons que UL- IDENT. Nr. 485 A 10485001 485 EP 10485002 - folgenden einschlägigen Bestimmungen entspricht - complies with the following provisons applying to it...
  • Page 48 EBA • Made in Germany Document Shredders Trimmers and Guillotines • • • • • EBA Krug & Priester 72336 Balingen Germany www.eba.de...
