EBA 480 EP Operating Instructions Manual

Guillotines
Hide thumbs

Advertisement

Quick Links

Download this manual
Guillotines
GB Operating Instructions
EBA 480 EP

Advertisement

loading
Need help?

Need help?

Do you have a question about the 480 EP and is the answer not in the manual?

Questions and answers

Related Manuals for EBA 480 EP

Summary of Contents for EBA 480 EP

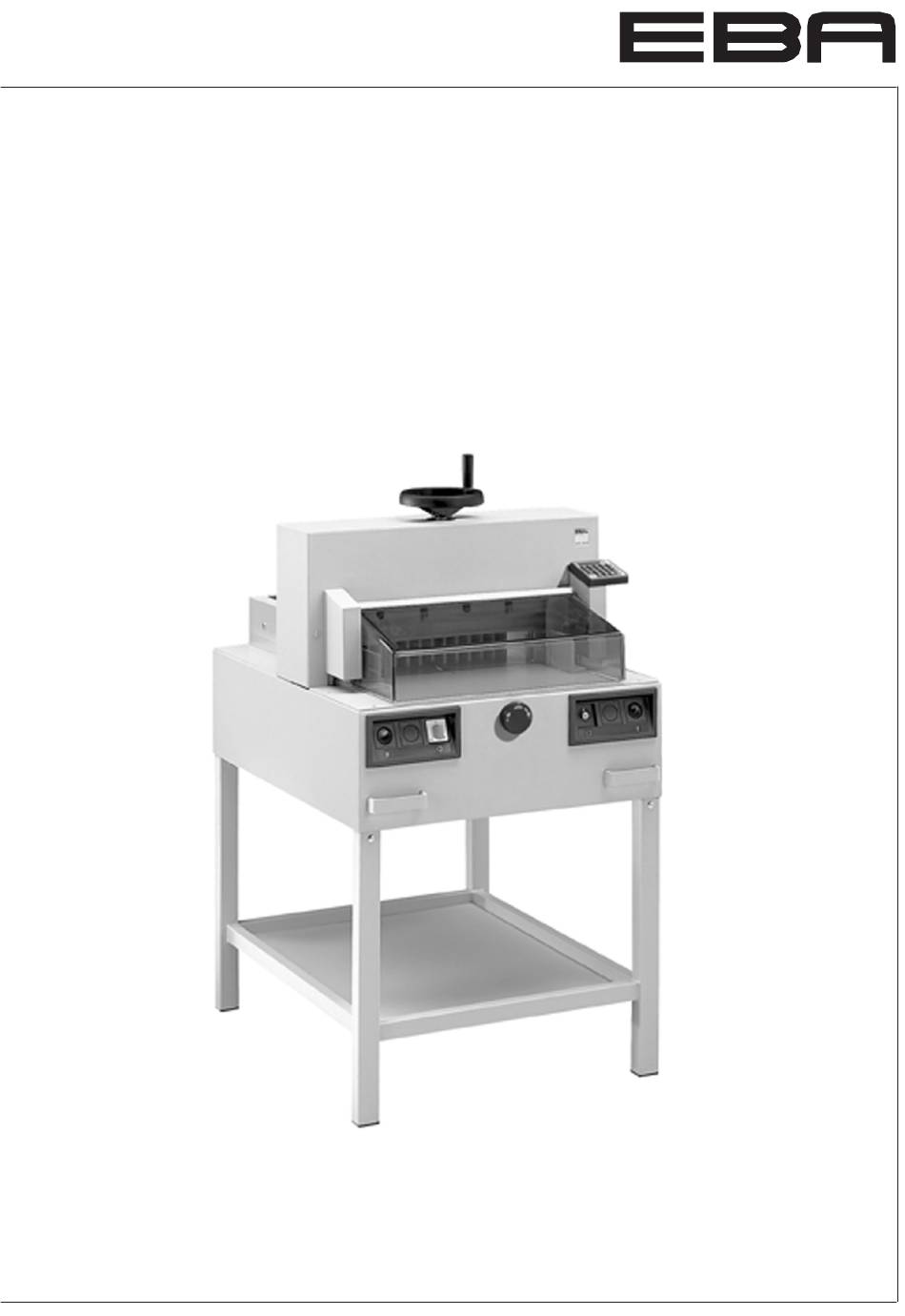

  • Page 1 Guillotines GB Operating Instructions EBA 480 EP...
  • Page 2 • Safety precautions • EBA 480 EP Bitte lesen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung und beachten Sie die Sicherheitshinweise. Die Betriebsanleitung muss jederzeit verfügbar sein. Please read these operating instructions before putting the machine into operation and observe the safety precautions. The operating instructions must always be available.
  • Page 3 • Safety precautions • Keine Bedienung durch Kinder! GB Children must not operate the machine! Pas d‘utilisation par un enfant! Geen bediening door kinderen! Non lasciare utilizzare il tagliacarte a bambini! No dejar que la utilicen los niños! Installera maskinen utom räckhåll för barn! FIN Asentakaa laite lasten ulottumattomiin ! Installer maskinen utenfor rekkevidde for barn! Dzieciom nie wolno obsługiwać...
  • Page 4 • Safety precautions • EBA 480 EP Messer nie lose liegen lassen! Messer nur mit Messerwechselvorrichtung oder im Messertransportkasten befördern! (siehe Seite 30 und 32). Warnung! Verletzungsgefahr! GB Never leave the blade unattended! Do not extract or transport the blade without protection! (See page 30 and 32).
  • Page 5 • Safety precautions • DK Knivbladet må aldrig efterlades uden opsyn. Forsøg ikke at afmontere eller transportere knivbladet uden beskyttelse! (Se side 30 og 32) FARE! Risiko for legemlig beskadigelse. Nikdy nenechávejte nůž bez krytu. Nikdy nevyjímejte nebo neprepravujte nuz bez ochranného krytu (viz.
  • Page 6 • Safety precautions • EBA 480 EP Keine harten und splitternden Materialien schneiden! GB Do not cut hard materials or materials which may splinter! La coupe de matériaux trop durs ou risquant des projections est interdite ! Snij geen harde materialen of materiaal dat kan splinteren!
  • Page 7 Safety precautions • • The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Warning! Clips or similar damage the cutting blade. Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may be performed only when the main switch is...
  • Page 8 Safety precautions • • EBA 480 EP All components which could endanger the operator are covered by a guard! Do not operate the machine without the following safety devices: • Front safety guard (A) • rear screwed safety guard (B) •...
  • Page 9 Safety precautions • • The dangerous cutting movement is safeguarded by a movable guard (A) and a safety two-handed control system! (B) Before working with the machine and after every blade replacement the automatic cut-off function of safety guard (A),(correct if distance between cover and table is <...
  • Page 10 Safety precautions • • EBA 480 EP Protect mains cable against heat, oil and sharp edges! Connect the power cord to a single phase 230V / 10A min socket. 120V / 15A min Ensure free access to mains! - 10 -...
  • Page 11 Safety precautions • • When not in use for a longer period switch off. (Main switch to "0"). Danger! Blade must always be covered by the pressing bar. Clamping Blade - 11 -...
  • Page 12 Installation • • EBA 480 EP Remove the stand from the wooden pallet. 4 strong people are required to lift the machine from the pallet and place it on the stand. Secure with 4 screws (A). Put the shelf (B) on the stand.
  • Page 13 Installation • • Attach the enclosed hand-wheel for clamping. Parts and tools are in the tool set (C). Plug into socket. - 13 -...
  • Page 14 Operation • • EBA 480 EP It is forbidden to operate the machine if the operating and safety instructions have not been understood. Please check the safety devices are functioning and complete before use. • All covers have to be mounted (A).
  • Page 15 Operation • • Position the main switch to "I" (A). Insert the key for the control system and move it to the right (B). Open the safety guard (C). The machine is now ready for use. Press button (D). Machine will automatically go to the start position.
  • Page 16 Operation • • EBA 480 EP If display (C) shows " " the clamp must be completely opened. Turn the hand-wheel for clamping (A) completely to the left until the backgauge (B) is activated. Optical cutting line (A) that indicates the exact position of the cut.
  • Page 17 Operation • • Position the paper on the backgauge (A) and side lays left or right (B). To move paper stacks, please use the paper knock-up block (C) provided. (Run backgauge to the front for turning the paper stack). Clamping is released by the hand-wheel. Before every cut lower the clamp by turning the hand-wheel to the right and tighten with a light twist.
  • Page 18 Operation • • EBA 480 EP Close the safety guard Cutting activation: Press both buttons of the two-handed control system activation (A) simultaneously and them pressed until the paper is completely cut. To interrupt or stop cutting: To interrupt or stop cutting release both buttons (A) of the two-hand control.
  • Page 19 Operation • • Operating elements - Front safety guard - Safety two-handed control system for cutting - Overload switch (blade drive/backgauge drive) - Backgauge control (EP) - Paper clamp - Main switch - Hand-wheel for backgauge setting - Key switch - Backgauge - Side lay left and right - Display cutting size (EP, cm or inch)
  • Page 20 Operation • • EBA 480 EP Start machine • Main switch to position "I", insert the key for the control panel and turn it to the right. Open the front safety guard • Press button backgauge moves to the rear and searches for the reference...
  • Page 21 Operation • • Eject function If button is pressed instead of button after inserting the measurement , the backgauge will advance forwards so that paper can be removed. Finally the backgauge moves to the last setting. Adjust the eject-dimension • Press , hold, and press on display.
  • Page 22 Operation • • EBA 480 EP Multiple cut • Enter the multiple cut size on the display • Advance to the measurement with the button. • Push the paper to the backgauge • Press button the red LED "M "...
  • Page 23 Operation • • Programming This control system enables you to store 99 programs with 99 programmable steps. One step represents one measurement. After entering the program numbers you are able to change between several program steps with the button First figure on display = program number. Second figure = program step.
  • Page 24 Operation • • EBA 480 EP Eject function program The eject function can be added each time a measurement is entered and ejects before advancing to the next measurement. An eject at the end of a program must be programmed in the first step at the program.
  • Page 25 Operation • • Cancel a program • press " " appears on the display. • Enter program number 01 ... 99. • Press button twice. Each program has to be cancelled separately. Deleting a dimension when programming Press and overwrite the dimension. Choose a program step appears.
  • Page 26 Operation • • EBA 480 EP Working with programs • Press " " appears on the display • Enter program number 01 ... 99 With the button you are able to change between several program steps. With the backgauge moves to the indicated dimension.
  • Page 27 Blade and cutting stick replacement • • If the cutting quality decreases: • Check the cutting depth (see page 35). • Check the cutting stick (see page 31). • Replace or grind the blade (see page 27 - 35). The blade cannot be ground if the blade height is less than 83 mm/3,29 inches.
  • Page 28 Blade and cutting stick replacement • • EBA 480 EP Turn the blade depth adjustment screw to the left until it stops. (Screwdriver found in tool set (A). Close the safety guard (1.). Lower the blade by pressing both cutting buttons (2.).
  • Page 29 Blade and cutting stick replacement • • The 3 eccentrics are now exposed and should be turned counter clockwise to position "0" with the special wrench and attachable extension pipe (A) (in the tool set). The slot must correspond to position "0" (B). Unscrew the blade screws (C) on the right hand side.
  • Page 30 Blade and cutting stick replacement • • EBA 480 EP Position the main switch to "0" (1.) Remove the 2 blade screws on the elongated holes (2.). Then put the blade changing tool (A) into place and fasten it to the blade (3.).
  • Page 31 Blade and cutting stick replacement • • Take out the cutting stick with a small screw- driver. If needed the cutting stick can be turned or exchanged. (The cutting stick can be used eight times). Replacing the cutting stick (not the blade) •...
  • Page 32 Blade and cutting stick replacement • • EBA 480 EP Take the exchange blade carefully out of the blade box and screw it to the blade changing tool (A) • Make sure there is a space ot 11 mm or 0.43 inches! (B).
  • Page 33 Blade and cutting stick replacement • • Lightly tighten 2 of the 5 blade screws with washers (1.). Remove the blade changing tool (2.). Lightly tighten the remaining blade screws with washers (3.). Lightly screw in the right blade screw with the washer (A) when the blade is lowered.
  • Page 34 Blade and cutting stick replacement • • EBA 480 EP Close the safety guard (1.) Lower the blade by pressing both cutting buttons (2.). Keep one button pressed and turn off the main switch (3.). Open the safety guard (4.). With the special wrench (B) the 3 eccentrics should be screwed down (5.)until the paper is cut along the...
  • Page 35 Blade and cutting stick replacement • • Paper cutting test. If the last sheet or several sheets are not completely cut, gradually turn the knob for blade depth adjustment (A) ¼ turn to the right until the paper is cut along the entire length.
  • Page 36 Maintenance and cleaning • • EBA 480 EP Maintenance work may only be performed by trained staff. Danger! Disconnect the mains before starting any service work or before removing the cover. Grease the backgauge (A) control weekly with a grease gun. Advance the backgauge as far as possible to the front.
  • Page 37 Maintenance and cleaning • • Safety test The safety regulations are according to the regulations of the country where the cutting machine is operated. The manufacturer recommends a safety check is made every 5 years by an authorised service team. - 37 -...
  • Page 38 Possible malfuntions • • EBA 480 EP Machine does not function! Is the machine plugged in? Main switch to position "I"? (A) Control system activated? (B) (Turn key to the right) Release a cut see page 18. - 38 -...
  • Page 39 Possible malfuntions • • Cut cannot be made. • If cover is open: close it. • If cover is closed: open and re-close it. (Security check). - 39 -...
  • Page 40 Possible malfuntions • • EBA 480 EP Machine turns off: • Machine overloaded. Safety button (A) ejects. (Allow 1 minute cooling time and reset the safety button (A). • Machine blocked. • Blade is blunt. Eliminate the cause, and push the safety button (A).
  • Page 41 Possible malfuntions • • Does not cut through the last sheet: • Turn or turn around the cutting stick (A), readjust the blade by means of the blade adjusting knob (B) (see page 35). Poor cutting quality or blade stays in the paper stack.
  • Page 42 Possible malfuntions • • EBA 480 EP Motor runs but blade does not move downwards. • Security brake has been activated! Inform the Service Team! • www.eba.de "Service" service@krug-priester.com Display illumination off • Machine is plugged in? (A) • Main switch on position "I"? (B) •...
  • Page 43 (Hand-wheel has been turned to the left). " " is shown on the display. inform service people. None of the above mentioned methods helped to solve the problem: Contact Service Team under • www.eba.de "Service" service@krug-priester.com - 43 -...
  • Page 44 • • Accessories EBA 480 EP Recommended accessories: Blade • Nr. 9000 021 Cutting stick (6 pieces) • Nr. 9000 022 Blade changing tool • Nr. 9000 518 Paper knock-up block • Nr. 9000 521 Included in delivery - 44 -...
  • Page 45 Technical data • • Technical data: • Power supply: 230V/50Hz/1~,120V/60Hz/1~ • Cutting length: 475 mm • Cutting height: 80 mm • Table depth: 458 mm • Sound level EN 13023: < 70 dB (A) • Leakage current < 3,5mA • Power cord gauge min.
  • Page 46 Technical data • • EBA 480 EP This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2006/42/EG and 2004/108/EG. Sound level information: The sound level is < 70 db (A) as defined by EN 13023.
  • Page 47 - Hiermit erklären wir, daß die Bauart von - Herewith we declare that - Par la présente, nous déclarons que UL-IDENT. Nr. 480 EP ID NR. 10481002 - folgenden einschlägigen Bestimmungen entspricht - complies with the following provisons applying to it...
  • Page 48 EBA • Made in Germany Document Shredders Guillotines • • • • • EBA Krug & Priester 72336 Balingen Germany www.eba.de...
