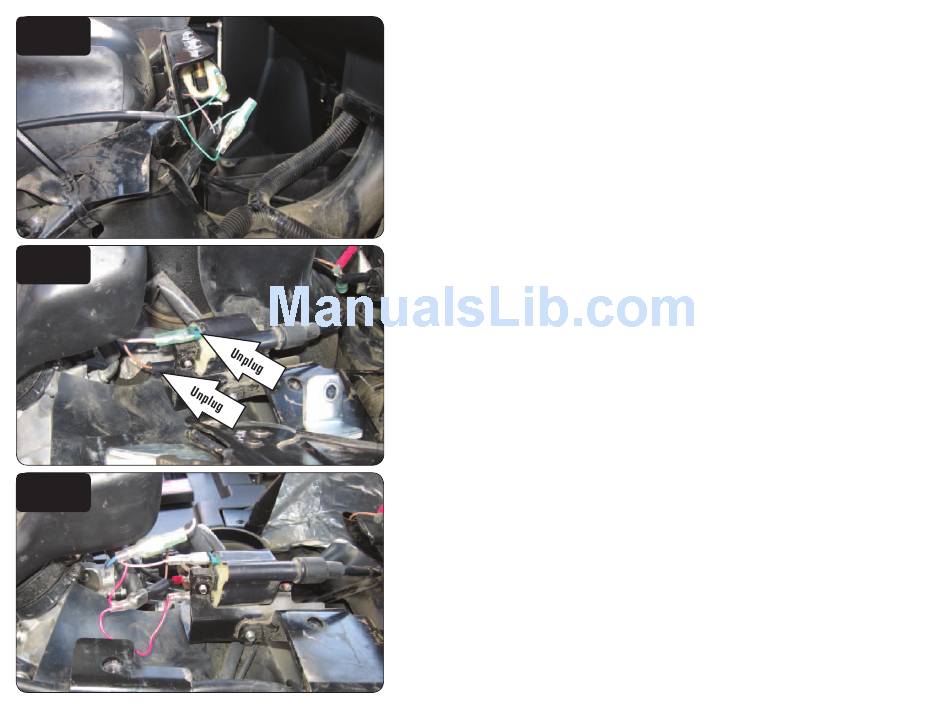

10 Plug the GREEN colored wires of the PCV wiring harness in-line of the
GREEN Front Ignition Coil pin and the stock GREEN Front Ignition Coil wire
with the CLEAR insulator (Fig. G).
11 Route the PCV wiring harness leads with the RED and BLUE colored wires
towards the Rear Ignition Coil.
The Rear Ignition Coil is located at the rear of the airbox.
12 Unplug the WHITE coil wire with the CLEAR insulator from the upper coil pin.
This is the upper wire originally going to the GREEN pin of the coil.
13 Unplug the BROWN coil wire with the BLACK insulator from the lower coil pin
(Fig. H).
This is the lower wire originally going to the BLACK pin of the coil.
14 Plug the BLUE colored wires of the PCV wiring harness in-line of the GREEN
upper Rear Ignition Coil pin and the stock Rear Ignition Coil WHITE wire with
the CLEAR insulator.
15 Plug the RED colored wires of the PCV wiring harness in-line of the BLACK
lower Rear Ignition Coil pin and the stock Rear Ignition Coil BROWN wire with
the BLACK insulator (Fig. I).
