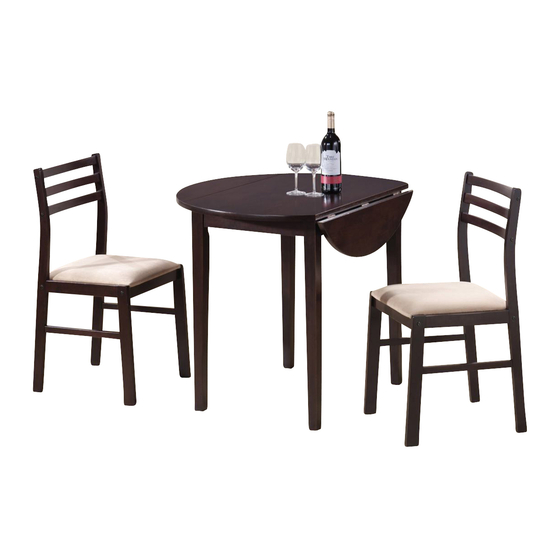

- Page 1 130005 3PCS DINING SET ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE www.coastercompany.com PAGE 1 OF 4 REVISION 0 : 06/19/2011 REVISION 1 : 09/13/2011...
-
Page 2: Parts Identification
130005 ITEM : ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size 2. Please check to see that all hardware and parts are present prior start of assembly. 3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly. - Page 3 130005 ITEM : ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 Place table top upside down on soft suface, align and fasten all legs to table top using bolt, lock washer and flat washer and tighten with wrench. STEP 3 STEP 4...
- Page 4 130005 ITEM : ASSEMBLY INSTRUCTIONS STEP 5 STEP 6 Insert dowels into side rails Align and fasten cushion seat to front and back rails using screws and tighten with screw driver (Not provided). STEP 7 Complete www.coastercompany.com PAGE 4 OF 4...
