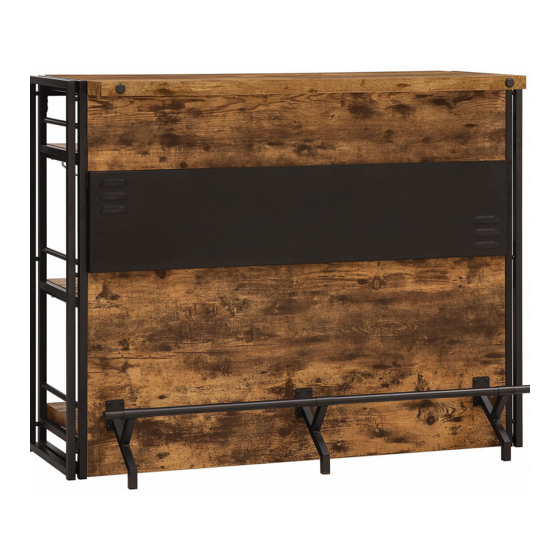

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 130071 BAR UNIT REVISION 0 : 01/26/2018 REVISION 1 : 07/30/2019 PAGE 1 OF 9 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
130071 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. - Page 3 130071 ITEM: ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS PARTS IDENTIFICATION PARTS IDENTIFICATION BOTTOM CROSSBAR 2PCS FOOTREST TOP PANEL UPPER PANEL LOWER PANEL BOTTOM PANEL FRONT TOP PANEL PAGE 3 OF 7 PAGE 3 OF 9 COASTERFURNITURE.COM COASTERFURNITURE.COM...
-
Page 4: Hardware Identification
130071 ITEM: ASSEMBLY INSTRUCTIONS PARTS IDENTIFICATION PARTS IDENTIFICATION FRONT BOTTOM PANEL HARDWARE IDENTIFICATION LONG BOLT 4PCS (1/4" x 42mm BLK) MEDIUM 12PCS (1/4" x 28mm BLK) SHORT BOLT 36PCS (1/4" x 12mm BLK) SMALL BOLT 3PCS (1/4" x 12mm BLK) - Page 5 130071 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 Do not tighten until each step is completed or instructed. STEP 2 Same as the other side, to use #3 6pcs to assemble. PAGE 5 OF 9 COASTERFURNITURE.COM...
- Page 6 130071 ITEM: ASSEMBLY INSTRUCTIONS STEP 3 Same as the other side, to use #3 4pcs to assemble. STEP 4 PAGE 6 OF 9 COASTERFURNITURE.COM...
- Page 7 130071 ITEM: ASSEMBLY INSTRUCTIONS STEP 5 STEP 6 PAGE 7 OF 9 COASTERFURNITURE.COM...
- Page 8 130071 ITEM: ASSEMBLY INSTRUCTIONS STEP 7 STEP 8 COMPLETE PAGE 8 OF 9 COASTERFURNITURE.COM...
- Page 9 130071 ITEM: ASSEMBLY INSTRUCTIONS Product Size : 1302 X 521 X 1041 H (MM) Product Size : 51 " X 20 " X 41" The thickness of the metal is:1.0mm 1041 mm 41" 1302 mm 521 mm " " PAGE 9 OF 9...
